Key Properties:
-
Comparing round copper wire, flat copper wire with more excellent performance, higher current ( unit current density reach 1.5~2.0 times) & smaller volume (0.5~1.0 times).
-
Lower DC resistance, extremely small capacitance distribution, perfect heat dissipation.
-
Closed magnetic circuit design, small magnetic leakage, stable impedance balance, good conducted radiation effect and EMI effect.
-
Automatic machine winding, which guarantee stable quality, competitive production cost, more time-saving, better quality, higher efficiency during final application.
-
Stronger insulation, extending power lifespan.

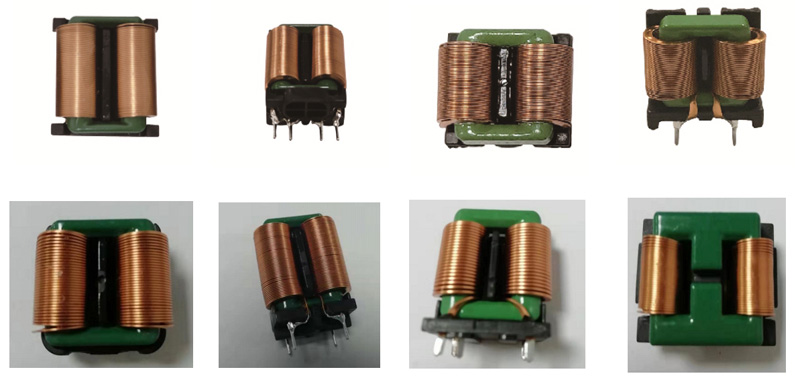

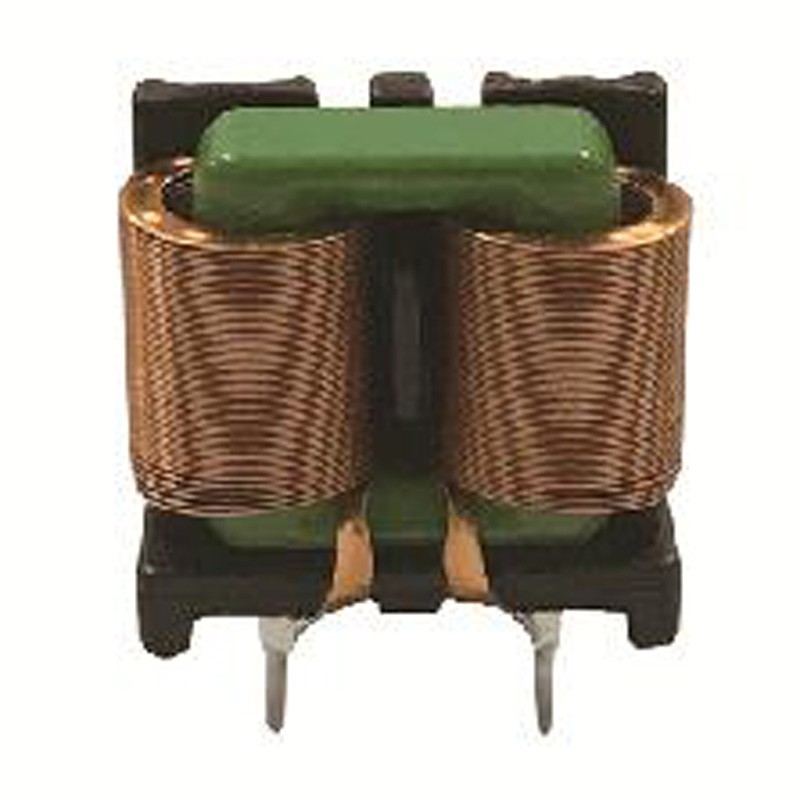

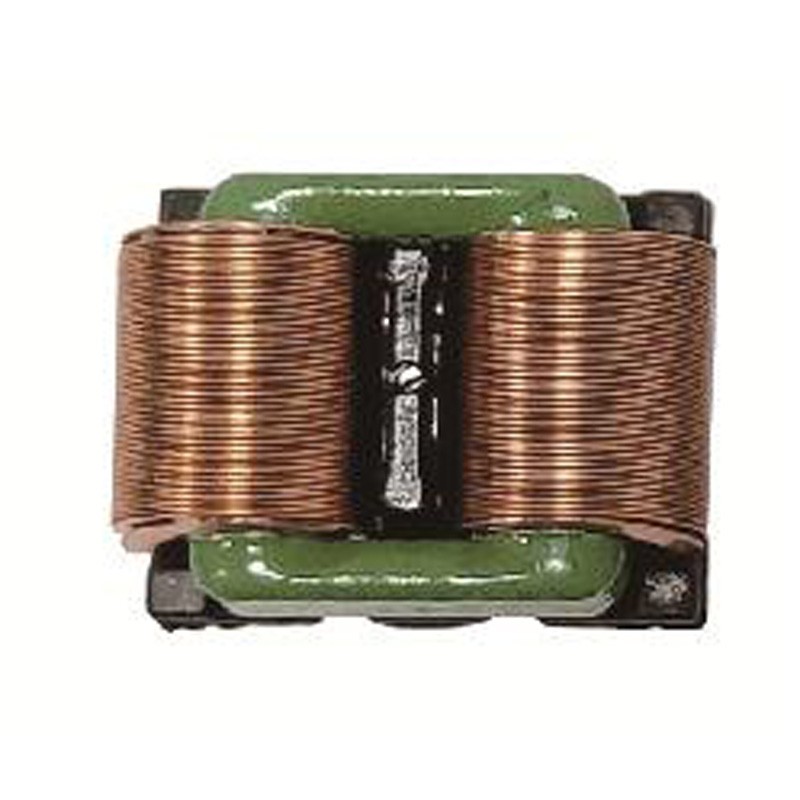

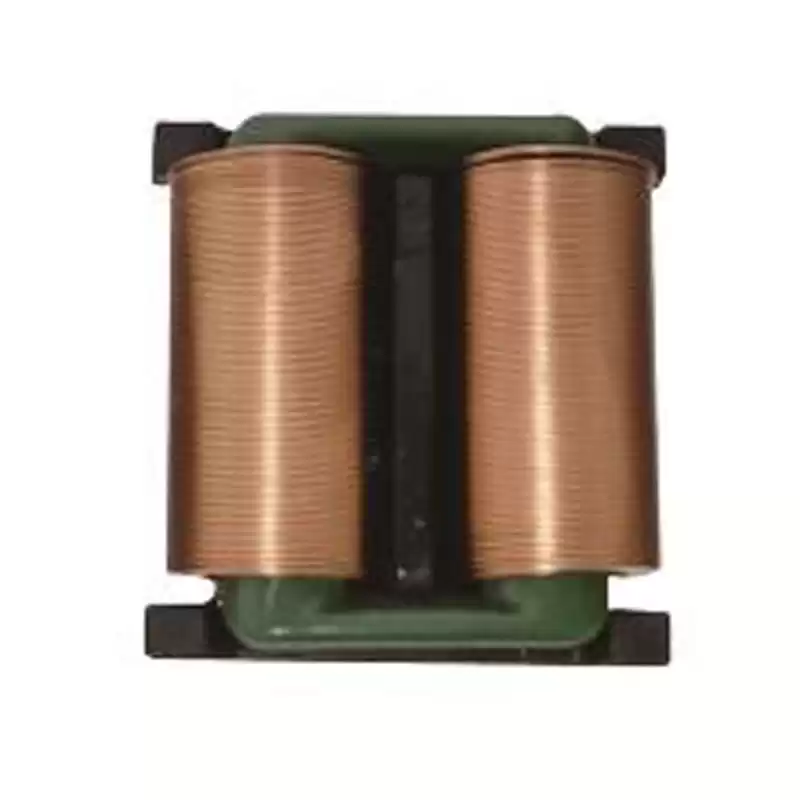

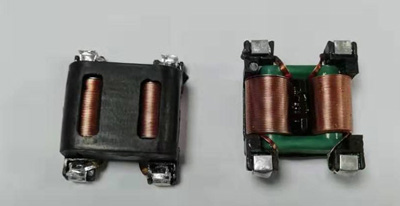

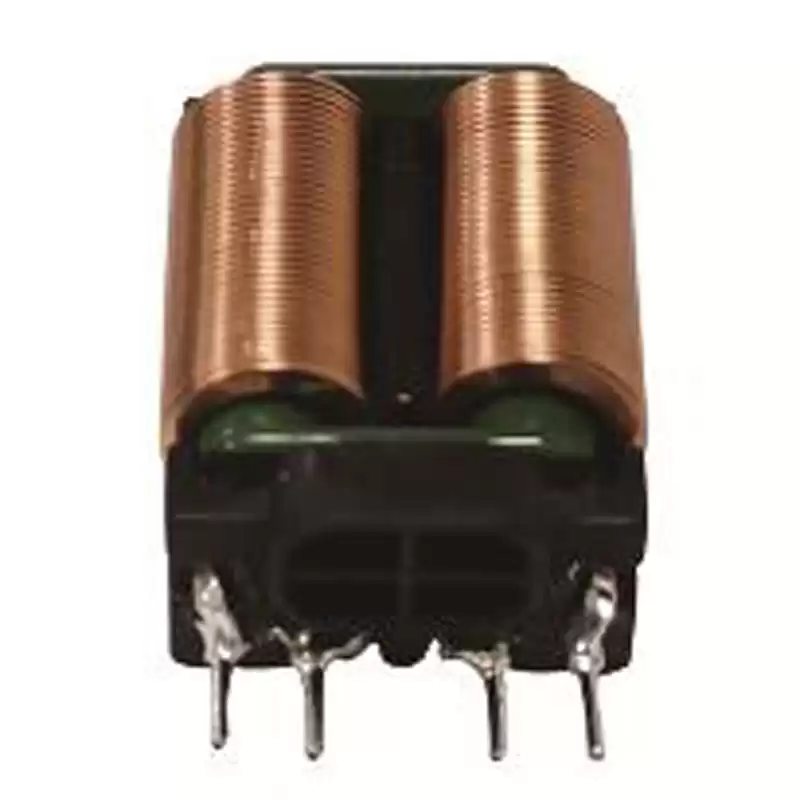

Series Solution:
-
SQ Series --SQ1010 SQ1212 SQ1515 SQ1918 SQ2018 SQ2219 SQ2418 SQ2820 SQ3324 SQ2219 SQ2319 SQ2018 SQ2118
|
Typical Parameter
|
|
Core & Wire
|
Square closed magnetic core & Automatically winding flat wire
|
|
Rated voltage
|
AC / DC80V ~ 280V
|
|
Insulation withstand voltage
|
AC2.0KV 60SEC
|
|
Insulation resistance
|
100MΩ Min. DC 500V
|
|
Flammability compliance
|
UL 94 V-0
|
|
Working temperature
|
-40°C ~ + 125°C (including coil temperature rise)
|
|
Storage temperature
|
-40°C ~ + 125 °C
|

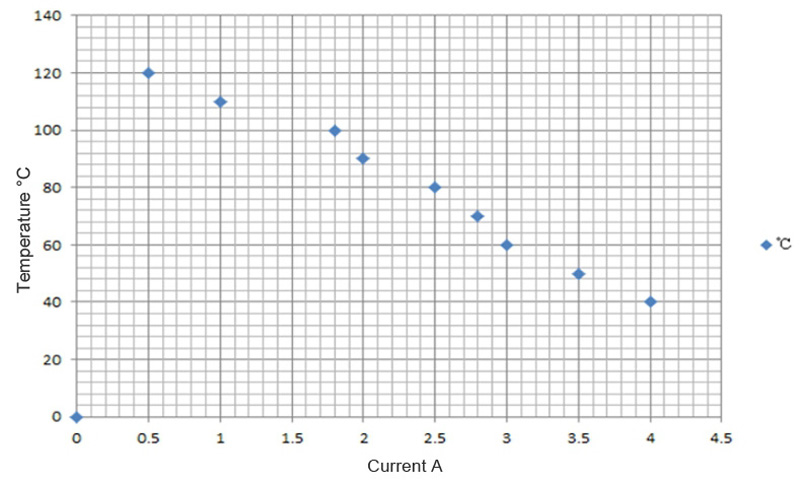

Temperature vs. current curve:
|
<40°C, Working Current 0-4A
|
|
<60°C, Working Current 0-3A
|
|
<80°C,Working Current 0-2.5A
|
|
<110°C, Not supported
|

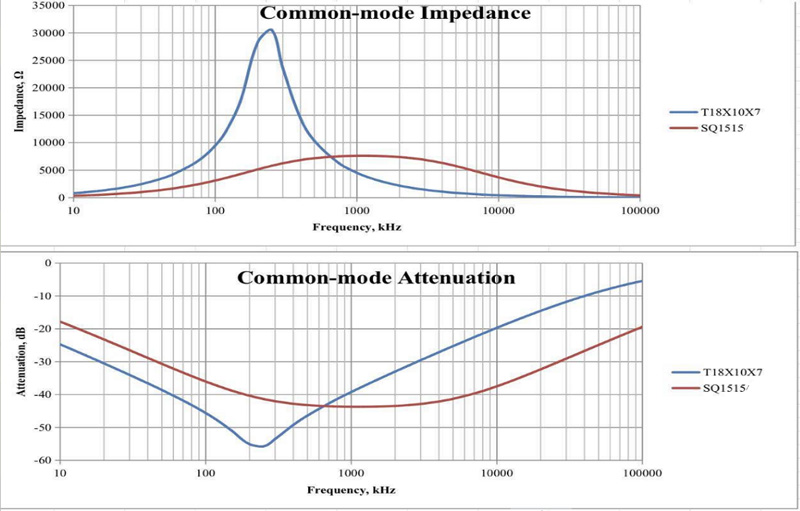

SQ Series Common-mode Impedance & Attenuation:
Main Application:
Flat wire transformer is a perfect substitute replacement of common CMC, which is popular used in various power line solution, including: LCD TV, power adapter,switching power supplier, LED ultra-thin power suppliers, LED drive circuits, TP power supplier, Industrial Power Supplier, Computer Power Supplier, electric vehicle, solar energy, automotive electronic equipment, industrial equipment, office automation equipment, household appliances, digital products, inverters, etc.
Different series options details please download here.
