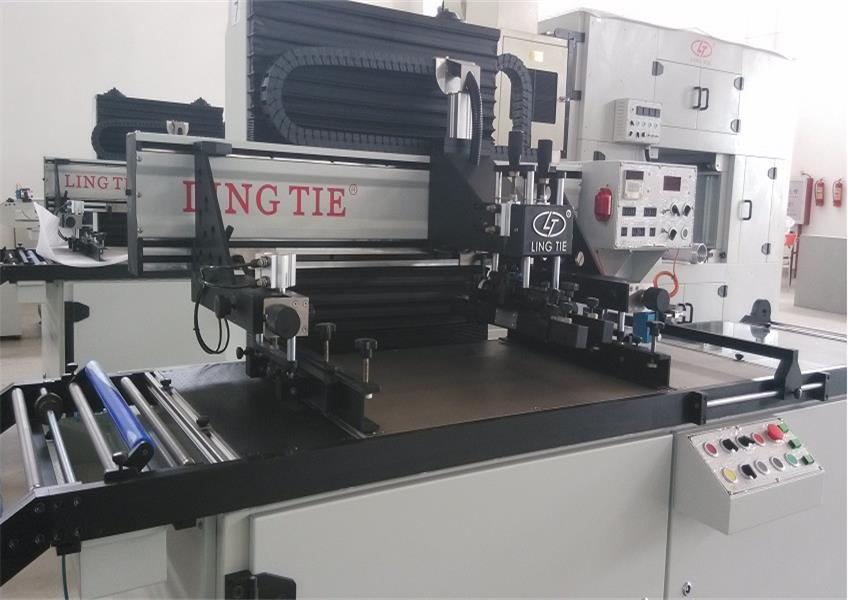

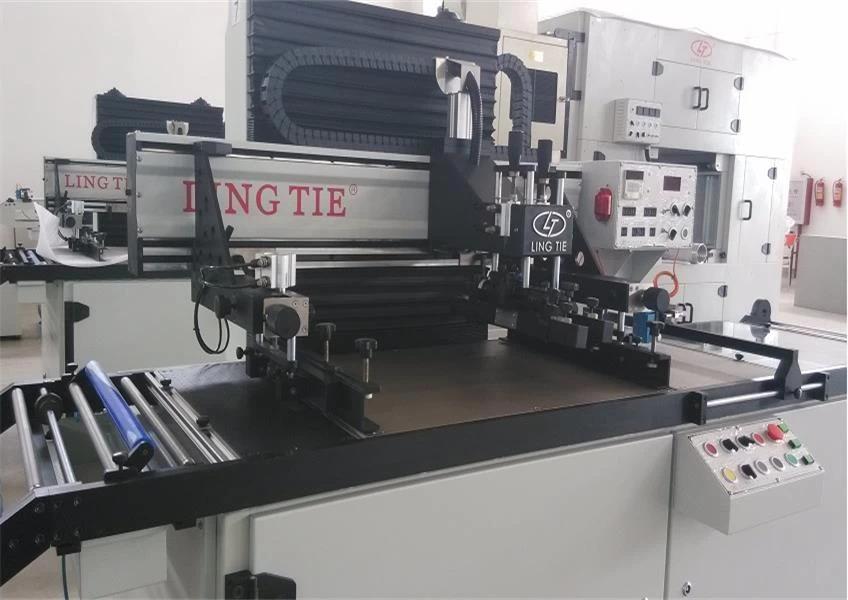

Product Name: Flatbed Silkscreen Printing Machine

Features

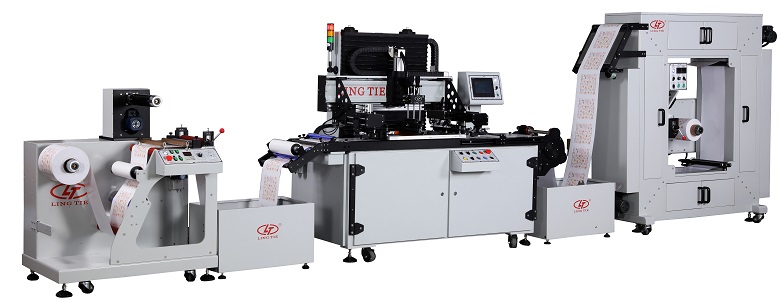

1, The flatbed silkscreen printing  machine attached in the video

which consists of A Feeder Unit + A Screen Printing Machine + A Hot Air Dryer

2, Which max. printing area is 300 x 400 mm, but the max. web width will be 330 mm.

we have bigger printing size for option

3, One single screen printing station, since can print multi-color,

 like 2 colors, 3 colors., 4 colors. etc,  we can do it through changing different  screen frames to reach.

4,  In the attached video, which is 3 colors printing

5, The printing speed is about 10-15 meters / minuter,

 you can calculate how many pieces labels printed according to your label size, and working time every day

6, this printing precision is 0.01 mm with 3 sensors,

  which is perfect for your heat transfer label, care wash label, car decals, IMD, IMF, soft circuit board, flexible circuit board, RFID Antenna. etc

7, The  Power of whole sprinting line is about 18 KW, and the consumption of a whole day is very low, the cost is very limited.

8, This flatbed silk screen printing machine is also called flatbed screen printer in roll form, so your film like PET, PVC, PE, PC, BOPP, adhesive paper must in roll form

9, This flatbed screen printer roll to roll machine can handle all kinds of inks, like solvent ink, UV ink, plastisol ink, etc

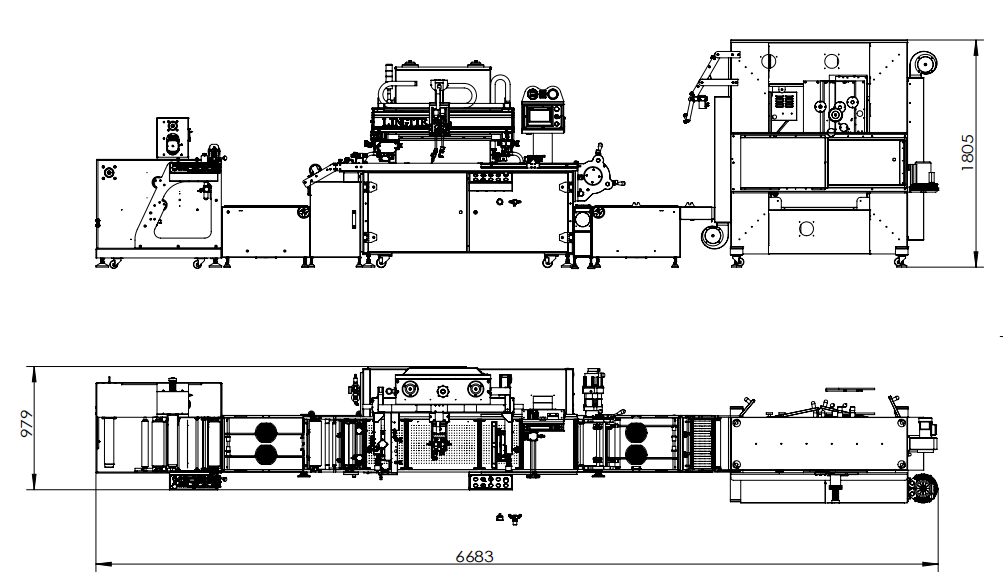

10, The dimension of the whole printing line is about 6683 x 979 x 1805 mm
