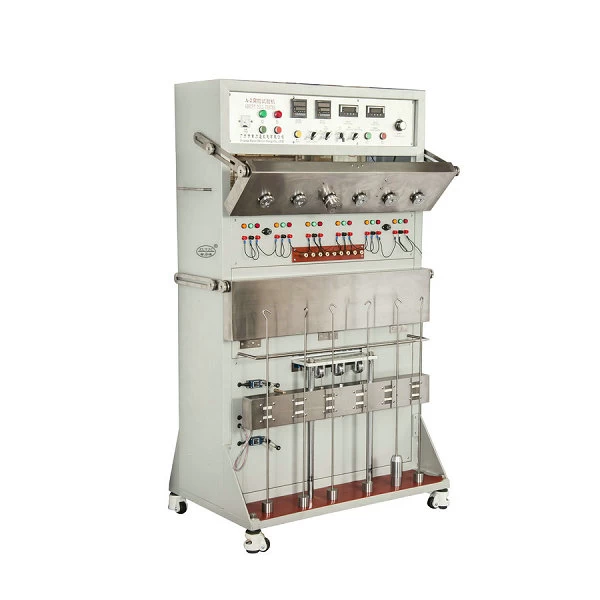

Flexible Cord Abrupt Pull Test Apparatus
Product details:Model ZLT-A2

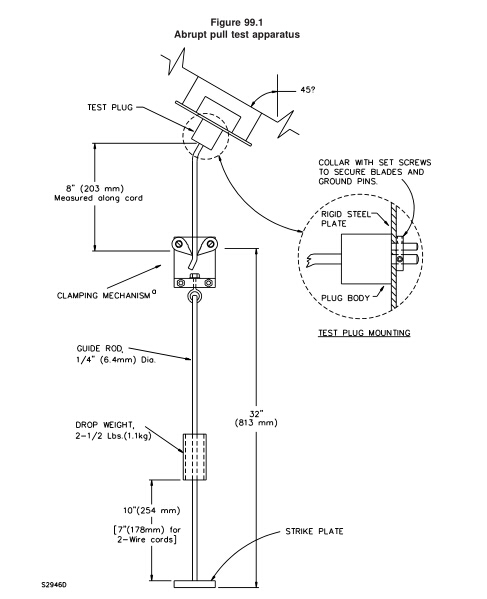

Conform to UL 817 clause 99 and figure 99.1 -99.2, is applied to molded-on attachment plugs and the male portion of molded-on current taps used on cord setsand power-supply cords employing a grounding conductor , for abrupt pull test, rotation test,drop weight test and carrying current test of grouding conductor :0.1-50A
Outfit：
Power Supply：AC220V 50HZ；
Test Station： 6
Load Current：0~50A Adjustable
Load Voltage： 6~12V
Test Times： 1~9999
Test Time: 0.1~999.9S
Weight: 2.5LB（Weight for abrupt pull test）、3LB（Weight for rotation test）、15LB（drop weight）, 6 pcs each
