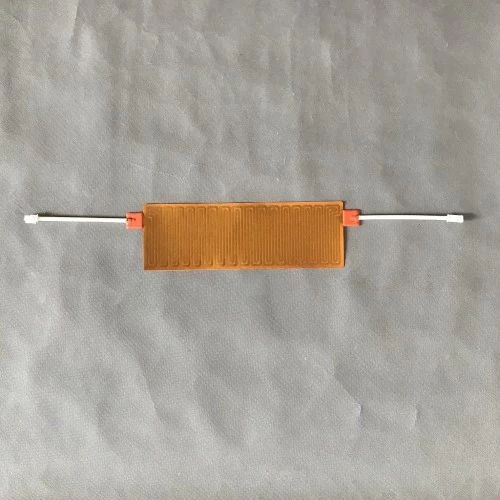

Flexible Kapton Heater / Flexible kapton heating film 43.8V
PI heating film is a thin and translucent material with fantastic dielectric strength. It is an idea choice when using in extremely narrow, exposing under vacuum, oily and chemical situation. Thin and light heating film can be used in exact appointed location, which is a swift, effective and heat uniform heating solution.
Feature：
|
Product Name
|
Thickness（mm）
|
Area(CM²）
|
Weight（g）
|
Weight（CM²/g)
|
|
PI heater
|
0.40
|
30
|
2.11
|
0.07
|
Lightweight,Thin, Flexible
Available in 0.3-5 W/in2
-56°C(-70°F) to 232°C (450°F) Operating Temperature
Etched Foil and Wire Wound Design
Round or Rectangular custom Shapes & sizes
Available in 3.7V-240V
Optional Pressure Sensitive Adhesive(PSA)
Application of polyimide kapton heating film:
Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
Stabilize optoelectronic components
Test or simulate integrated circuits
Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD'S
Protect aircraft eletronic and mechanical devices in cold weather / area

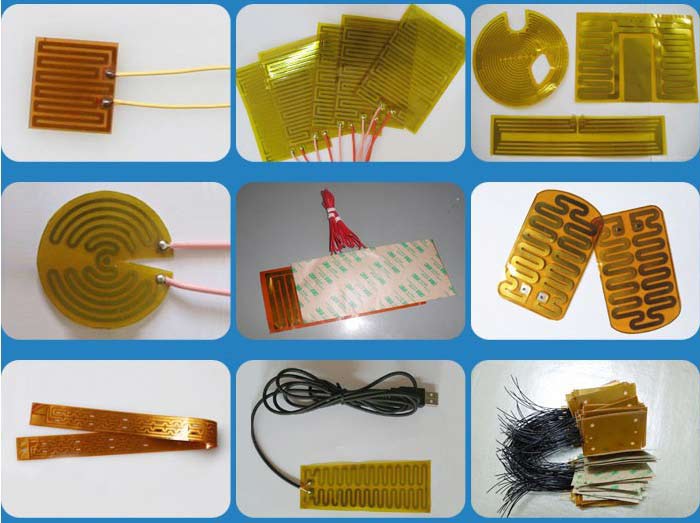

More of polyimide kapton heating film:
Packing & Delivery :
PP Bag and Carton Box. or other required packing .
Samples can be shipped within 3 days.
Large quantity shipped within 10 days.
