Product Description
1.Product feature and purpose:
-
Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to chemical attack.
-
In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.
-
In terms of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
2. Operative standard
-
GB/T 12706,IEC 60502 and relevant domestic and international standard.
3.Operational performance
-
The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 ℃ in case of short circuit (maximum duration of short circuit is 5s).
Flexible copper conductor Twisted electrical Wire family application cable
|
No.of cores×cross section(mm²)
|
Conductor type
|
Insulation thickness
(mm)
|
Reference diameter
(mm)
|
Reference weight
(kg/km)
|
|
2×0.5
|
1
|
0.6
|
7.9
|
72
|
|
2×0.75
|
1
|
0.6
|
9.3
|
81
|
|
2×1.0
|
1
|
0.6
|
9.7
|
90
|
|
2×1.5
|
1
|
0.7
|
10.7
|
113
|
|
2×2.5
|
1
|
0.8
|
12.1
|
153
|
|
2×4
|
1
|
0.8
|
13.2
|
210
|
|
2×6
|
1
|
0.8
|
14.3
|
269
|
|
2×10
|
2
|
1
|
18.8
|
502
|
|
5×0.5
|
1
|
0.6
|
9.3
|
179
|
|
5×0.75
|
1
|
0.6
|
11.1
|
207
|
|
5×1.0
|
1
|
0.6
|
11.6
|
233
|
|
5×1.5
|
1
|
0.7
|
13
|
299
|
|
5×2.5
|
1
|
0.8
|
15.5
|
410
|
|
5×4
|
1
|
0.8
|
17.2
|
540
|
|
5×6
|
1
|
0.8
|
18.8
|
721
|
|
5×10
|
2
|
1.0
|
24
|
1397
|

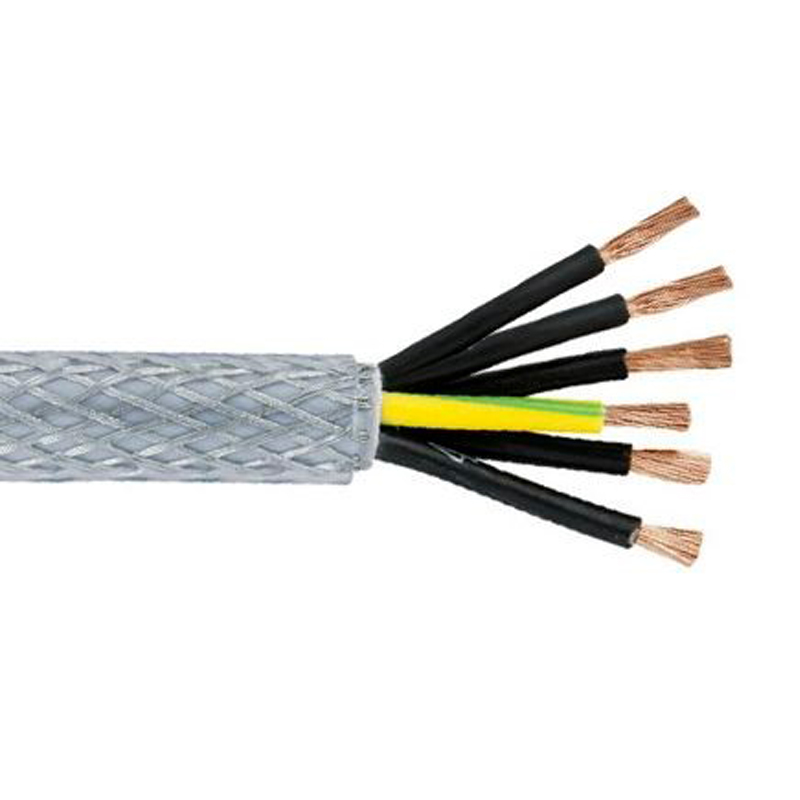

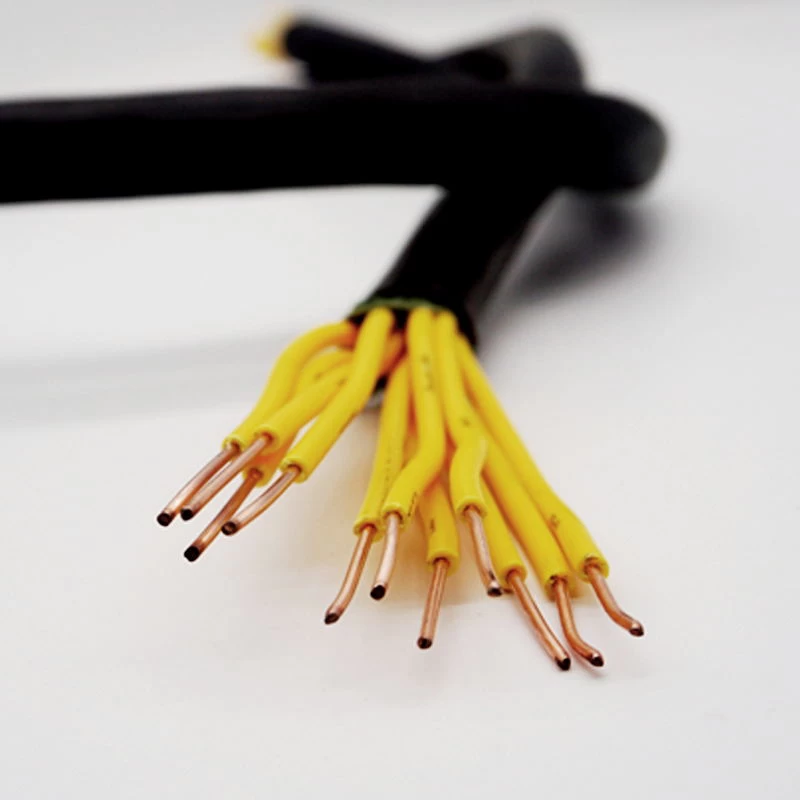

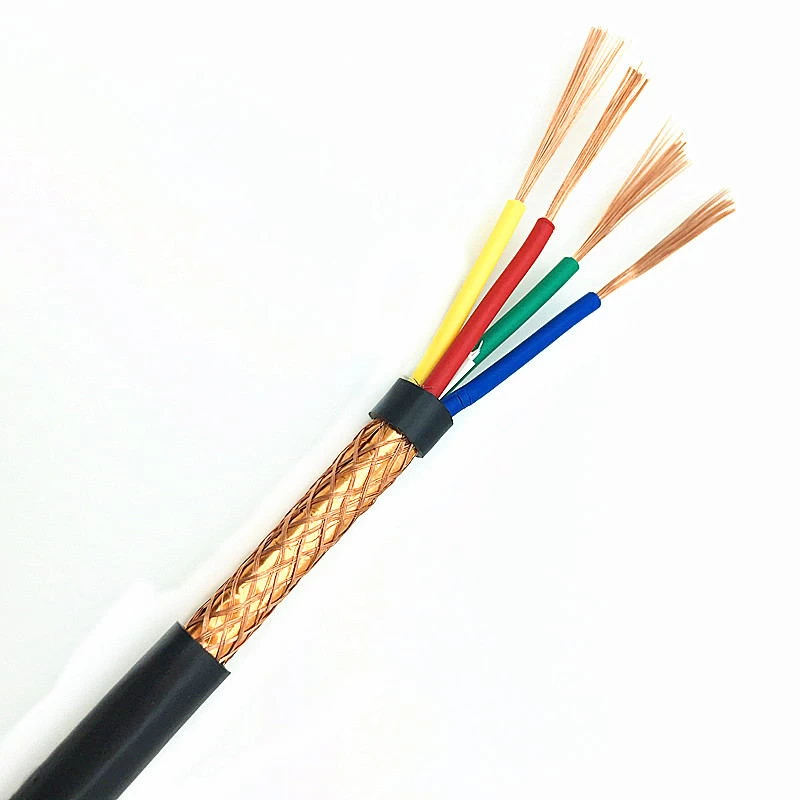

Product Pictures
