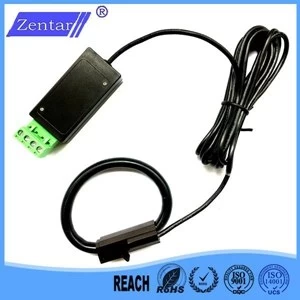

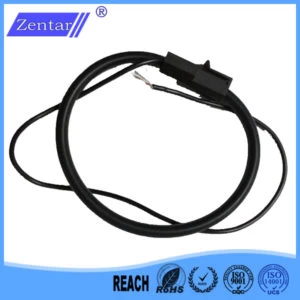

Flexible Rogowski Coil RC601
Electrical Specification:
Power Supply: 12VDC,50mA MAX
Oprating frequncy : 45Hz-600Hz
Rated primary current : 1000A
Rated output voltage: 0.333mv
Current range: 10A-6000A
Accuracy class: 0.50%
Dielectric voltage(Hi-pot): 3000Vrms/2 seconds between sec. / outside
Ambient storage temperature: -40~+70ºC
Ambient operating temperature: -35~+70ºC
Drawing
Application
Current monitoring in precision welding systems, arc melting Measurement of harmonic current content furnaces, or electromagnetic launchers.
1. Open-ended and flexible, allowing it to be wrapped around a live conductor without disturbing it.
2. High-current Rogowski coils to be calibrated using much smaller reference current
3. No danger of opening the secondary winding.
4. Lower construction costs
5. Temperature compensation is simple.
6. Smaller than an equivalent rating current transformer.
