System Type
|
FOEN Floating Solar System
|
|
Max Wind Speed
|
118.8 km/h
|
|
Water Flow Speed
|
≥1m/s
|
|
Temperature
|
-20℃~+70℃
|
|

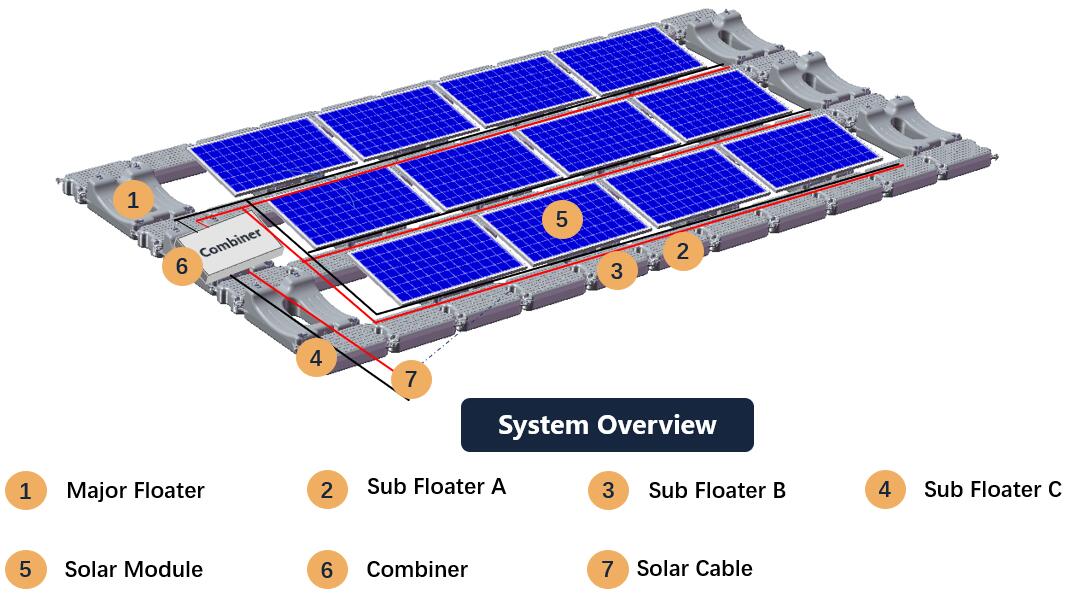

Size (Major Floater)
|
1100X1000X450 mm
|
|
Tilt Angle
|
12°
|
|
Buoyance
|
160±5 kg
|
|
Weight
|
11.3±0.4 kg
|
|
Size (Sub-floater A)
|
1000X500X200 mm
|
|
Buoyance
|
75±5 kg
|
|
Weight
|
5.3±0.4 kg
|
|
Size (Sub-floater B)
|
1000X500X200 mm
|
|
Buoyance
|
85±5 kg
|
|
Weight
|
5.7±0.4 kg
|
|
Size (Sub-floater C)
|
1000X500X200 mm
|
|
Buoyance
|
85±5 kg
|
|
Weight
|
6 ±0.4 kg
|
|
Body Thickness
|
3-5 mm
|
1) Built on water surface, reduce land expropriation cost.
2) Do not need site formation, trenching work, foundations and save relevant costs.
3) Water has function of cooling PV modules, so that can achieve more power generation about 10%.
4) Floating modules can reduce water evaporation, less sunshine also helps algae restrain, to protect water source.
5) Modular design, easy to install. Water area close to villages and cities, can be consumed or connected to grid conveniently.
6) Ecological material made, pollution free, 100% recyclable, long longevity and no hazardous substance exudates.
7) Tidy and orderly array of modules on water can be a highlight spot for tourists, bring about tourism benefits

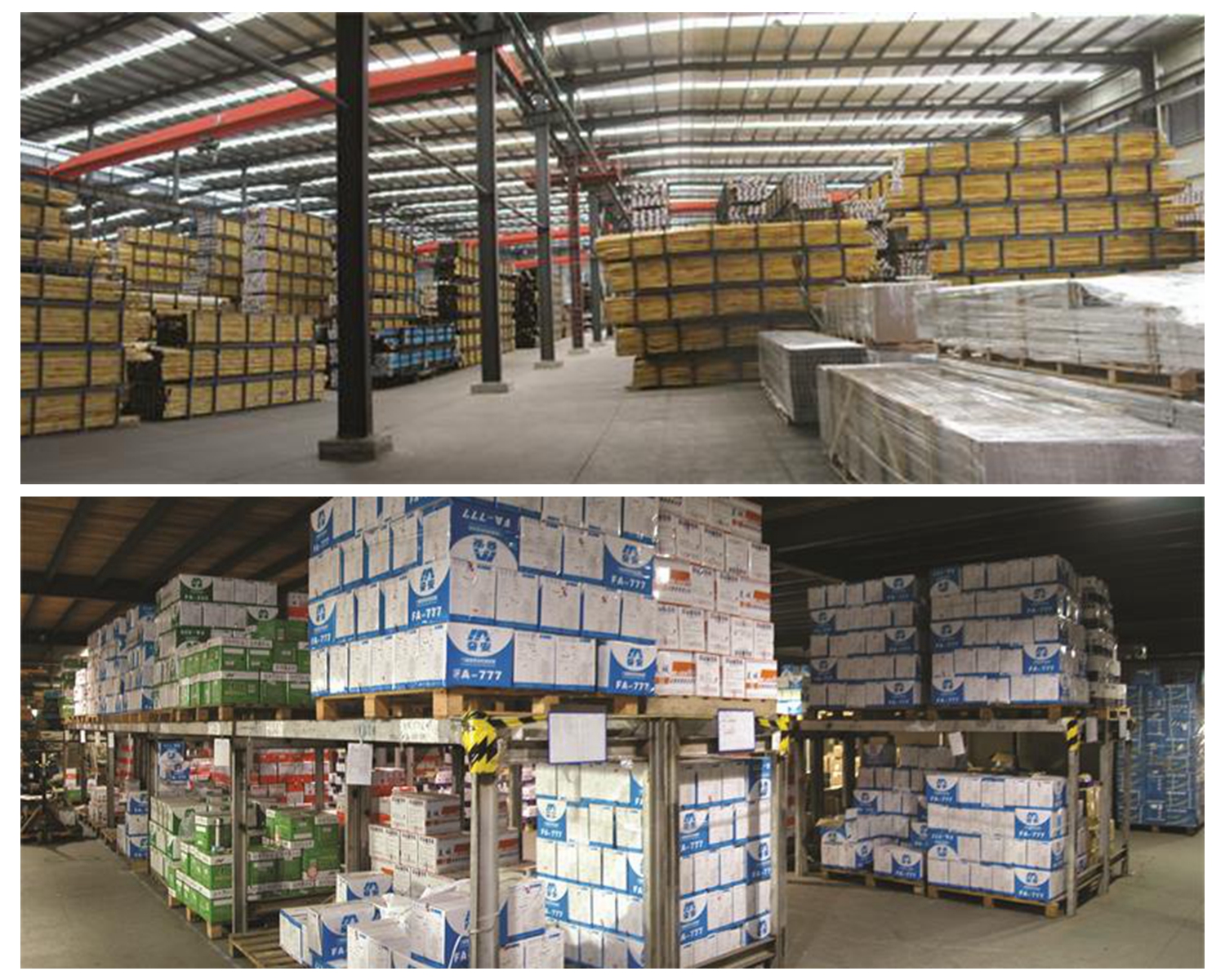

1) Great storage capacity, which will forward the lead time.
