Flood Lamp Housing Die Cast Aluminum Led Flood Lights Housing

1. Die cast aluminum led flood lights housing for 18-24 W

2.IP67 standard, and the excellent waterproof,dust-proof and anti-corrosion design can be used in rainy or cold areas for a long time

3.Are widely used in highway, the main road, road, branch, park, garden road, pedestrian street, car parks, streets, communities, factories, schools, each residential area, garden and road, etc



The improvement of our die cast aluminum led flood lights housing FL01-2:

1. Concealed screw on surface.

2. Gear type heat sink.

3. Protruding stage to protect painted surface.

4. Perfect drainage system with gutter inside.

die cast aluminum led flood lights housing

die cast aluminum led flood lights housing

Detailed data
Item No.   MSL-FL01-2 Glass material   Tempered clear glass
Type  Flood Lamp Housing Die Cast Aluminum Led Flood Lights Housing Luminousness(Glass)   95%
Brand   Mansolo Lens material   PMMA
Lampshade material   Aluminum alloy Luminousness(Lens)   92%
Surface treatment   Powder coating Power scope  18-24 W or Custom
Standard color   Black, dark grey, light grey IP rate   IP67
Warranty(housing)   5 years Salt spray   3000 hours

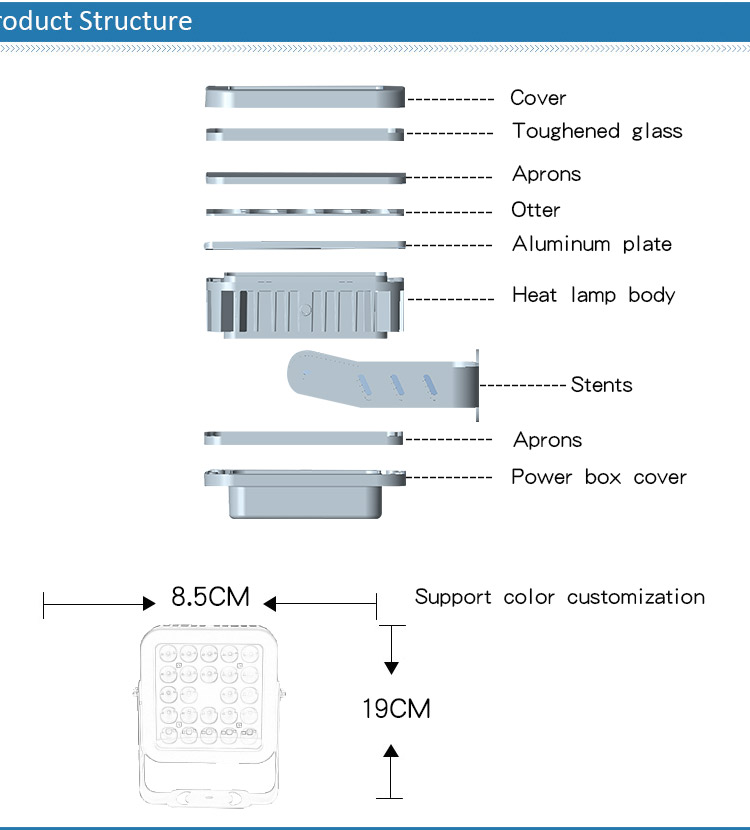

Fixture Parts   Surface cover/Lamp coeur/Fixed plate for lens/Heat sink body/Waterproof power box/Stents Housing Net weight 1.79 KG
Production process
(housing)

  Die casting/Machining/CNC/

polishing/powder coating

Housing size  L21.4*W16.8*H8.5

Features for the products:

        1. The shell adopts the high quality of lams and lanterns aviation aluminum die-casting, surface after polishing, nano electrostatic spraying, introduced large lamp plate heat dissipation design, greatly improve the effect of light and heat dissipation problems, effectively ensure the service life of light source and power supply in the bad environment.

        2. The lamp body adopts toughened glass and silica gel seal to meet the IP67 standard, and the excellent waterproof, dust-proof and anti-corrosion design can be used in rainy or cold areas for a long time.



Application scope:

        Those products are widely used in highway, railway, subway, tunnel and other underground places, underground parking garage workshop, large warehouse, sports venues and construction site, also can be used in the urban landscape, billboard, building facade illumination etc.

die cast aluminum led flood lights housing

die cast aluminum led flood lights housing
