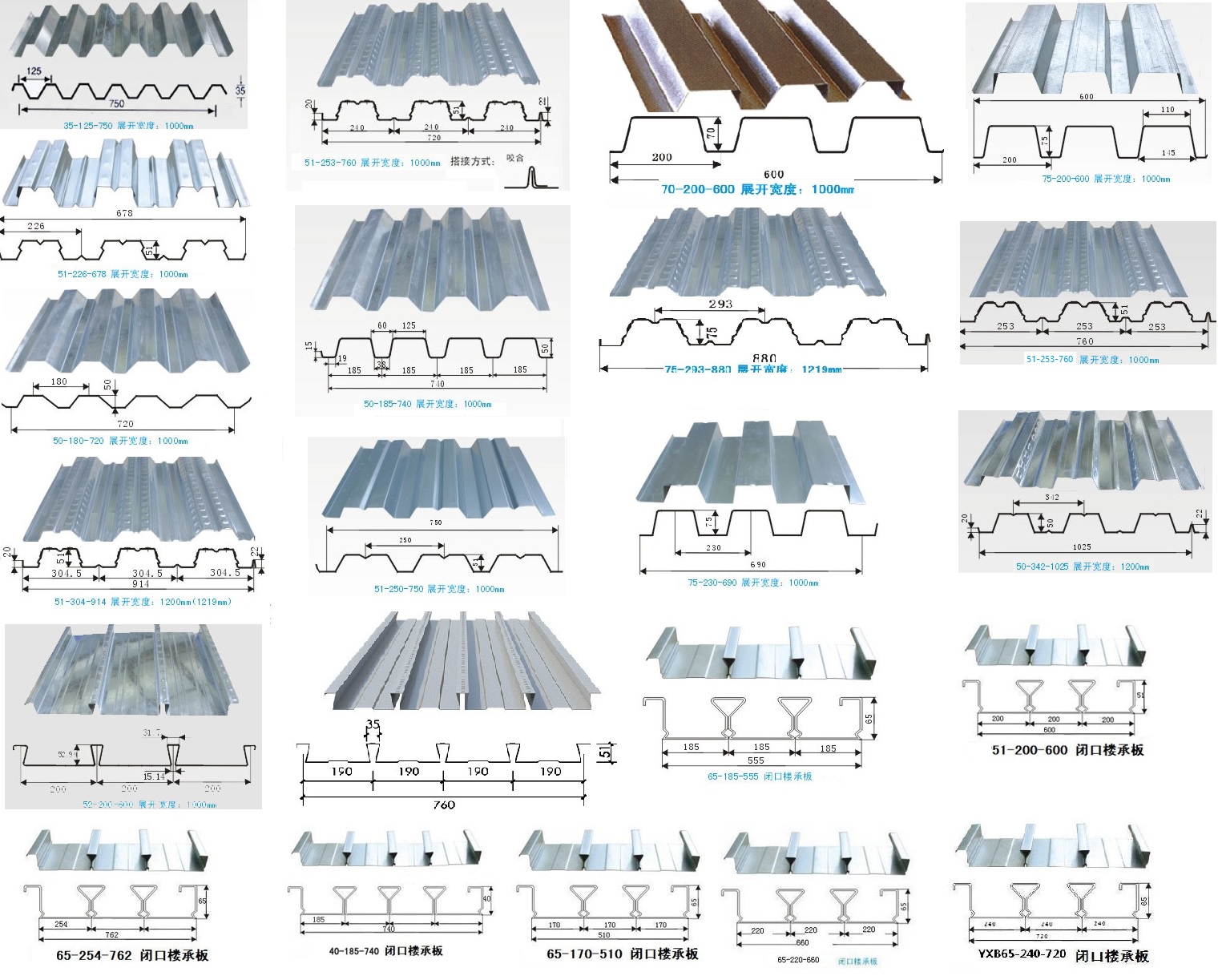

Floor deck panel specifications

Composition of Floor deck roll forming machine

Manual de-coiler

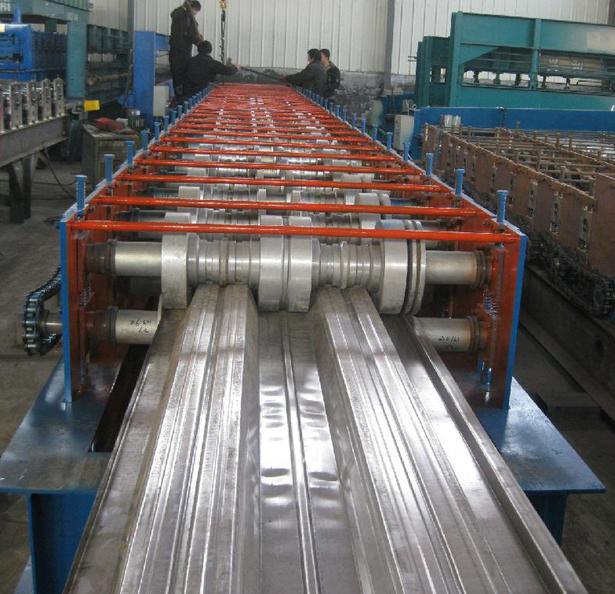

Roll forming main machine

PLC control system

Hydraulic station

Cutting system

Manual out table

Hydraulic pressing system


Main parameters for the machine

Material of shaft

 45# steel ,by heat treatment

Shaft diameter

90mm

Main machine frame

400 H steel

Shear Mould

Gr12

Number of forming rollers

24 rows

Transportation system

Chain transportation

Thickness of chain

0.6inch

Main motor power

18kw

Pump station power

7.5kw

Forming speed

8-10m/min

Rolling thickness

0.8-1.5mm

Computer system

PLC control

Overall dimension

14m x 1.5m x 1.3m

Weight

13000kg

Special size can be made according to customer’s requirement.

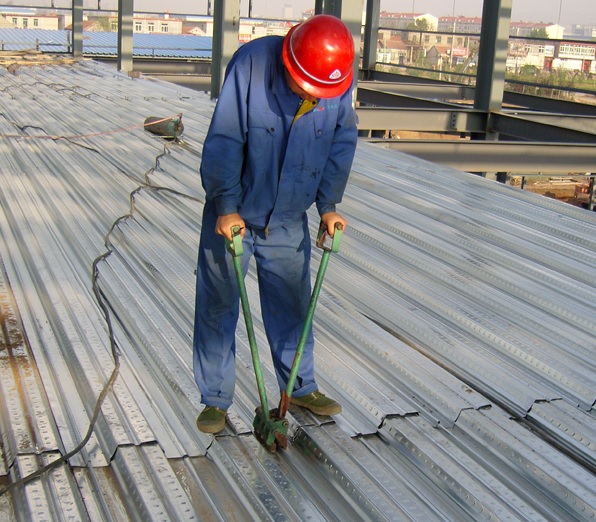

Floor Deck use

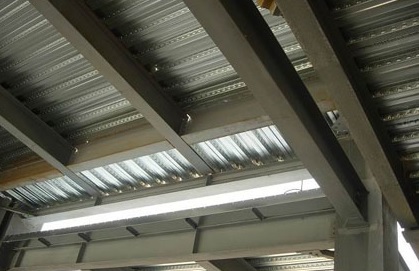

Metal Floor Deck

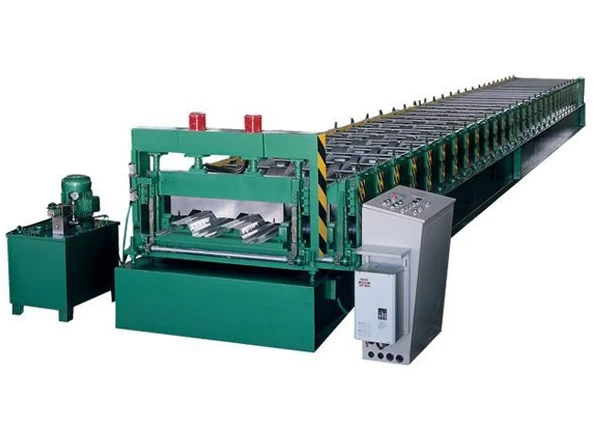

Floor Deck Roll Forming Machine

Our roll forming machine has which advantage?

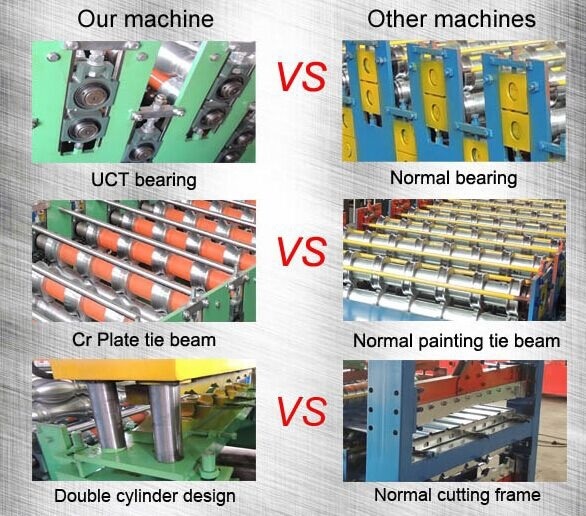

Roll Forming Machine Advantage
