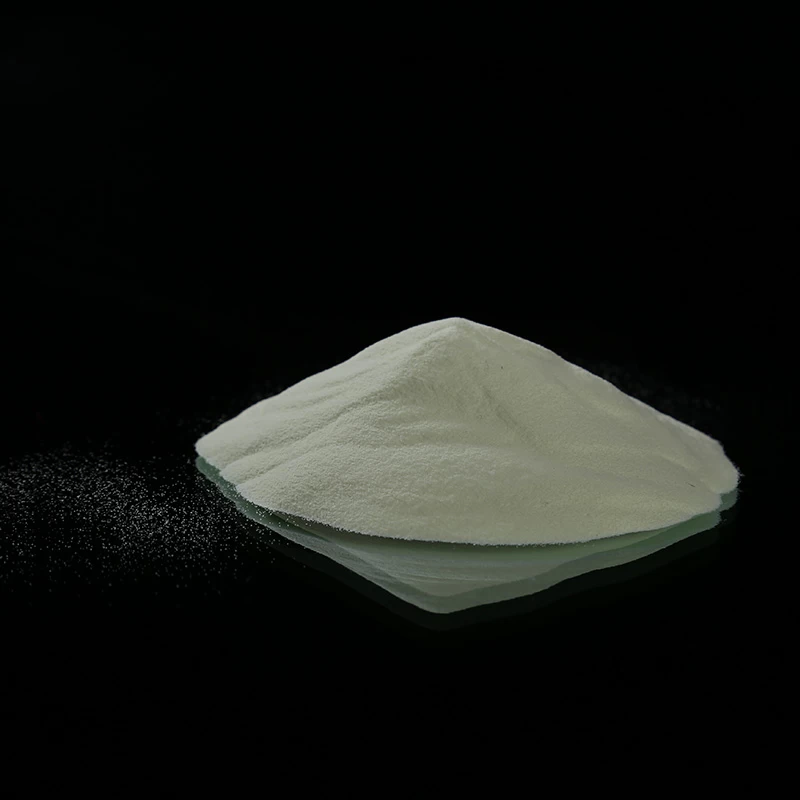

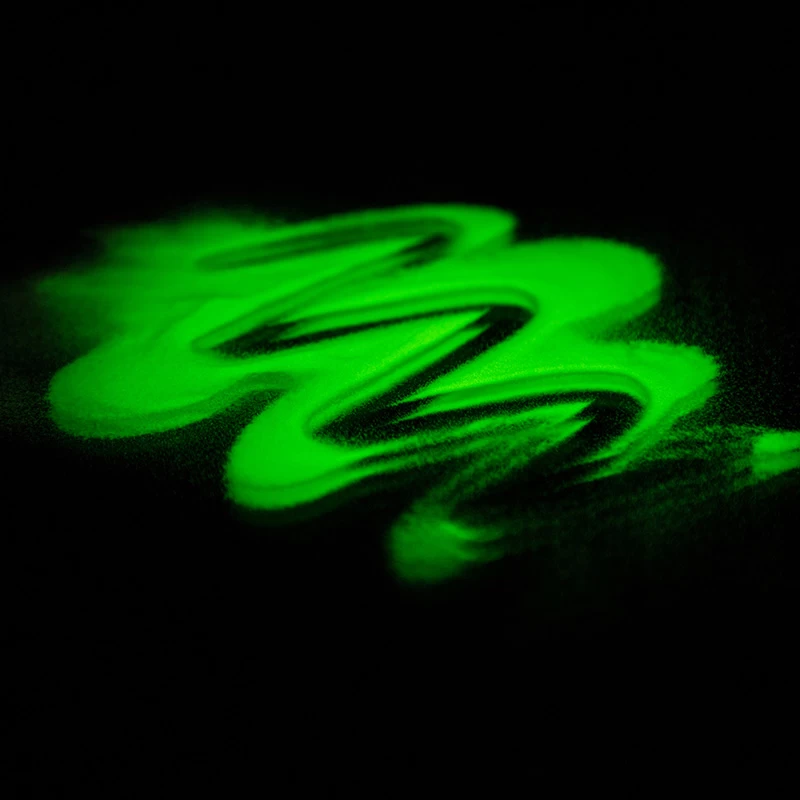

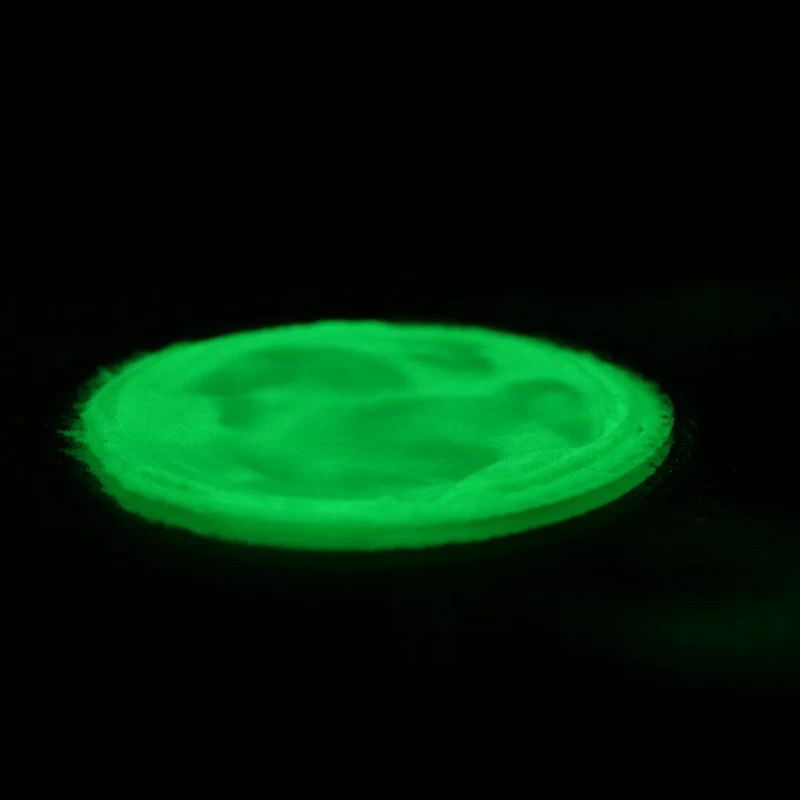

iSuoChem® Luminous Pigment (also called Photo luminescent Pigment, glow in the dark powder) is made by activating alkaline earth aluminate with rare earth elements. It has strong light absorption, light storage and light radiation ability. It can glow in the dark for 12 hours continuously after absorbing various visible light for 10 ~ 20 minutes. Its luminous brightness and duration are at least 30 times of traditional luminescent materials represented by ZnS:Cu, and can be used repeatedly.
|
Chemical
Family Name
|
strontium
aluminate europium doped
|
|
Formula
|
Sr4Al14O25:
Eu+2,Dy+3
|
|
Insoluble In
|
alkalis, Organic solvents
|
|
Decomposition by
|
acids, water
|
|
Typical physical properties
|
|
Specific gravity
|
3.4g/cm3
|
|
Particle size distribution
|
d50=max.28um
|
|
Screen analysis
|
Max. 1%
oversized particles on 70um.
|
|
Typical of light source
|
|
Excitant illuminance
|
1000 lx, D65
standard
|
|
Excitant Time
|
5min
|
|
Temperature
|
23C
|
Download: TDS, MSDS

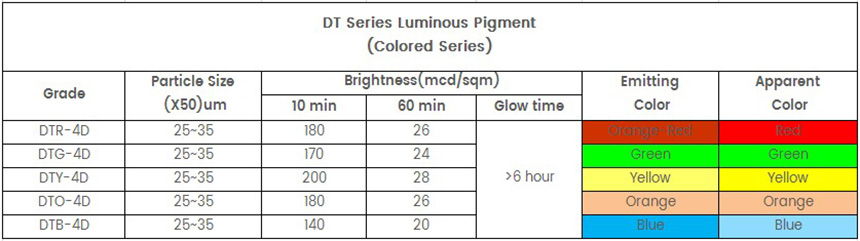

COLOR CHART & SIZES DISPLAY
APPLICATION
|
Painting & Coating
|
iSuo® Luminous Pigment is widely used in paint and coating Industry, such as road marking and safety sign. You can makeuggest use luminous paint immediately after preparing well.
|
|
|
Luminous Plastic product
|
The use method of luminous pigment is same with other plastic
filler, the difference from luminous pigment is easy to black in the producing process, need chose transparent,soft resin. Mixed ratio around 5-20% luminous pigment.
|
|
|
Luminous Film
|
It is a kind of soft plastic film and may contain sticker and
release paper, the product is non-toxic, harmless, no radioactivity, various colors, high brightness, and long life.
|
|
QUALITY CONTROL
We well understand that good consistence between batch to batch really matters to clients. We not only have strict quality control in manufacturing process, but also have strict quality check after production. We test every batch luminous brightness and particle size.
PACKAGING OF GREEN LUMINESCENT POWDER
Tips: Loading instructions
25kg/carton, 18 drums on 1 pallet, 9MT/20 pallets in 20'FCL or 18MT/40’FCL
Customized package or OEM labels are available. We have carton and fiber drum for your choice.
