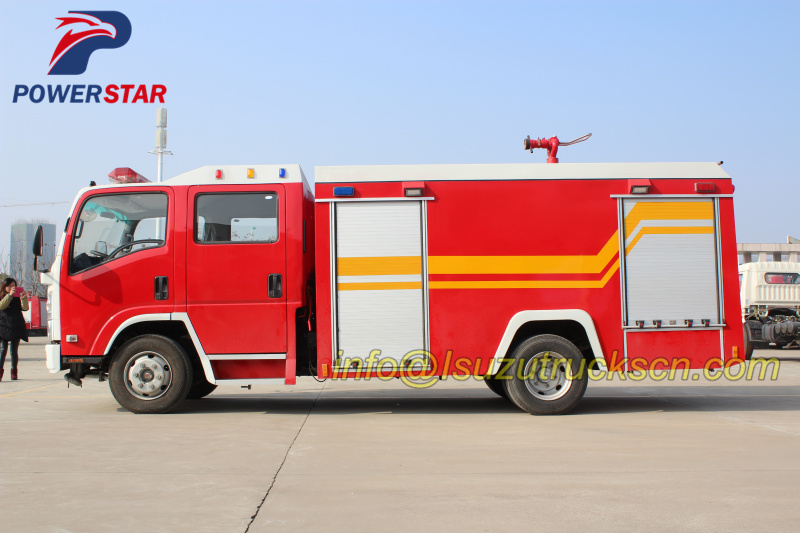

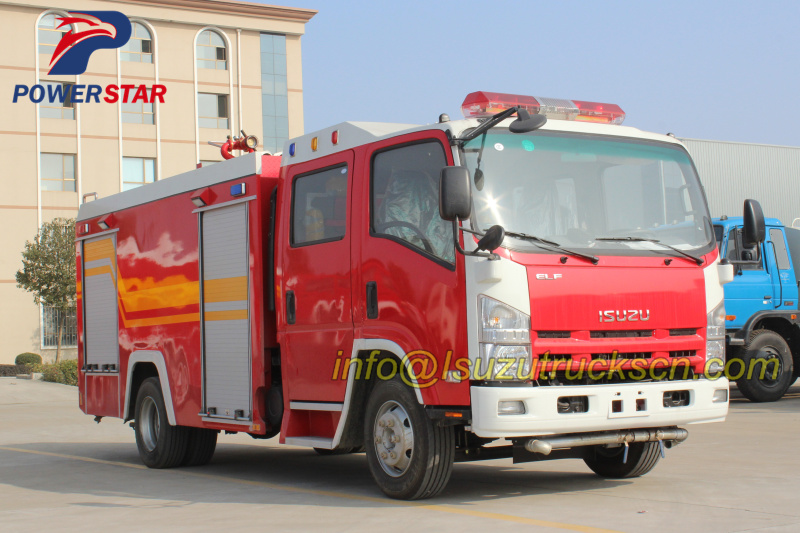

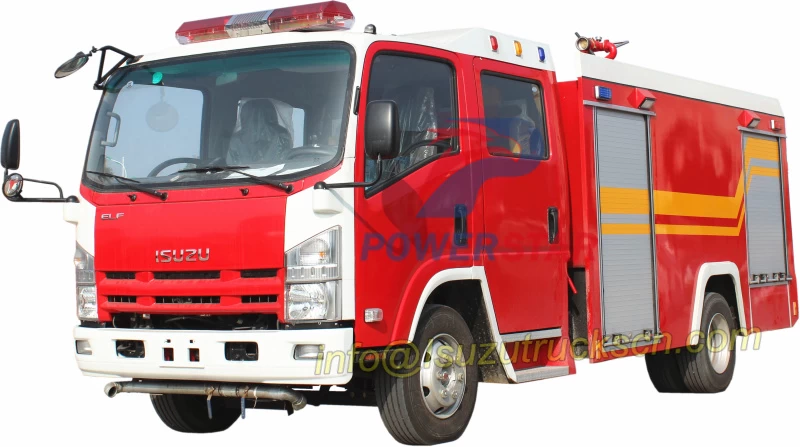

Foam Water combine Fire Engine Isuzu
Description:
Foam water combine Fire engine ISUZU (also called as Isuzu water tender truck, water cannon vehicle, water foam fire fighting vehicle, fire fighting truck rescue vehicle, airport crash fire vehicle, factory Isuzu water foam fire vehicles) This Isuzu Fire fighting trucks are designed with stand the prevailing humen conditutions, much as ambient temperature, maximum relative humidity, the sand, the dust and the influence of high salinity condtions.
Fire fighting trucks types: Water fire truck, Foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other dapartments.
Features:

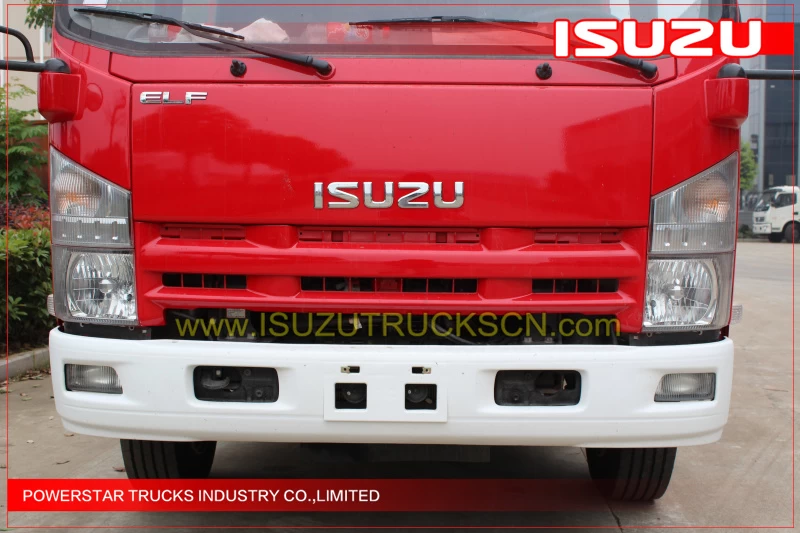

ISUZU NPR Chassis, Durable & Performance.
High performance fire pump and fire cannon
Tanker material: Carbon steel or Stainless steel
A complete set of fire fighting Accessories & Equipments, your can put work immediately.
FREE training in our factory if customers need.
Specifications
|
Manufacturer
|
POWERSTAR TRUCKS INDUSTRY CO., LIMITED
|
|
Product Name
|
Water Fire Truck ISUZU (3,000 L water+1,000L foam)
|
|
Vehicle Brand Series
|
ISUZU
|
|
Vehicle Model
|
PT5100GXFPM40
|
|
Chassis parameters
|
Overall dimensions
|
mm
|
7540*2200*3000
|
|
Gross weight
|
kg
|
10000
|
|
Curb weight
|
6050
|
|
Wheel base
|
mm
|
4175
|
|
Driving type
|
4X2
|
|
Number of axles
|
2
|
|
Tire specification
|
8.25-16
|
|
Number of Tires
|
6+1
|
|

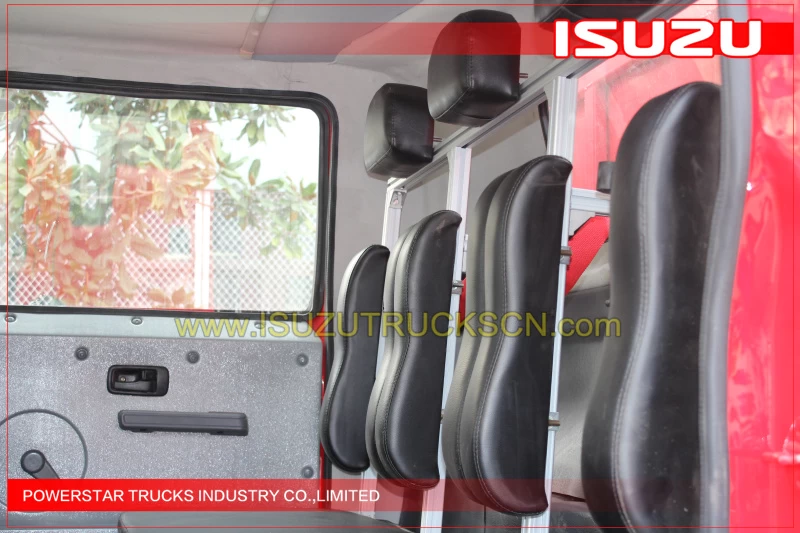

Passengers in cab
|
2+3
|
|
Engine
|
Engine model
|
4HK1-TCG40
|
|
Type of fuel
|
Diesel
|
|
Power/Displacement
|
ml
|
190HP /5199
|
|
Max speed
|
Km/h
|
110
|
|
Emission standard(TAS)
|
EURO 4
|
|
Fire performance
|
Tank capacity
|
Water tank capacity: 3000 L
|
|
Foam tank capacity:1000 L
|
|

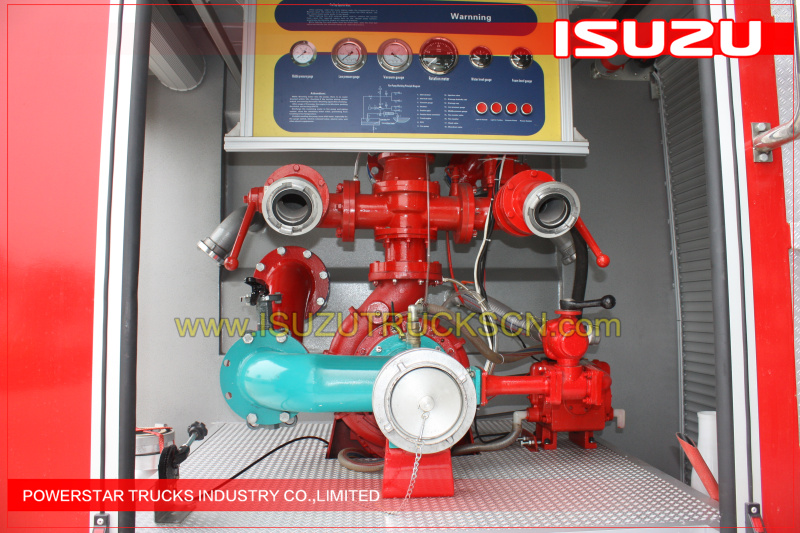

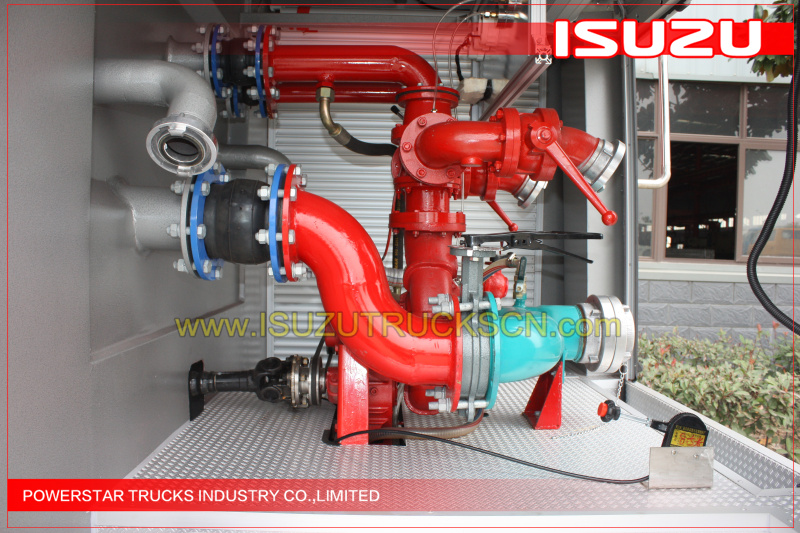

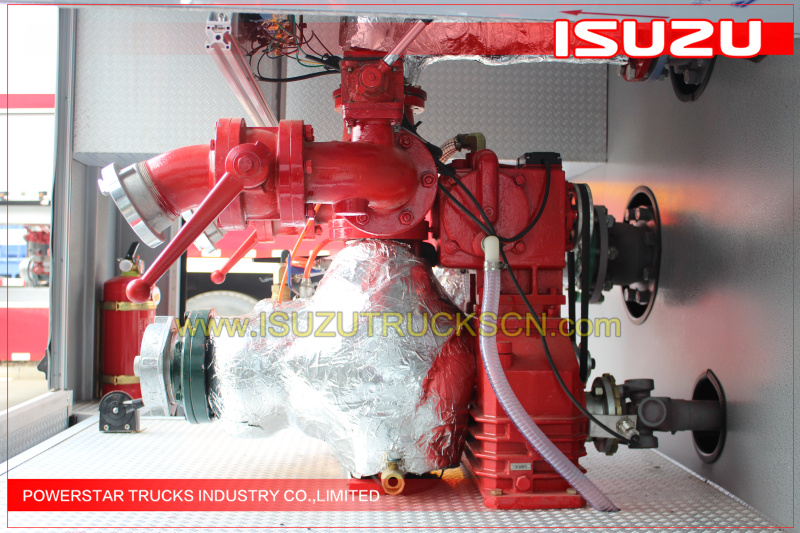

Fire pump
|
Model: CB10/30
|
|
Pressure (Mpa): 1.0
|
|
Rate (L/S): 30
|
|
Fire monitor
|
Model:Ps30
|
|
Flow:30L/S
|
|
Water jet distance:≥55m
|
|
Foam jet distance: ≥50m
|
|
Electronic alarm
|
LY CJB-100-C24
|
|

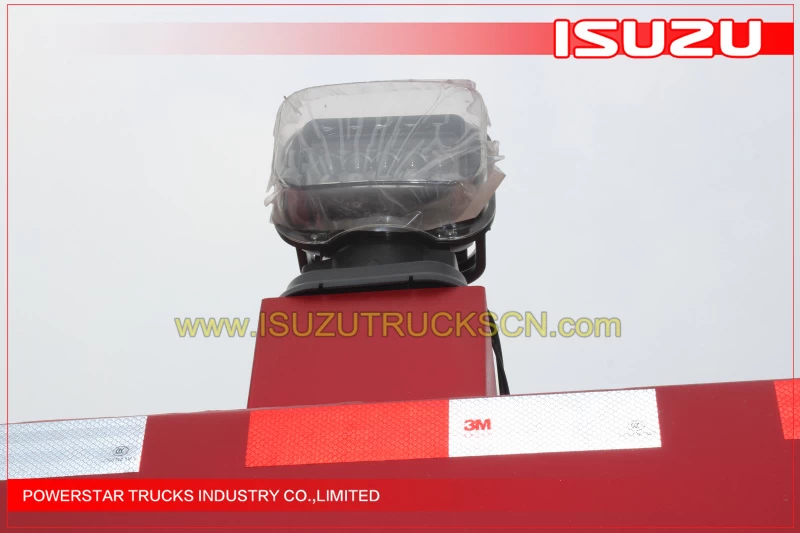

Alarm lamp
|

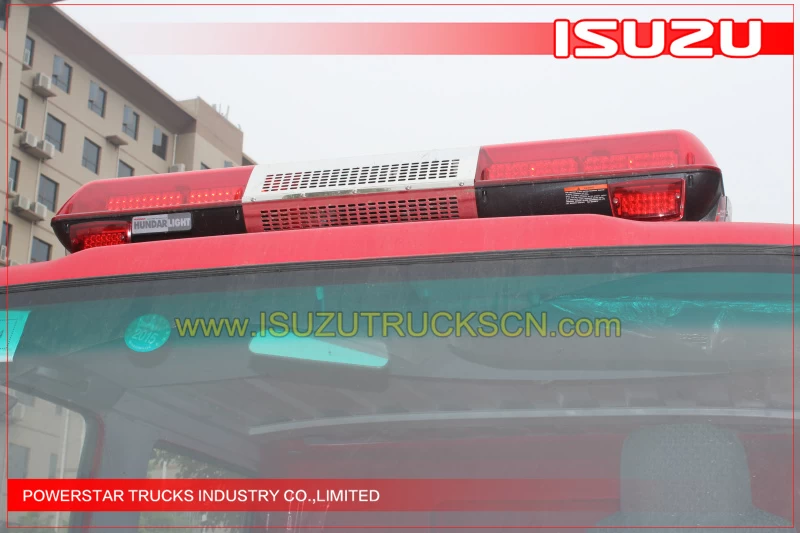

LY TBD-XF-168LED
|

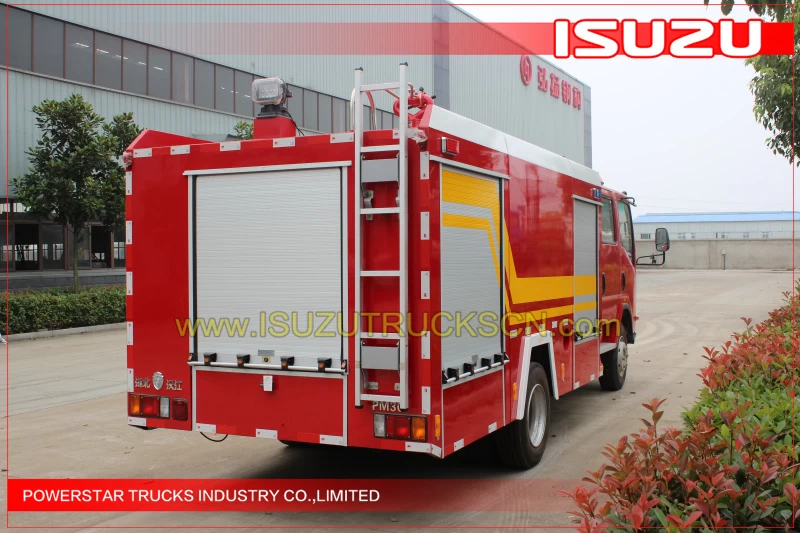

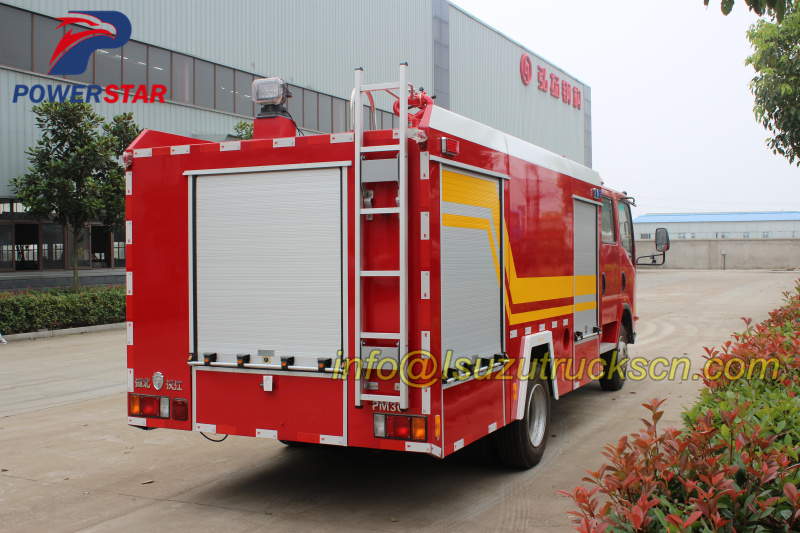

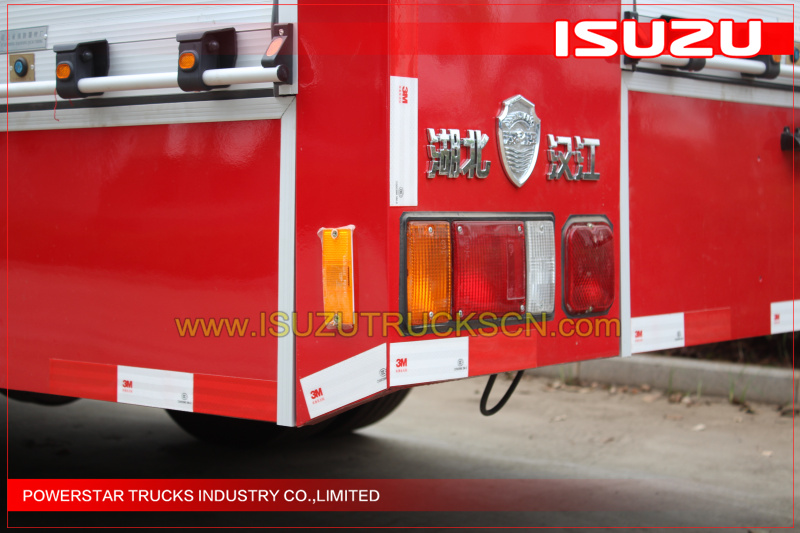

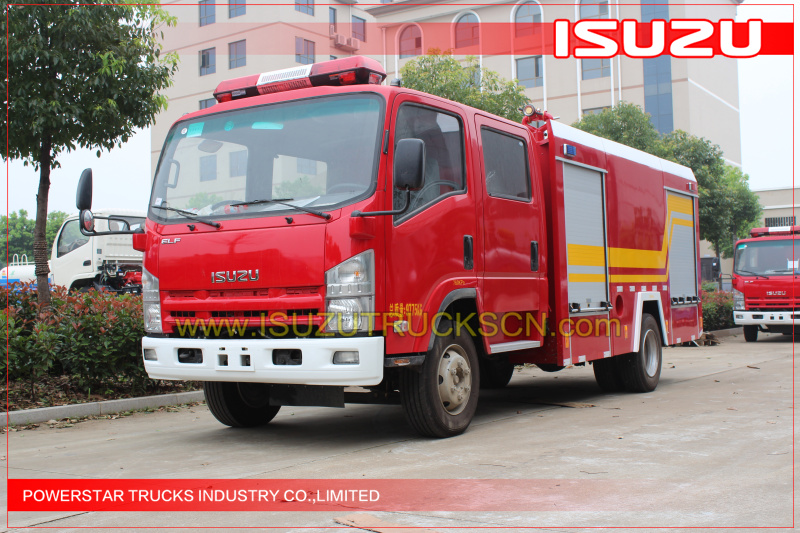

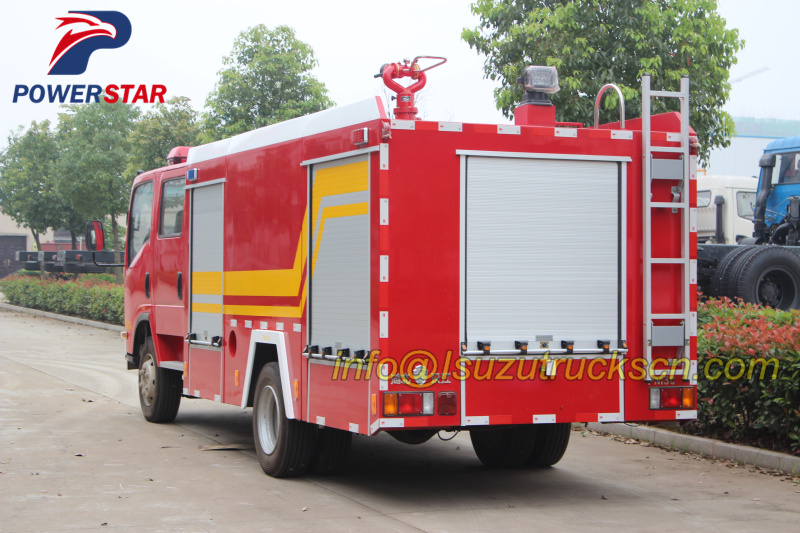

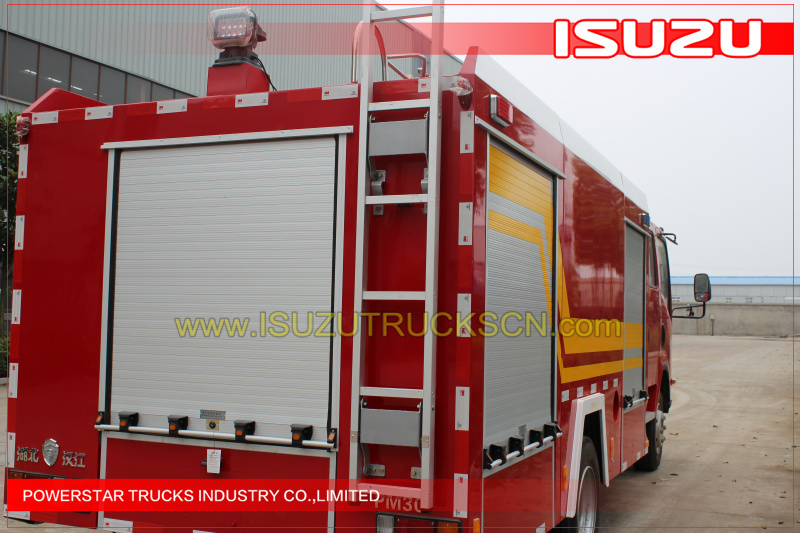

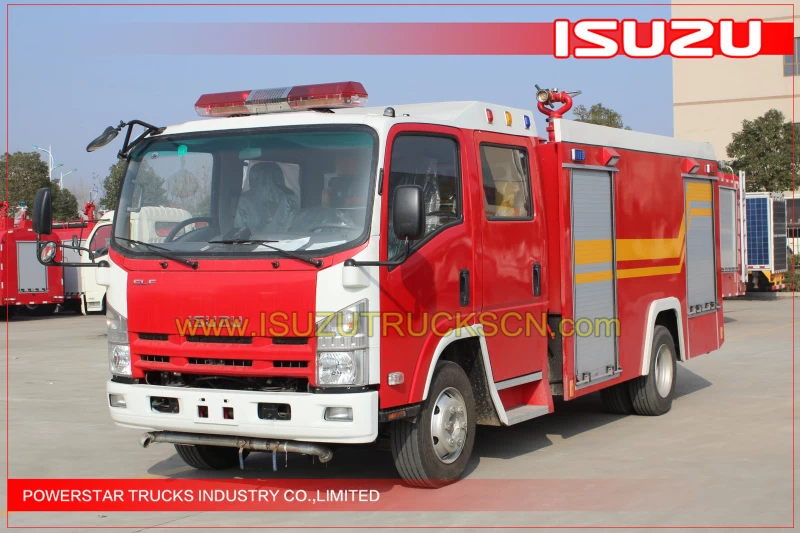

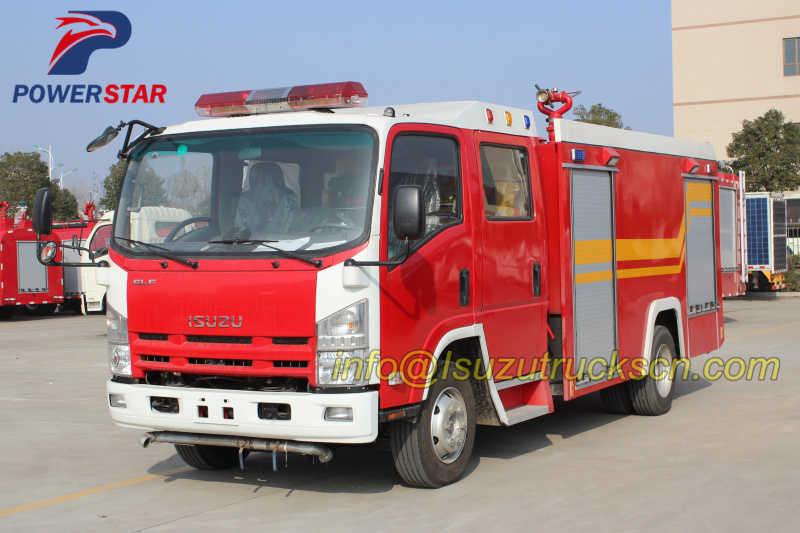

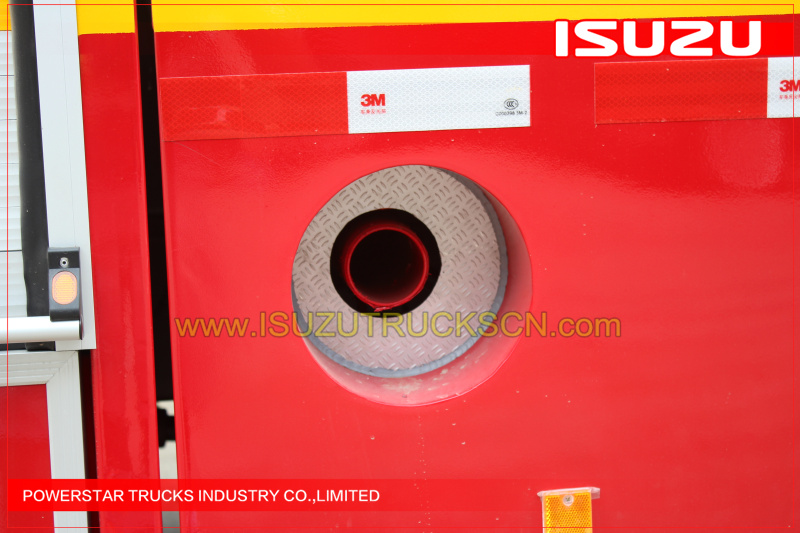

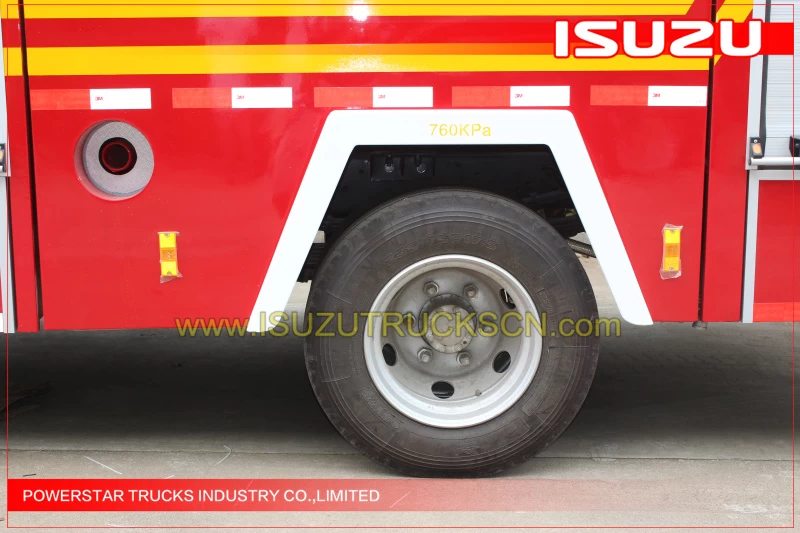

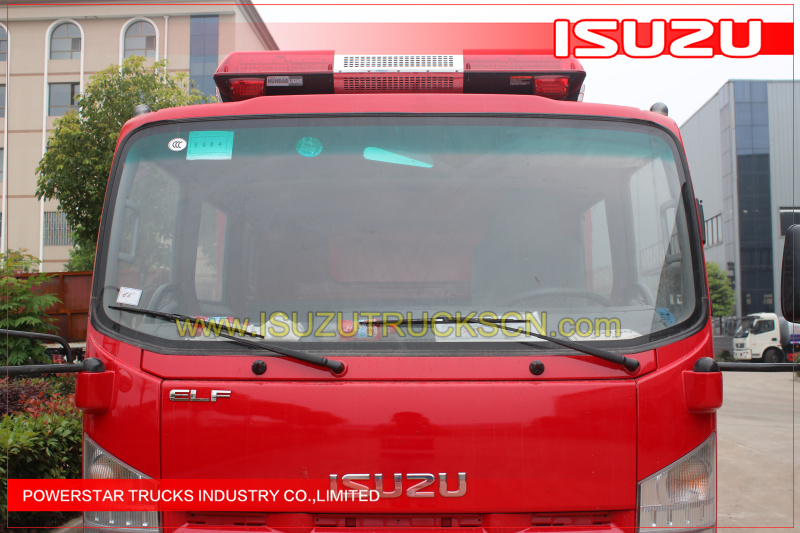

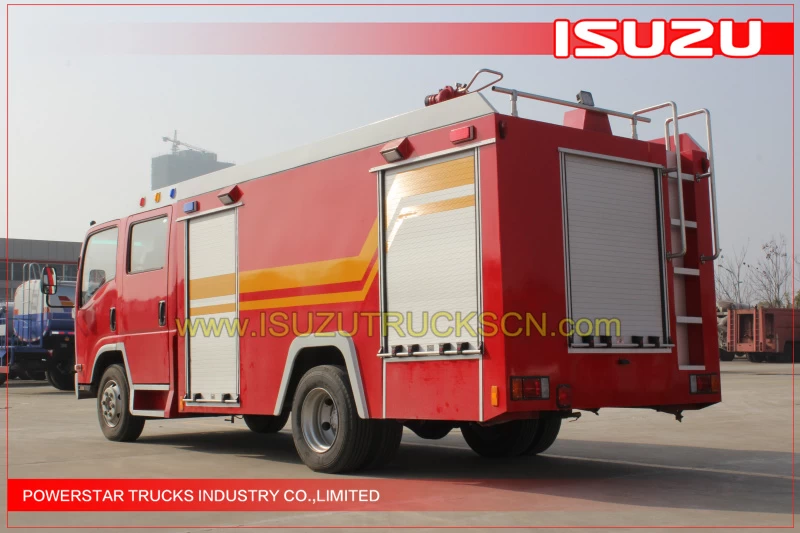

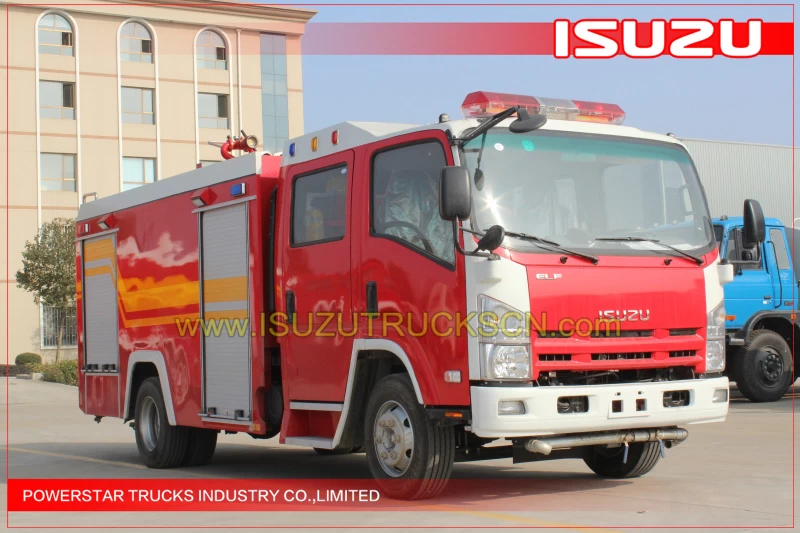

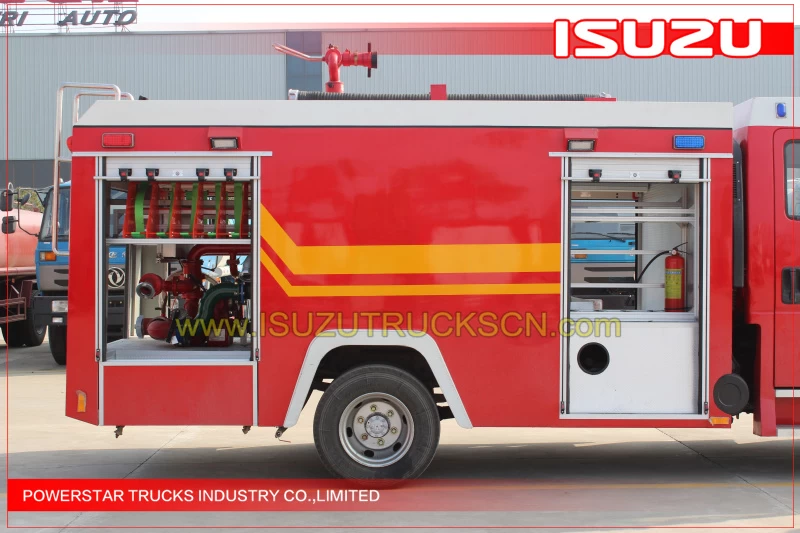

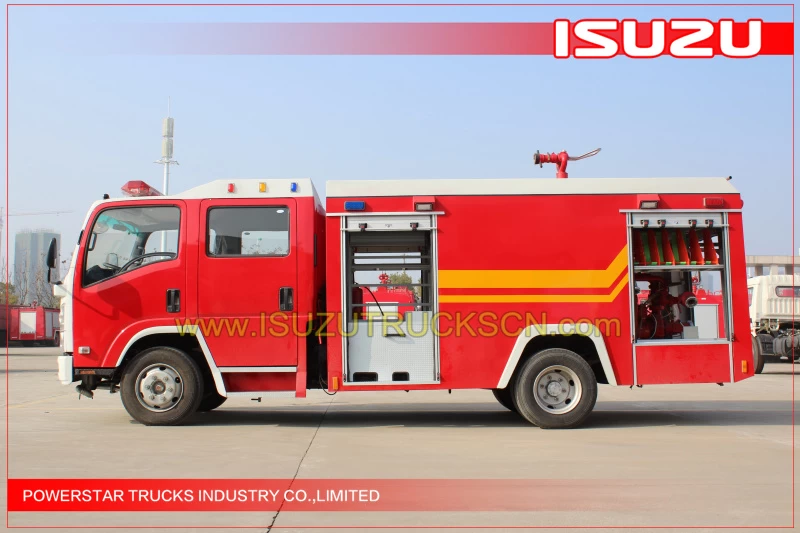

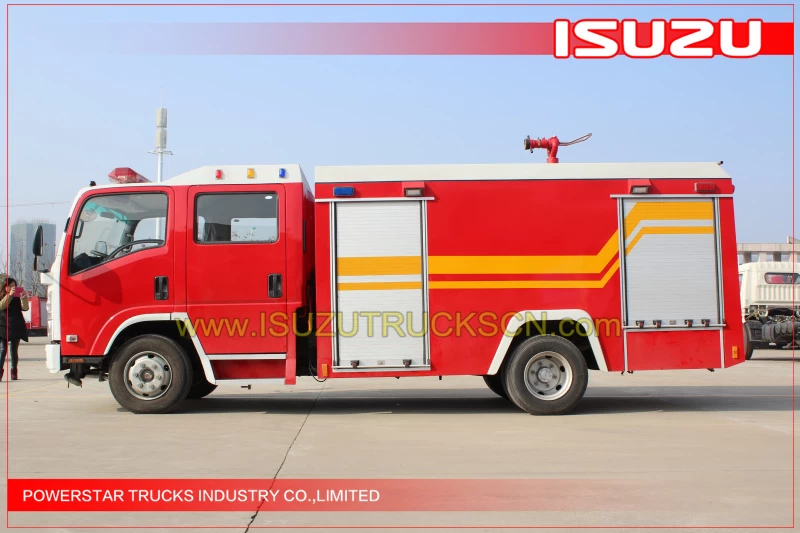

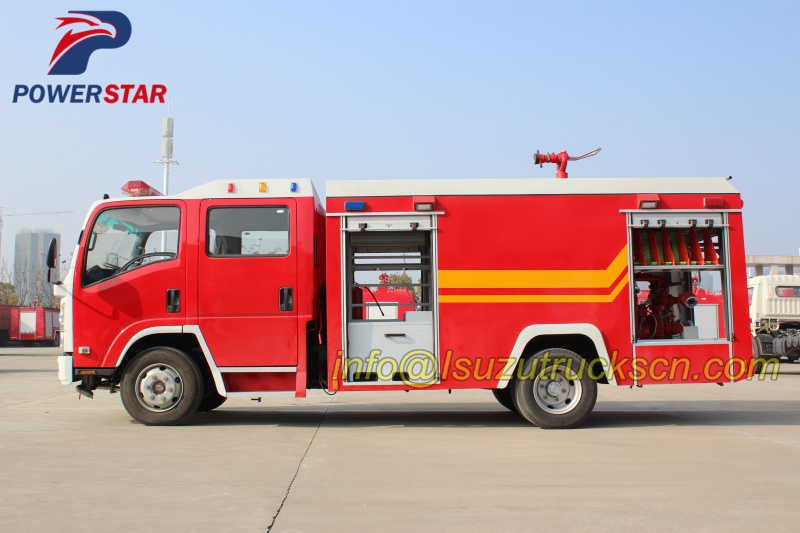

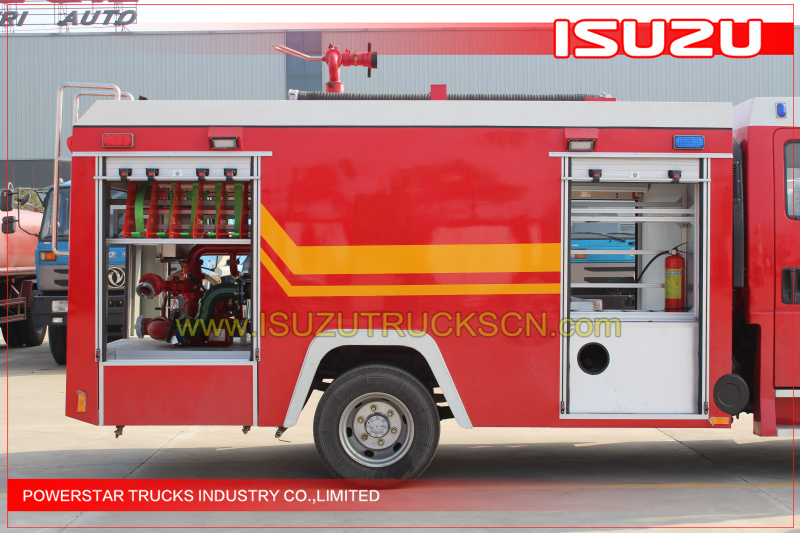

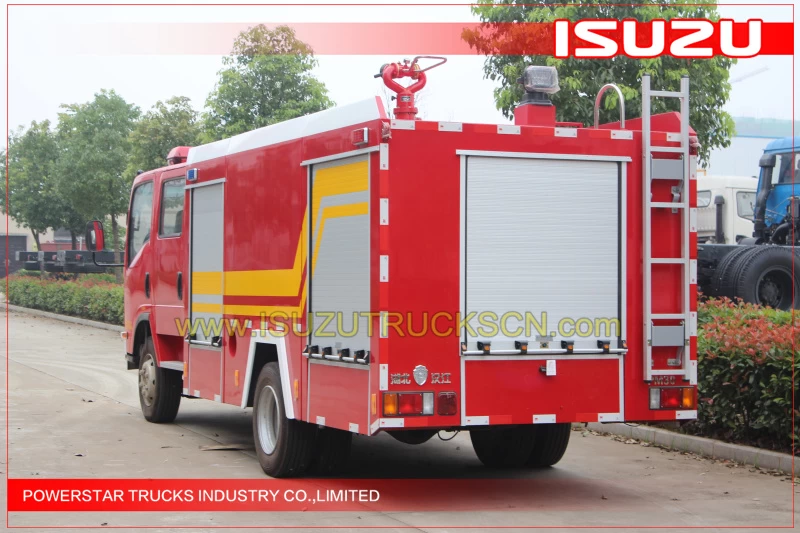

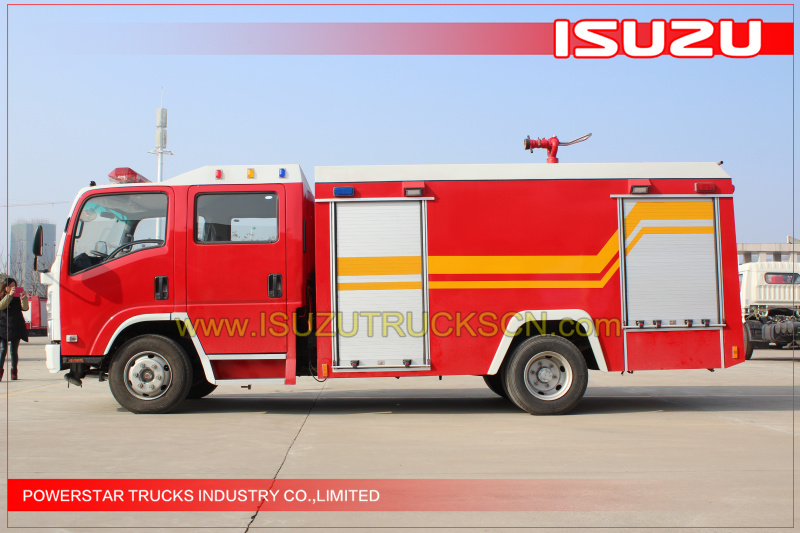

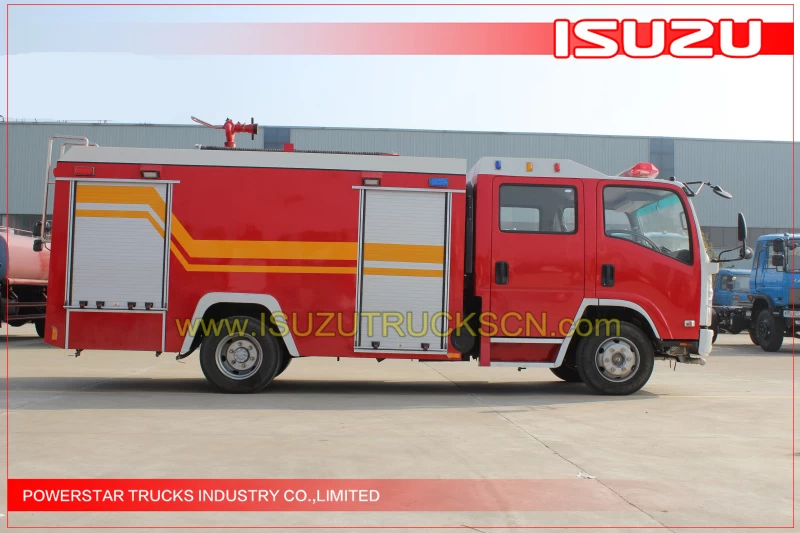

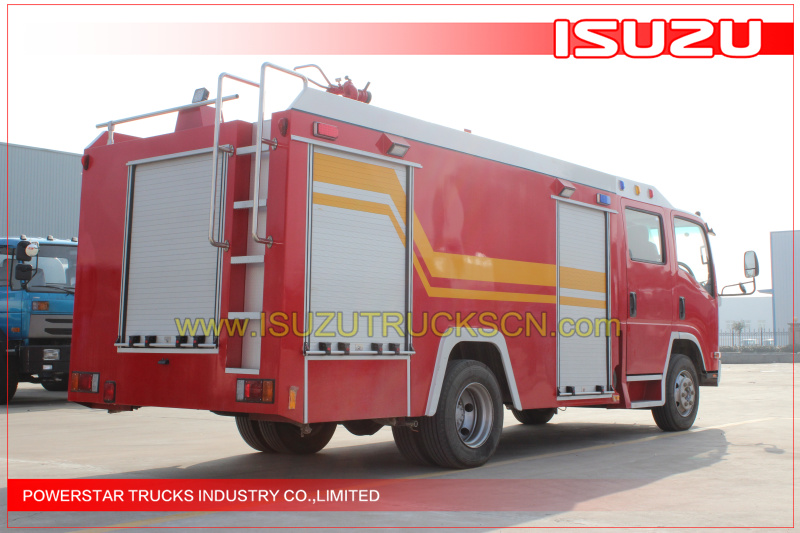

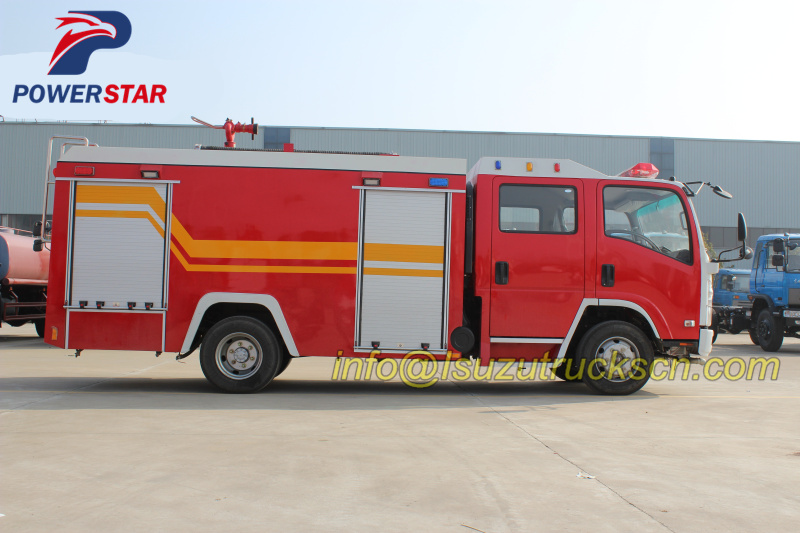

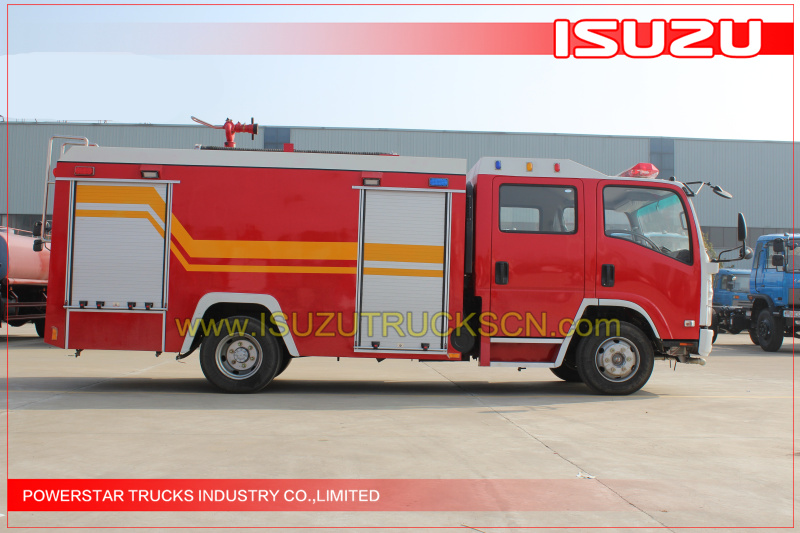

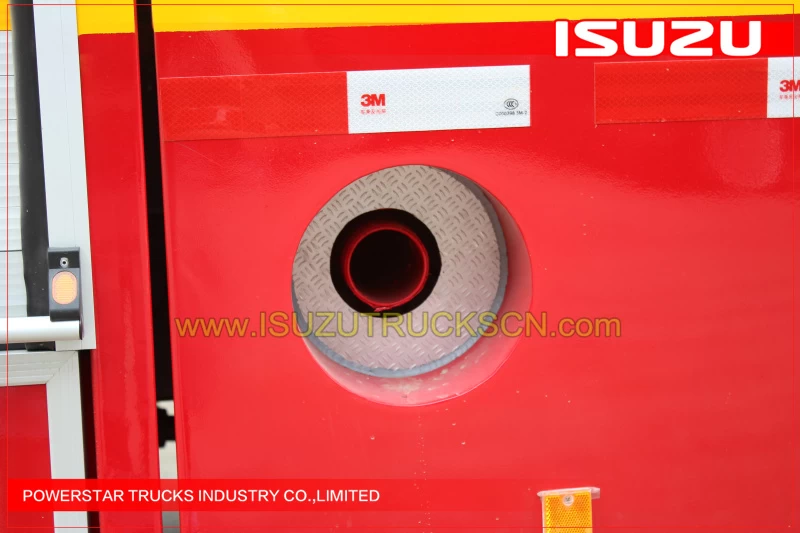

Detail Images

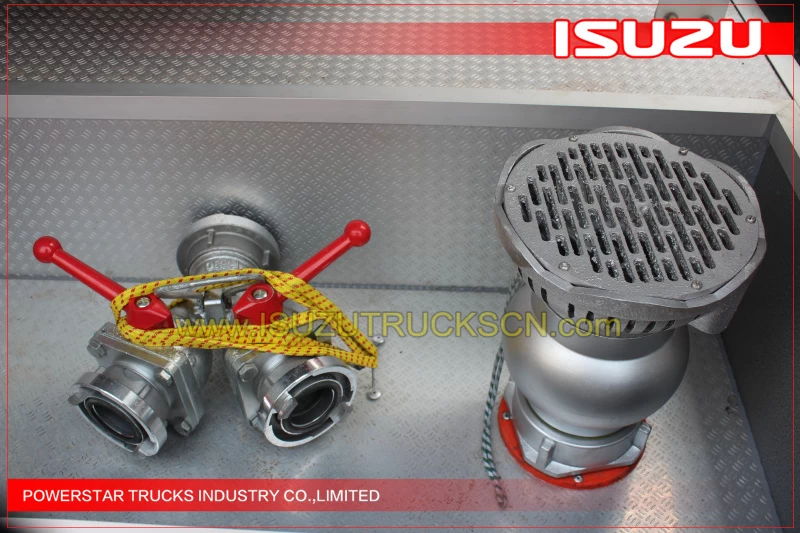

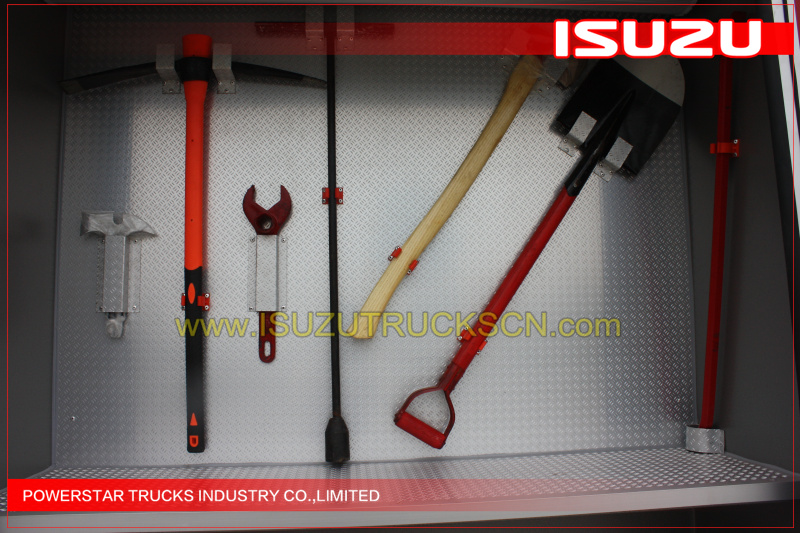

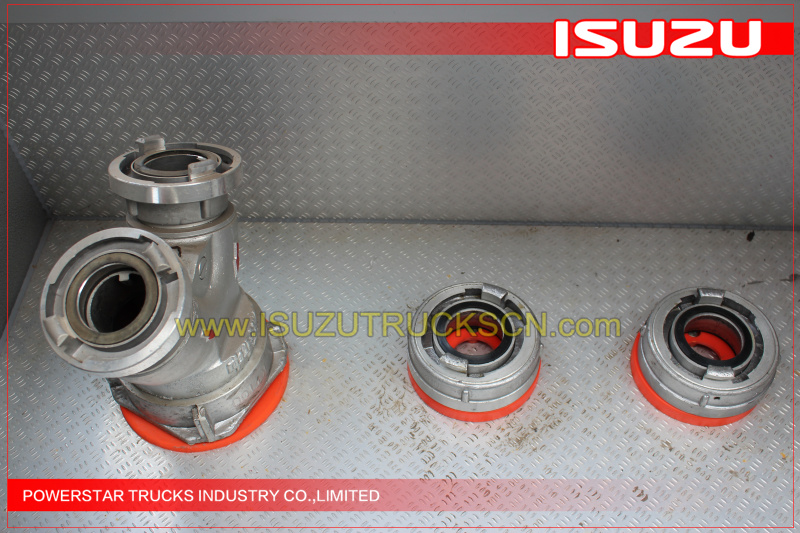

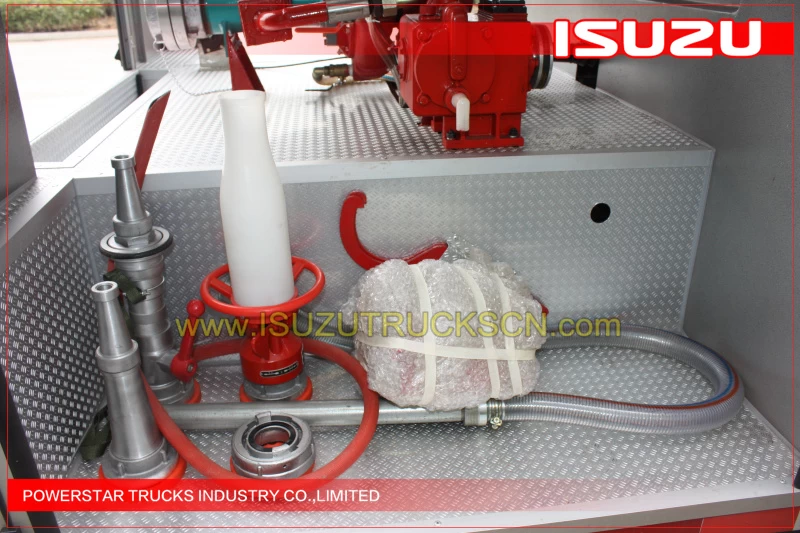

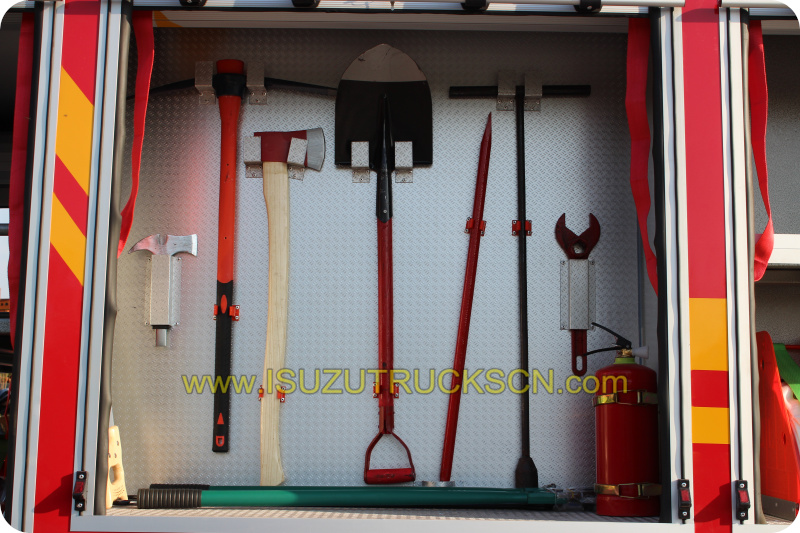

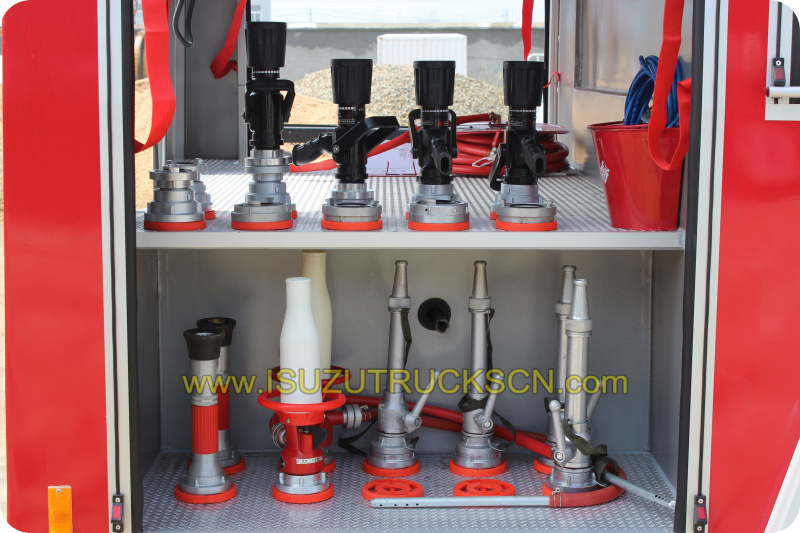

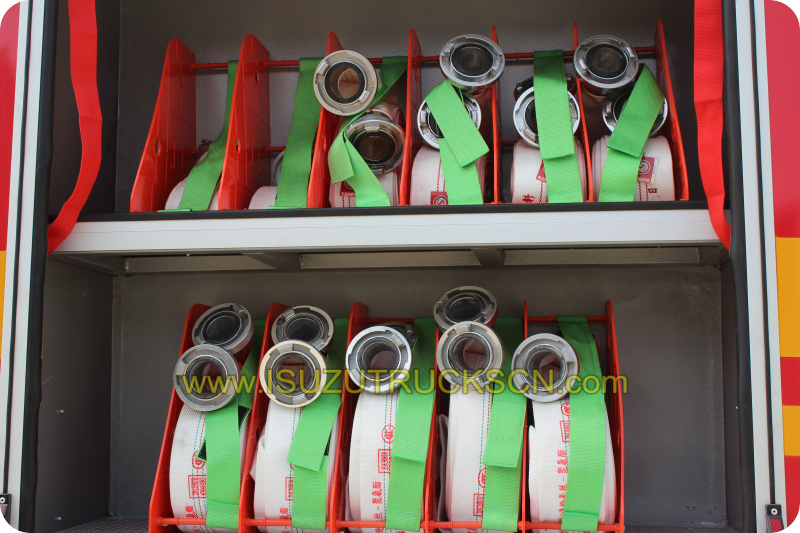

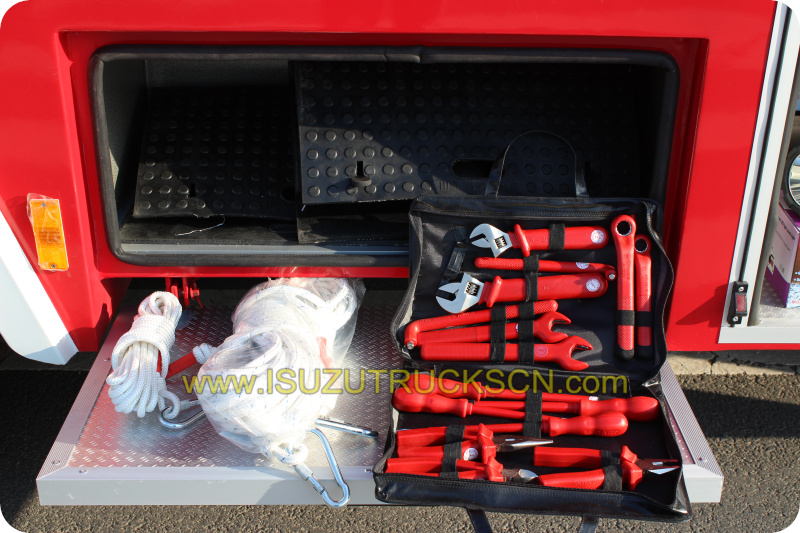

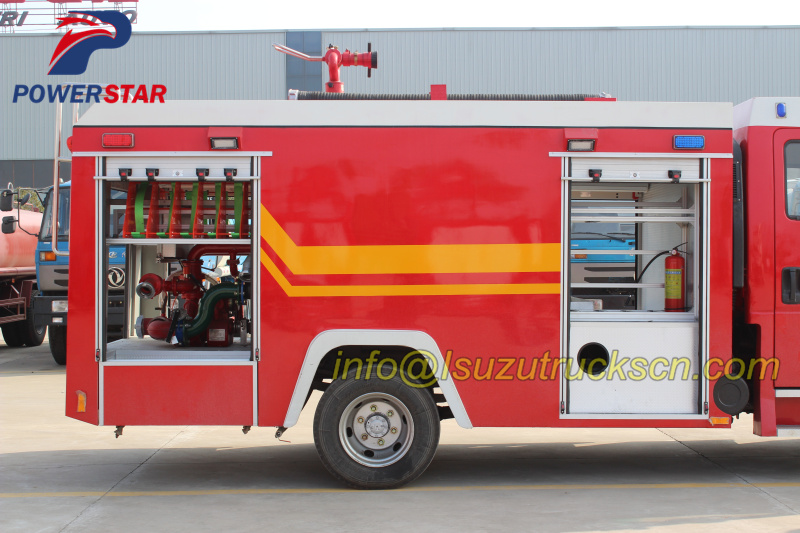

Fire Equipments:

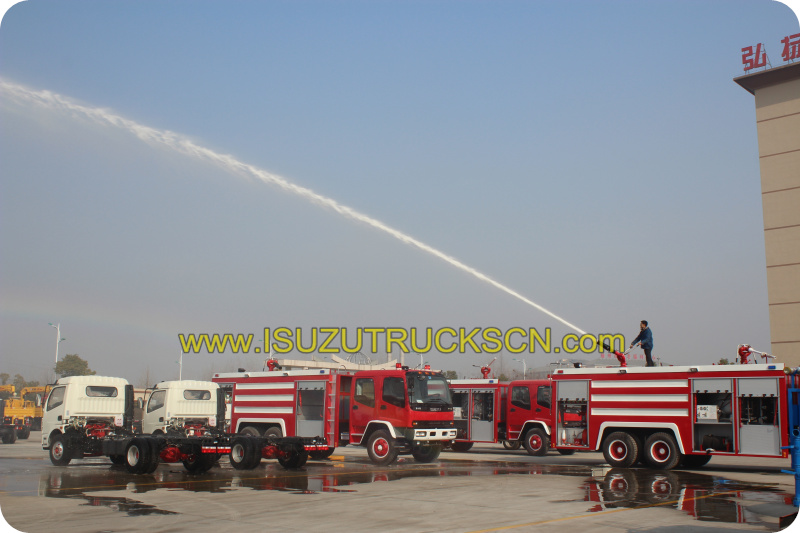

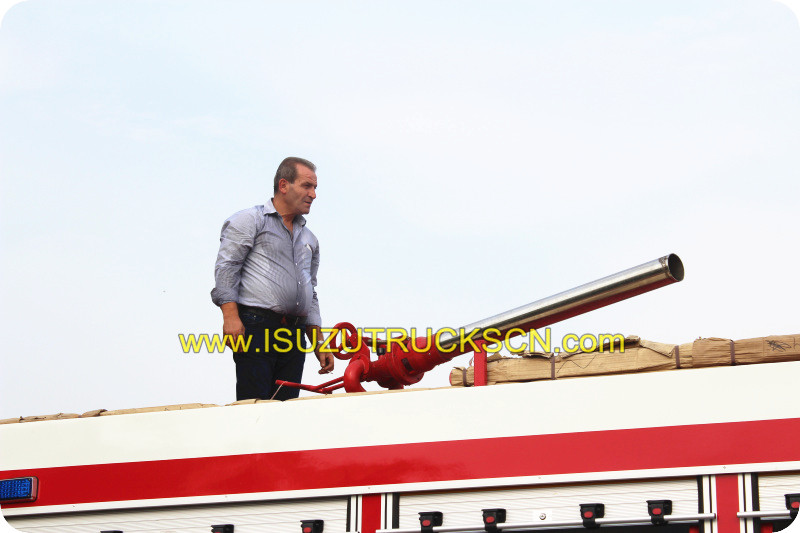

Performance Testing:
