Parameter
|

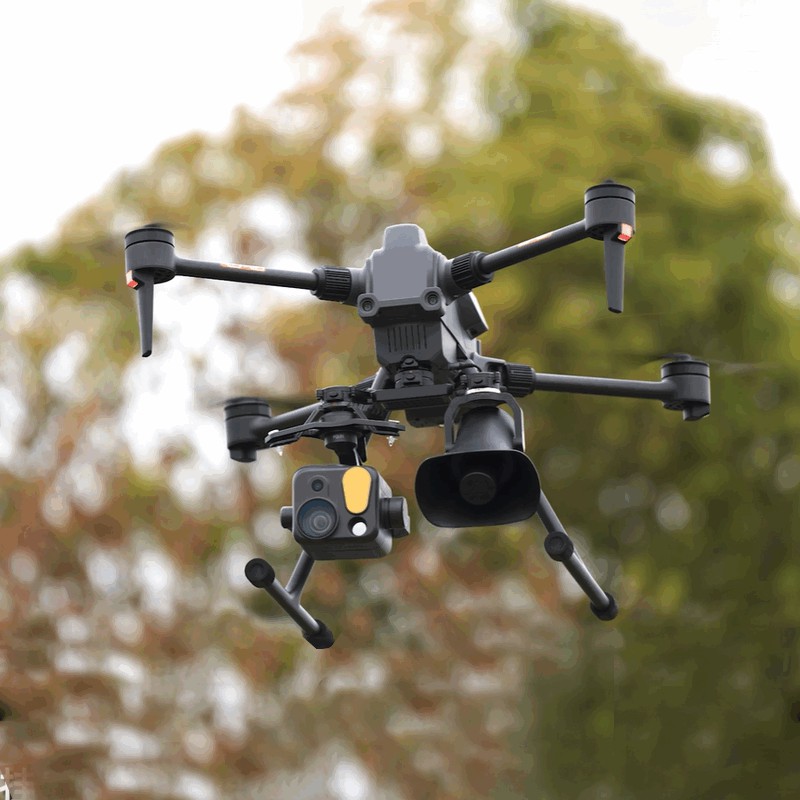

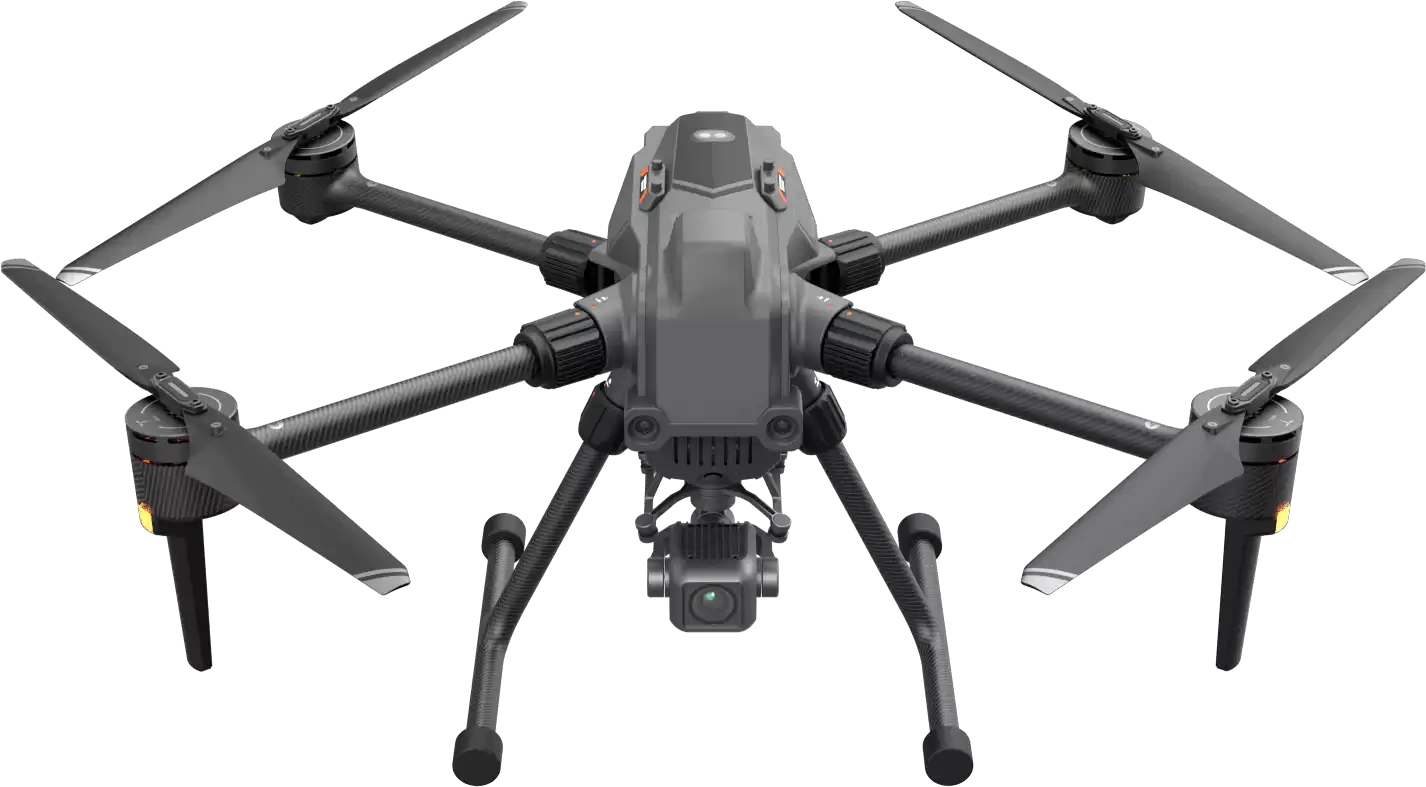

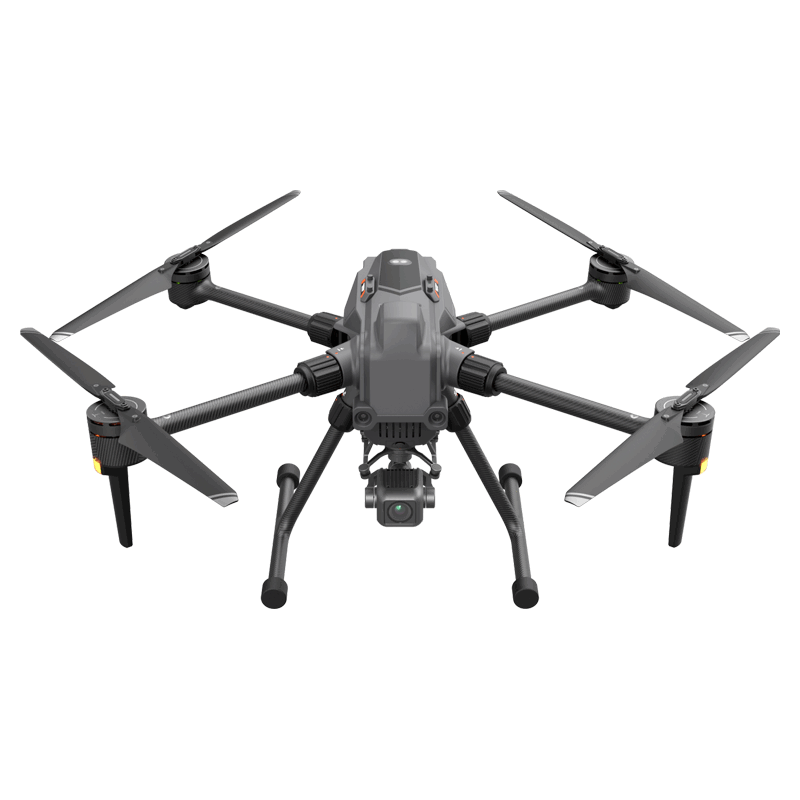

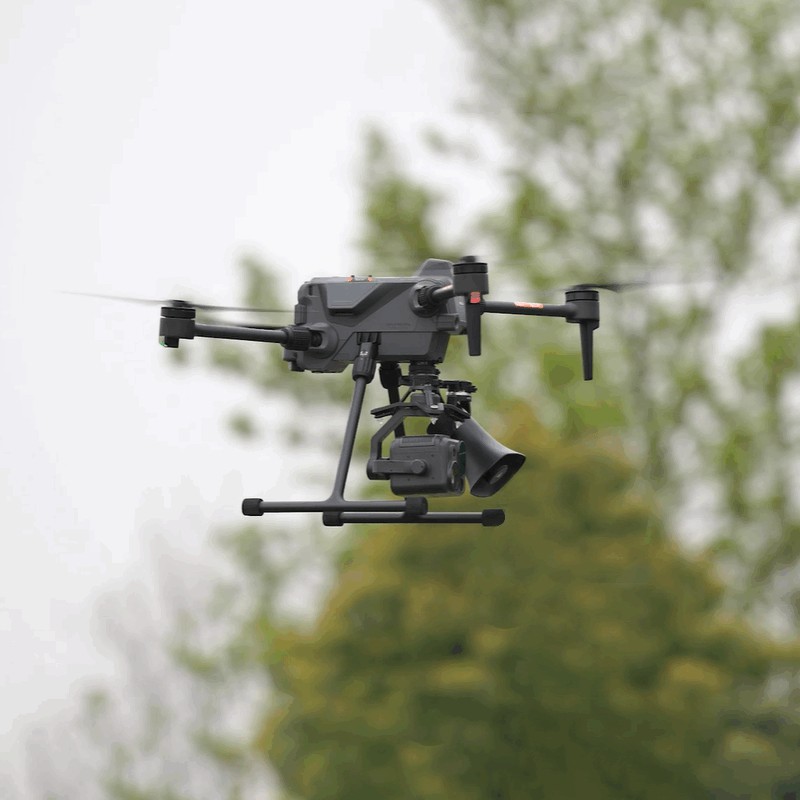

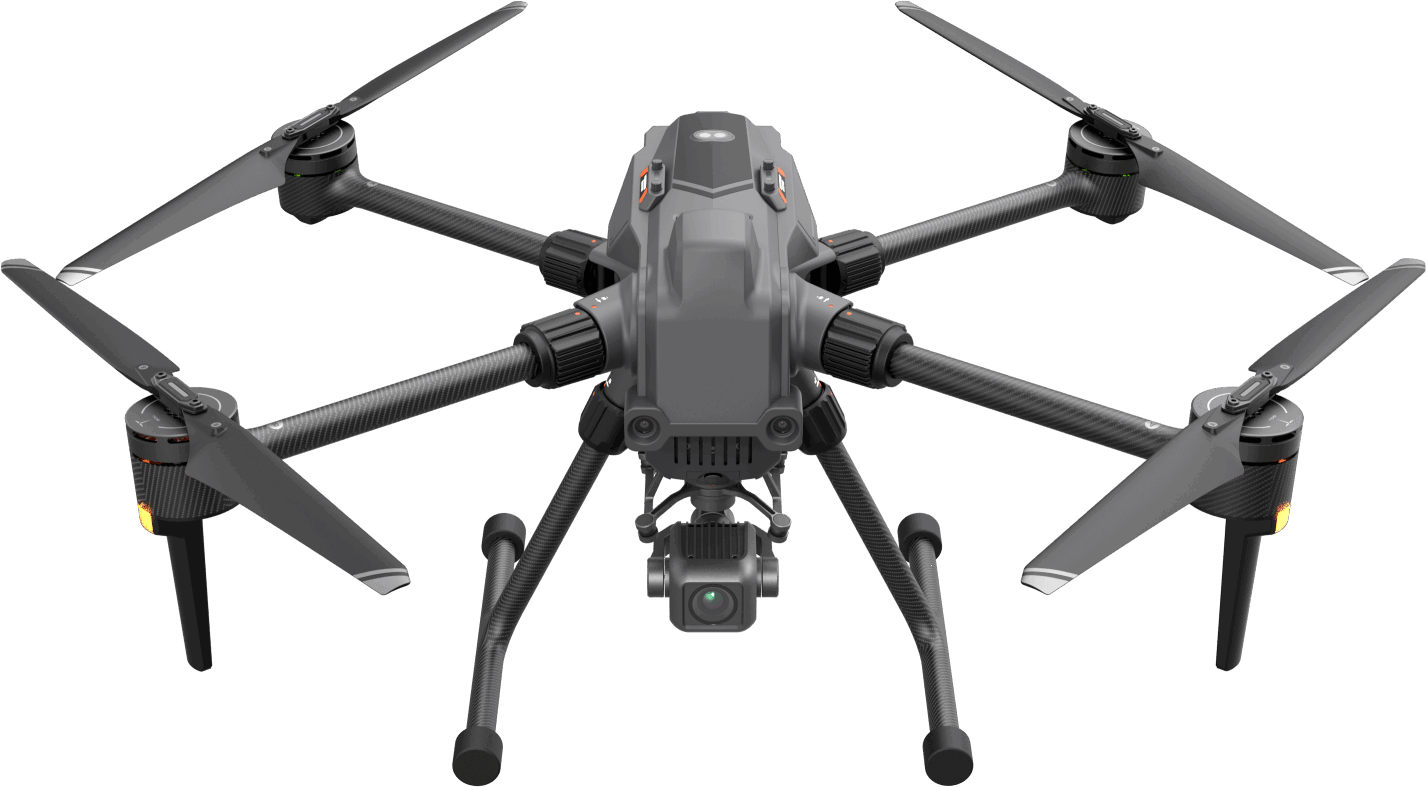

Y-725 parameter
|
|
Expand size
|
547 * 592 * 424 (mm) (excluding propeller)
|
|
Folding size
|
347 * 367 * 424 (mm) (including tripod)
|
|
Maximum takeoff weight
|
7kg
|
|
maximum payload
|
3kg
|
|
Maximum parallel flight speed
|
23m/s (sport mode, horizontal/windless)
|
|
Maximum takeoff altitude
|
5000m
|
|
Maximum wind resistance level
|
7
|
|
Maximum flight endurance
|
63min
|
|
IP protection level
|
IP45
|
|
Image transmission distance
|
15km
|
|
Omnidirectional obstacle avoidance
|
Before obstacle perception range: 0.7m~40m
|
|
Left and right: 0.6m~30m
|
|
Up and down: 0.6m~25m
|
|
AI function
|
Capable of object detection, tracking, and recognition
|
|
Flight safety
|
Perceive surrounding civil aviation aircraft information for avoidance
|
|
The above parameters are for reference only. Detailed technical parameters are subject to actual delivery.
|

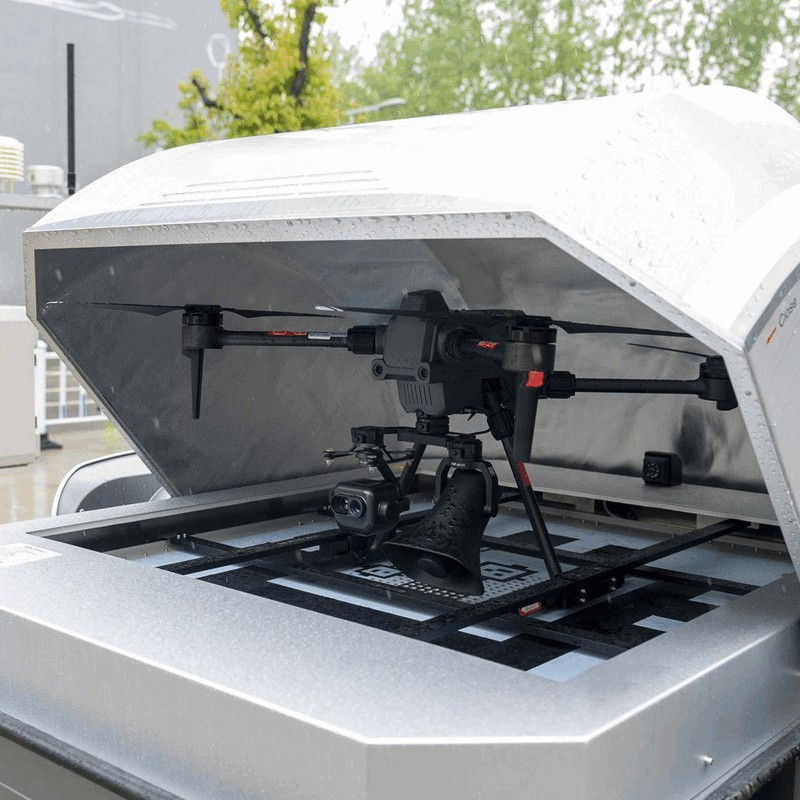

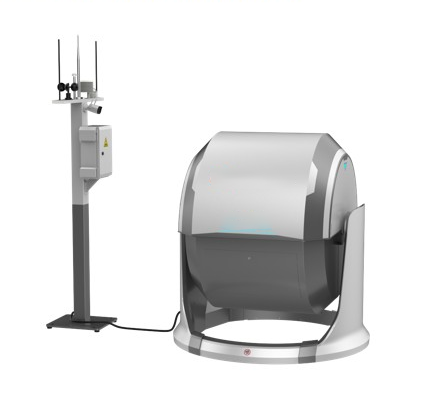

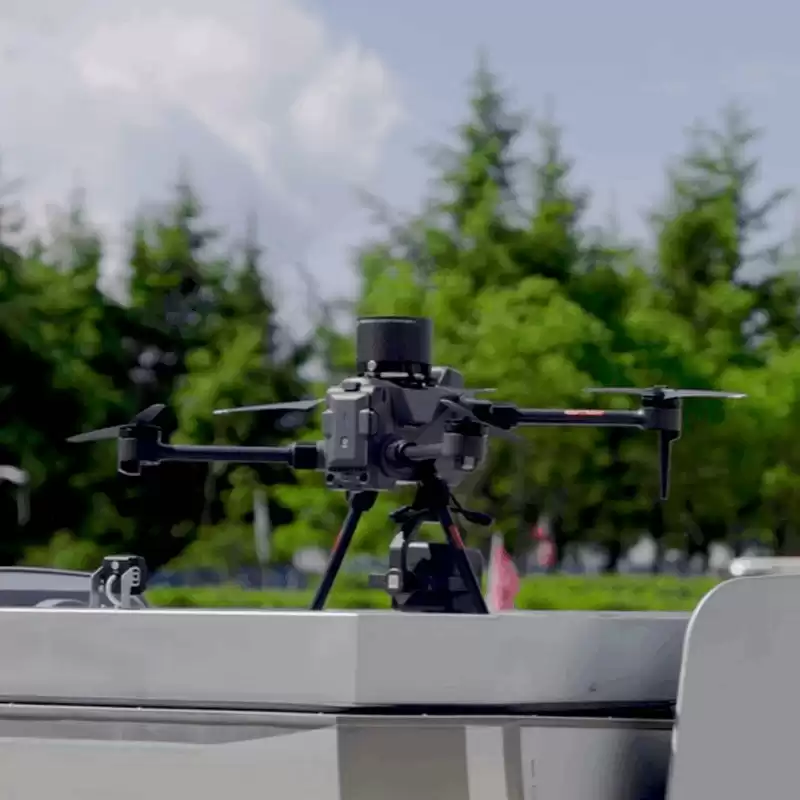

Y-725 Drone Hangar UHK-1
The UHK-1 drone automatic hangar integrates unmanned operation, automatic takeoff and landing, automatic charging, autonomous patrol, and intelligent data recognition functions, and has an integrated design with drones; Rolling hatch cover, not afraid of wind, snow, freezing rain, and accumulation of falling objects "two major highlights", combined with drones and series payloads, intelligent control platforms, and low altitude shared drone platforms, subverts traditional pilot operation methods, strongly empowers low altitude new infrastructure, and opens up a new era of "unmanned operation" for more industries!
|
Drone Hangar UHK-1 parameter
|
|
Size (closed lid)
|
1460*1460*1670mm
|
|
Size (open lid)
|
1460*1460*1110mm
|
|
weight
|
255kg
|
|
Installation size
|
Bolt fixation
|
|
External interface
|
RJ45 Ethernet port
|
|
Power supply mode
|
AC220V， The power supply has over-current
|
|
over temperature and short circuit protection
|
|
communication mode
|
Ethernet access
|
|
Charging method
|
Contact type automatic charging
|
|
charging time
|
70min
|
|
The charging environment temperature is 25 ℃, and the aircraft battery is charged from 10% to 90%.
|
|
Image transmission and control distance
|
8km (open visibility without interference)
|
|
Industrial air conditioning function
|
Automatically start/stop within the set temperature range
|
|
power consumption
|
1700W (peak)
|
|
uninterruptible power supply
|
Emergency use>4h
|
|
working life
|
Can achieve 2000 sorties or 5000 hours of trouble free operation
|
|
Buzzer
|
support
|
|
The above parameters are for reference only. Detailed technical parameters are subject to actual delivery.
|
