Fuselage stmcture: 8*2=16 axes and 16rotors
Wingspan size:±3660mm*3660mm*1200mm
Folded size:± 1950mm*1950mm*1550mm
Net weight of bare metal: ≤88kg
Battery weight: ≤37Kg*2=74Kg
Take-off bare weight ≤162Kg
Battery capacity: ≥16 degrees /1 group
Charging time: ≤40 minutes
Discharge voltage: 60V-79.8V
Working environment temperature: -40℃-55℃
Endurance with empty aircraft: ≥ 50 minutes
Load endurance:≥18 minutes
Wind resistance level: 6 level
Waterproof rating:lP44
Maximum net pulling force: 240Kg
Maximum take-off weight:≤402kg
Maximum control distance: 50km
Maximum lifting speed: ±8m/s
Maximum horizontal speed:±25m/s
Maximum operating altitude: 5500m
Modular design
Easier maintenance and maintenance
Carbon fiber with aerospace aluminum alloy
Lightweight, more robust and easy to operate

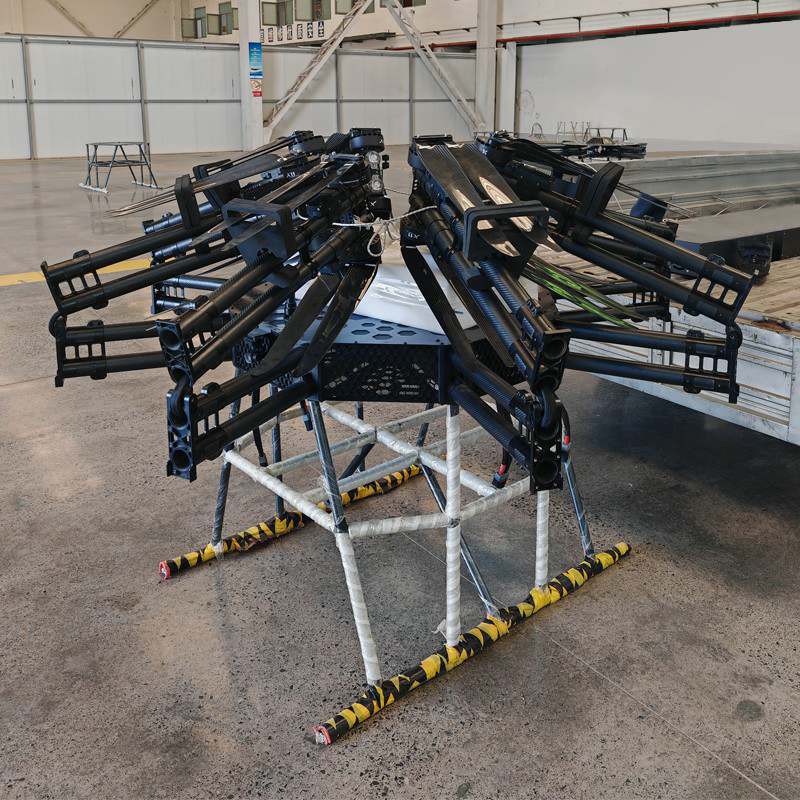

Foldable
It is convenient and fast to disassemble and transport
Redundant design
Higher stability and fault tolerance
Why Choose Us?
-
B2B Customization: MOQ 5 units, tailored payload configurations.
-
Global Compliance: CE/FCC certified, 3-year warranty.
-
24/7 Support: On-site training and rapid spare parts supply.
FAQ
Q: How quickly can it be deployed?
A: Foldable design allows assembly in under 15 minutes.
Q: Is it suitable for medical emergencies?
A: Yes—rapid deployment and -40℃ operation make it perfect for emergency supply delivery.
Q: What’s the battery lifespan?
A: Batteries support 1000+ cycles, with ≤40min fast charging.
