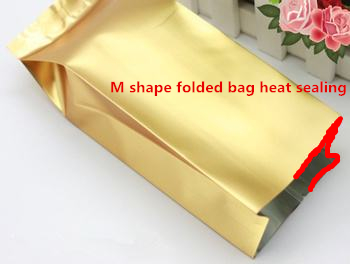

1. Used for thick film heat sealing; especially heavy M shaped folded bag, for example heat sealing of 5-10kg type folded bag
2. Adopts dual temperature controll gauge to controll the front and the back heating tube

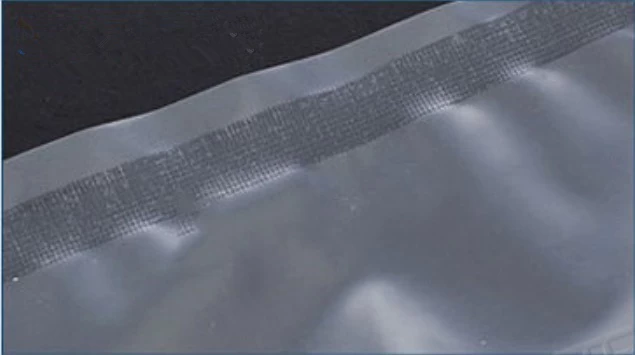

3. Working principle: The upper and lower layers of the bag (such as Tyvek and plastic film, or two layers of aluminum plastic tape) are bonded together when the sealing machine is heated. After the temperature is cooled, it has been firmly combined to achieve the purpose of sealing.
Does this folded bag heat sealing machine for paper bag/plastic bag fits your requirement for bag sealing? Please feel free to contact us for more details and we will help you design the right solution and model set for you.
Notice:
1. provide customized design for special requirement
2. Provide optional device as per actual need
Technical Data:
|
Folded bag sealing machine
|
|
Power supply
|
AC 220V/50HZ
|
|
Max sealing width(mm)
|
400
|
|
Machine height(mm)
|
900-1300
|
|
Heating pipe power(w)
|
4*200
|
Transportation and After-sale Service:
◎All the machine shall be packed in Export wooden box;
◎Engineers are available to do service abroad;
◎Training &Technical instructing lessons shall be provide during installation;
◎Video instruction installation is also available if customer have professional technical engineers;
◎One year warranty is provided for customer.
