Football Stadium Perimeter LED Display Advertising Aluminum Cabinet 960X960

Sport perimeter LED display for football stadiums are convenient to install and disassemble. LEEMAN DISPLAY LED screen are waterproof and are protected against any stadium environment like water, rain, dust


  • Warranty TimeGuarantee Period 5 Years
  • CertificationUL CE ROHS FCC EMC ISO TUV ETL SGS SAA BIS SASO UV PVOC KC BQB FCC-ID FDA LVD MON C-TICK


Football Stadium Perimeter LED Display Advertising Aluminum Cabinet 960X960


Aluminum Cabinet Outdoor Stadium Football LED Screen SMD P10 Soccer LED Video Wall


Product features:

1. IP65 waterproof, anti-ultraviolet, wind resistance , vibration resistant

2. Base structure adjustable, ensure better watch games from different viewing angle

3. Die cast aluminum led cabinet, thin and light weight, foam removed, can use for rent

4. Soft led module mask, protect athlete


Football Stadium Perimeter LED Display

1. LED Stadium Perimeter has high brightness and big view angle to improve visual effect. The high brightness led lamp used can save energy (DIP led lamp view angle:135°/ 75°, SMD led lamp view angle 160°/ 160°)

2. Using soft mask cushion to prevent display being damaged and also to protect athletes from being injured.

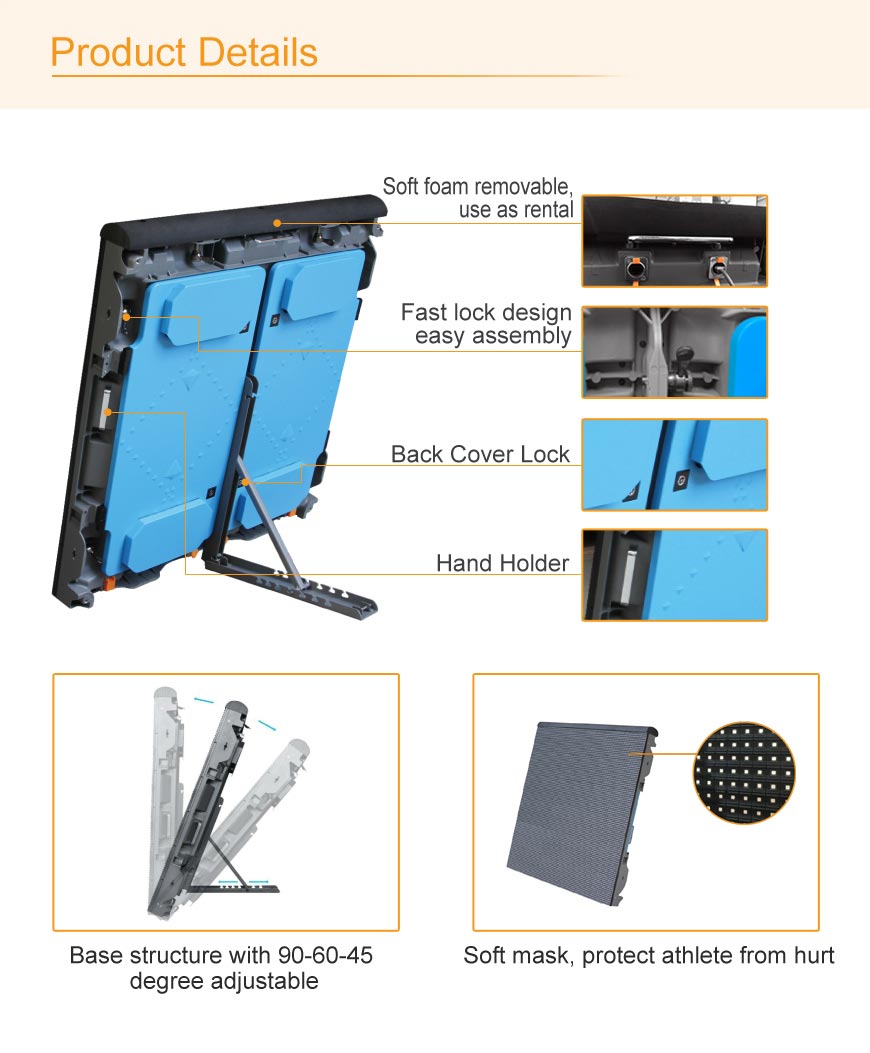

Stadium Football Sport Perimeter LED Display cabinet

1. There is high strength bumper cotton on the top of the cabinet to protect athletes.

2. Die-cast Aluminum cabinet structure (Box size: 640mm * 960mm)has the advantage of high level strength, good flatness and less weight compared with steel cabinet. It uses CNC precision processing technology which guarantees the display being installed with accuracy

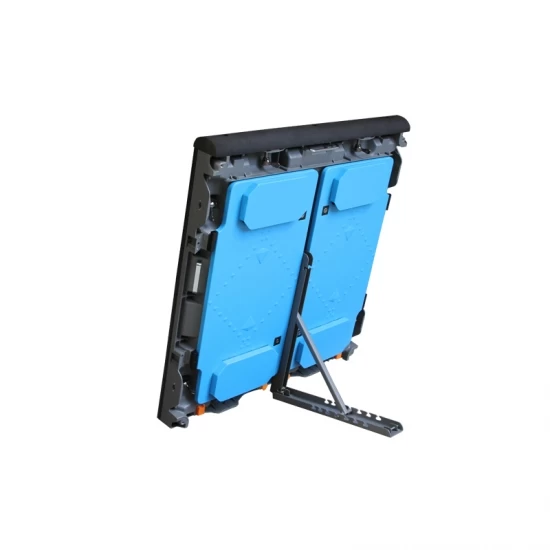

3. Using adjustable cabinet bracket structure design enables the cabinets could be adjusted in the range of  0 ° -90 °  to ensure the best viewing angle. Silicon rubber mask with its softness and flexibility to protect the player and balls from being injured.

4. With quick-lock connection between the cabinets,aviation plug of the signal and the power connection,the display can be operated more conveniently.

5. Intelligent temperature-control fan system with strong convection air cooling makes the display more energy-efficient and durable.

6. Accessories equipment are packed with flight case so that the display could be transported more conveniently.


Sport Football Stadium Perimeter LED Technology

1. Up to 3840Hz high refresh rate design brings good visual effect to the audience.Besides,there would be no smearing while taking a picture of the live show using high-speed camera.

2. High gray scale technology enables the display show the details of the picture and video.

3. LED Stadium Perimeter display adopts energy-efficient technology and design in many aspects such as the lamp, the power, brightness control and temperature control.Its can save 30% of power consumption.


Application

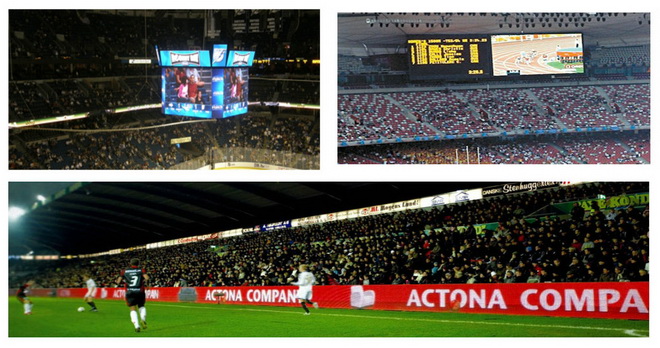

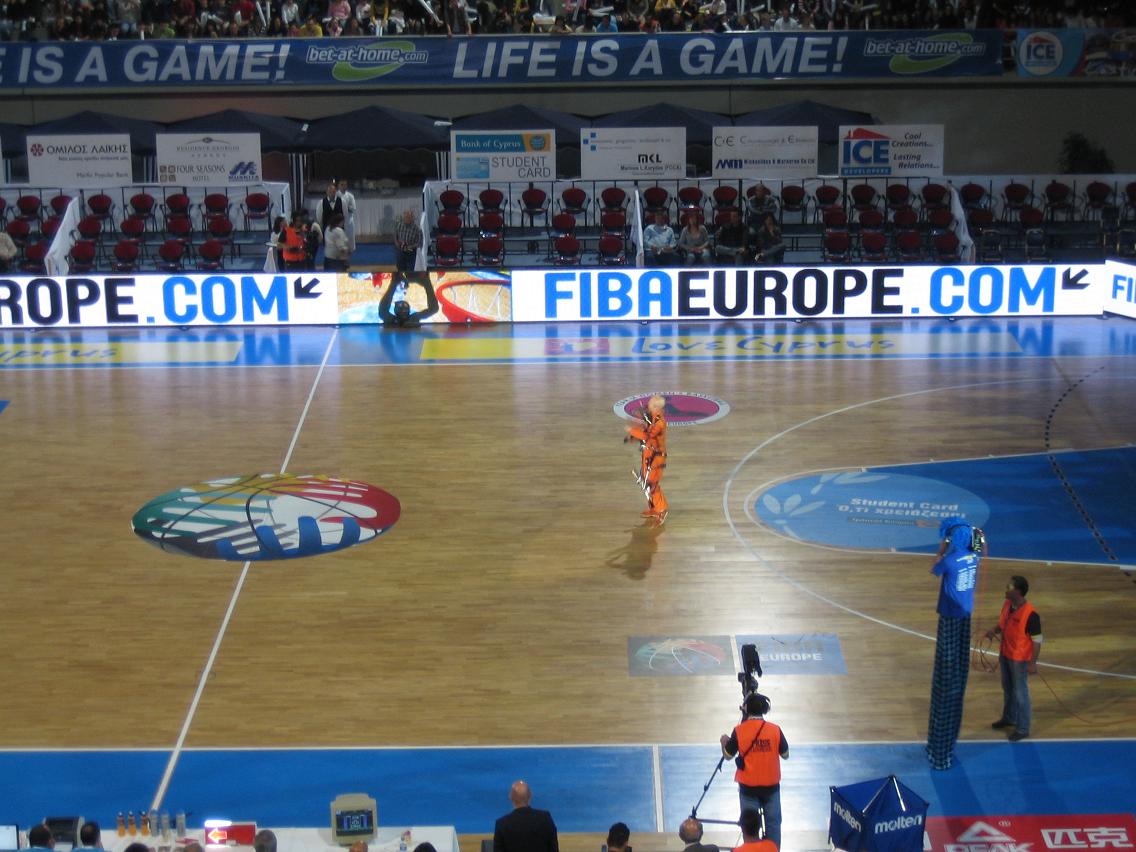

LEEMAN DISPLAY LED Stadium Perimeter display is widely used in indoor and outdoor soccer fields, basketball courts, tennis courts and baseball field and other sports stadium.


PRODUCT SPECIFICATION

No. Item Parameter
3 PixelPitch 10mm 16mm
4 pixeldensity 10000pixels/m2 3906pixels/m2
5 refreshrate ≥3840HZ 3840HZ
6 Brightness 7500cd/m2 ≥7500cd/m2
7 Pixelcompostion 1R1G1B 1R1G1B
8 LEDencapsulation DIP346 / SMD3535 DIP346 / SMD3535
9 Drivemode Static static
10 Modulesize 160*160mm 256*128mm
11 Cabinetsize 960*960mm 1024*1024mm
12 Weight 40KG/m2 40KG/m2
13 viewingangle ∠16 ∠16
14 graygrade 14bit 14bit
15 whitebalancetemp 6500adjustment 6500(adjustment)
16 contrast 1000:01:00 1000:01:00
17 workingvoltage DC5V DC5V
18 powersupply AC100-240V50HZ AC100-240V50HZ
19 protection Front:IP65Rear:IP54 Frong/IP65Rear/IP54
20 Interfacemode Aviationconnector aviationconnector
21 installation Rental / Fixed Rental / Fixed
22 powerconsumption 400W/m2(Avg) 600W/m2(Avg)
800W/m2(Max.) 1200W/m2(Max.)
23 Displayinterface VGA,DVI,HDMI, VGA,DVI,HDMI,
1000MbpsEthernetport 1000MbpsEthernetport
24 workinghumidity Temp.-20°C~+60°CHumidity10-99% temp.-20°C~+60°Chumidity10-99%
25 Lifespan 100,000hours 100,000hours
26 presuretesting 3000V/Minute 3000V/Minute
27 groundresistance ≤0.1Ω ≤0.1Ω
28 Draincurrent ≤3.5mA ≤3.5mA
29 gapbetweenmodules ≤1mm ≤1mm
30 Certification CE ROHS UL EMC CE ROHS UL EMC

sports arena events outdoor giant large soccer football stadium perimeter led screenPixel 10mm Football Stadium Perimeter Led Screen Display Basketball Stadium Screen

P6/p8/p10 football stadium perimeter led screen display
