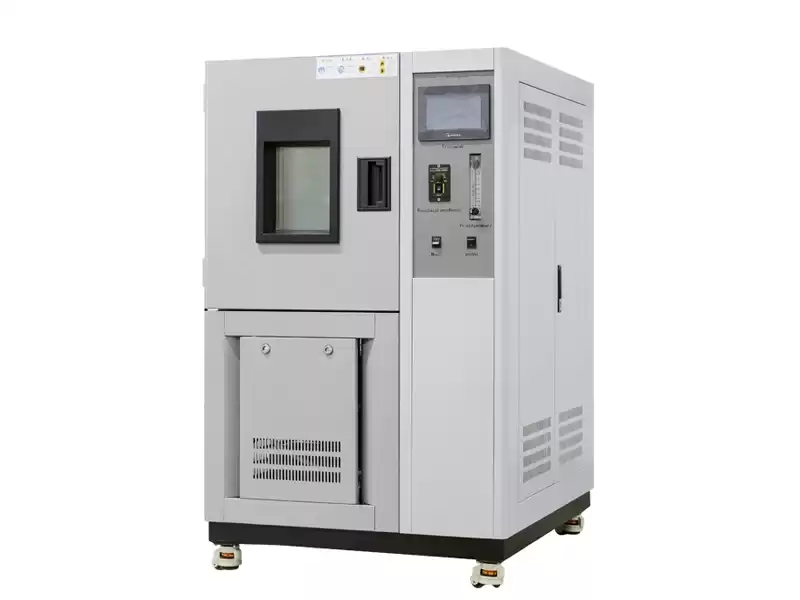

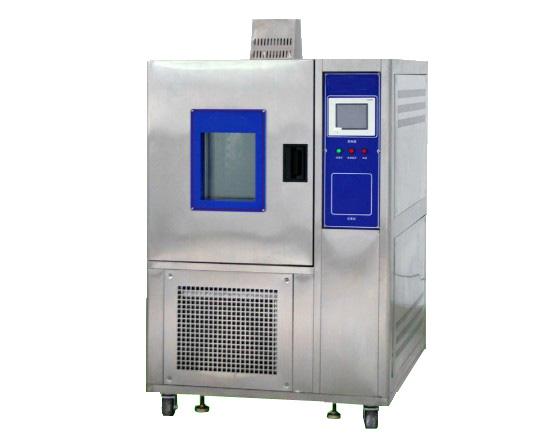

Footwear Frosting & Hydrolysis Resistance Test Chamber

It is designed to simulate different climate conditions in combinations varying with temperature and humidity for the determination of the frosting Phenomenon of dark vulcanized rubber soles and hydrolysis resistance of footwear uppers.

Test Standards

GB/T 20991, ISO 20344, ISO5423, ISO 2288 etc.

Parameters

Model AT-F3018
Temperature range -20℃~+150℃(can be customized)
Humidity range 20 ~ 98﹪R.H
Temp.&Humidity accuracy ±0.5℃, ±2.5﹪R.H
Temp.&Humidity uniformity ±1.5℃, ±3﹪R.H.
Heating rate 3℃/min (Nonlinear no-load, average)
Cooling rate 1℃/min (Nonlinear no-load, average)
Interior dimension (WxDxH) 40x50x40cm
Exterior dimension(WxDxH) 70*160*130cm
Interior material Stainless steel plate(SUS 304)
Exterior material Cold rolled steel plate with stoving varnish treatment or stainless steel plate
Insulation material Rigid polyurethane foam
Refrigeration system Tecumseh single stage compressor or other brands
Refrigerant R404A Eco-friendly refrigerant
Temperature&humidity control system Programmable
Power 1 phase, AC 220V℃±10% 50/60Hz, 18A
Weight 200kg
Accessories Viewing window  1pc
Stainless steel shelves  2pcs
Chamber lamp  1pc
