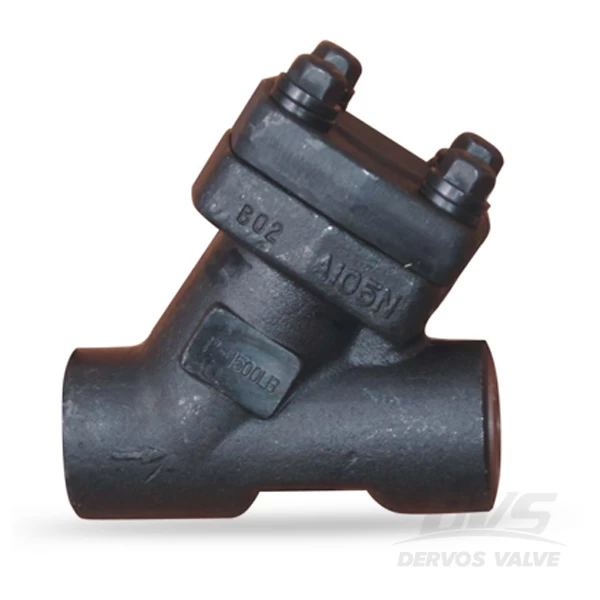

The 1 inch 1500LB y strainer is made of forged steel body and stainless steel 304 as the screen material. The high pressure y strainer with sw end is designed as per ASME B16.34.
Design Feature
1.Forged Steel Body
2.Stainless Steel Screen
3.Customized Mesh for Screen
4.Installed Horizontally or Vertically
5.Ability to handle higher pressure
Quick Detail
|
Type
|
Strainer
|
|
Size
|
1''
|
|
DesignPressure
|
1500LB
|
|
Construction
|
Y
Type Strainer, Bolted Bonnet
|
|
ConnectionType
|
SW (
Socket Weld)
|
|
Design Code
|
ASME
B16.34
|
|
Face to Face
|
ASME
B16.10
|
|
End Connection
|
ASME
B16.11
|
|
Pressure &
Temp
|
ASME
B16.34
|
|
Test &
Inspection
|
API
598
|
|
Body Material
|
ASME
A105
|
|
ScreenMaterial
|
SS304
|
|
TemperatureRange
|
-29℃~+425℃
|
|
Application
|
Water,
Oil, Gas
|
Related Knowledge
What is the difference between Y strainer and basket strainer?
Both y strainer and basket strainer take their name from their configurations. There are four differences between them.
-First, y strainer can be installed either horizontally or vertically. But in most cases, basket strainer could only be in horizonal position.
-Second, y strainer could handle higher pressure rating than basket type.
-Third, for the ability to screen particulate, basket strainers are better than y strainers.
-Lastly, basket strainer is easier to be cleaned than the y type strainer.
In conlusion, Y-strainers are applicable for high-pressure pipelines with a low concentration of particles & solids and less cleaning needs. Vice versa for basket type strainer.
