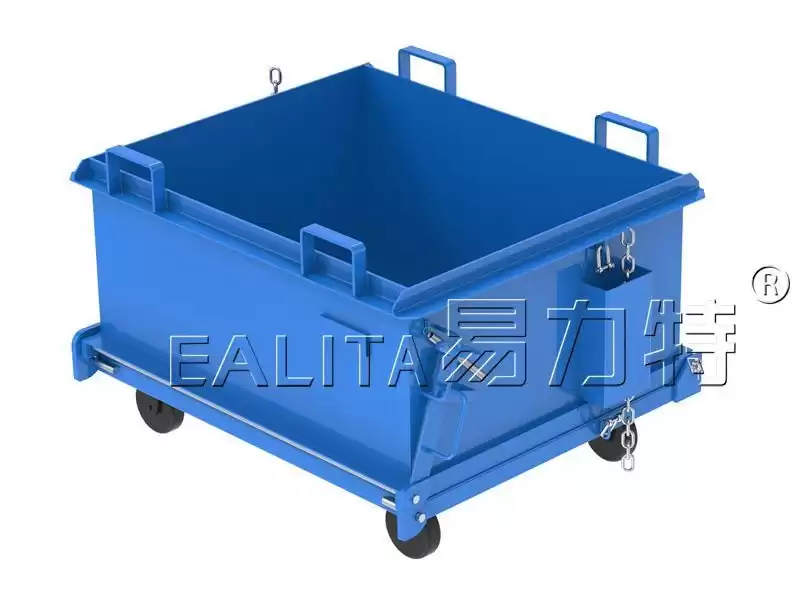

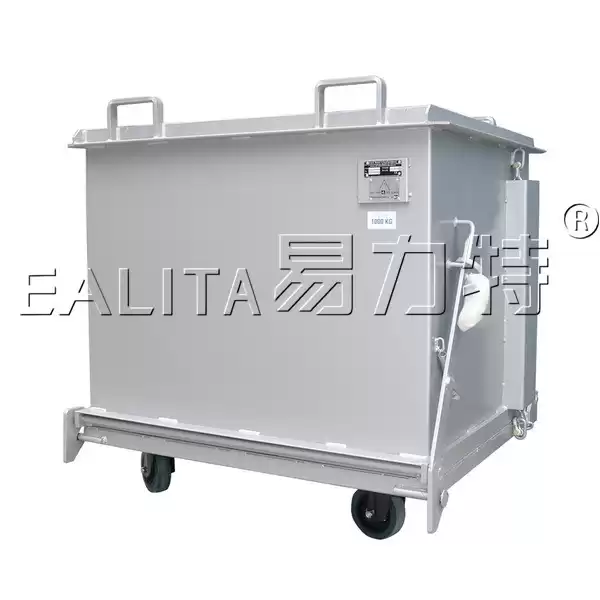

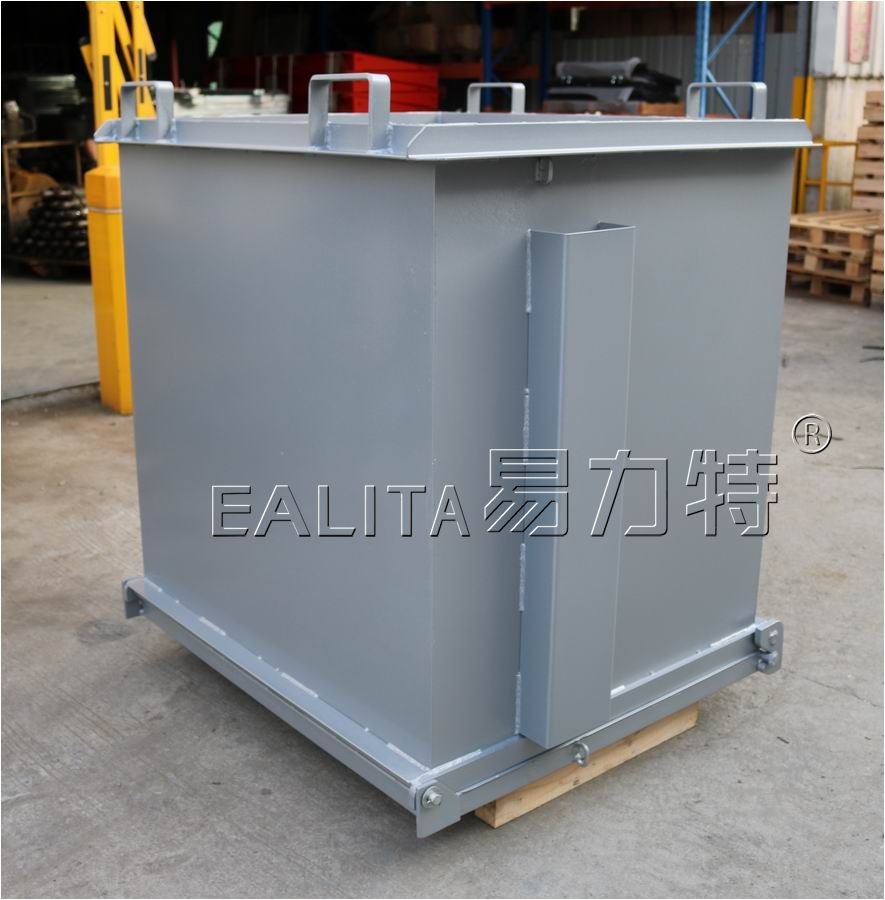

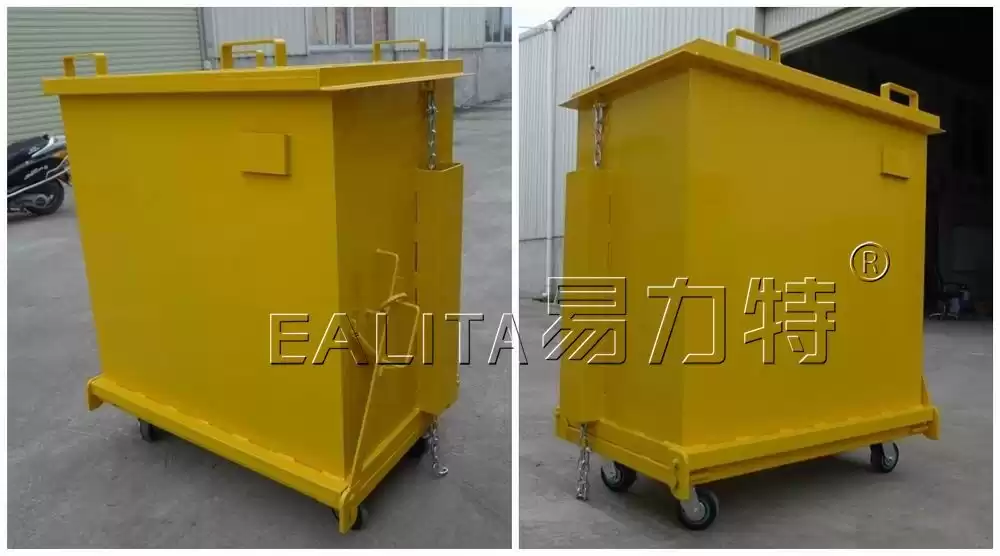

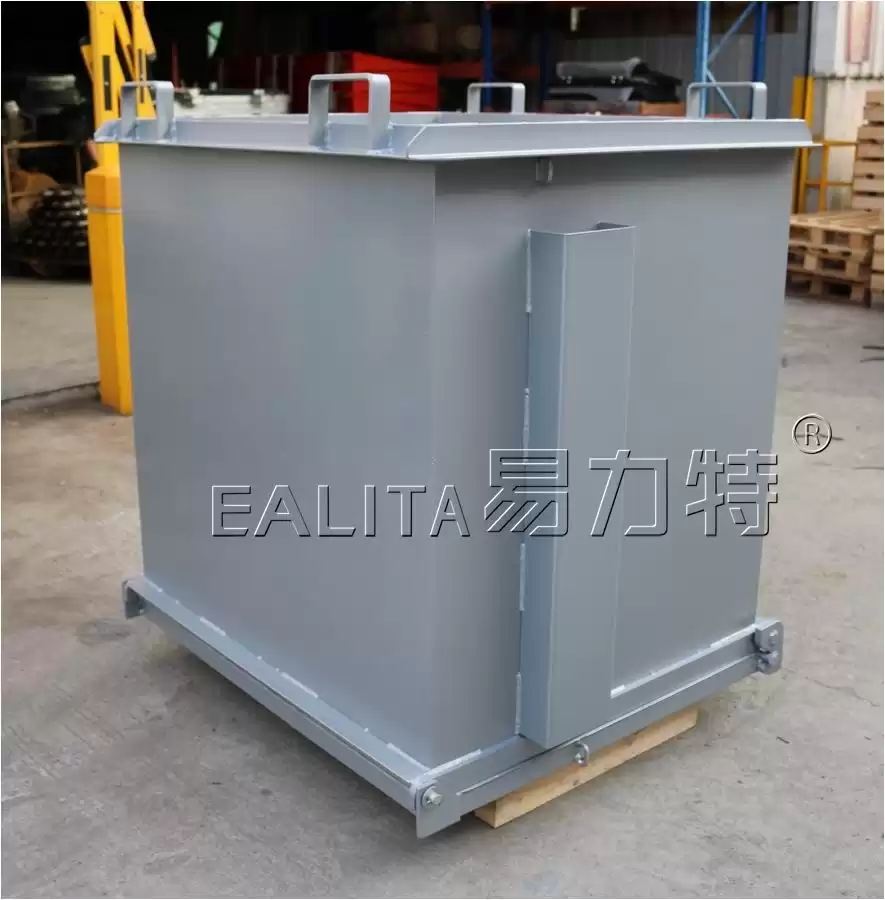

Forklift Bottom Drop Down Bin M-DB

Drop Bottom Bin is a heavy duty unit manufactured from 3mm plate and is reinforced to handle all types of solid waste product.


  • Surface TreatmentGrey Painting or As Request
  • TypeM-DB

The M-DB Drop Bottom Bin is a heavy duty unit manufactured from 3mm plate and is reinforced to handle all types of solid waste product.

- Able to be transported by either forklift or crane, emptying is carried out by pulling the draw rope handle which allows the floor to drop open from one side, allowing complete emptying.

- Shock absorbing system removes all impact from forklift or crane during emptying.

- Enamel painted finish.


Specifications

• Fork Pocket Size: 160 mm x 65 mm

• Fork Pocket Centres: 684 mm

• Safe Working Load: 1000 kg


Type Code
Capacity
Height
Weight
SWL

M-DB500

03.07.19.0002

0.5cu m

745mm
200kg
1000kg
M-DB800
03.07.19.0003 0.8cu m
1045mm
225kg
1000kg
M-DB1100
03.07.19.0005 1.1cu m
1345mm
250kg
1000kg






Product Tags Forklift Bin          Bottom Drop Down Bin          Bottom Drop Bin
