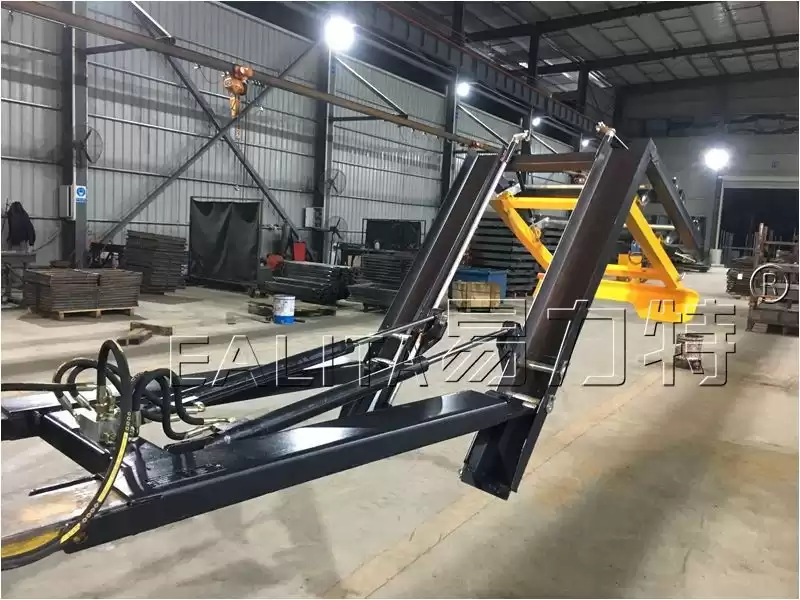

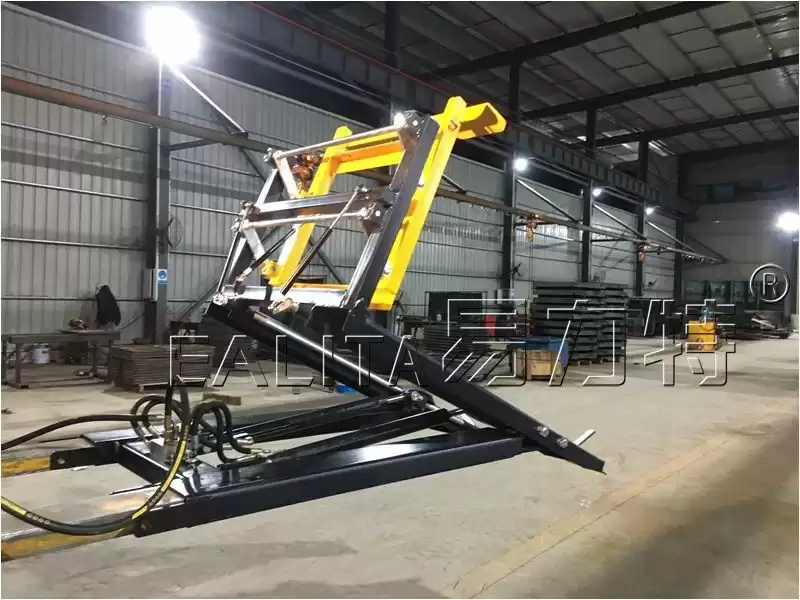

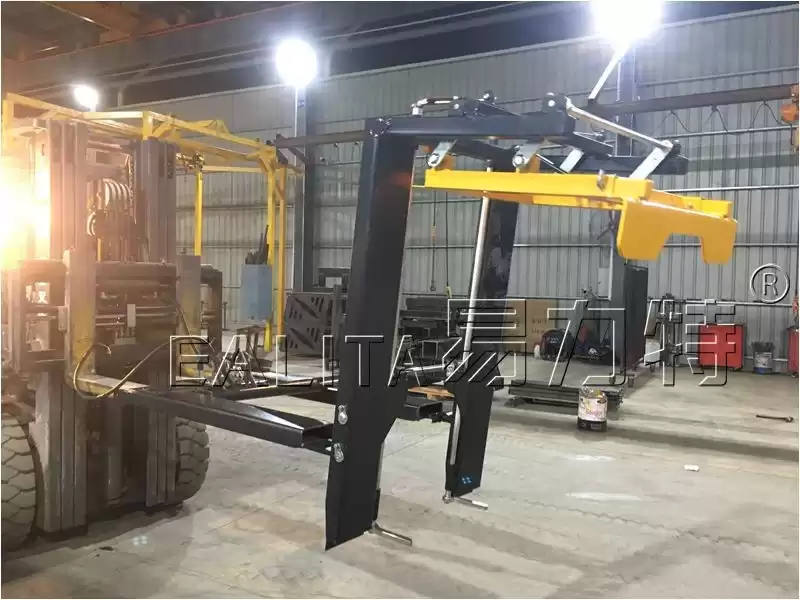

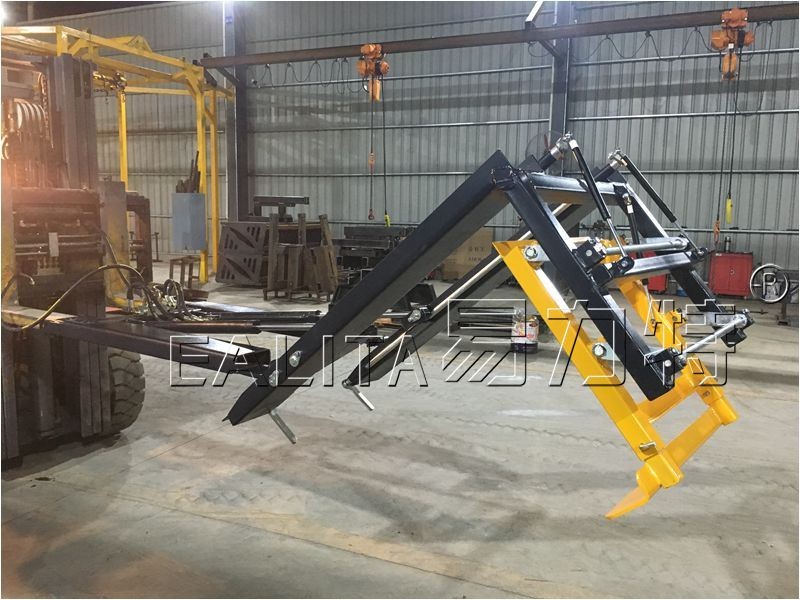

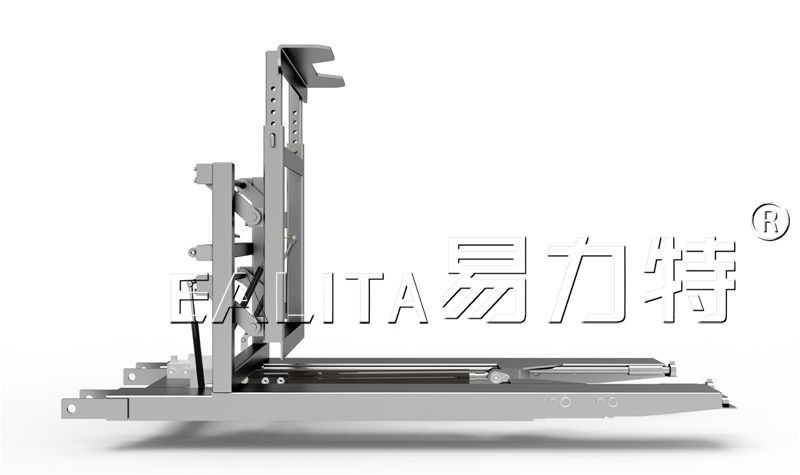

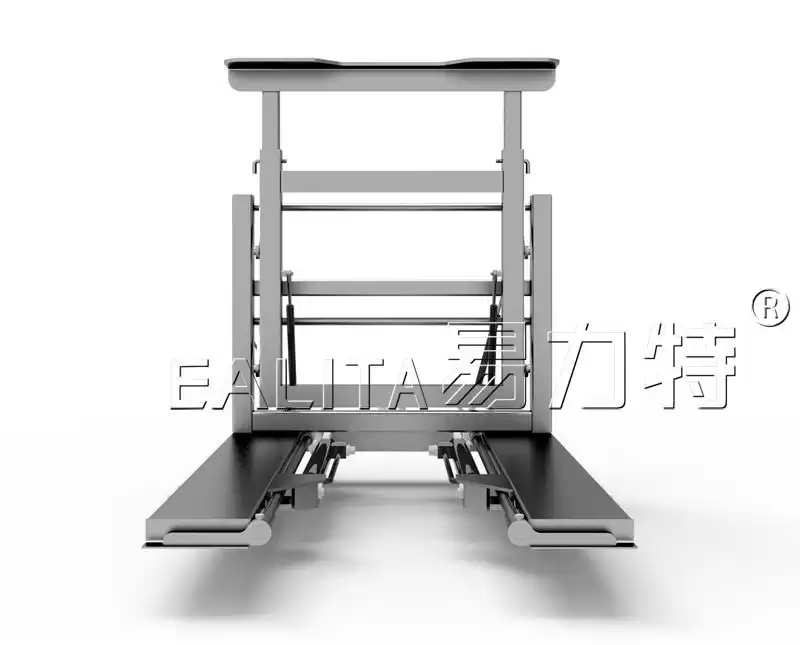

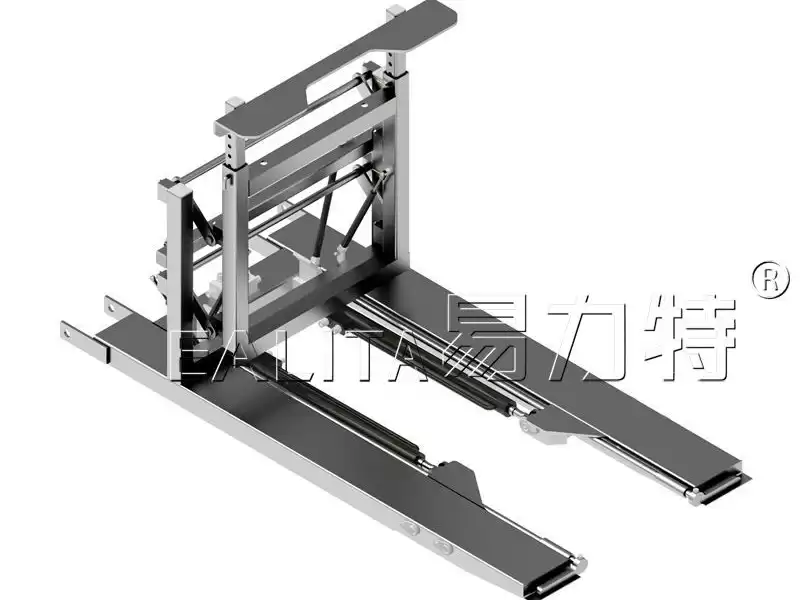

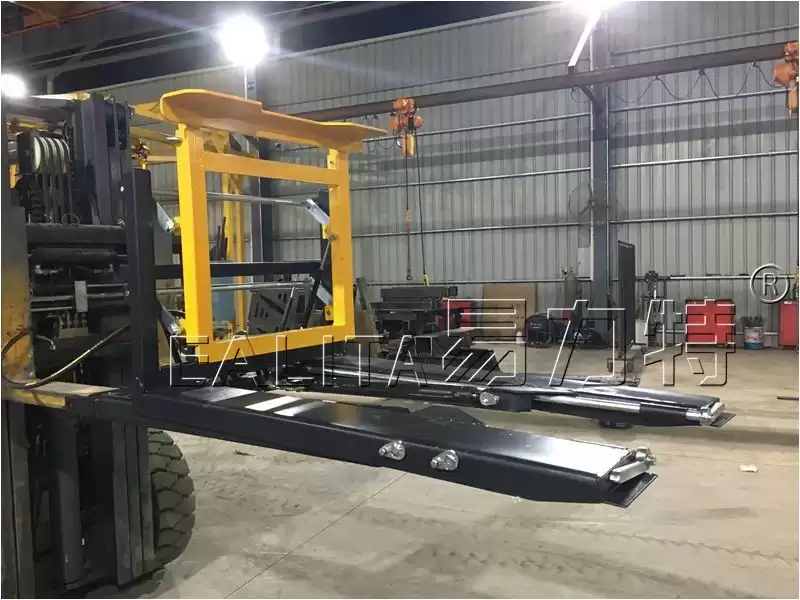

The F-FXQ1000 Forward Bin Tipper provides a fast, safe and economical means for tipping bins of fresh produce or other materials with your forklift or tractor.

- Fast controlled hydraulic tipping action

- Quick & easy fitting or removal from forklift

- Clear view design – does not obstruct vision of tines

- Minimal loss of forklift load capacity

- Does not affect forklift capacity to handle pallets or stacked bins.

- 135° forward rotation ensures complete emptying of bin.

- Operator does not leave forklift seat.

- Gentle on bins – extends bin life.

- Suitable for a wide range of cubic bin sizes & types – plastic or timber, solid or vented.

- Unique bin grab applies firm grip on bin when inverted.

- Robust construction for years of trouble-free operation.

- Powdercoated finish.

- Minimal maintenance

- Stainless steel pivot pins.

- Long life, zero maintenance pivot bearings.

- Safety catch prevents tipping if bin is not correctly on tines.

- Patent pending.

Specifications

• Code: 03.01.18.0002

• Safe working load up to 1000kg.

• Total width across tines: 760mm.

• Fits standard forklift tines up to 1070mm x 45mm x 125mm.

• Standard unit suits bins 1100mm - 1200mm front to rear.

• Lost load (on 1070mm tines): 300mm.

• Mass: 155kg.

• Horizontal centre of gravity: 600mm.

• Vertical centre of gravity: 90mm.
