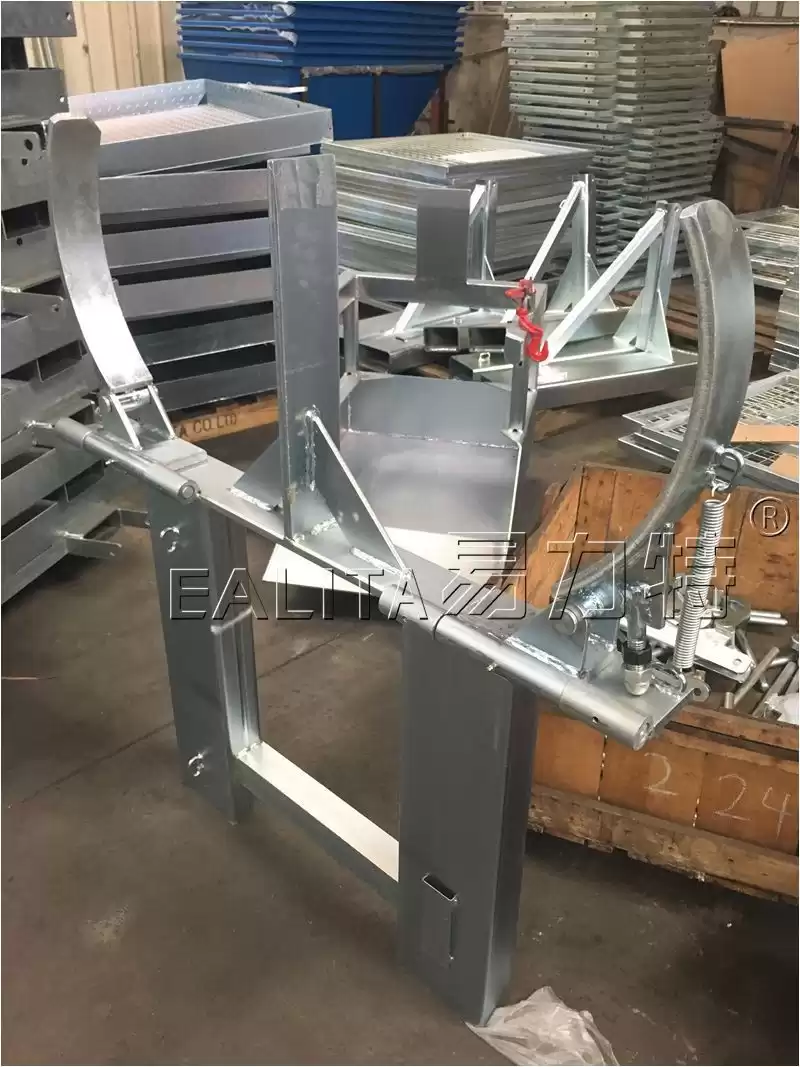

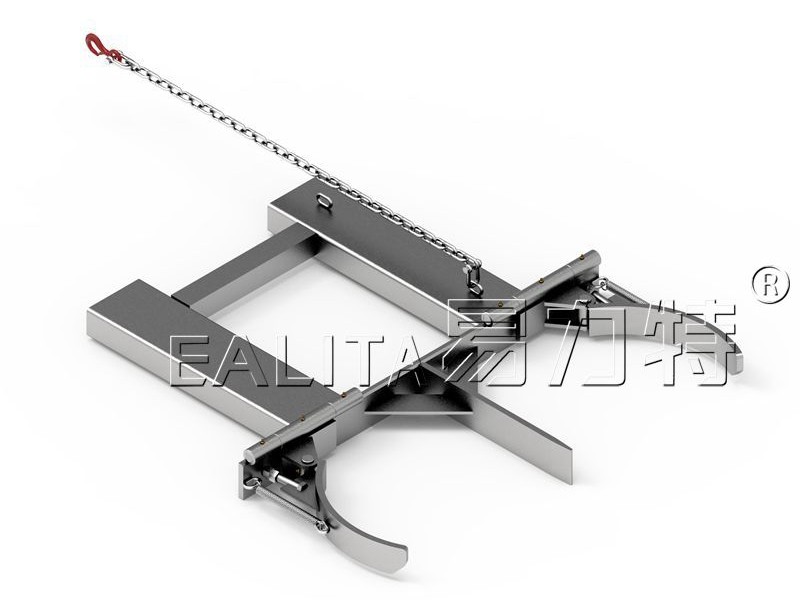

The F-SDL2 lifts, transports and deposits 2 steel drums at a time without having to leave the drivers seat.
- Attaches quickly and easily to most fork trucks.
- The drum is gripped by pushing the arms against the drum centre & driving forward with the forklift.
- The arms will engage around the drum and lock under the rolling hoop when raised.
- To release, lower the drum onto ground and continue to lower the forks whilst reversing the forklift.
- Zinc plated finish.
Specification
|
Type
|
Code
|
No. of Drums
|
SWL(kg)
|
Fork Pocket Centres(mm)
|
Fork Pocket Size(mm)
|
Load Centre(mm)
|
Weight(kg)
|
|
F-SDL2
|
03.01.24.0002
|
2
|
1000
|
585
|
165x650
|
1340
|
75
|
