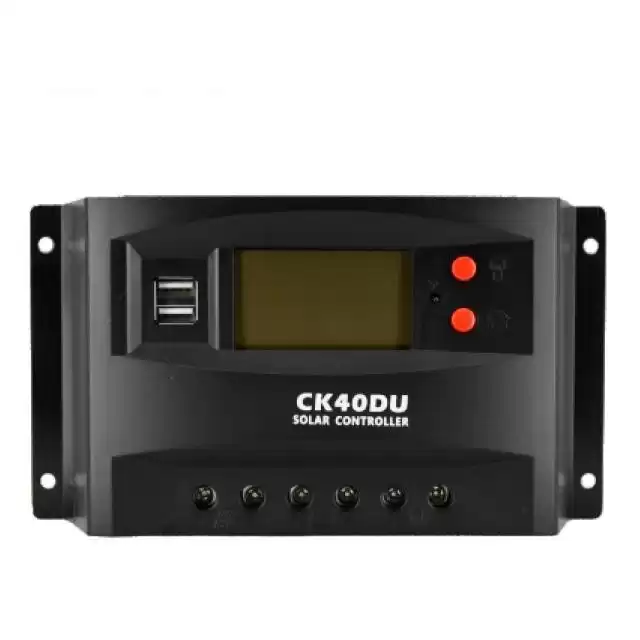

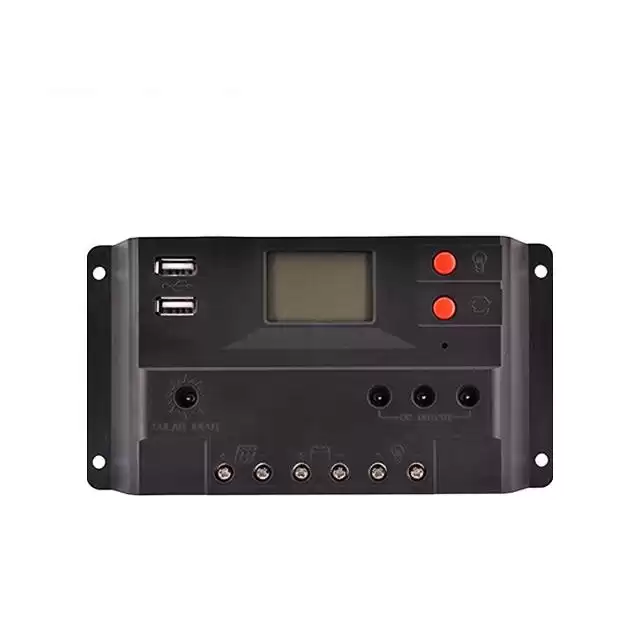

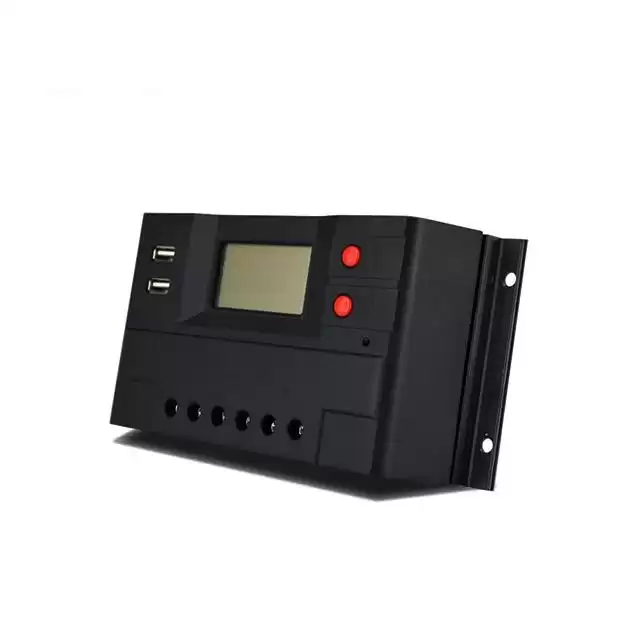

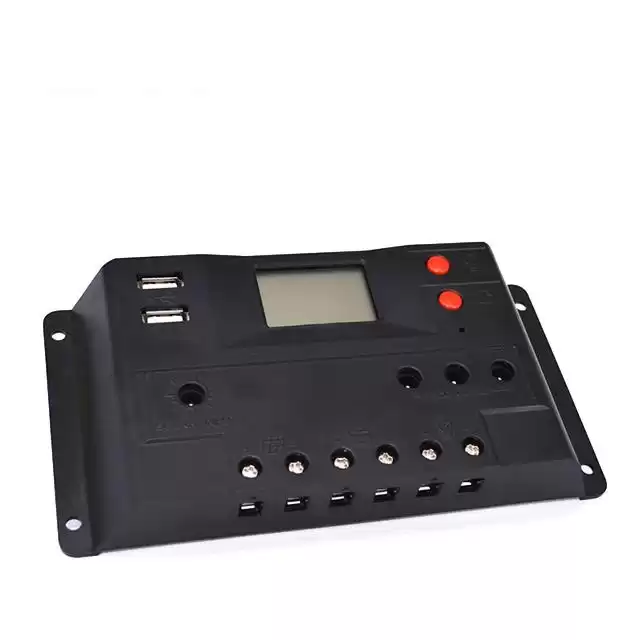

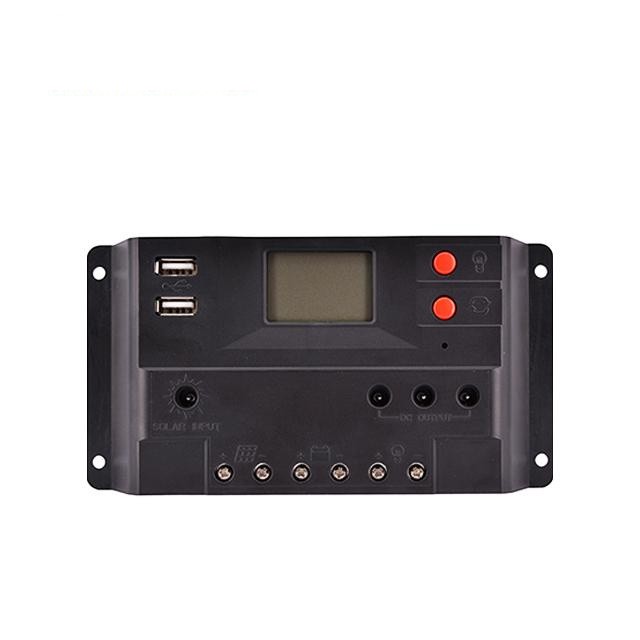

FOTOVO 12V/24V Auto PWM Solar Controller

The product inheriting and optimizing the classic circuit design, added USB 5V output and DC 12V output terminal,enable controller can charge cellphones and other electronic devices. Considerate solar panel,battery and load protection making this product more outstanding.



  • CertificateCE, RoHS, FCC
  • Warranty3

FOTOVO 50V PWM Solar Controller


Product Description


Advantages


1. Automatic detection of voltage.

2. Temperature compensation.

3. USB 5V/1A out put, charge the electronic devices.

4. Reverse current protection at night.

5. Overheat protection and short circuit protection of USB output.





Equipment Parameters

Product Name
GS-CK         Style
PWM Charge Controller
Brand FOTOVO Colour
Black
Material
Plastic
Packing Packed in carton and Shockproof
Gross Weight 395g/565g/715g Mode Name
CK Series

Model CK40DU CK50DU CK60DU
PV voltage ≤50V
Rated Charge current 40A 50A 60A
Rated system voltage 12V/24V Auto
Rated Discharge current 40A 50A 60A
Charge mode PWM Multi-stage(bulk, absorption, float)
Float charge voltage 13.8V(12.8V~14.2V)×1/×2
Absorption voltage 14.4V(13.6V~15.2V)×1/×2, (lasting:2hrs)
LVD voltage 10.8V(10.5V~12V)×1/×2
LVR voltage 12.6V(11.5V~13V)×1/×2
HVD voltage 16.0V×1/×2
HVR voltage 15.5V×1/×2
Overload protection voltage

≥1.2×rated current,60s

≥1.5×rated current,10s

≥1.8×rated current,0.2s

Charge circuit voltage drop <0.22V
Discharge circuit voltage drop <0.12V
No load loss ≤14mA
USB output 5V/1A
N/A
Battery type GEL,SLD,FLD,Usr(自定义/default)
Installing cable size ≤16mm²
≤25mm²
Working temperature -20℃~55℃
Dimension 196×111×54(mm) 188×125×48.5(mm)
188×125×56(mm)
Weight 395g 565g 715g




Factory and Delivery




FAQ



1. Q: How can I contact you if I have a problem?

    A: There is contact information at the bottom of our website, so feel free to contact us if you have any questions.


2. Q: Do you have the relevant certificates to prove that you have quality assurance?

    A: We can show you any relevant qualification certificate, and contact the after-sales service to answer any questions for you.


3. Q: Is the CK series different from other series?

    A: The appearance of this controller is simple and clear,little red button design makes it easy to use.The product inheriting and

        optimizing the classic circuit design, added USB 5V output and DC 12V output terminal,enable controller can charge cellphones

        and other electronic devices.


4. Q: What is the role of LCD?

    A: The HD vivid LCD allows you to observe the working status and data of the controller more clearly.
