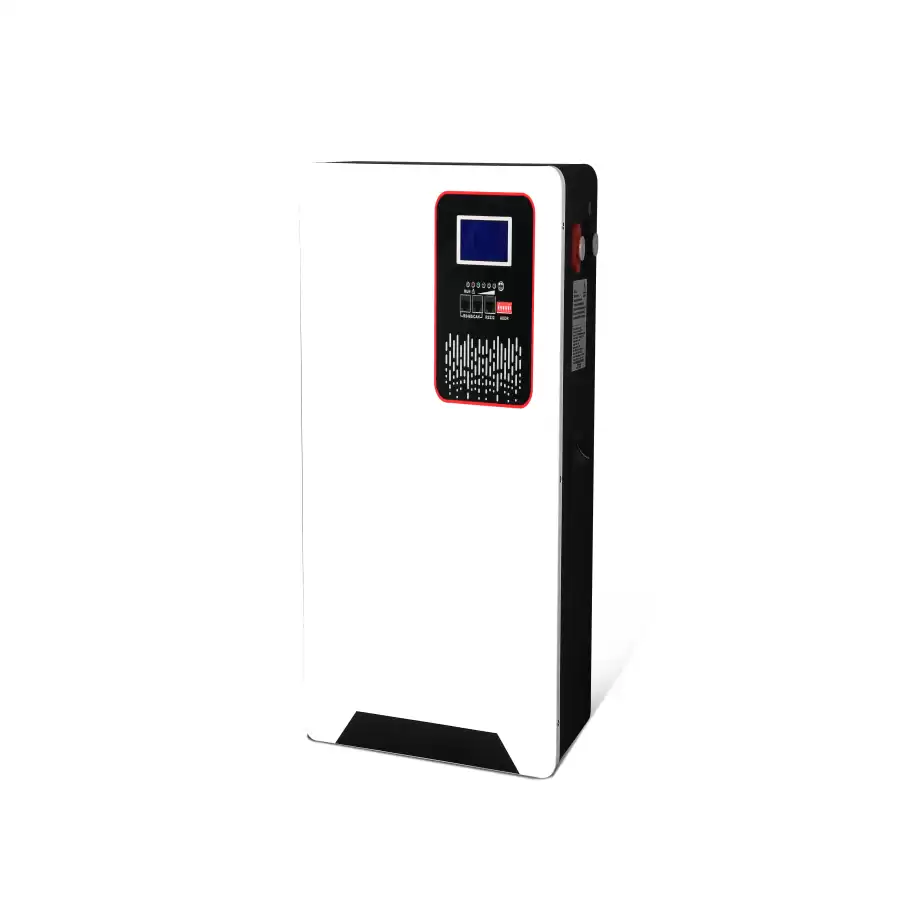

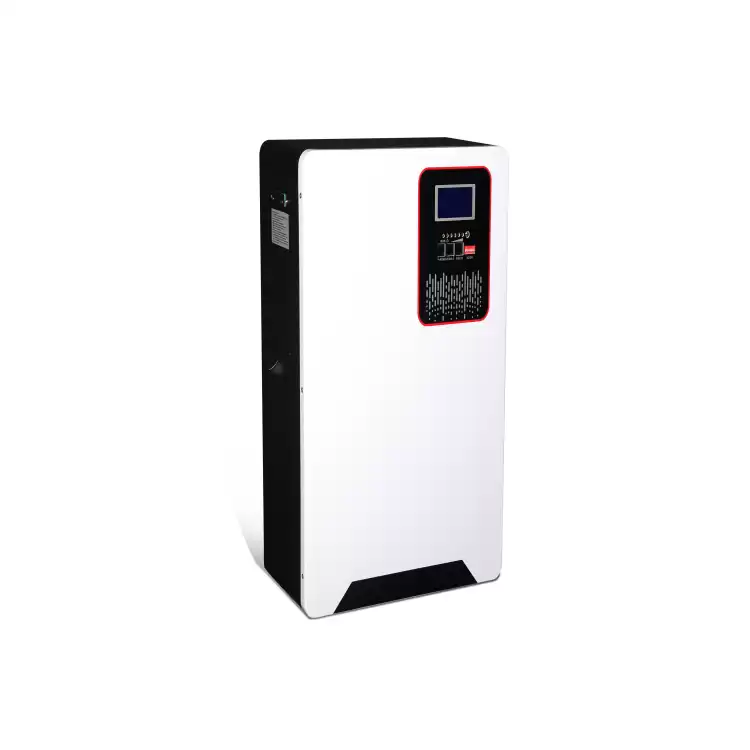

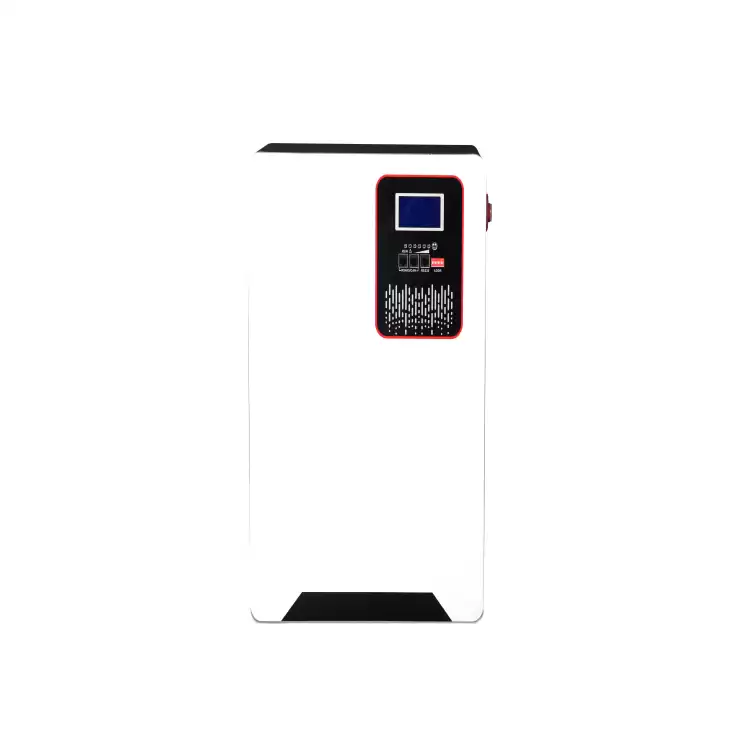

FOTOVO 48V 200ah hot Selling Wall Stand Lithium Battery Pack 5KWH 10KWH With 6000 Cycles CATL Cells SK-51.2V200Ah Power Wall Design

FOTOVO Selling Wall Stand Lithium Battery Pack 5KWH 10KWH With 6000 Cycles CATL

Cells SK-51.2V200Ah Power Wall Design

This product main feature of this product is CATL New Cells, A Quality 6000 cells cycle times, 5 years warranty, 10+ years life design Power wall design, space saving design High density, small size and weight, and it has a big charge/discharge current up to 100A/200A, suitable for solar storage system.


  • CertificateCE,ROHS
  • Warranty3

FOTOVO  48V 200ah hot Selling Wall Stand Lithium Battery Pack 5KWH 10KWH

 With 6000 Cycles CATL Cells SK-51.2V200Ah Power Wall Design

Product Advantages

1. Large Capacity
2. LiFePO4 Lithium Battery, no memory
3.Beautiful and industrial design

4.LCD display with communication port(CAN/RS485/RS232) .

5.All around protection
6.Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter





Product Parameters

                           MODEL
SPECIFICATION
SK-25.6V200Ah(Power Wall Design) SK-51.2V100Ah(Power Wall Design) SK-51.2V200Ah(Power Wall Design)
Battery Type LifePo4 LifePo4 LifePo4
Normal Battery Model 25.6V200Ah 51.2V100Ah 51.2V200Ah
Normal Capacity(25C, 0.2C) 5120Wh 5120Wh 10.24KWh
Voltage window (Vdc) 22.4~29.2V 44.8~58.4V 44.8~58.4V
Folat Charge Voltage(Vdc) 27.6V 55.2V 55.2V
Max.continue discharge current(A) 100A 100A 100A
Max.puise discharge current(A) 200A30Sec 200A30Sec 200A30Sec
Max.continue charge current(A) 100A 100A 100A
Cycle life (+25C 0.2C 100%DOD) >6000 Cycles  >6000 Cycles  >6000 Cycles
Cells Brand CATL CATL CATL

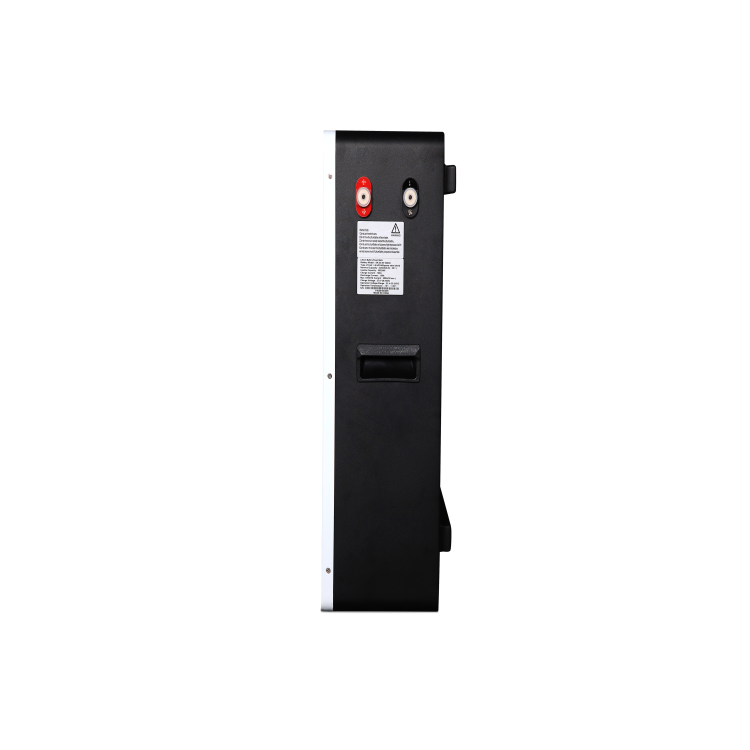

Terminal  M8
Storage temperature 0°C~30°
Storage duration  6 months at 25°C
safety standard  UN38.3 MSDS, CE
Ip degree  IP20
communication function  CAN/RS485/RS232, standard  BMS with SAKO SUNPOLO 6KW Solar Inverter
COMMUNCIATION Protocol. Optional  smart BMS CAN communicate with main
Brand of Solar Inveter: Deye, Growatt, Voltronic, GOODWE, SMA, SOFAR, etc
PROTECTION
Protection  Dvercharge proterction, overdischargr protection, overcurrent protrction,
shortcircuit protection, overtemperature pretection
AMBIENT
Noise(dB)) <40dB(1meter)
Working Temperature  Discharge :-10°C~+50°C
Humidity 0~95(no condensation)
Sea Level(m) 1500
DIMENSION
L*W*Hproducts sizemm 611*420*224 611*420*224 780*460*166
L*W*H(package size ) mm 664*479*285 664*479*285 826*511*225
Weight (NW Kg) 57.0Kg 57.0Kg 71.0Kg
weight (GW kg) 59.5Kg 59.5Kg 74.0Kg

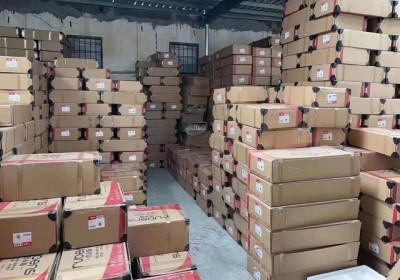

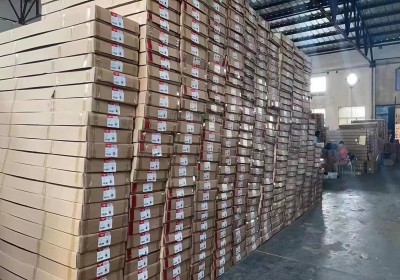

 Factory and Packing




FAQ

1 How do you control the quality?

A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity? A:20 pieces

3. Can you introduce your company?

A:l am very honored. l will send you the company's introduction document later to give you a more comprehensive and direct introduction to our company's information.

4. What are the advantages of your company?

A:Adequate inventory and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

6. How do your company deal with the problem on quality?

A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
