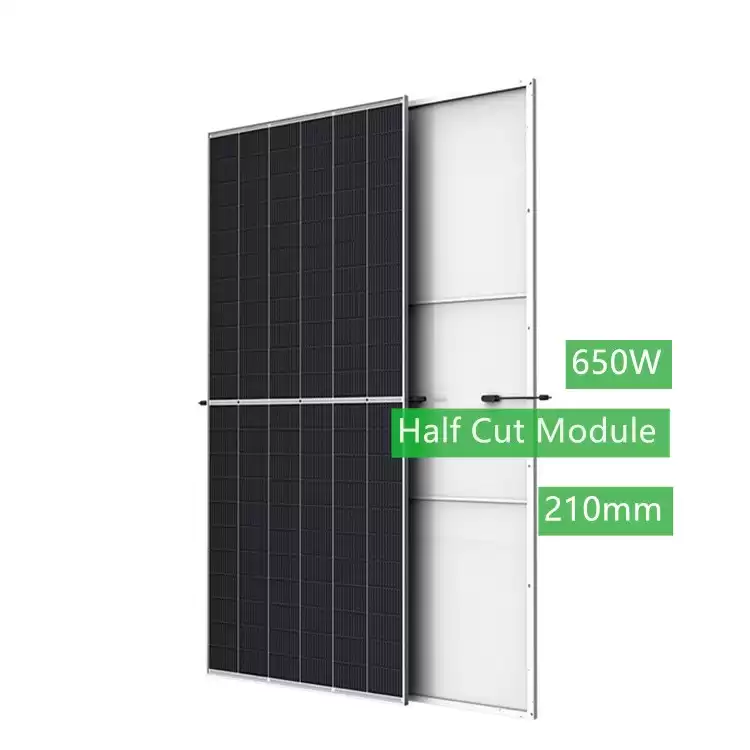

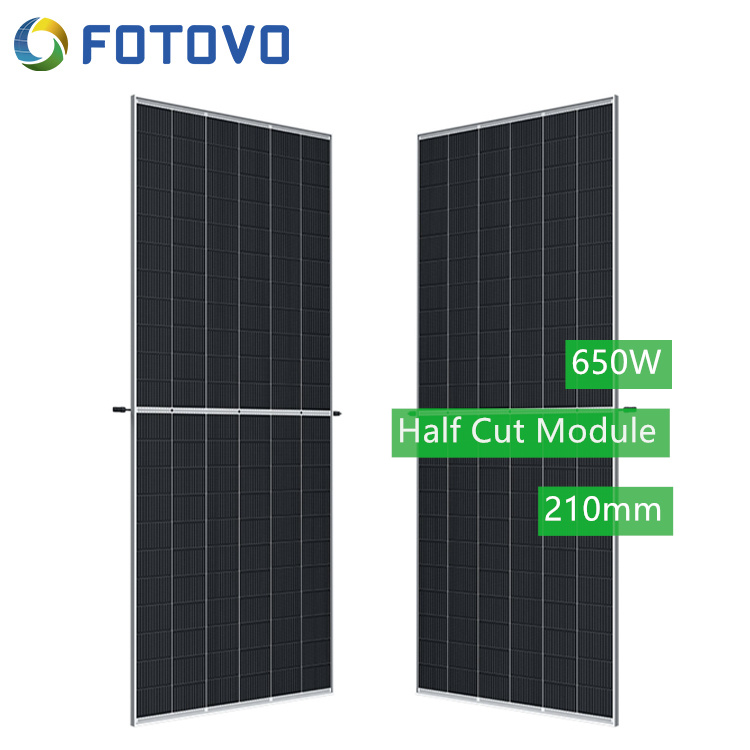

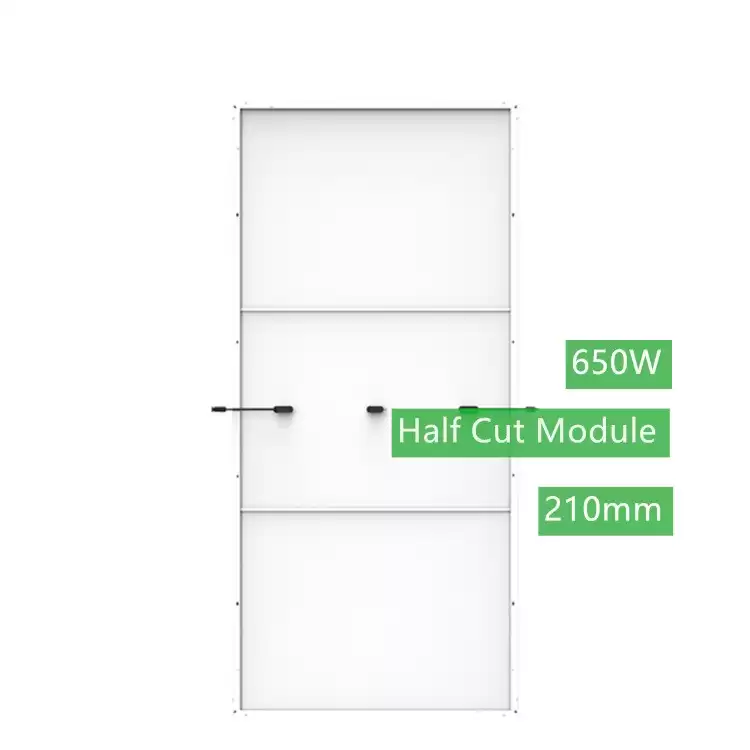

FOTOVO 650W mono-facial single glass Monocrystalline half-cut cell Solar Panels with High power output

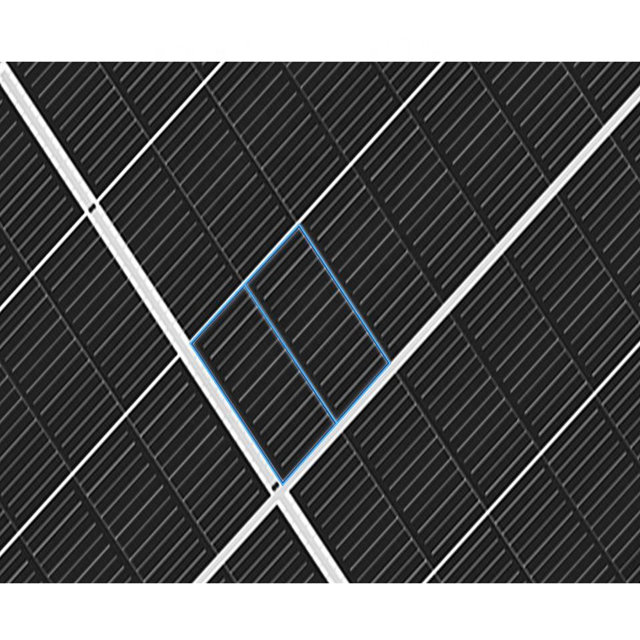

Half-cut cell solar panel has better light trapping and current collection to improve module power output and reliability.


  • CertificateTUV, CE, IEC, Inmetro
  • Warranty25 years linear power warranty

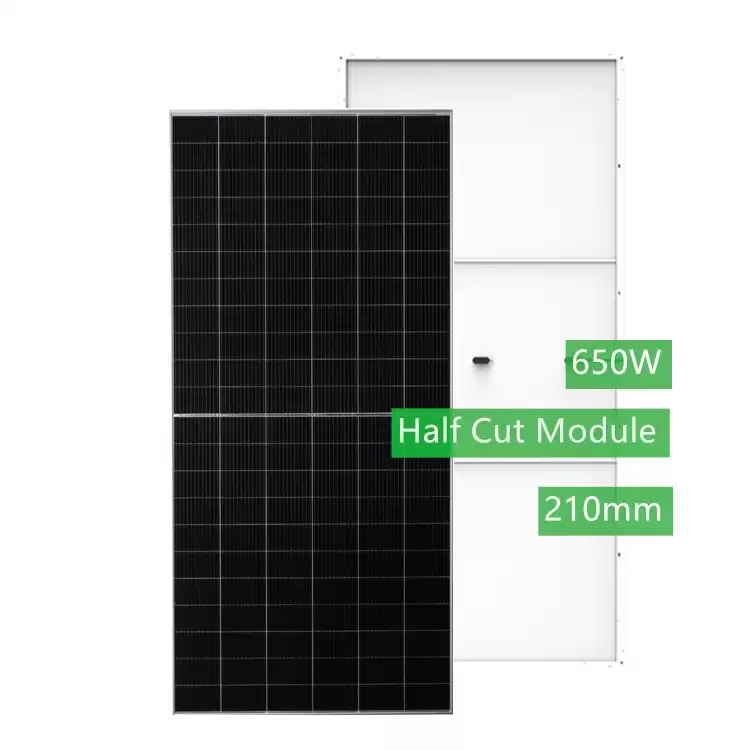

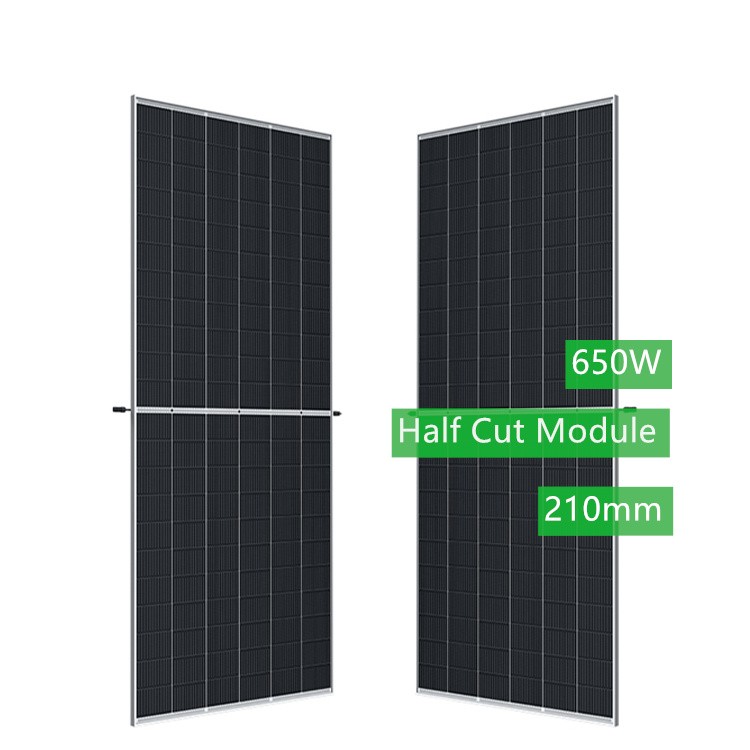

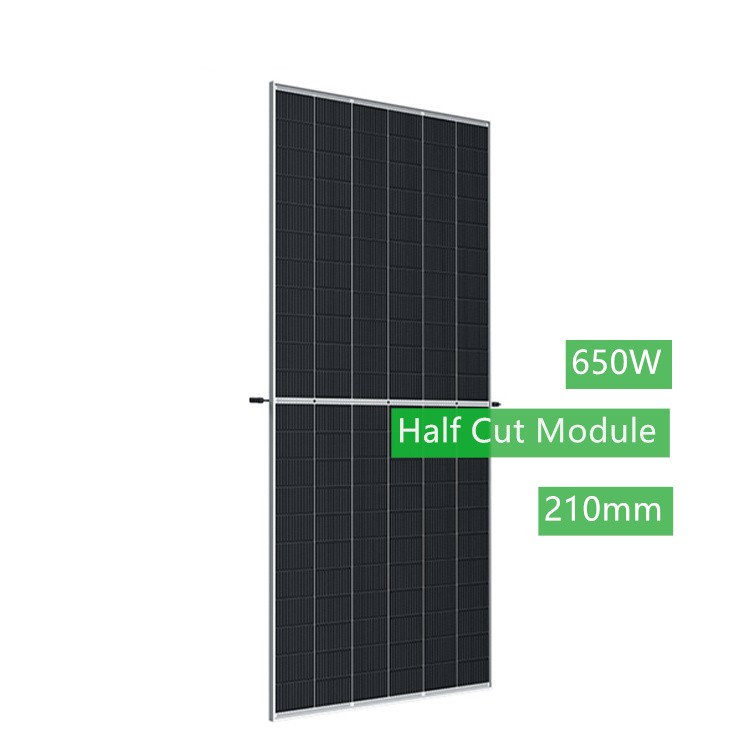

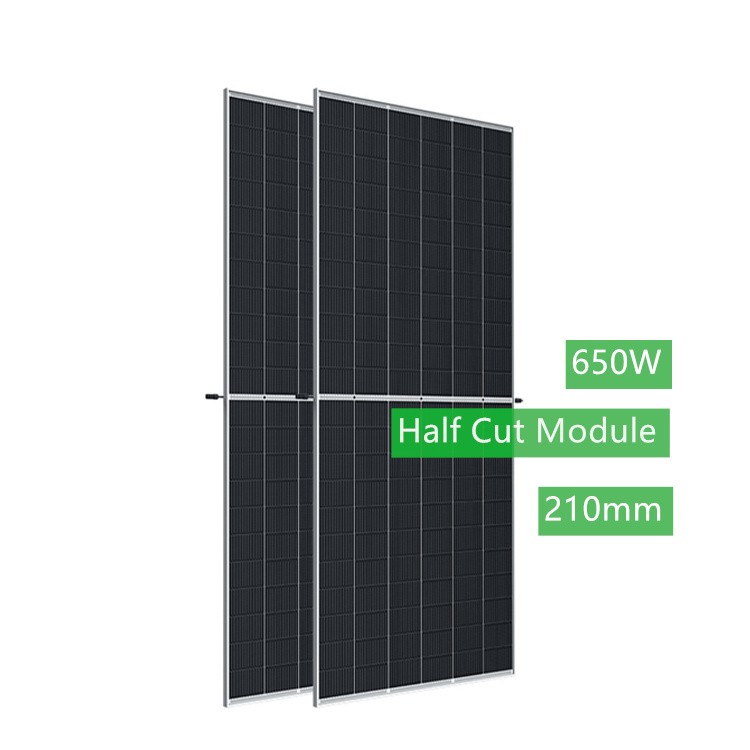

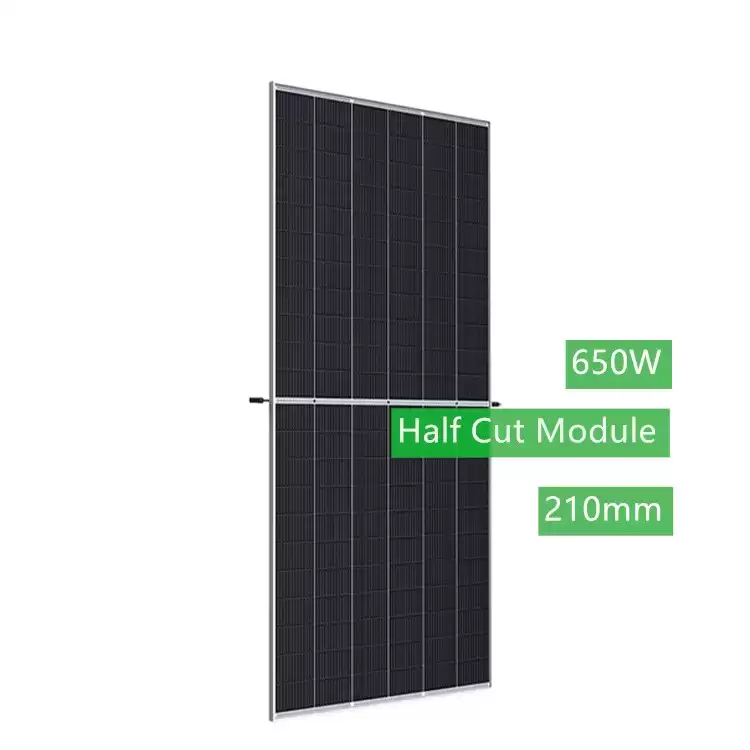

FOTOVO 650W Mono-facial single glass Solar Panel high performance Solar Module


Features

1.High power output

Compared with the whole cell, the half cell has the same voltage, half power, half current and less internal loss. Power improvement after series and parallel connection; Lower working temperature of the component and junction box. The risk of damage of the hot spot probability and the whole group is also greatly reduced.

2.Less shading loss

By virtue of its special parallel-series structure, the half-cut cell modules can be arranged in the longitudinal direction, which can improve the utilization rate of supports and land and reduce the loss of power generation caused by shading.

3.Less loss caused by high temperature

In the outdoor working state of the module, the temperature of the half module itself is about 1.6℃ lower than that of the conventional whole module.

4.Less packaging loss

Half-cut cell module takes advantage of low current, which effectively reduces the packaging loss of the module. The packaging loss of the conventional module is generally more than 1%, while that of the half cell module is generally about 0.2%.



AQ



Product Specification


MECHANICAL CHARACTERISTICS

Solar Cells

Monocrystalline silicon

NO. of Cells

132pcs

Dimensions

2384*1303*35mm

Weight

33.7KG

Junction Box

IP68

Frame

Anodized aluminum alloy

Output Cables

4.0mm²,300mm

ELECTRICAL PARAMETERS

Rated Maximum Power (Pmax) [Wp]

650W

Open Circuit Voltage (Voc) [V]

45.00

Short Circuit Current (Isc) [A]

18.38

Maximum Power Voltage (Vmp) [V]

37.91

Maximum Power Current (Imp) [A]

17.15

Module Efficiency [%]

20.93

Working Temperature [°C]

40°C ~ +85°C

Maximum System Voltage

1000(DC)

Maximum Series Fuse Rating

30A

Power tolerance

0~+3%

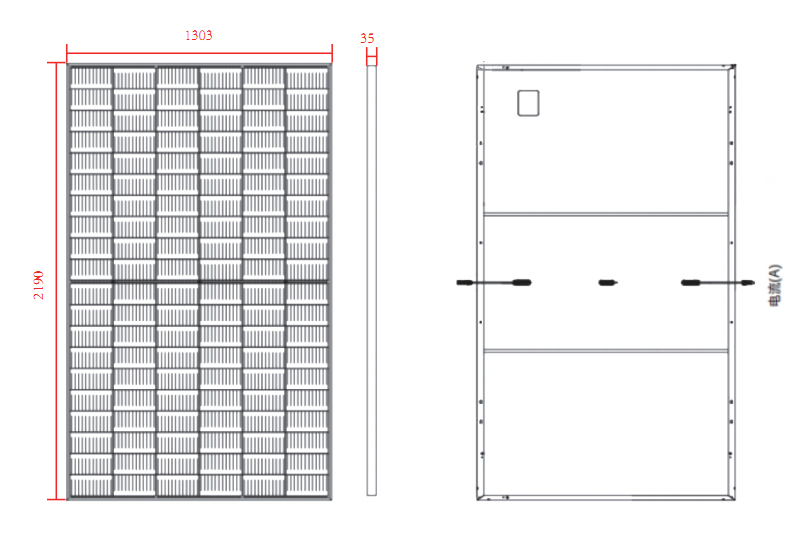

Engineering Drawings

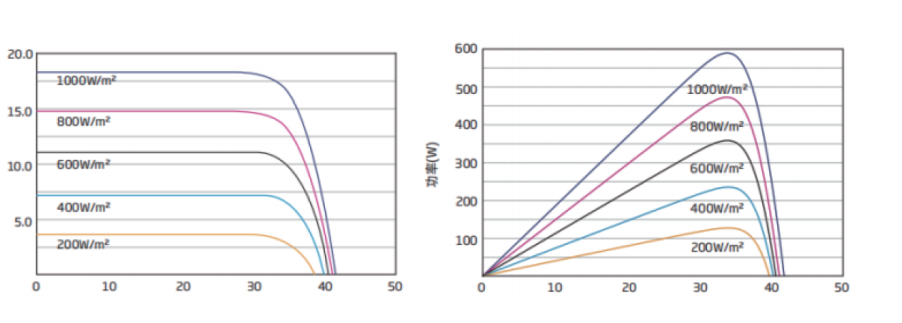

Electrical Performance & Temperature Dependence

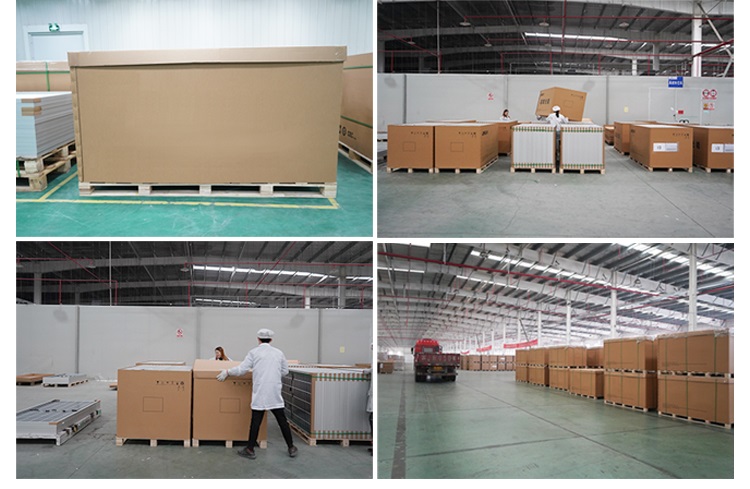

Package


Number of panels per pallet 31
Number of pallets per 40’GP container 20
Number of modules per container 620PCS

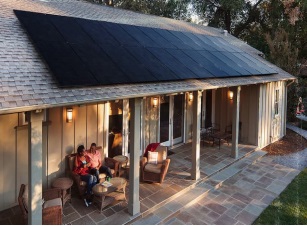

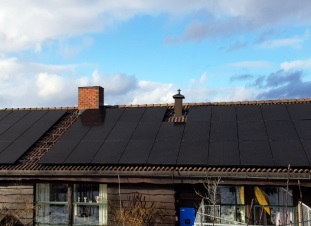

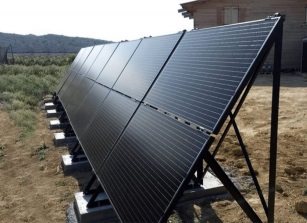

Projects




        24kw on-grid solar system in US        15.8kw off-grid solar system in Brazil                     18kw in Saudi Arabia


FAQ

Q1: Does your company accept LOGO customization?

A1: Sure, we could print your company LOGO on the products and package.


Q2: Do you accept customization on the size?

A2: Yea, if the size is reasonable.


Q3: What's types of solar panels do you supply?

A3: Mono-crystalline, Poly-crystalline, bifacial dual glass, shingled, flexible type, from 270W~550W.


Q4: Do you sell solar cell and glass separately?

A4: Yes, just feel free to leave a message.


Q5: Is it possible for me to get a sample before production?

A5: Of course, samples could be offered for your evaluating the quality first.
