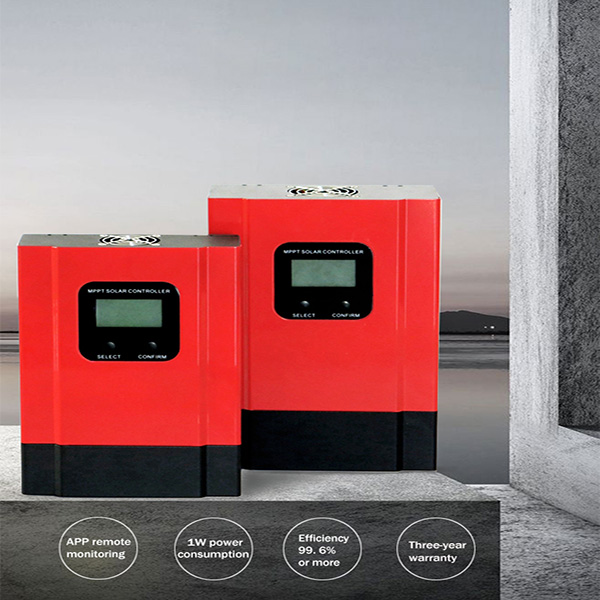

FOTOVO e-Smart Series 40A MPPT DC Solar Charge Controller

20/30/40/50/60A MPPT Solar Charger Controller for Chargeable Battery. It has RS485 communication, we can offer communication protocol to convenient user's integrated management and secondary development.


  • Warranty3
  • CertificateCE, RoHS, FCC

FOTOVO e-Smart Series 40A MPPT DC Solar Charge Controller


Product Description


Advantages


1. High efficiency MPPT control algorithm, MPPT efficiency ≥99.5%, whole Machine conversion efficiency upto 98%;

2. Charge mode: three stages (fast charge, constant charge, floating charge), improve boost voltage charge(activate the battery performance), it prolongs service life of the batteries;

3. Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control mode, PV&Time control mode;


4. Customers can choose battery types: (Flooded, Sealed lead acid, Gel battery) charging, Other types of the batteries can also be defined;

5. Most information could be provide by LCD like: System type, PV input voltage, PV input current, Day/Month/Total generated energy, battery type, battery voltage, charging current, charging power, Load current, Load power and so on;

6. RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management.

7. CE, RoHS, FCC certifications approved. We can help clients to approve other certifications.

8. 3 years warranty.And 3~10 years extended warranty service also can be provide.




 solar charge controller


Equipment Parameters



Product Name
GSC-eSmart Style
MPPT Charge Controller
Brand
FOTOVO Colour
Black and Red/ Customize
Material
Metal
Place of Product
Guangdong Province,China
Net Weight
2.0kg Packing
Packed in carton and Shockproof
Gross Weight
3.0kg Mode Name
C20/30/40

eSmart Series eSmart-20A eSmart-30A eSmart-40A eSmart-50A eSmart-60A
Product Category Controller Properties MPPT(Maximum Power Point Tracking)
MPPT Efficiency 99.5%
Stand by Power 0.5W-1.2W
System Voltage Auto-recognition
Heat-dissipation Fan-cooling
Input Charateristics Max.PV Input Volt Point DC150V
Start Charge Volt Point Battery Voltage +3v
Low Input Volt Protection Point Battery Voltage +2v
Over Voltage Protection Point DC150V
PV Rated Power 12V System 260W 390W 520W 650W 780W
24V System 520W 780W 1040W 1300W 1560W
36V System 780W 1170W 1560W 1950W 2340W
48V System 1040W 1560W 2080W 2600W 3120W
Charge Charateristics Battery Types Gel battery(Default), Sealed lead-acid battery,Flooded battery,user-defined
Rated Charge Current 20A 30A 40A 50A 60A
Charge Method 3 stages:CC(CONSTANT cURRENT), CV(Constant Voltage),CF(Floating Charge)
Load Charateristics Load Voltage Same as Battery voltage
Rated Load Current 40A 60A
Load Control Mode On, Off, PV Control, Dual time control, PV+Time control
Display & Communication Display High definition LCD segment backlight dispkay
Communication 8PIN rs485 for PC and APP
Others Protections Input over/low voltage,output over/low voltage,reverse connection,over temperature,short circuit,battery shedding etc.
Operation Temperature -20-+50
Storage Temperature -40-+75
IP(Ingress Protection) IP21
Max.Connection Cable 20mm 30mm
Net Weight(KG) 2.3 2.6
Gross Weight(KG) 3 3.5
Product Size(MM) 240*168*66 270*180*85
Packing Size(MM) 289*204*101 324*223*135

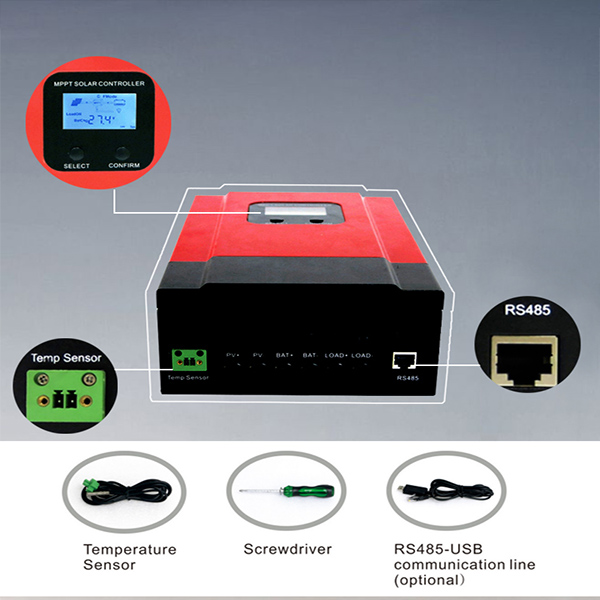

Product Details

charge controller

mppt solar controller

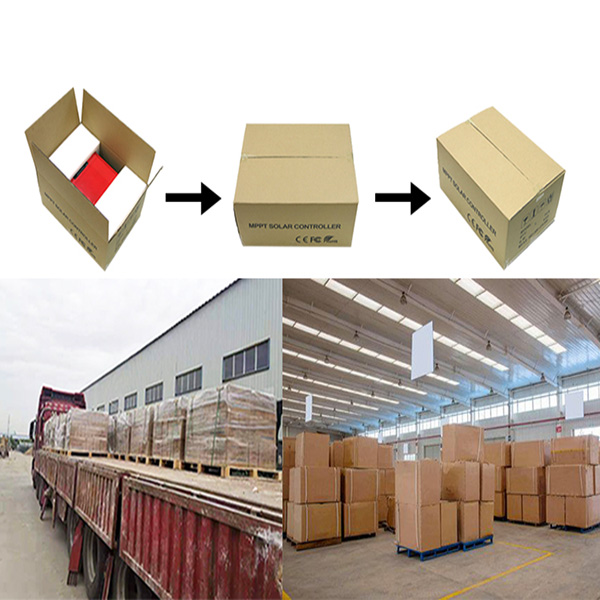

Factory and Delivery


Solar controller factory



FAQ

1. Can you provide OEM or ODM service for customers?
A: Yes. Customers should provide formal Letter of Authorization. We will keep our partnership strictly confidential and customized products will be not sold to any third party.

2. Can MPPT charge controller charge lithium battery? How to set it?
A: Yes. All series controllers can set up “User-defined” battery type for lithium battery by APP or PC software. Galaxy, Master, Mars series can be reset battery type on controller itself, too.

3. How to set up the parameter to charge lithium battery?
A:At present, the MPPT controller charging is mainly designed for the traditional conventional battery pack (12V is composed of serial and parallel series), and the battery system is automatically identified according to the battery voltage. Therefore, if the lithium battery pack needs to be charged, it needs to be converted into a conventional battery.

4. Is there a setting on the controller to tell it whether the batteries are sealed lead-acid or gel?
A: Yes, all of our MPPT charge controller can be checked and set up the conventional battery types (Sealed/Gel/Flooded) by LCD screen, APP and even PC software.

5. If the bulk charge voltage is 14.7V, does the charging voltage is the same 14.7V or other lower voltage?
A: When the bulk charge voltage of battery is set to 14.7V, the MPPT controller charge voltage will also be control within the range of 14.7V. It will charged the battery in three stages through constant current charge mode CC → constant voltage charge mode CV → floating charge mode CF.
In CC mode, the charging voltage is equal to the battery voltage;
In CV mode, the charging voltage is equal to the bulk voltage set value of 14.7V;
In CF mode, the charging voltage is equal to the floating voltage set value, like 14.5V.

6. Could i charge my golf cart acid battery with your MPPT controller?
A: Yes, you can set the MPPT controller charge parameter according to the specific charging parameters of golf cart acid battery (such as the bulk voltage and floating voltage value).

7. After shut down and restarted MPPT controller, will the setting parameters keep retain or revert to default setting?
A: All of our MPPT charge controller have storage memory function, it will keep the original setting parameters after shut down and restart.
