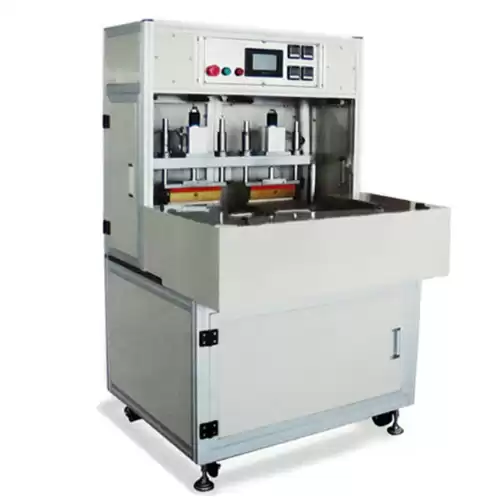

Four Station Heat Sealing Machine for Pouch Cell Making
1.TMAX-MY-06-300-4 Four station sealing machine is used for lithium polymer battery pouch top and side heat sealing before electrolyte filled.
2.Can pre-set sealing temperature and sealing time.
3.Temperature lower and higher alarm function.
4.Without battery missing sealing or repeat sealing.
5.With light curtain safety protection and back door switch protection.
6.With our-put statistics function.
7.Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.
Working process :
Polymer Battery into fixture, Battery feeding-top sealing position-side sealing position-battery discharge, Finish battery top and side heat seal.
|
Model
|
TMAX-MY-06-300-4
|
|
Type
|
Turntable type, Four work station
|
|
Source voltage
|
AC 220V, 50HZ
|
|
Power
|
3500W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Air compression
|
≥0.6MPa
|
|
Size (L*W*H)
|
870*870*1500mm
|
|
Suitable battery size
|
Top sealing≤280mm, Side sealing≤280mm
|
|
Sealing stamp width
|
2-10mm, Top sealing : 4mm, Side sealing : 6mm (customized)
|
|
Sealing thickness
|
0.19-0.3mm
|
|
Sealing temperature
|
RT-260℃ adjustable, Accuracy ±3°
|
|
Sealing time
|
0-99.9s, adjustable
|
