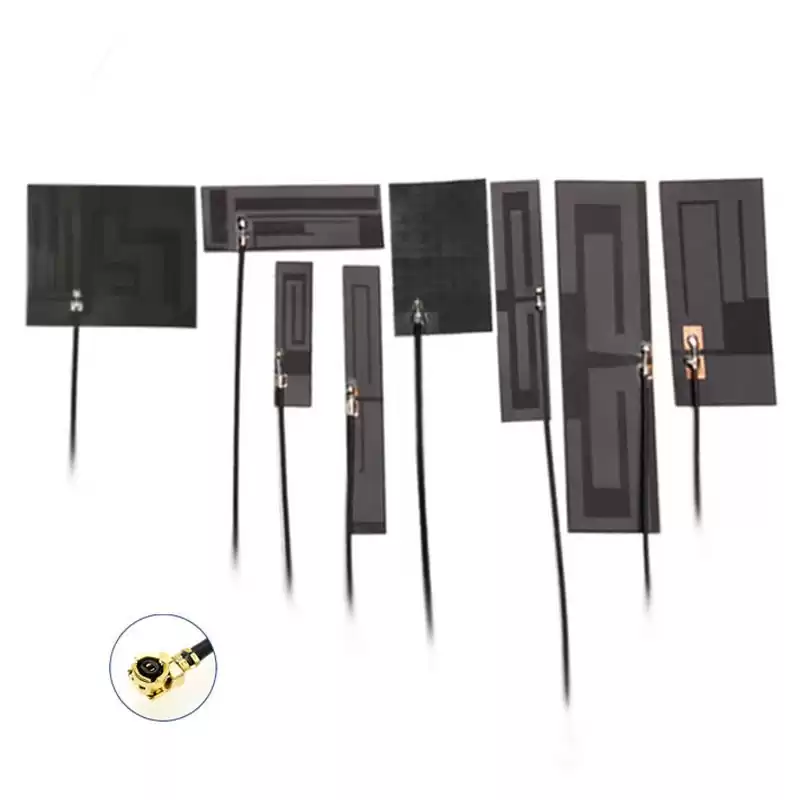

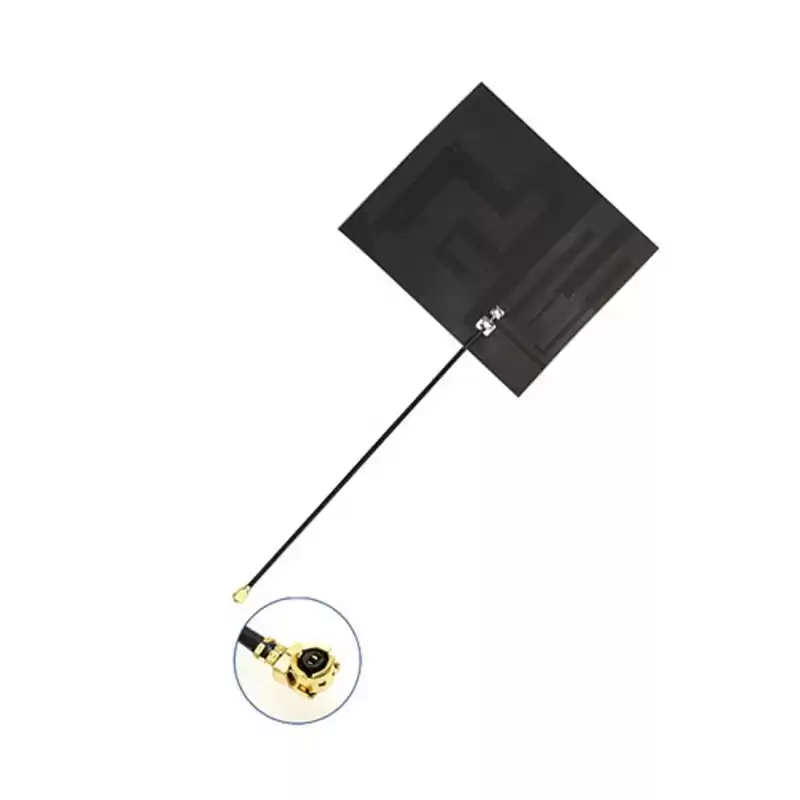

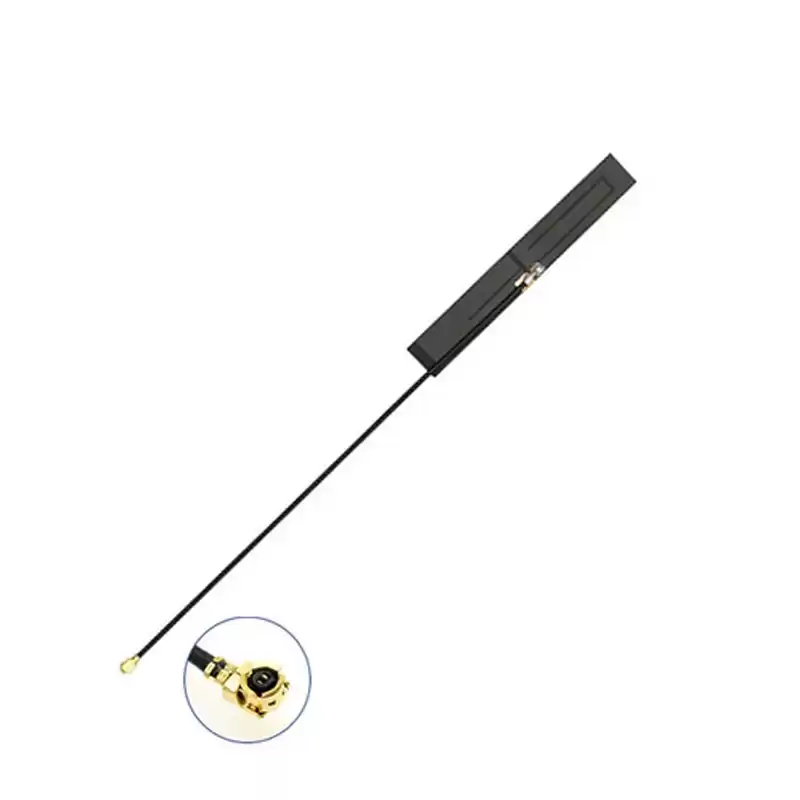

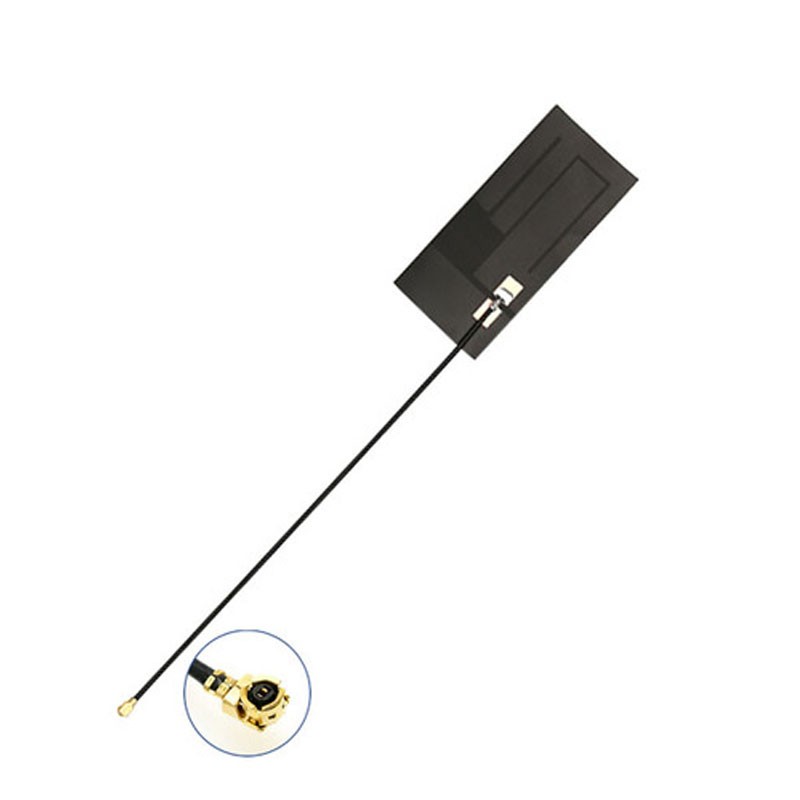

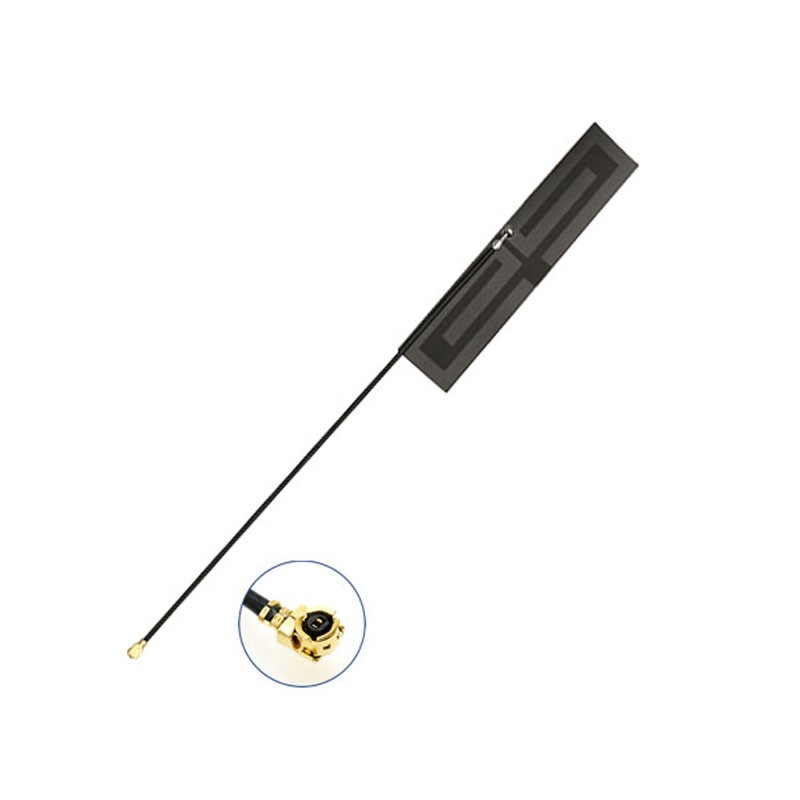

FPC Antenna 824-960MHz 1710-2700MHz 3dBi 4G LTE Flex Circuit Antenna with IPEX MHF UFL Connector

Features:

  • Radiation Pattern of Antenna;
  • Polarization of Antenna;
  • Intensity of Radiation;
  • Effective Aperture;
  • Gain & Directivity;
  • Bandwidth;
  • Power Gain & Radiation Efficiency;
  • Effective Length;
  • Input Impedance.



FPC Antenna 824-960MHz 1710-2700MHz 3dBi 4G LTE Flex Circuit Antenna with IPEX MHF UFL Connector

The Antenna, also called Aerial, component of radio, television, and radar systems that directs incoming and outgoing radio waves. Antennas are usually metal and have a wide variety of configurations, from the mastlike devices employed for radio and television broadcasting to the large parabolic reflectors used to receive satellite signals and the radio waves generated by distant astronomical objects.



Specifications

ELECTRICAL DATA
Frequency Range(MHz)  698-960/1710-2700MHz
VSWR  ≤1.5
Gain(dBi)   3dBi
Input Impedance(Ω)  50
Cable Type  /
Connector Type  IPEX/MHF/UFL
Mounting  /
Housing /
Storage Temperature  -45 to +75
Operating Temperature  -45  to +75



Applications

  • Antenna Gain
  • Aperture
  • Directivity and bandwidth
  • Polarization
  • Effective length
  • Polar diagram




Product Tags 698-960MHz FPC Antenna          3dBi Dual Band FPC Antenna          1710-2700MHz Dual Band FPC Antenna          IPEX Connector FPC Antenna          3dBi Dual Band FPC Antenna          MHF Connector FPC Antenna
