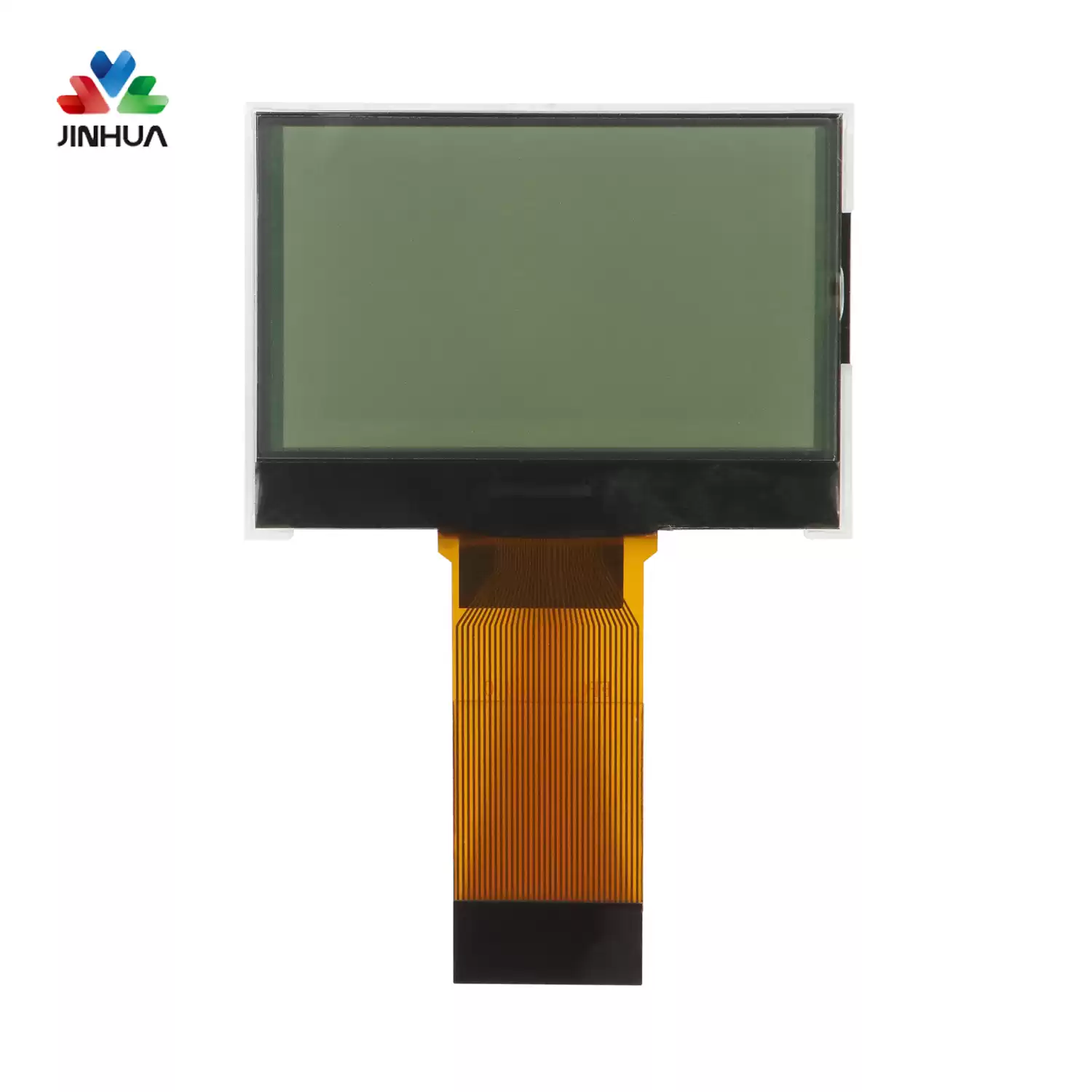

FPC Positive Transflective FSTN Dot Matrix COG LCD Screen Custom

Basic Info.


Display Mode Positive AA 40.7x24mm
View Angle 12 O′clock VDD 3V
Duty 1/33 Bias 1/6
Connector FPC Operating Temp. -30°~80°C
Environmental Protection RoHS HSF Interface SPI
Control IC ST7567P Transport Package Carton/Pallet
Trademark Jinhua Origin China
HS Code 8531200000 Production Capacity 3000000 pcs/month
MOQ 1000 pcs, negotiable




FPC Positive Transflective FSTN Dot Matrix COG LCD Screen Custom

It is a COG dot matrix LCD screen products. As mentioned COG, it stands for chip on glass, it's solution to replace chip from PCB to the LCD glass.

There are many adavantages for COG dot matrix LCD screen including: high operation efficiency, stable yield, simply PCB layout, and lower cost.



Dot Matrix LCD Display Module
Product Parameters
LCD Type FSTN
Display Type Transmissive
Display Mode Positive
View Angle 12 o'clock
AA 40.7x24mm
Driving Condition VDD 3V
Duty 1/33
Bias 1/6
Connetor Pin
Display Technology COG
Control IC ST7567P
Interface SPI
Operating Temperature -30-80°C, custom
Requirements On Environmental Protection ROHS HSF

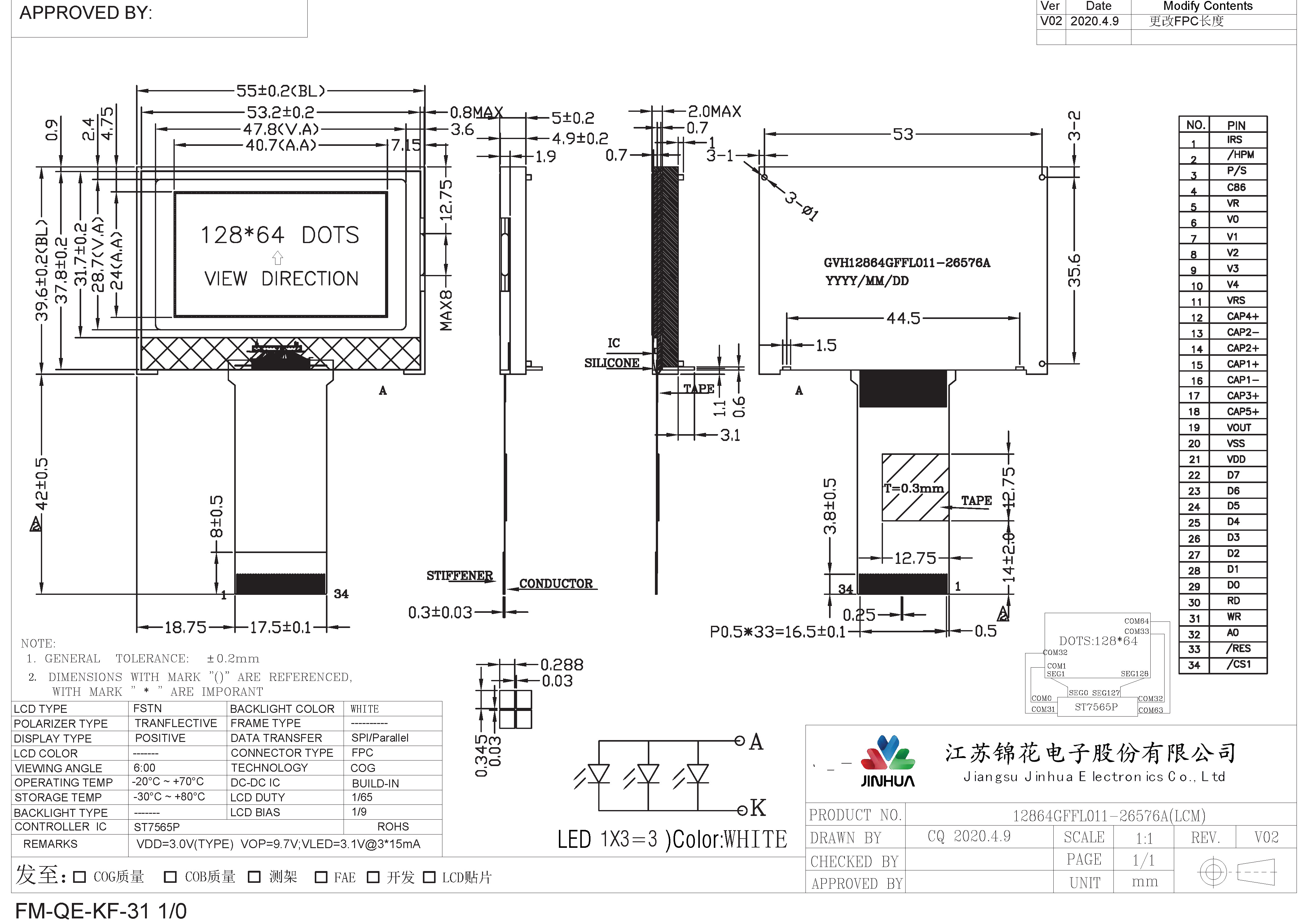

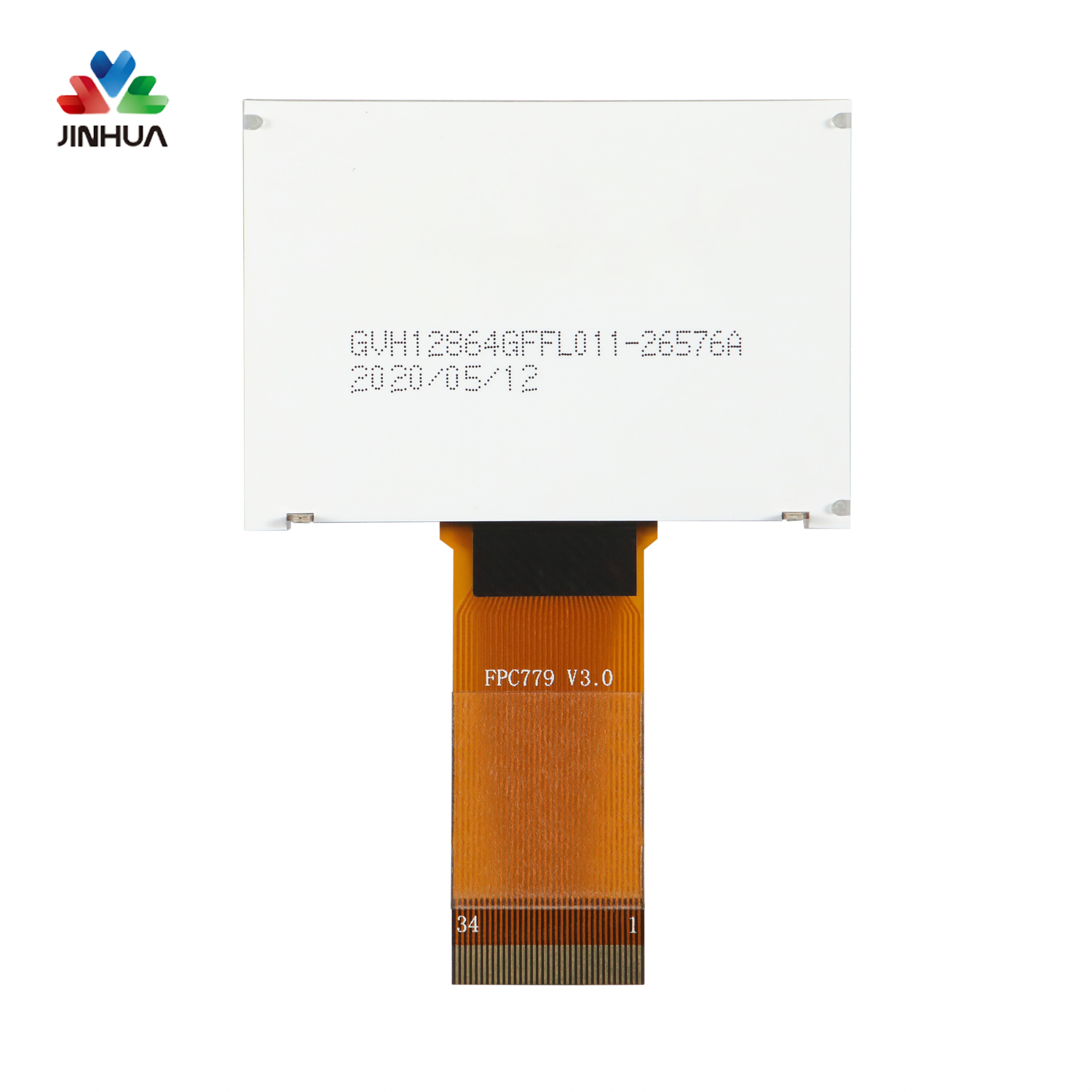

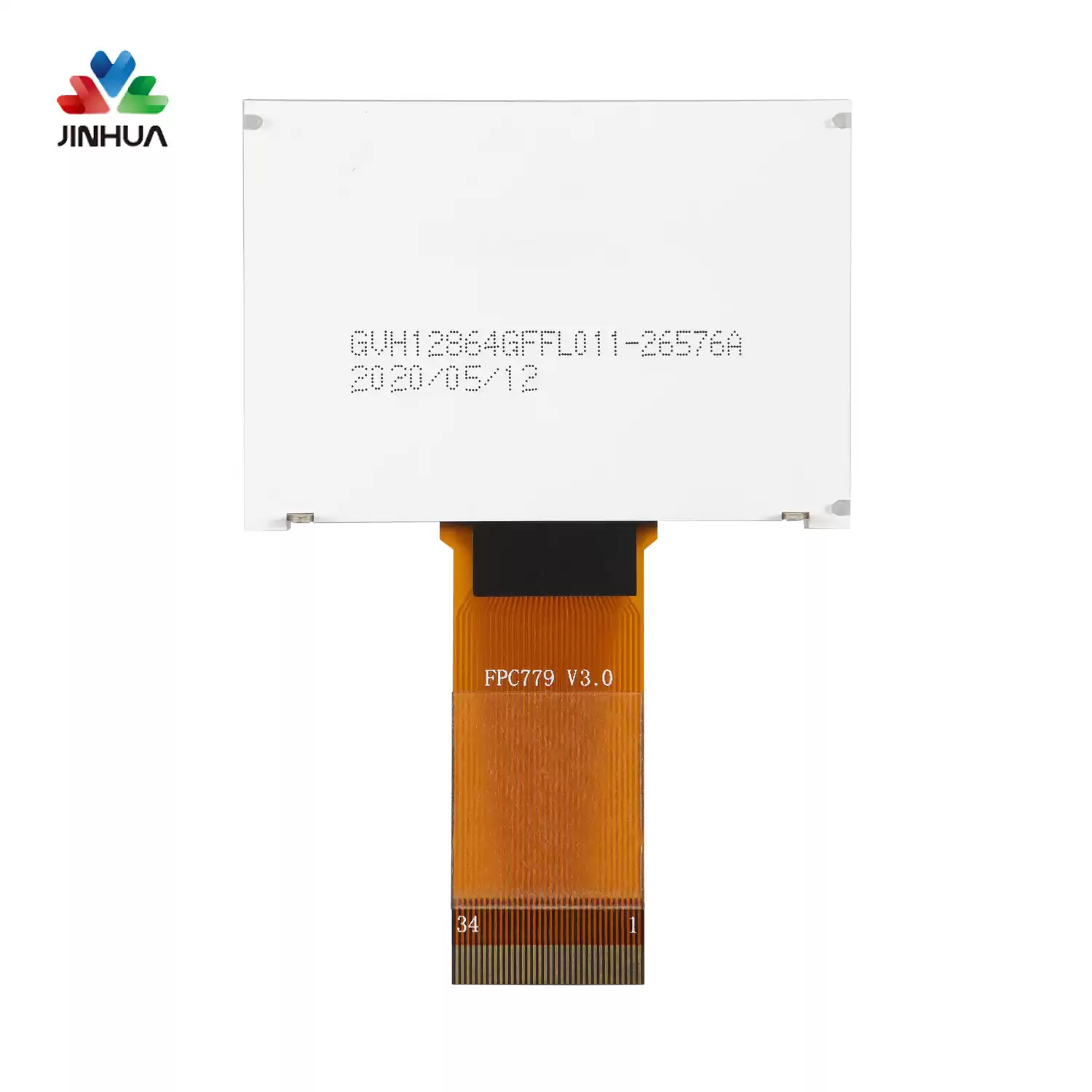

Detailed Picture

Features

Δ          Wide Viewing Angle
Δ          All Kinds Of Emitted Colors And Size
Δ          I.C. Compatible
Δ          Low Power Consumption
Δ          Long Lifespan
Δ          RoHS Compliant
Δ          High Luminance
Δ          Wide Range Working Temperature



Application

Dot Matrix LCD Display Module normally has a large wide range of opearting temperature from 80° to the higest and -40° to the lowest according to its design and process. Due to different liquid cystral used, it allows the LCD to be applied to outdoors and indoors even at some extremely ambient such as under sea and plateau.

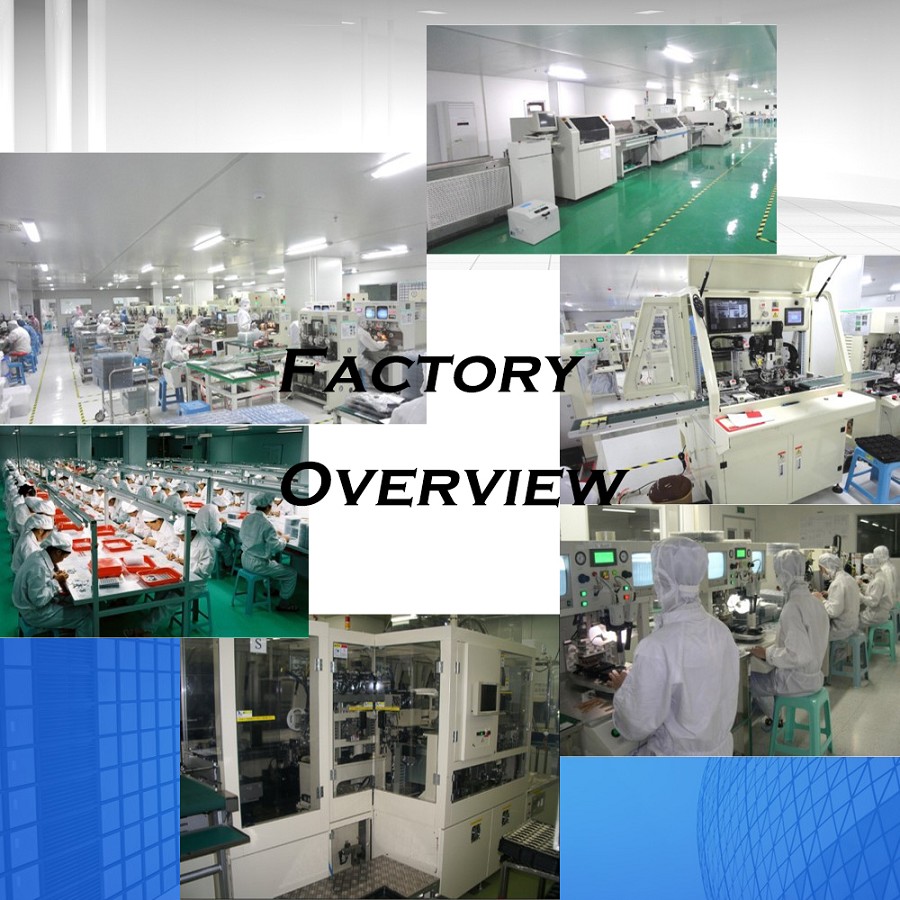

Production Line And Equipment

Company Profile

Why Choose Us

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

FAQ

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
