FR4 on metal tag for asset tracking mini tag for asset tracking

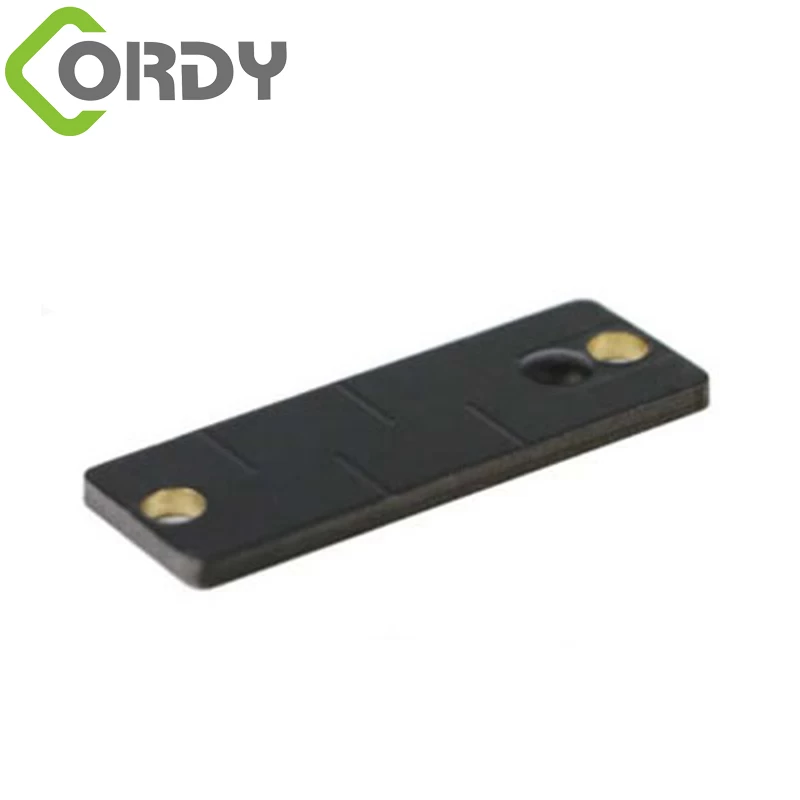

Mini FR4 on metal tag



DH4215 is the anti-metal tag designed for hostile environment, which could resist corrosion and high temperature for a very long time period. The heat withstanding is up to 250 degree centigrade.

DH4215 passed the following tests: high temperature test, alternating temperature test, corrosion (acidity/ alkaline) testing, vibration test, Ultrasonic washing test.

And to make sure each shipment tags with excellent reliability and performance consistency, we do a series of tests before shipment, include testing by European tags comprehensive test instrument, encoding test of EPC and User memory.

Mounting options on metal surface: 3M glue/ Screw/Rivets/Double sides adhesive that adaptive to mounting conditions.
Physical Specification:

RFID Protocol

EPC Class1 Gen2, ISO18000-6C

Frequency

US 902-928MHz, EU 865-868MHz, or Customs

IC type

Alien Higgs-4

Memory

EPC 96bits (Up to 480bits) , USER 512bits, TID64bits

Write Cycles

100,000times

Functionality

Read/wirte

Data Retention

Up to 50 Years

Metarial

FR4

Weight

2.2g/pc

Work Temperature

-40℃ to +150℃

Storage Temperature

-55℃ to +200℃

Peak value

(280°С for 50 minutes, 250°С for 150minutes)


Dimensions:

Applicable

Metal Surfaces

Size

42mm*15mm*2.1mm

Hole size

4.0mm*2


Reliability Test:

Temperature Test

(working 10hours in 180°С)

IP Classifi cation:

IP68


RF Performance:

Read Range(On Metal) :
(Fix Reader:ThingMagic M6-E, 36dBm/4W)

Up to 680cm - (US) 902-928MHz, on metal
Up to 700cm - (EU) 865-868MHz, on metal

Read Range(On Metal) :
(Handheld Reader: 9908,R2000,33dBm/2W)

Up to 530cm - (US) 902-928MHz, on metal
Up to 550cm - (EU) 865-868MHz, on metal
