Product Description

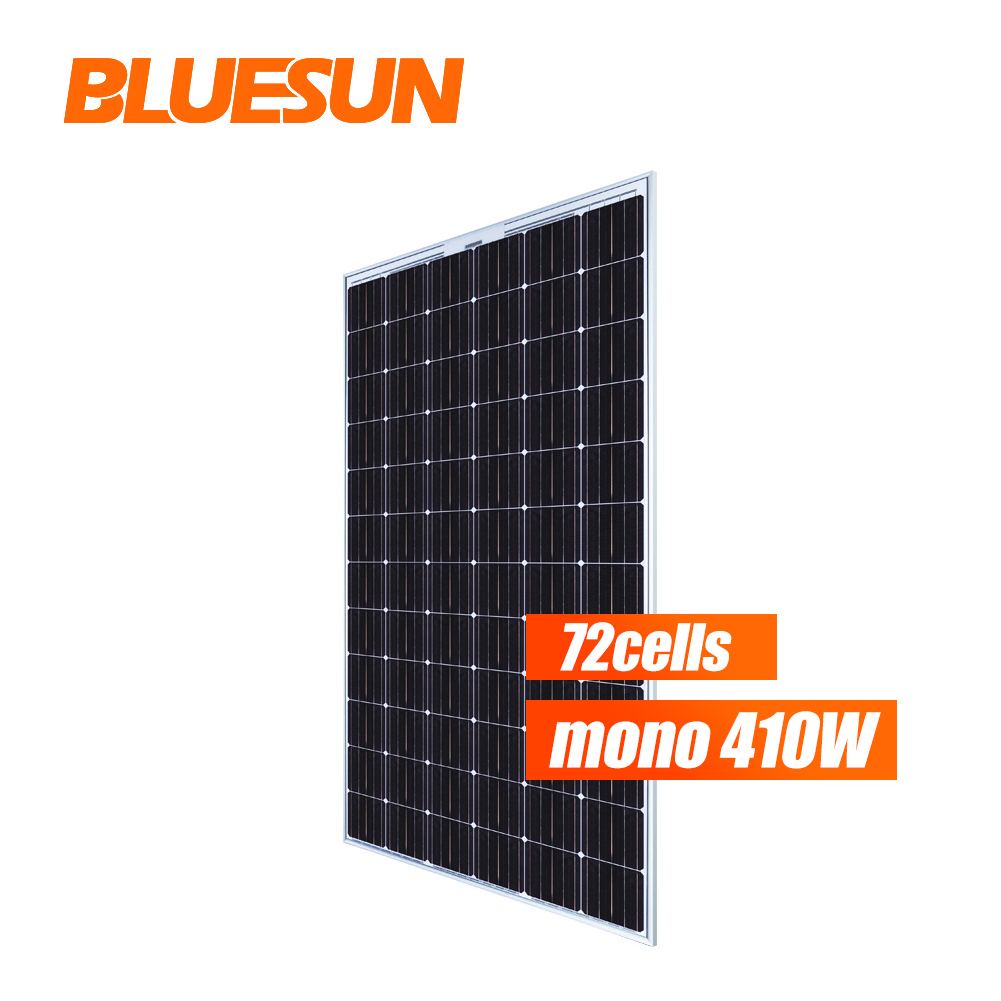

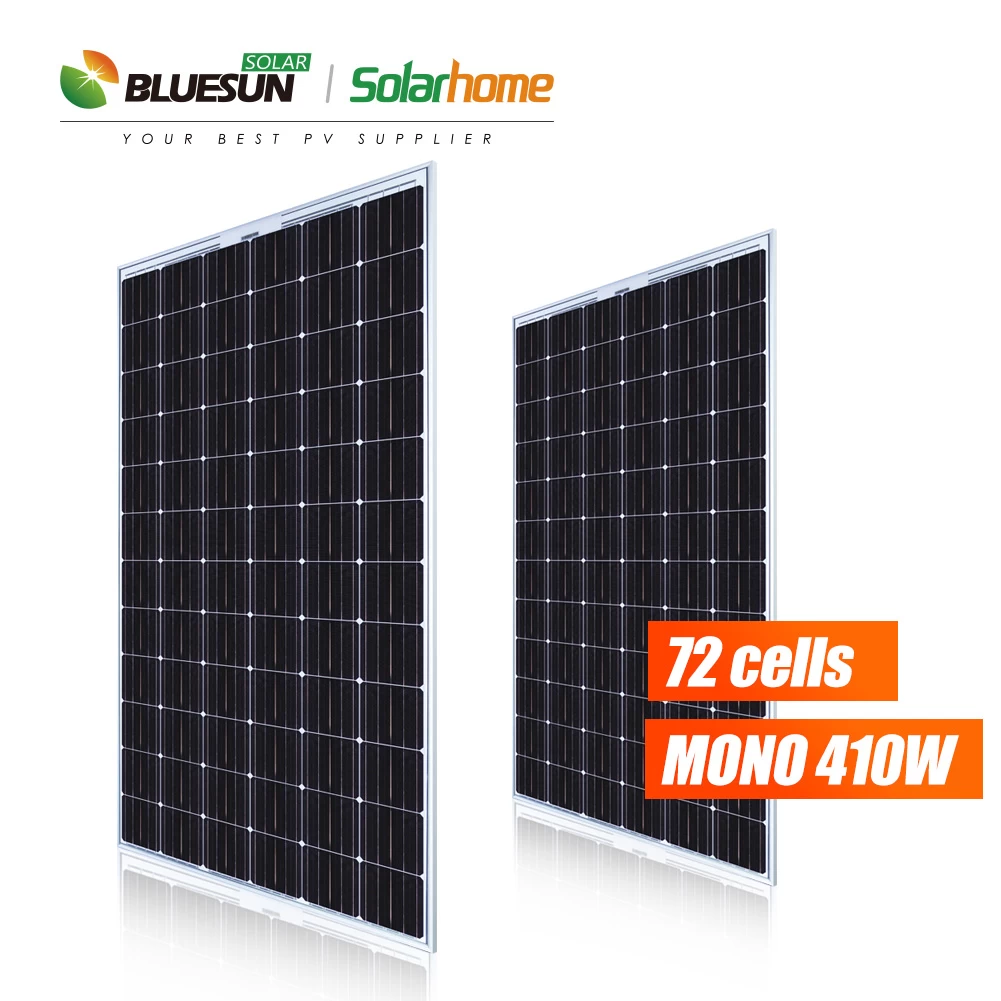

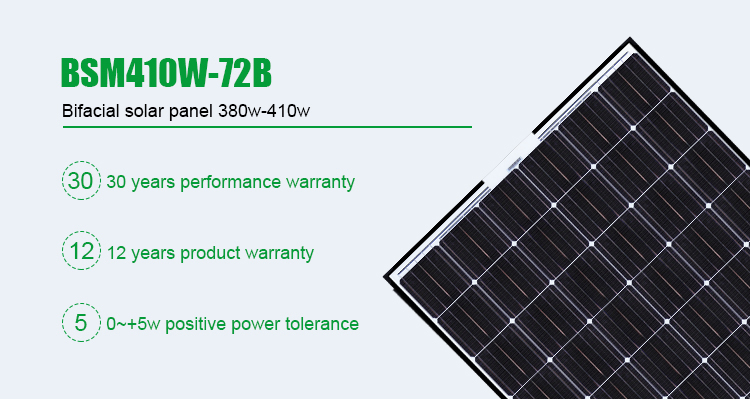

Bifacial Solar Panel
The power generation gain of the Bifacial Solar Panel mainly comes from the back side, and by receiving the reflected light from the atmosphere and the reflected light on the ground, the overall power generation of the bifacial module is increased. When the sun shines on the Bifacial Solar Panel, some of the light is reflected by the surrounding environment to the back of the panel. This part of the power can be absorbed by the battery, improving panels efficiency.
|
ELECTRICAL PARAMETERS AT STC
|
|
Module
|
BSM380M-72B
|
BSM390M-72B
|
BSM400M-72B
|
BSM410M-72B
|
|
Rated Power (Pmpp) (W)
|
380
|
390
|
400
|
410
|
|
Power Output Tolerance (W)
|
0~+5
|
|
Rated Current (Impp) (A)
|
9.52
|
9.72
|
9.92
|
10.12
|
|
Rated Voltage (Vmpp) (V)
|
39.92
|
40.13
|
40.33
|
40.53
|
|
Short Circuit Current (Isc) (A)
|
9.83
|
9.94
|
9.99
|
10.04
|
|
Open Circuit Voltage (Voc) (V)
|
48.61
|
48.88
|
49.08
|
49.27
|
|
Efficiency (%)
|
19.4
|
19.92
|
20.43
|
20.68
|
|
Operational Temperature
|
-40~+85℃
|
|
Maximum Static Load
|
5400Pa
|
|
Maximum Wind Load
|
2400Pa
|
|
Maximum Sytem Voltage
|
IEC:1000/1500V
|
|
Maximum Series Fuse Rating
|
20A
|
