Overview
Brand: Nokia
Part Number: 472854A
Model Number: FRGY

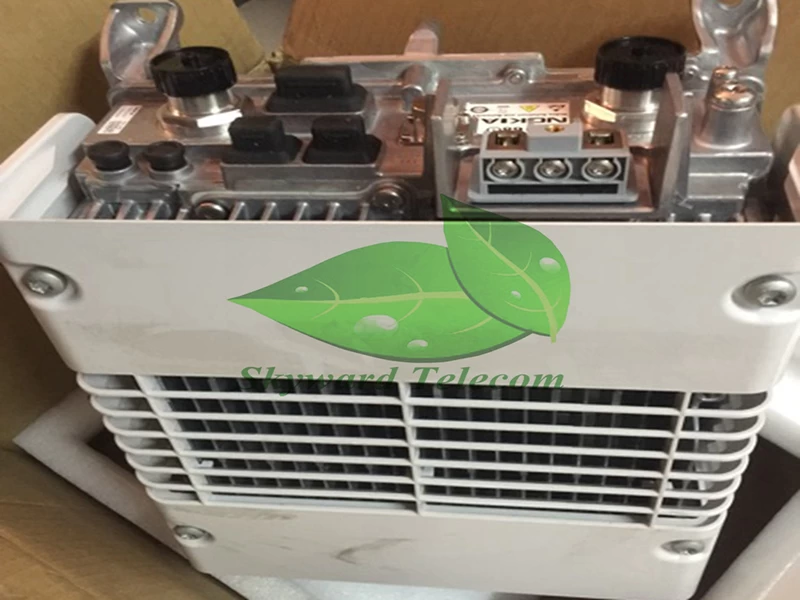

Discription: Nokia Siemens FRGY Flexi RRHMODULE 6-PIPE2100 MHZ
FRGY Functional Specification
|
Property
|
Value
|
|
Outpower
|
2 x 60 W
|
|
MIMO
|
Yes, 2TX
|
|
Outdoor Installation
|
Yes
|
|
SW suported techlonogies
|
WCDMA
|
|
TX Frequency range
|
2110-2170 MHz
|
|
RX Frequency range
|
1920-1980 MHz
|
|
DL Instantaneous bandwidth
|
60 MHz
|
|
UL Instantaneous bandwidth
|
60 MHz
|
|
DL filter bandwidth
|
60 MHz
|
|
UL filter bandwidth
|
60 MHz
|
FRGQ interfaces
|
Interface
|
Label on the W
|
Numbers
of interface
|
Connector Type
|
|
Power connector
|
DC IN
|
1
|
3-pole screw terminal
|
|
Antenna connector
|
ANT
|
2
|
7/16
|
|
RF external connector
|
Rx EXT
|
2
|
QMA
|
|
Remote electrical Tilt
|
RET
|
1
|
8- pin circular
|
|
External Alarm Connection
|
EAC
|
1
|
D- sub MDR 14
|
|
Optical Interface
|
OPT
|
2
|
SFP
|
FRGY ALD Support
|
ALD Supportvia
antenna ports
|
Value
|
|
AISG
|
2.0 Main only
|
|
Legacy siemens equipment
|
No
|
|
CWA (for no- AISG installations)
|
No
|
|
Voltage
|
14.5 V
|
|
Power per port
|
30 W
|
FRGY Environmental Specifications
|
Property
|
Value
|
|
Maximum operational outdoor temperature inthe shade, (at constant
high ambient temperature, maximum output power might be limited
|
+55°C (131°F)
|
|
Maximum operational outdoor temperature in the sun, (According to
GR-487- core specification)
|
+50°C (122°F)
|
|
Maximum indoor temperature, (This is valid for fanless products)
|
+45°C (129.2°F)
|
|
Minimum operational temperature (includingcold start)
|
-40°C (-40°F)
|
