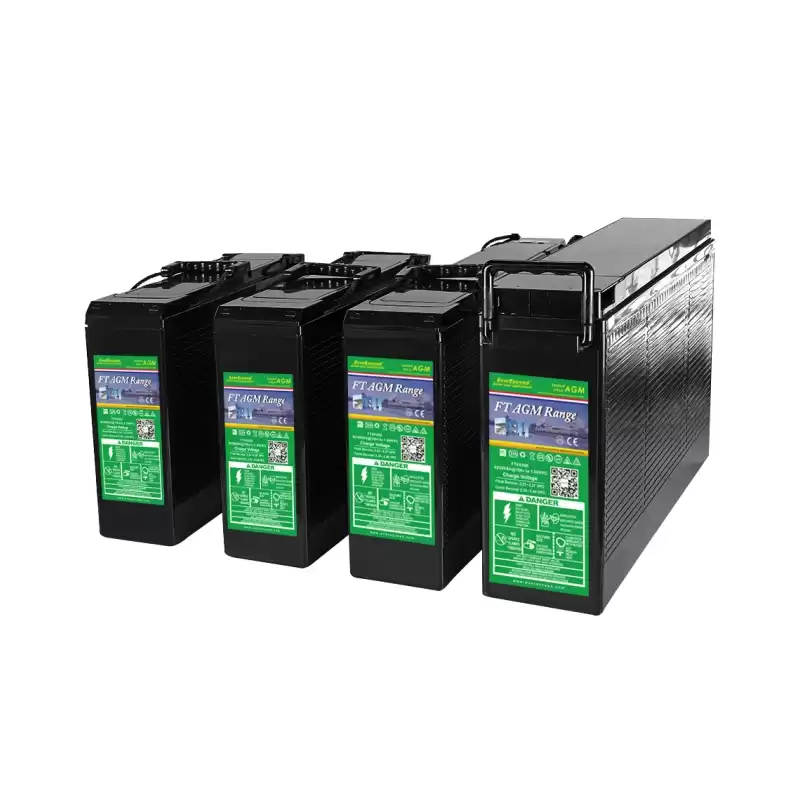

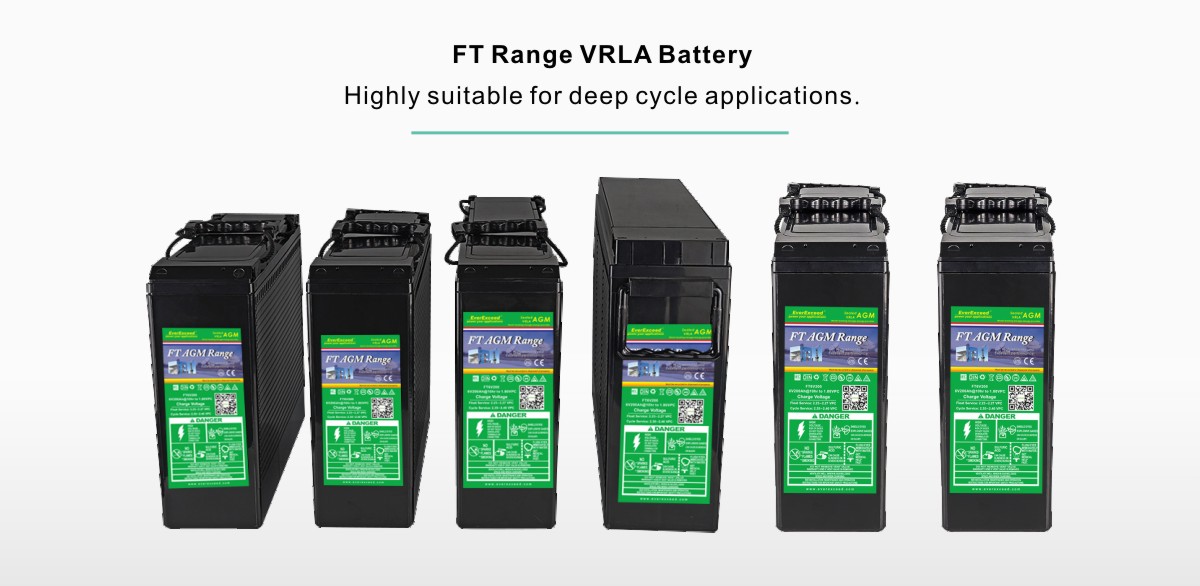

Front Access FT Range VRLA Battery

The EverExceed front access FT Range VRLA provides high performance and reliability in long duration discharge applications.The extremely powerful, compact AGM batteries of EverExceed front access FT Range are an ideal energy source for durability in Telecommunications and Electric Utility applications.


  • UsageTelecommunications;UPS;Distributed Power ;Electric Utility;Wireless PCS; Switchgear Control Power;Cellular Radio;Communications;Microwave; Solar/Wind energy;Broadband
  • CertificatesUL1989; IEC61427;IEC60896; CE
  • OEM/ODM Service Yes, customized
  • Rated capacity(Ah)55-200Ah
  • Rated voltage(V)6V/12V
  • ModelFT series
Facebook Twitter Pinterest LinkedIn 分享


Technical Features:











High safety
Unique performance
VRLA recombinant technology
Heavy duty M6 / M8 Female copper plated terminals provide maximum  performance and easy installation, reduced maintenance and increased safety
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.

High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficiency.











Wide operating temperature range
Easy installation
Long service life
-40°C to +70°C
Multicell design for ease of installation and maintenance
Thick positive plate design for maximum service float life- 12 years design life @ 20°C(68°F).










Full front maintenance

Assured quality
Space saving

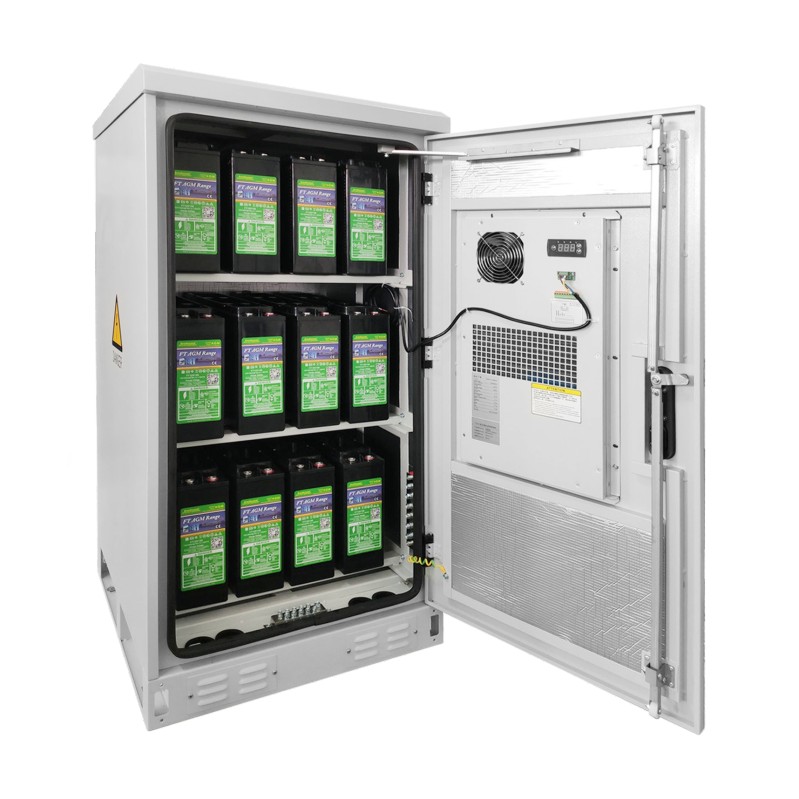

Special front access design comply with telecom 19"/ 23" cabinet

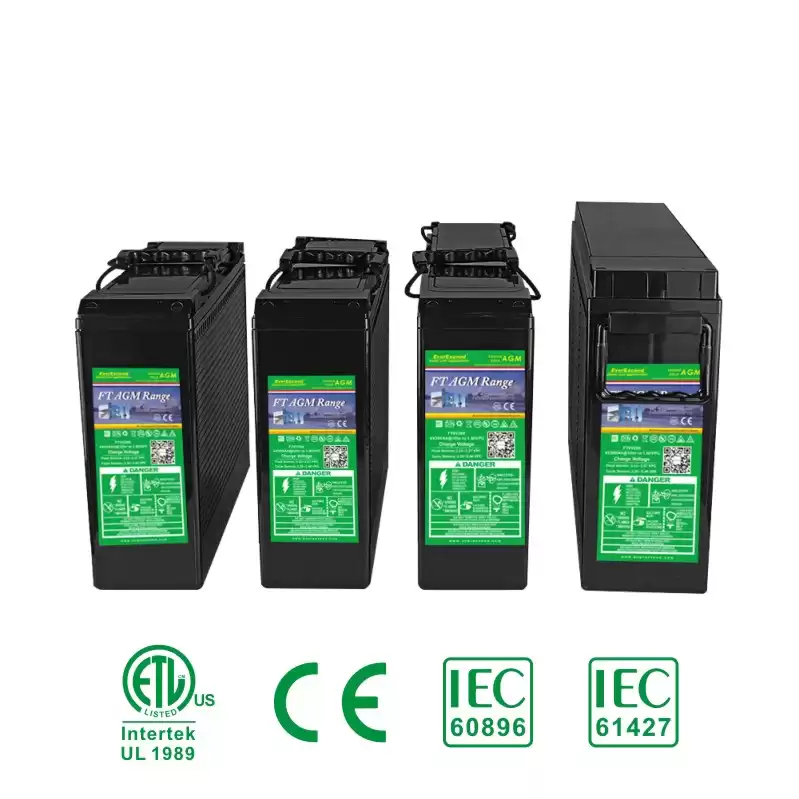

These industry leading rechargeable batteries are approved with UL1989, CE, IEC60896, IEC61427
Compact & lightweight  for space limitation in UPS & telecom applications

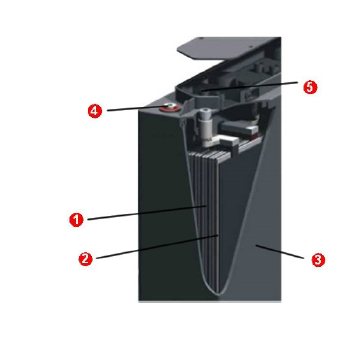

Construction:





① Plates: Lead-Calcium-Tin alloy, optimized for high corrosion resistance;


② Separator: Highly porous glass micro-fibre separator optimized for low internal resistance, for maximum absorption of the electrolyte and for electrical separation of the positive and negative plates.


③ Standard Housing: Reinforced ABS (UL 94HB) container and cover.


Optional Housing: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting Index of greater than 28%.


④ Terminals: Silver plated Copper female insert for easy and safe assembly and maintenance free connection with excellent conductivity.


⑤ Valves: Release gas in case of excess pressure and protects the cell against atmosphere.




Applications:


•  Telecommunications; •  UPS; •  Distributed Power ; •  Electric Utility; •  Wireless \ PCS;

•  Switchgear Control Power; •  Cellular Radio; •  Communications; •  Microwave; •  Solar/Wind energy; •  Broadband
