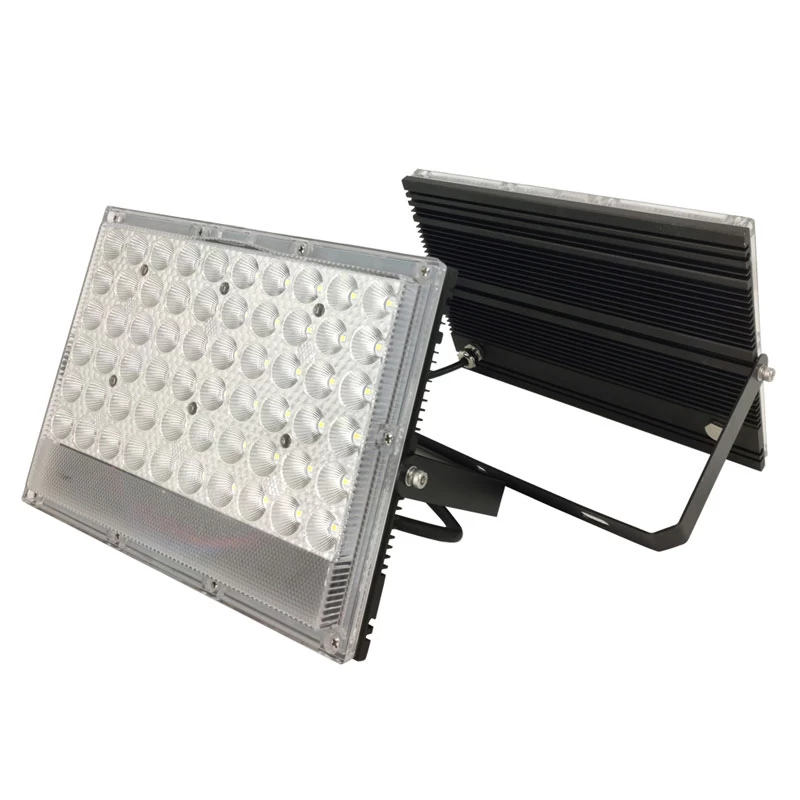

Product Item:FSSZ Black Outdoor With Respirator Led Flood Light Fixture
Product Advantages:

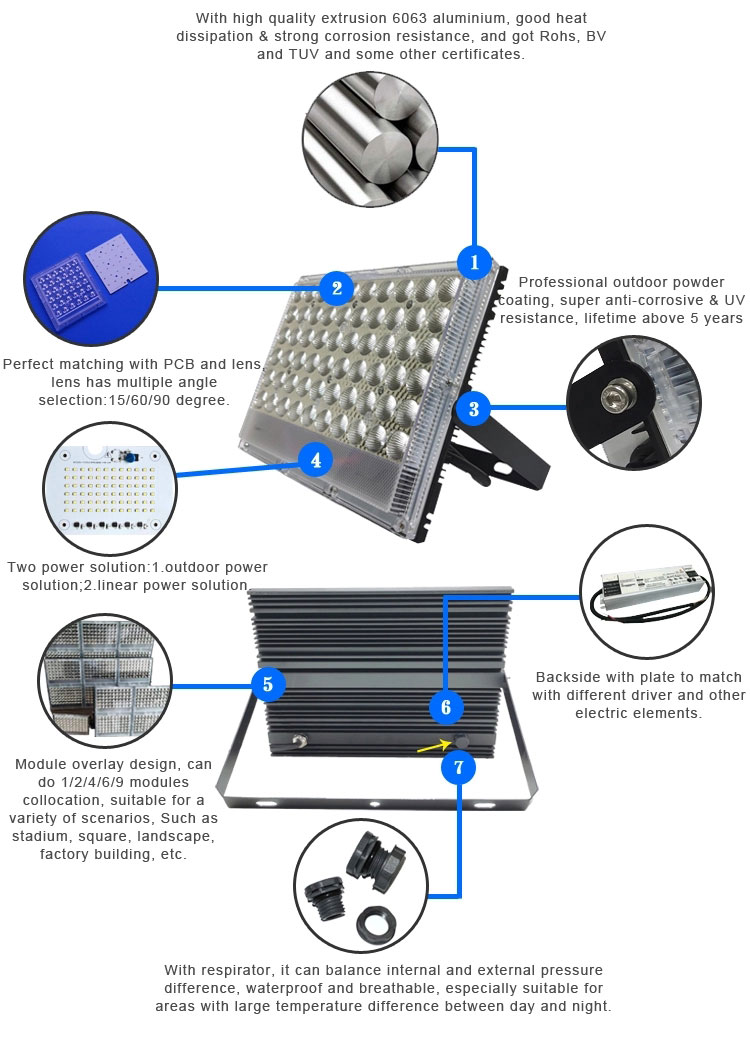

1.All parts of the led stadium flood light housing have passed ROHS
inspection.The environmentally-friendly,high-quality, high-conductivity 6063
aluminum material is used as the light housing, and anodized surface treatment
is adopted, which has strong corrosion resistance, ultraviolet resistance and good
heat dissipation. Integrated flood light reflector cup light distribution
scheme (60 in 1), reducing light loss and improving light efficiency, and can
provide angles: 15 degrees/60 degrees/90 degrees.
2. Simple and flexible power installation methods can
be adapted to different brands of driver.

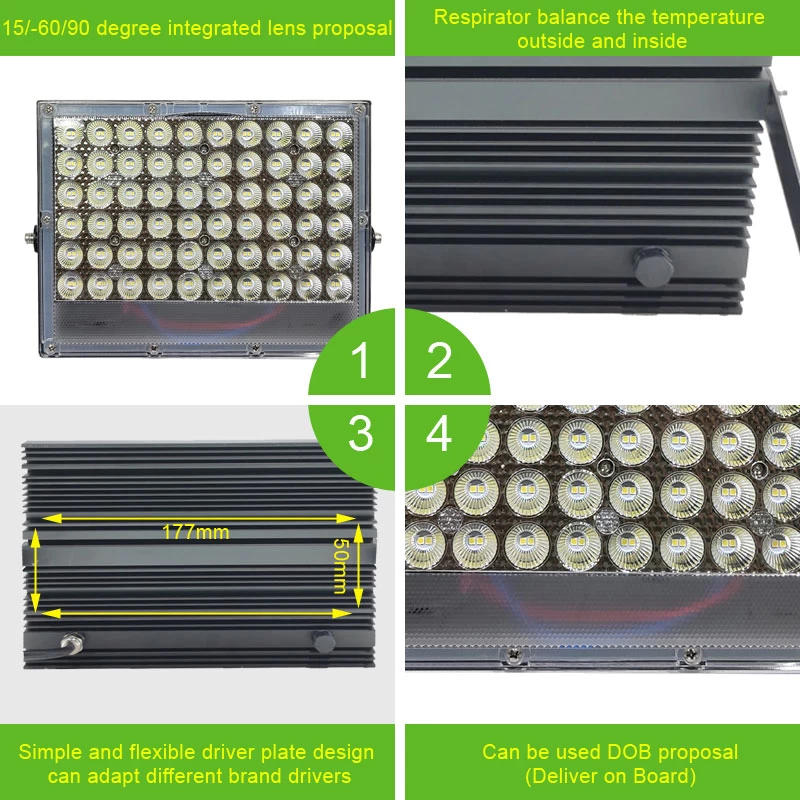

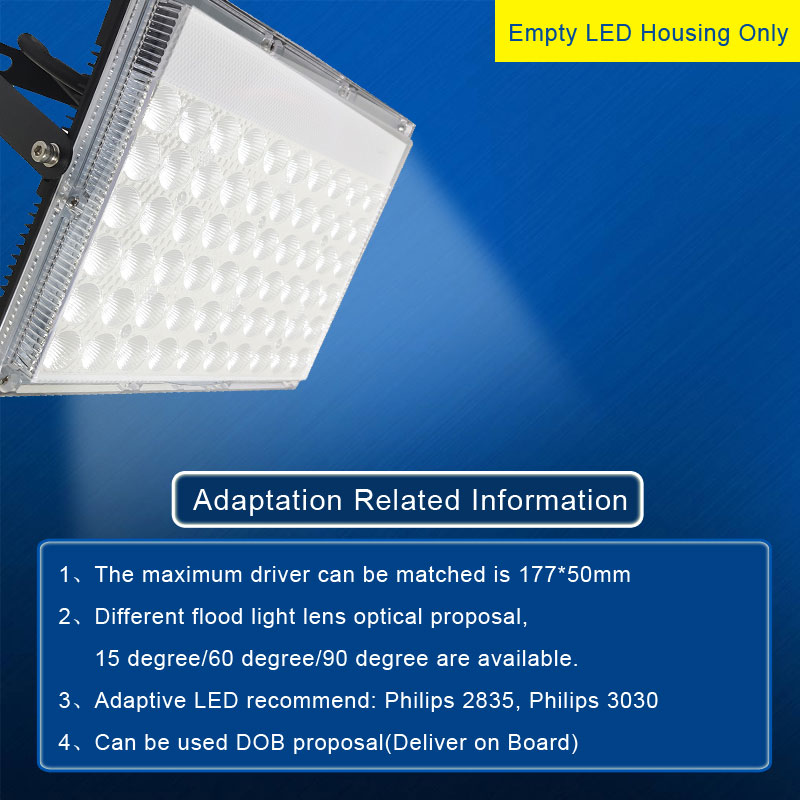

Black led flood housing can be used DOB proposal(Deliver on
Board). A special respirator is added to ensure that the temperature inside the
lamp bead can be controlled. Ensure the life of the LED light lens. Flexible
and changeable combination of stitching methods to maximize the suitability for
different scenarios.
|
Model:
|
TG19H-1
|
TG19H-2
|
TG19H-3
|
TG19H-1X2
|
TG19H-1X3
|
TG19H-2X2
|
TG19H-2X3
|
TG19H-3X2
|
TG19H-3X3
|
|
Power:
|
60w
|
120w
|
180w
|
120w
|
180w
|
240w
|
360w
|
360w
|
540w
|
|

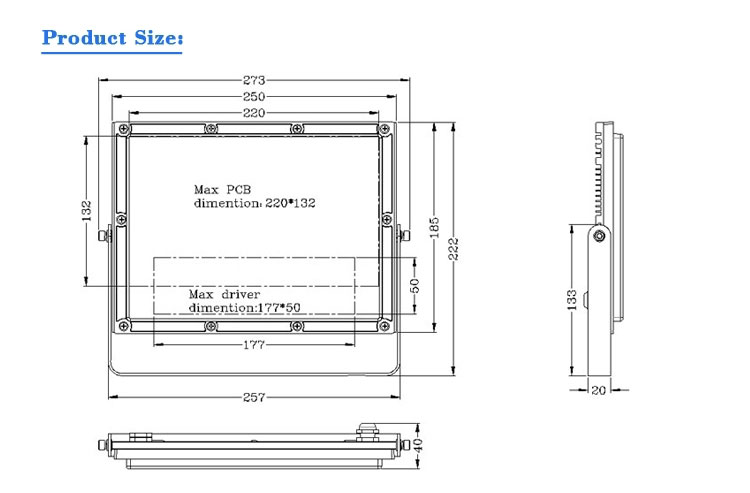

Size(mm):
|

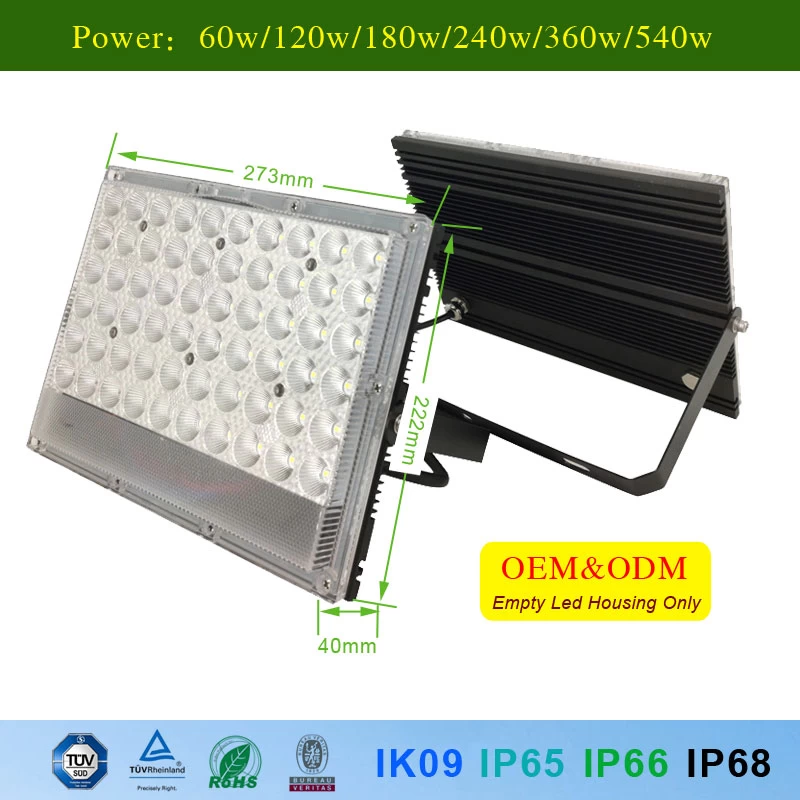

273*222*40
|
545*201*63
|
793*201*80
|
317*400*80
|
317*589*80
|
565*400*80
|
565*589*80
|
813*400*80
|
813*589*80
|
|
Driver box dimenison(mm):
|
177*50
|
|
PCB Area(mm):
|
220*132*1.5
|
|
Net Weight(kg):
|
1.5
|
3.1
|
4.9
|
3.1
|
4.9
|
6.5
|
10.2
|
10.2
|
10.2
|
|
Color:
|
Black
|
|
Certificate:
|
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
3years
|
