FSSZ Grey Ip65 Die Casting Outdoor Led Landscape Light Fixture

24v Led Landscape Light Housing' edge design has a unique look and reduces glare.


  • Size90*118*78
  • Body MaterialAluminum
  • IP RatingIP66
  • Warranty(Year)5 Years
  • CertificationRoHS/IK09/ISO9001/BV

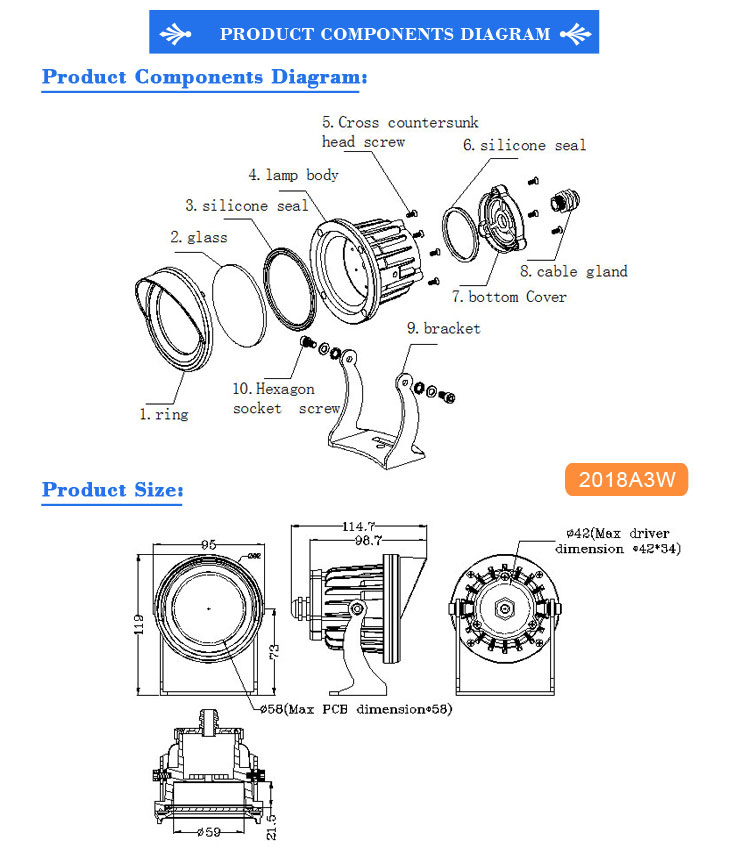

  • ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws

Product Item:FSSZ Grey Ip65 Die Casting Outdoor Led Landscape Light Fixture


Product Advantages:

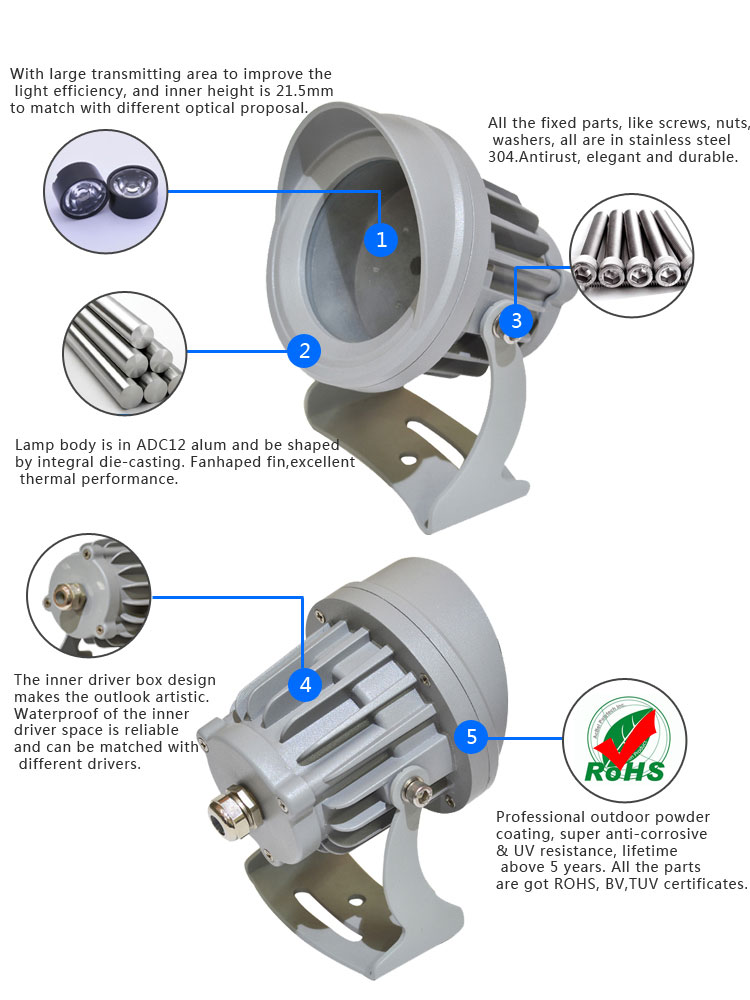

1.The 2020 Hot Sell Led Landscape Light Housing  adopts environmental protection national standard ADC12 aluminum integrated die-casting molding, Fanhaped fin,excellent thermal performance.The inner driver box design makes the outlook artistic.Waterproof of the inner driver space is reliable and can be matched with different drivers.

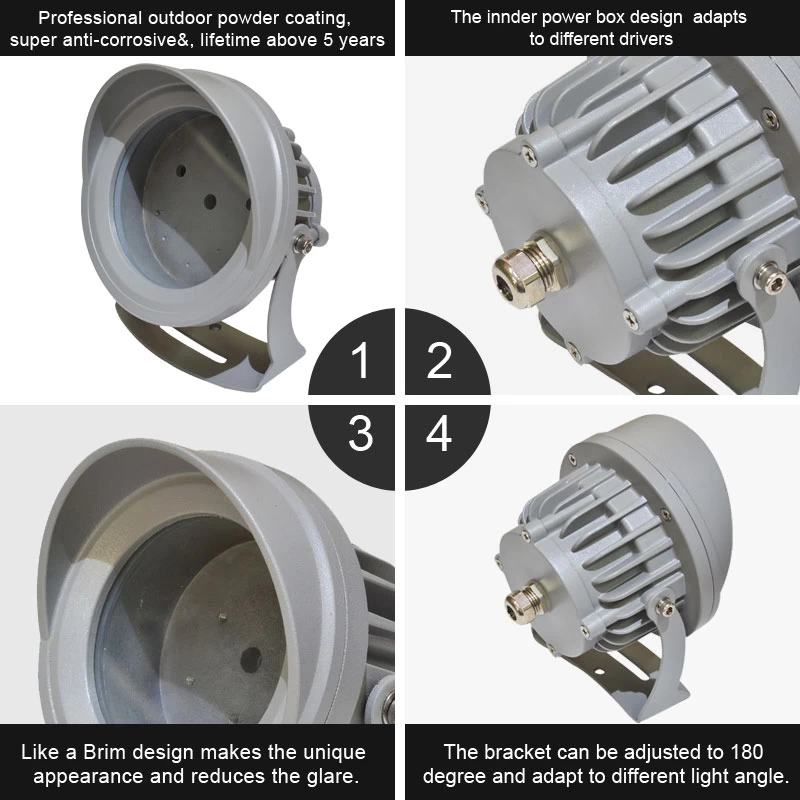

2.The inner height is 21.5mm to match with different optical proposal.Like a Brim design makes the unique appearance and reduces the glare.All fixing parts, such as screws, nuts, washers,are made of 304 stainless steel. Rust-proof, beautiful and durable. The surface treatment adopts special outdoor powder spraying technology, which has strong corrosion resistance and UV resistance. Empty Led Landscape Light Fixtures warranty up to 5 years



Model:
2001A3
2003A9
2018A3
2019A9
Power:
3-6w
9-12w
6-12w
6-18w

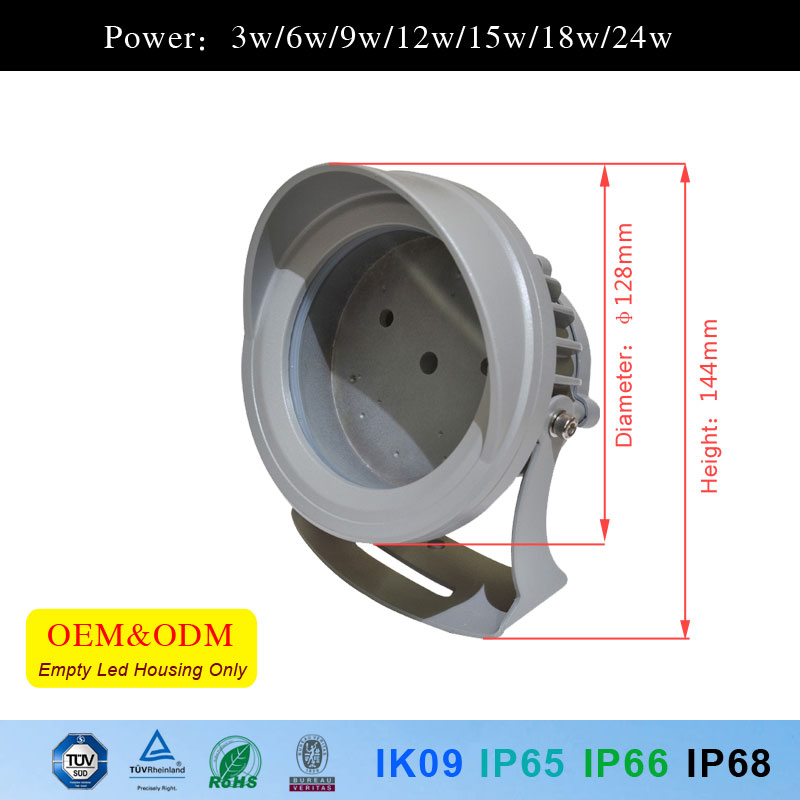

Size(mm):
95*92*119
128*92.5*144
90*118*78
128*145*78

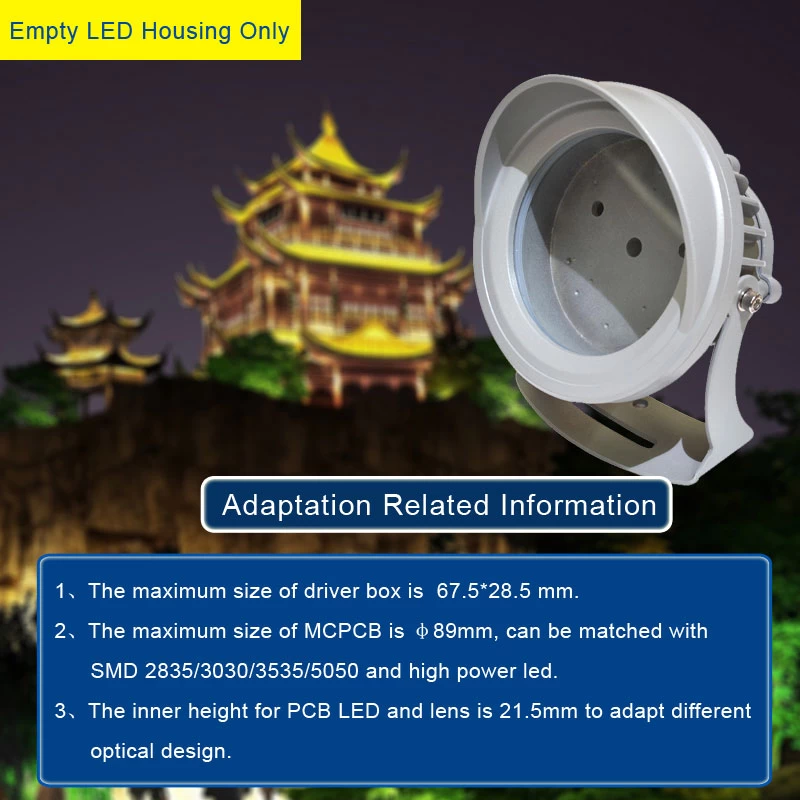

Driver box dimenison(mm):
Φ 42.5*32
Φ67.5*28.5
Φ 42.5*32
Φ67.5*28.5
PCB Area(mm):
Φ58*1.5
Φ89*1.5
Φ58*1.5
Φ89*1.5
Net Weight(kg):
0.46
0.8
0.47
0.8
Color:
Black
Certificate:
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
Warranty:
3years


FSSZLed Light Fixture ReplacementLed Light Fixtures OnlineExterior Led Flood Light FixturesProduct Process
