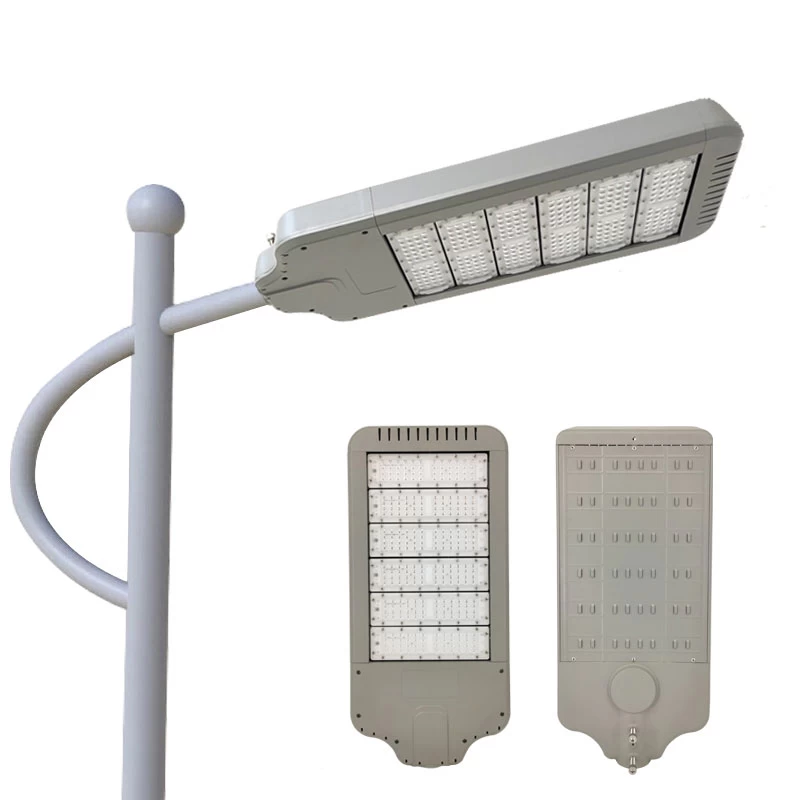

Product Item:FSSZ Hook And Chain Design Outdoor Ip66 Empty Led Street Light Fixture
Product Advantages:
1. Black led street light housing the surface treatment adopts special outdoor powder
spraying technology, which has strong corrosion resistance and UV resistance.
Warranty up to 5 years. There is ample space for the driver of the light, which
can be adapted to different brands of driver at the same time. All parts of the
housing have got ROHS,BV,TUV
certificates.
2. Standard modular radiator, can also be used with
48-in-1, 56-in-1, 64-in-1 sstreet light optical proposal. Light effect can be

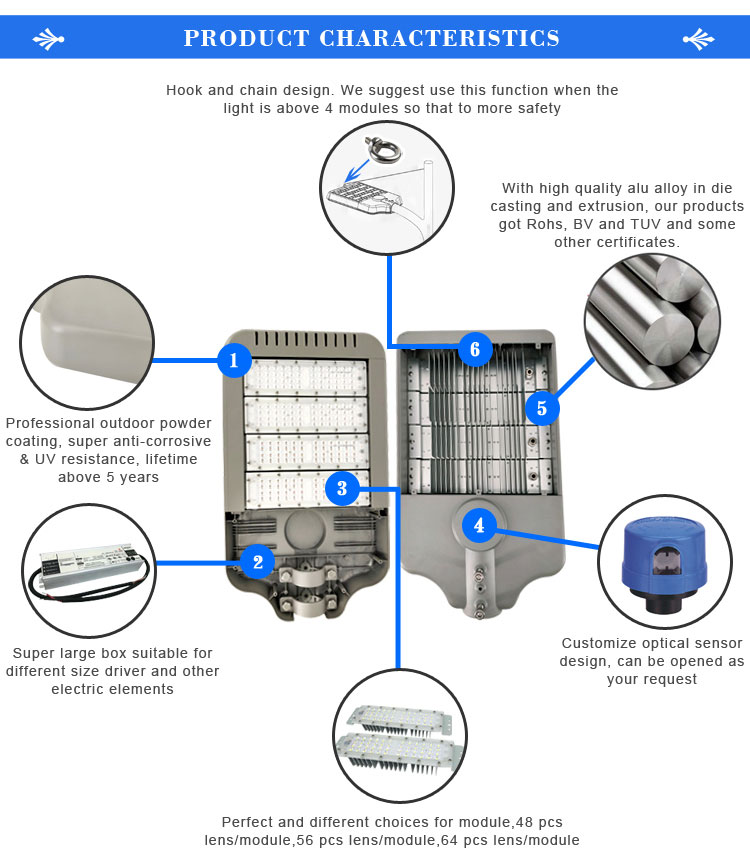

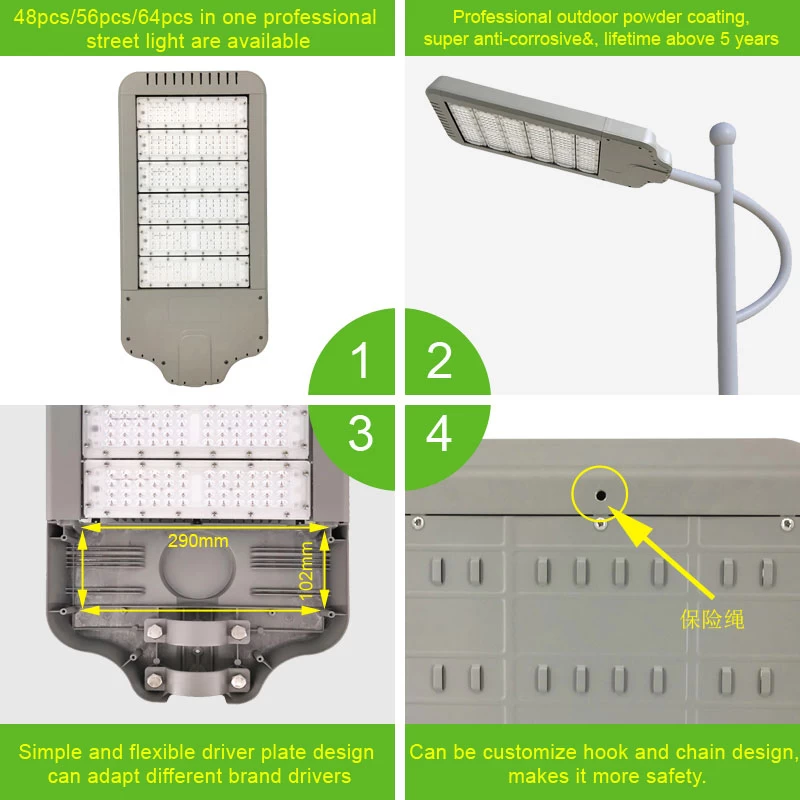

matched freely. Hook And Chain Design Street Light Fixture with different usages. Hook and chain design. We
suggest use this function when the light is above 4 modules so that to more
safety
|
Model:
|
LF18-1
|
LF18-2
|
LF18-3
|
LF18-4
|
LF18-5
|
LF18-6
|
|

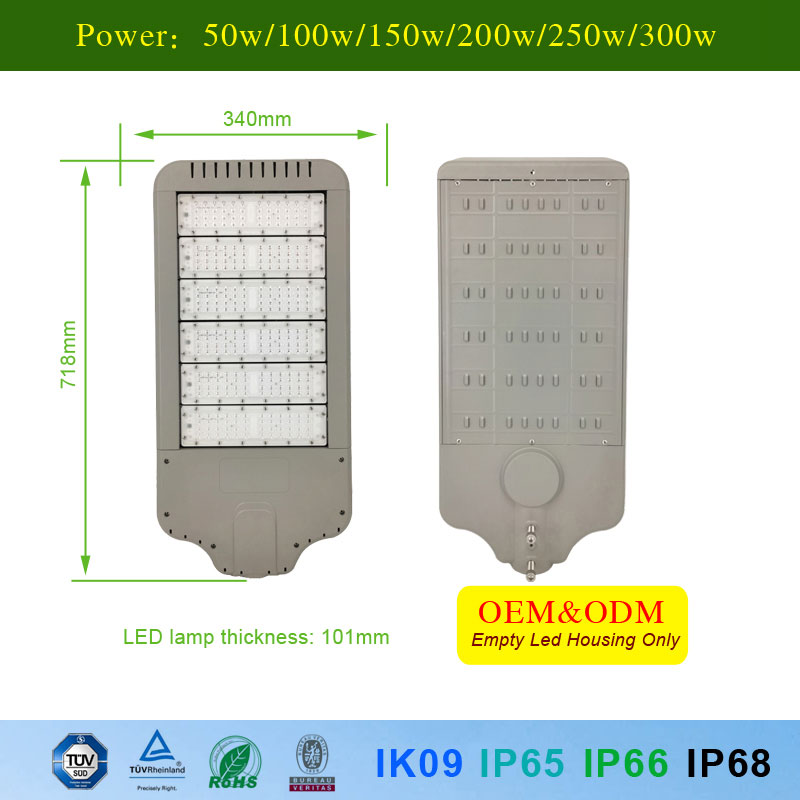

Power:
|
30-50w
|
60-100w
|
90-150w
|
120-200w
|
150-250w
|
180-300w
|
|

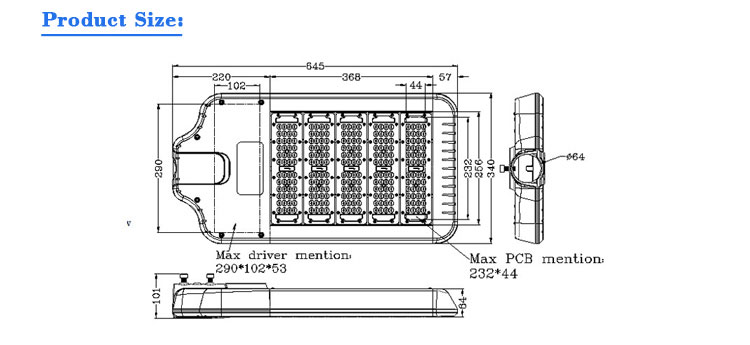

Size(mm):
|
369*340*101
|
426*340*101
|
499*340*101
|
572*340*101
|
645*340*101
|
718*340*101
|
|
Driver box dimenison(mm):
|
290*102*53
|
|
PCB Area(mm):
|
300*70*40
|
300*70*40
|
300*70*40
|
300*70*40
|
300*70*40
|
300*70*40
|
|
Net Weight(kg):
|
3.0
|
3.66
|
4.1
|
4.6
|
5.0
|
5.46
|
|
Color:
|
White,Grey
|
|
Certificate:
|
IP67,Rohs,IK09,patent,ISO9001,TUV,BV
|
|
Warranty:
|
5years
|
