Product Item:FSSZ Ip65 Rohs 100w 200w Ufo Led High Bay Light
Product Advantages:
Characteristics of Rohs Led High Bay Light:

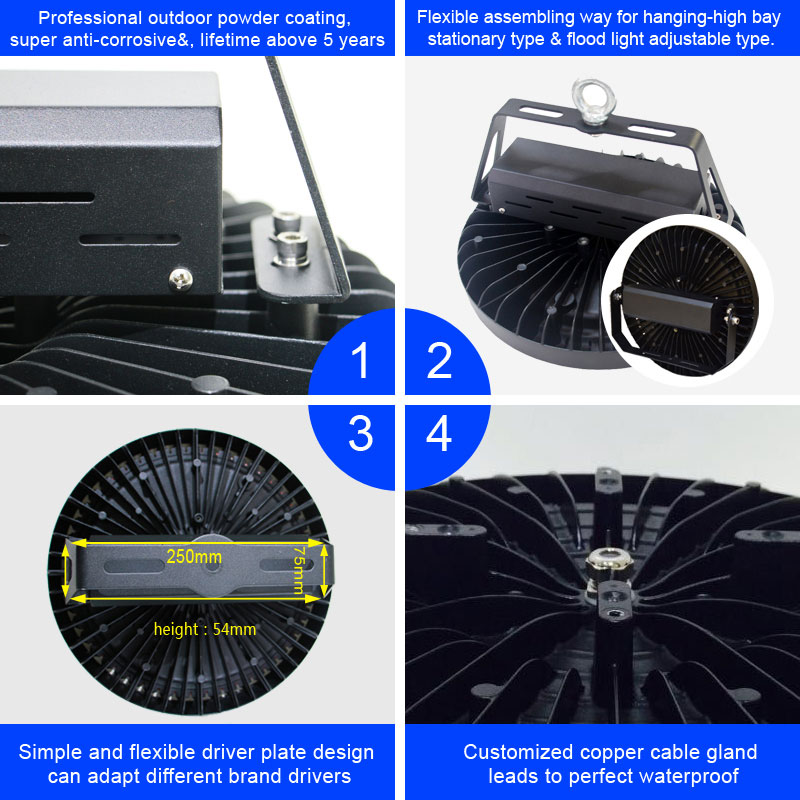

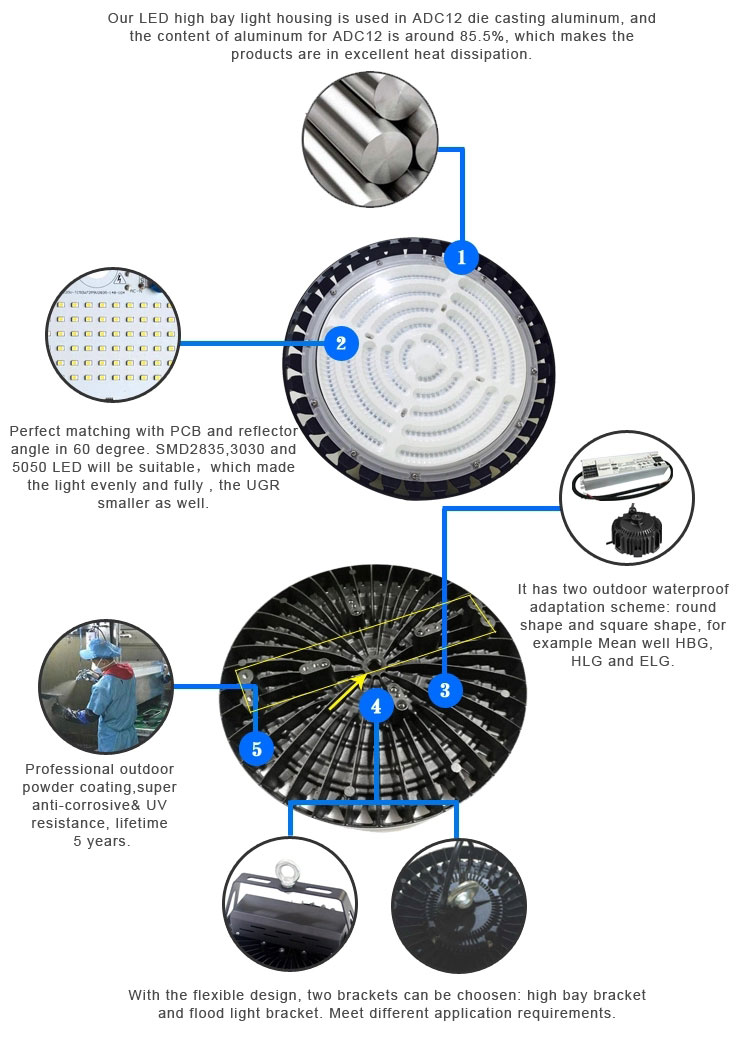

1.The light body adopts the environmental
protection national standard ADC12 aluminum integrated die-casting, fan-spinned
heat dissipation fin structure, clever hollow convection heat dissipation
design, no thermal resistance, large heat dissipation area and excellent heat
dissipation performance. Independent ventilation driver box design, adapt to
different driver sources and provide effective protection. Flexible assembling
way for hanging-high bay stationary type & flood light adjustable type.
2.All fixing parts, such as screws, nuts,
washers,are made of 304 stainless steel. Rust-proof, beautiful and durable. Be
matched with 60 degree reflector optical proposal, in high reflection PC
material and 306pcs for leds. With evenly and full light will reduce glare rate.
The surface treatment adopts special outdoor powder spraying technology, which
has strong corrosion resistance and UV resistance. Warranty up to 5 years.And
all parts of the light housing have got ROHS,BV,TUV certificates.

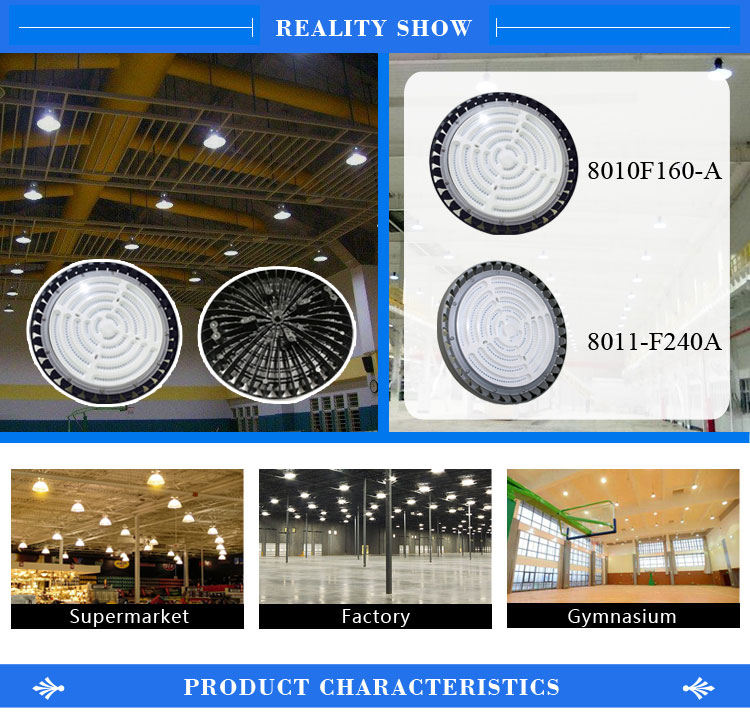

Application of
Led High Bay Light 300w, like factory, warehouse, stadium, etc.
|
Model number
|
8010F160-A
|
8011F240-A
|
8010F160-B
|
8011F240-B
|
|
Power
|
60w-100w
|
120w-160w
|
60w-100w
|
120w-160w
|
|
Lamp size
|
310*230mm
|
360*230mm
|
315*230mm
|
365*230mm
|
|
net weight
|
3800g
|
4500g
|
3750g
|
4450g
|
|
Beam angle
|
60°
|
60°
|
|
|
|
LED chip
|
Philips 3030
|
|
PF
|
＞0.95
|
|
CCT
|
3000K-6500K
|
|
pcs/ctn
|
1
|
|
carton size
|
36*36*20cm
|
40*40*20cm
|
36*36*20cm
|
40*40*20cm
|
