FSSZ Outdoor IP65 Garden Led Rgb Flood Light housing

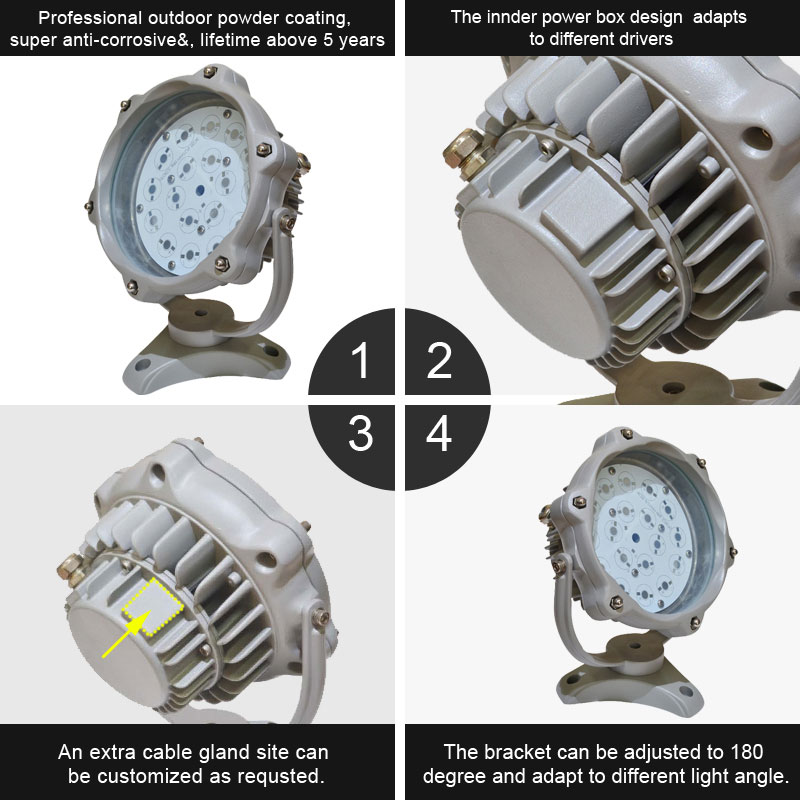

Ip65 50w Led Flood Light have An extra cable gland site can be customized as requested.

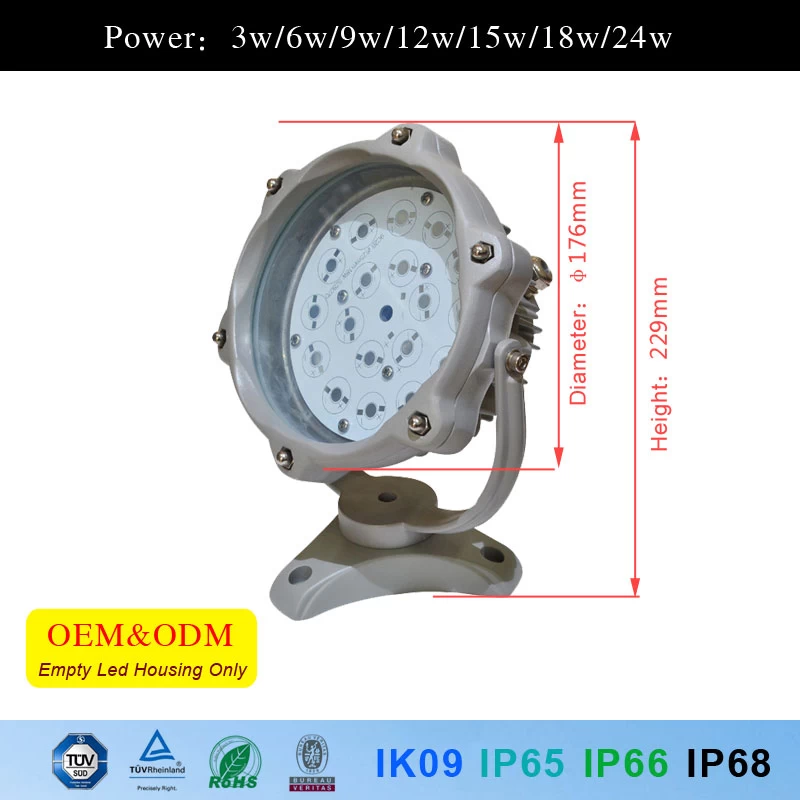

  • Size188*229*104
  • Body MaterialAluminum
  • IP RatingIP66
  • Warranty(Year)5 Years
  • CertificationRoHS/IK09/ISO9001/BV
  • ComponentsLED lamp body, lens, pcb, bracket, silicone seal, cable gland, screws

Product Item:FSSZ Outdoor IP65 Garden Led Rgb Flood Light housing


Product Advantages:

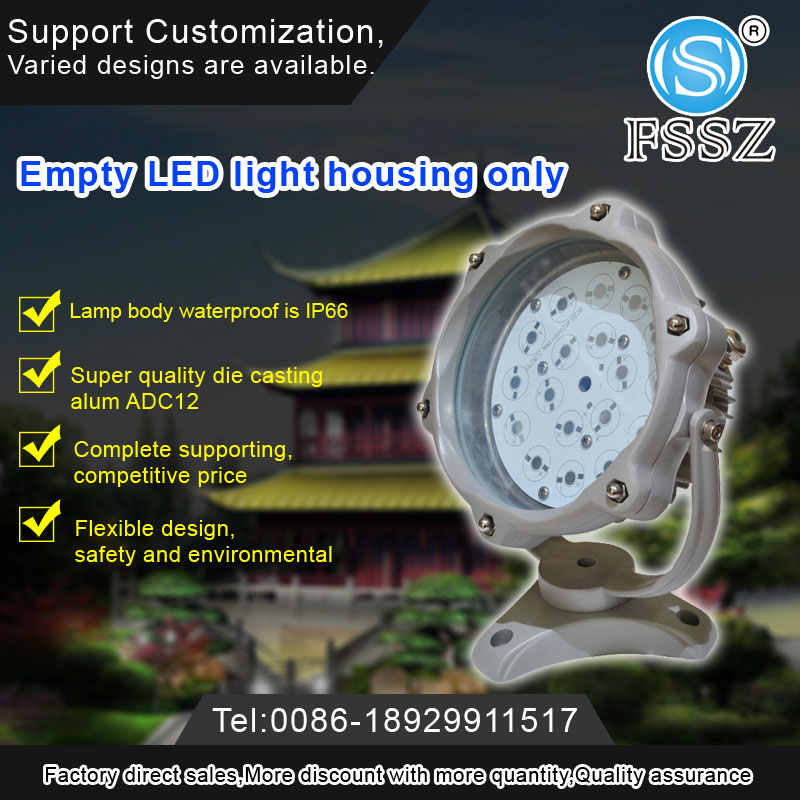

1.The light body adopts environmental protection national standard ADC12 aluminum integrated die-casting molding, Fanhaped fin,excellent thermal performance.Independent separate waterproof power box design,reliable and durable,power supply matching.

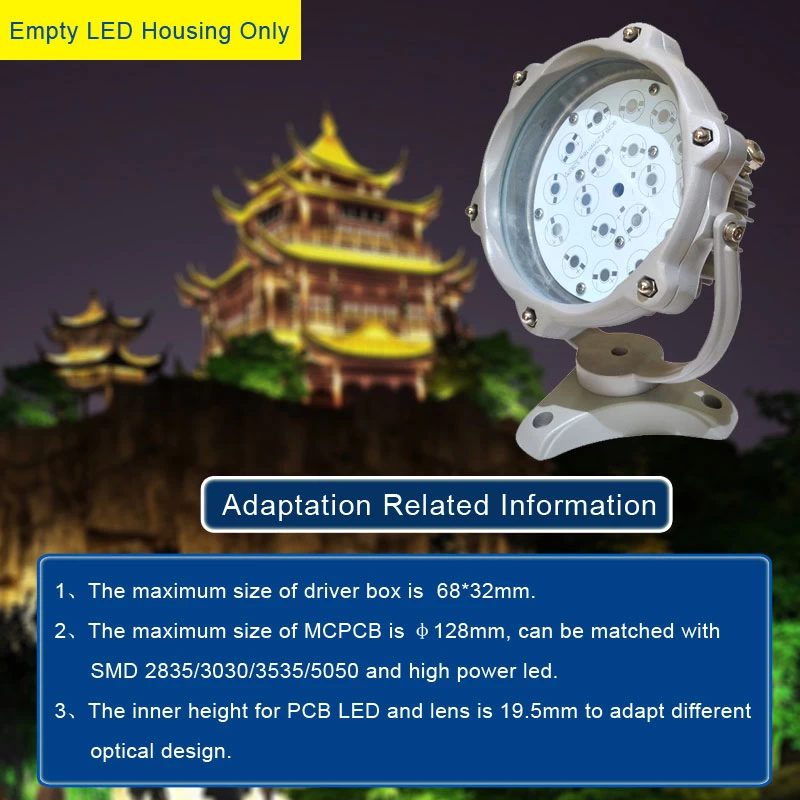

2.The inner height is 19.5mm to match with different optical proposal. The triangle bracket design makes the lamp more stable.All fixing parts, such as screws, nuts, washers,are made of 304 stainless steel. Rust-proof, beautiful and durable. The surface treatment adopts special outdoor powder spraying technology, which has strong corrosion resistance and UV resistance. Warranty up to 5 years.And all parts of the light housing have got ROHS,BV,TUV certificates.


Foshan Nanhai Shunzhan Mould Lighting Metal Products Co., Ltd. has a variety of Ip65 led flood light fixture for customers to choose from and supports customization. We continue to develop and design more LED products that are recognized by customers and different markets.





Model:
2004A12
2006A18
2005B12
2007B18
Power:
12w
18w
12w
18w
Size(mm):
160*200*104
188*229*104
150*181*104
180*209*104
Driver box dimenison(mm):
Φ 58*31
Φ68*32
Φ 58*31
Φ68*32
PCB Area(mm):
Φ108*1.5
Φ128*1.5
Φ108*1.5
Φ128*1.5
Net Weight(kg):
1.35
1.53
1.2
1.5
Color:
Black
Certificate:
IP65,Rohs,IK09,patent,ISO9001,TUV,BV
Warranty:
3years


FSSZLed Flood Light FixtureFlood Light HousingWaterproof Flood LightProduct Process
