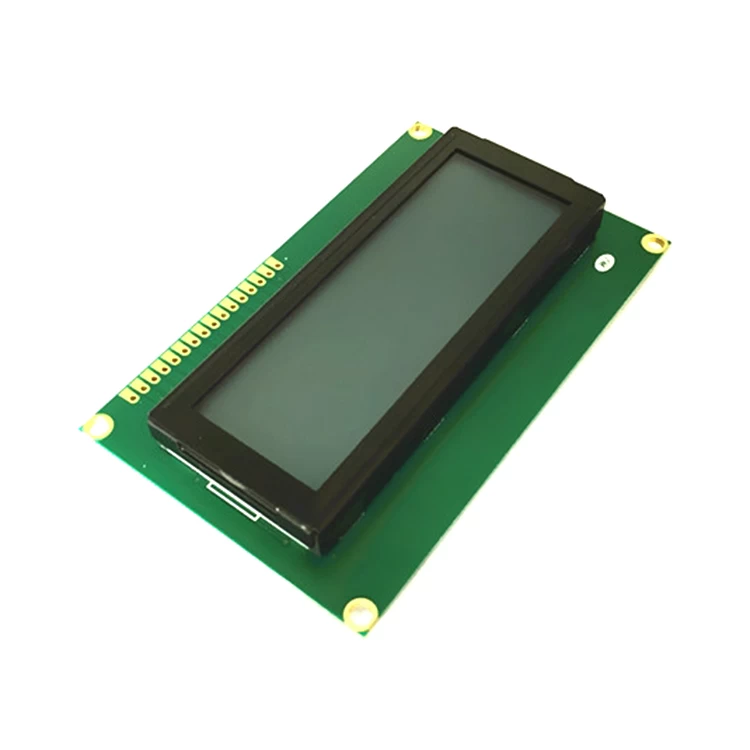

FSTN 20x4 character COB lcd module with backlight

FSTN 20x4 character COB lcd module.

STN-YG/ STN-blue, FSTN

with backlight

various backlight colors

3.3V/5.0V

Facebook Twitter Pinterest LinkedIn 分享
Specification
Item Spec.
Display Character 20x4 lcd (TSM2004A-20)
Display type FSTN lcd ,Negative Transmissive
LCD Driving voltage 4.7v
Logic voltage 5.0v
Drive mode 1/16 DUTY, 1/5 BIAS
Backlight white/side  5.0v
Operating voltage 3.3v, VDP=21.8v
Outline 98.0x60.0x14.2mm
View Area 76.0x25.8mm
Active Area 70.4x20.8mm
Viewing direction 6H
Operating temperature -20°C-70°C
Storage temperature -30°C-80°C
