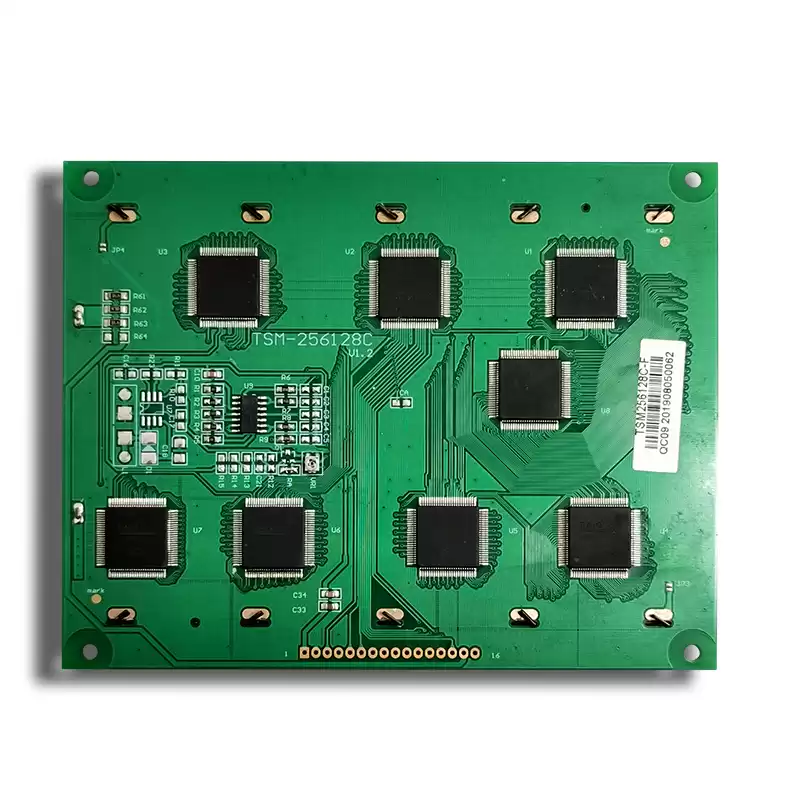

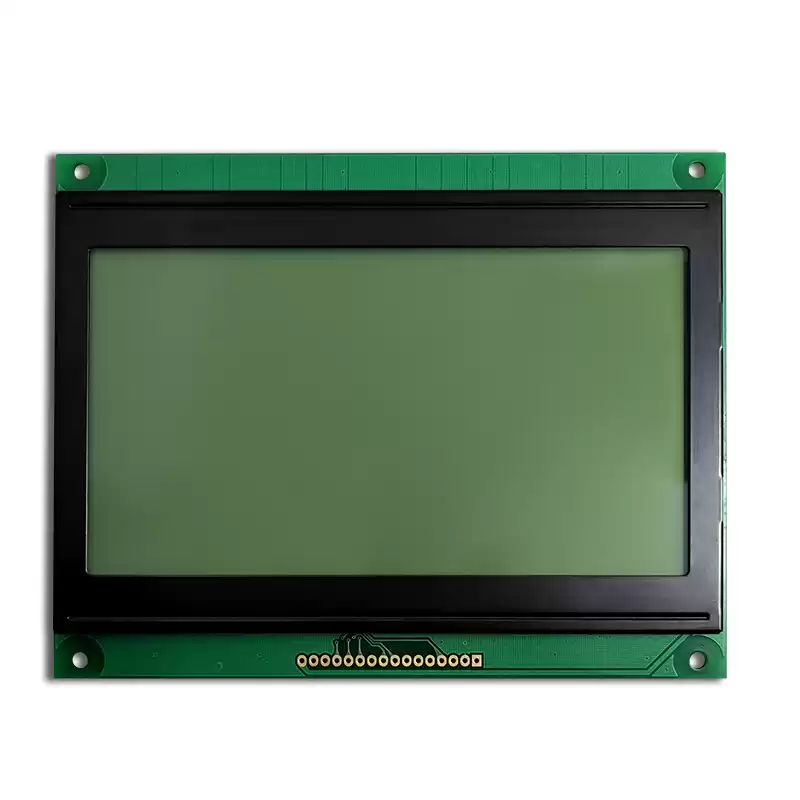

FSTN 256x128 Graphic Lcd Module

256x128 dots FSTN

COB module



Item Spec.
Display Character 256x 128
Display type FSTN
Description 256x128 graphic lcd module
Model name TSM256128C-F
Outline Size 147x116x14.6mm
View Area 127x70mm
Active Area 120x60.12mm
Viewing angle 6 o'clock
MOQ 500pcs
Number of pins 16 pins
Voltage 3.3V
IC RB0086
Operating temperature -20-70℃
Storage temperature -30-80℃
Backlight LED
