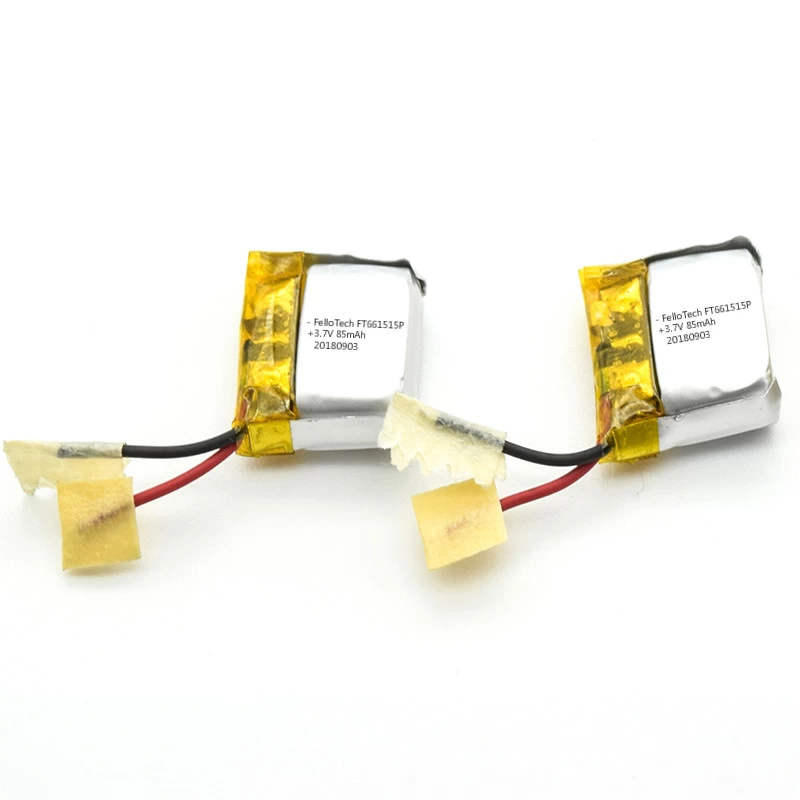

FT661515P 3.7V 85mAh li-ion ploymer battery lithium ion ploymer battery with BIS certificate

li-ploymer battery FT661515P with 3.7V 85mAh for GPS, Bluetooth player, handheld device


  • Weight (g)2.5
  • Height (mm)15
  • Width (mm)15
  • Thickness (mm)6.6
  • Internal Impedance (mΩ)180
  • Nominal Capacity (mAh)85
  • Nominal Voltage (V)3.7

661515P  3.7V 85mAh li-ion ploymer battery lithium ion ploymer battery with BIS certificat

S/N



Details



Parameters



Remarks



1

Rated voltage

3.7V



2

Rated capacity

85mAh

discharge with 0.2C to 2.75V after fully charge within 1h, measuring the discharge time

3

Limited charge voltage

4.20V



4

Internal resistance

180



5

charge mode

C.C/C.V.



6

Standard charge current

17mA

0.2C

7

Max Charge Current

85mA

1C

8

Standard discharge current

17mA

0.2C

9

Max discharge current

Continuous:85mA

1C

10

Working temperature

charging

0~45



discharging

-10~60

11

Storage temperature

1 Month

-10~45

Charge to 40%~50% of capacity when storage

6 months

-10~30

12

Storage humidity

45%~75

relative humidity

13

Weight

Approx  2.5g



14

Cycle life

300 times

capacity≥80%
