Introduction

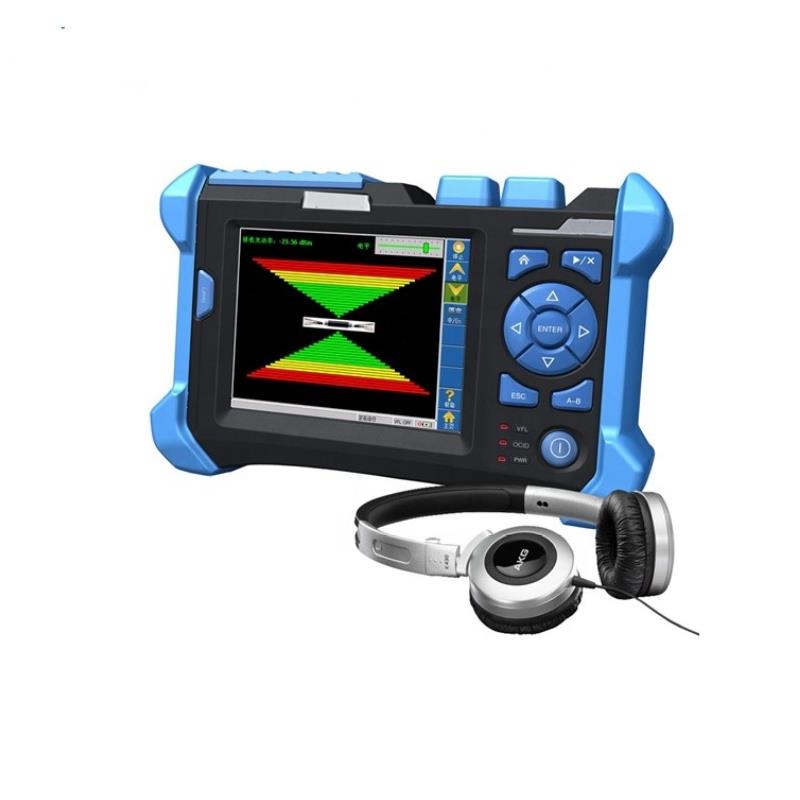

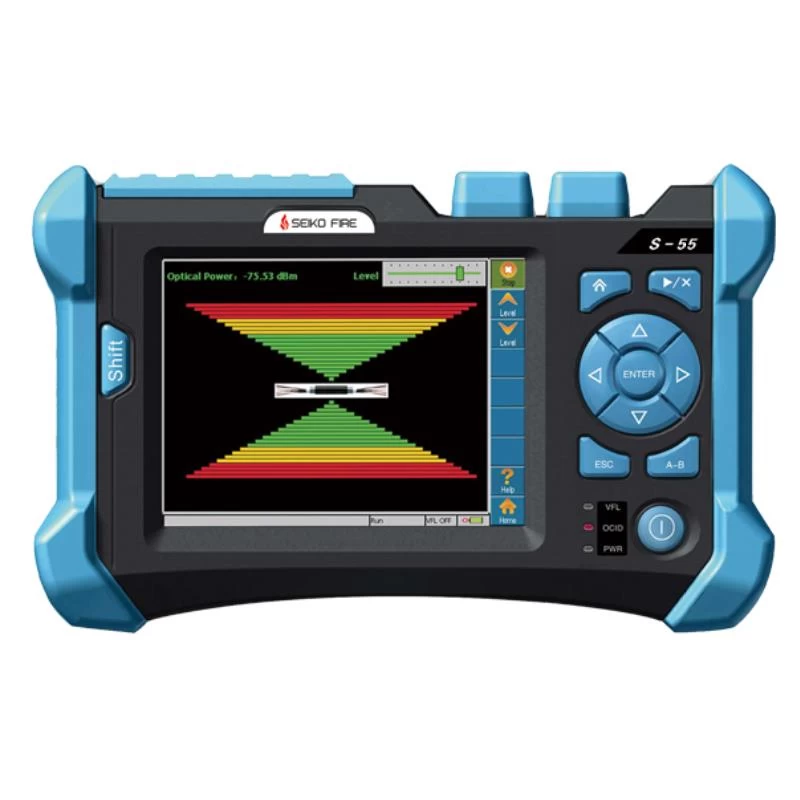

S-55 Optical Cable Identifier, OCID was a
specially developed instrument for telecommunications engineers and technicians
to identify a desired target fiber optical cable, which is a friendly, easy to
operate and non-invasive to the optical fiber cables. It can be used in various
environments, such as manholes, tunnels conduits and aerial.
Based on the properties of photo elastic
effect, the OCID S-55 converts the coherent laser energy into visual or audio
signal, so user can easily locate the target desired fiber in manholes, tunnels
conduits, and aerial, etc. With the OCID S-55, the user can easily recognize
the target optical cable from the rest by gently tapping them.
Features
-
Touch Screen + Keypad, easy to use.
-
Large capacity of lithium battery and low
power consumption, longer operating time.
-
Dynamic range of sensitivity to mechanical
perturbation from tens of kilometer distance.
-
Locate target cable using audio and visual
signal even under noisy environment.
-
Self-calibration for optimization, adapt to
different length of fiber cables.
-
Non-invasive detection with high accuracy.
Packing List
|
No.
|
Name
|
Quantity
|
Remarks
|
|
1
|
Packing List
|
1
|
|
|
2
|
S55 Optical Cable Identifier
|
1
|
Including touch pen and Li
battery
|
|
3
|
Wrist strap
|
1
|
|
|
4
|
12V/3A AC adapter
|
1
|
|
|
5
|
Product instruction
|
1
|
In CD
|
|
6
|
Manufacturer’s certificate
|
1
|
|
|
7
|
Warranty
|
1
|
|
|
8
|
FC flange
|
1
|
|
|
9
|
Production test report
|
1
|
|
|
10
|
headphones
|
1
|
|
|
11
|
Fiber reflector
|
1
|
|
|
12
|
3m FC/UPC-FC/APC patch cord
|
1
|
|
|
13
|
Bag
|
1
|
|
|
14
|
Stamp
|
1
|
|
|
15
|
Report of calibration
|
1
|
|
Specifications
|
Model
|
S55-20/N
|
S55-40/N
|
S55-60/N
|
|
Measurement method
|
Single fiber test
|
|
Wavelength
|
1550nm
|
|
Min. output power of light
source
|
-10dBm
|
-6dBm
|
-3dBm
|
|
Loss of one-way cable
|
5dB
|
10dB
|
15 dB
|
|
Measurement distance
|
20Km
|
40 Km
|
60Km
|
|
Initial blind zone
|
No blind zone
|
|
Signal to noise ratio
|
>40dB
|
|
Optical fiber interface
|
SM
|
|
Optical connector
|
FC/APC
|
|
Displaying screen
|
5.6’ touch screen
|
|
Input model
|
Touch screen LCD + buttons
|
|
Output model
|
Visible: vibration amplitude
(touch screen LCD), audio: sound (corresponding excitation intensity)
|
|
Power supply
|
DC12V/3A
|
|
Battery
|
Lithium battery (7.4V
10.4Ah), continuous work ≥14 hours
|
|
Power
|
≤8W
|
|
Volume(H×W×L)
|
65×150×235mm
|
|
Weight
|
1.5Kg (including
battery)
|
|
Working temperature
|
0~45℃
|
|
Storing temperature
|
-20~55℃
|
|
VFL visual failure location
|
Wavelength: 650nm
Output power (dBm): ≥-3
Maximum testing distance: 5km
|
|
Guarantee period
|
12 months
|
|
Remarks
1. add reflector at the end
(reflected value > -3dB) to increase 5dB.
2. add reflector at the end
(reflected value > -3dB) to increase 20Km.
|
