FTTH Self-supporting Drop Cable 1C 2C 4C 6C 8C 12C for Outdoor

It's also called butterfly drop cable or bow-type ftth drop cable,the outer jacket is black in PVC/LSZH for outdoor,the dimension of the cable is:5.0x2.0mm,the option for strength member is:Steel Wire/FRP/KFRP,the option for the fiber is:G652D/G657a1/G657a2 or custom.



FTTH Self-supporting Drop Cable 1C 2C 4C 6C 8C 12C for Outdoor


FTTH (Fiber to the Home) is the final form of the development of optical access networks. The fiber access network is divided into FTTH (fiber to the home), FTTB (fiber to the building), FTTP (fiber to the premises) and FTTC (fiber to the roadside) based on the location of the optical network unit. The optical fiber cable access networks mainly use PON (Passive Optical Network) technology, which uses splitters to distribute optical signals and provide services to multiple users at the same time.

SZOPT provides indoor/outdoor/pipeline FTTH drop cables in different models,please reach us for details.

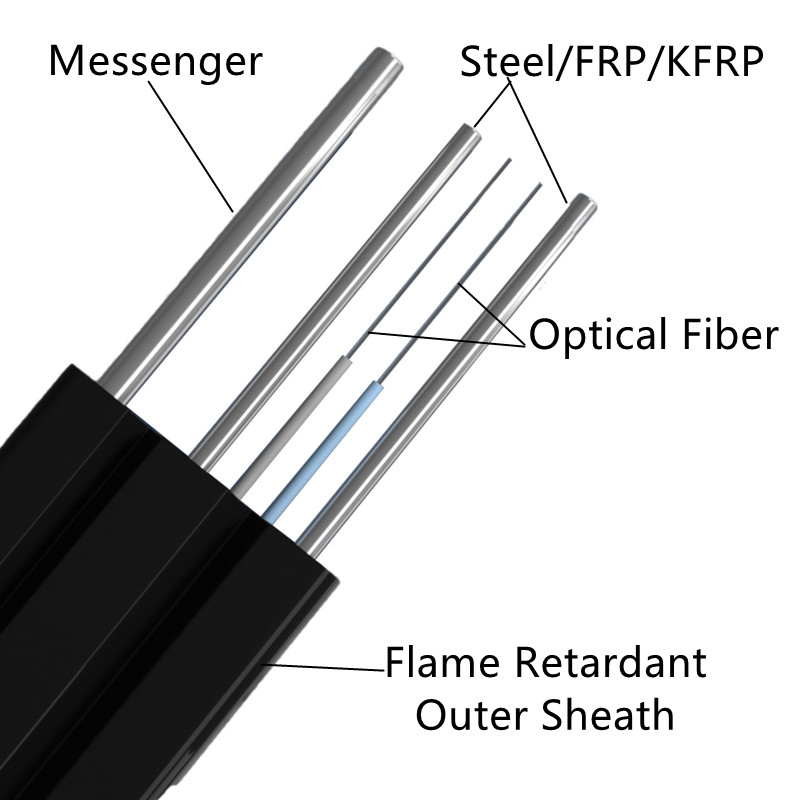

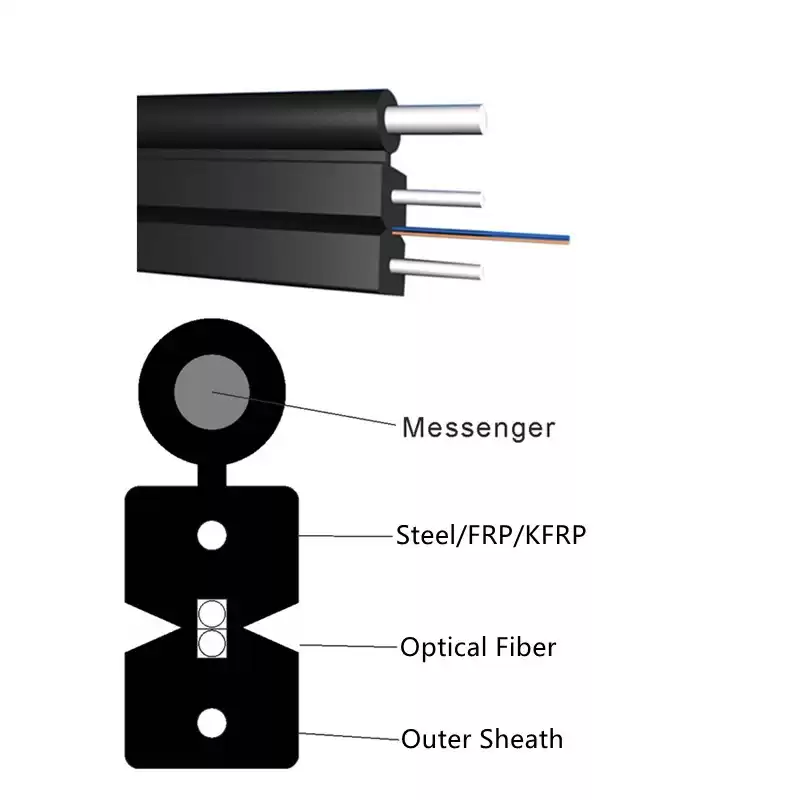

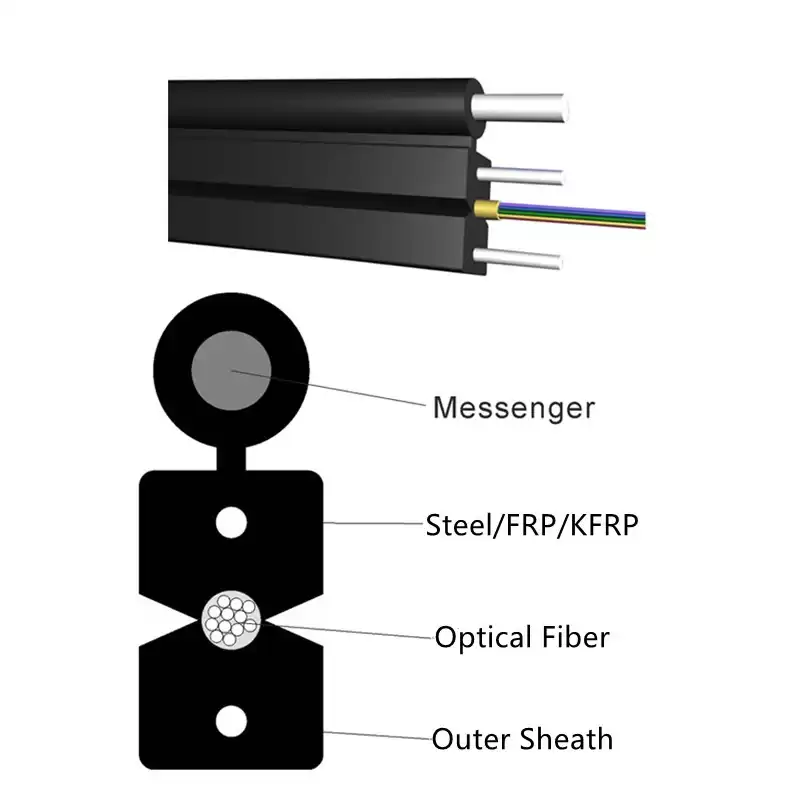

section drawing of the drop cable

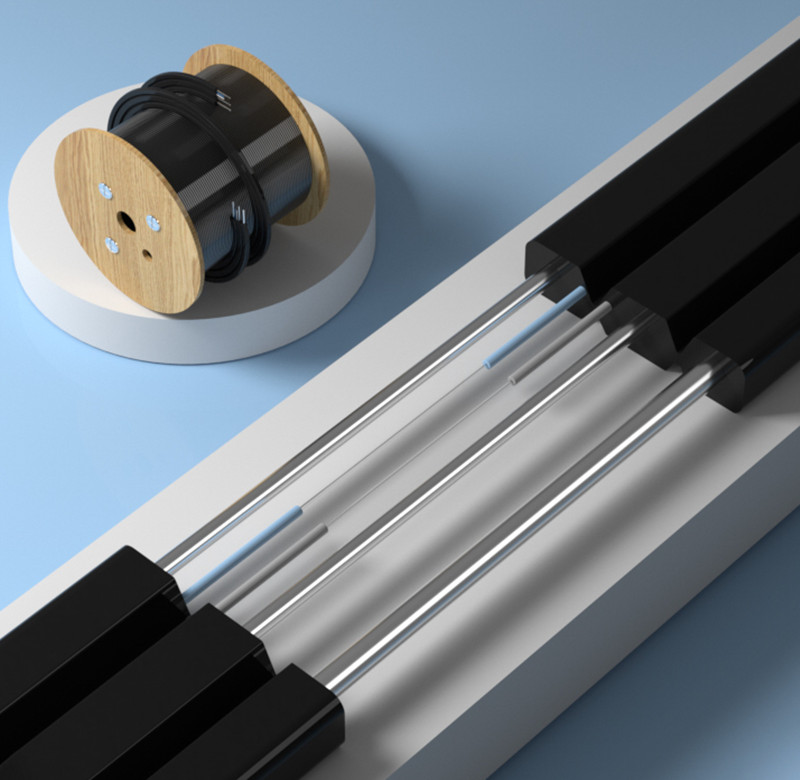

Actual picture of the drop cable

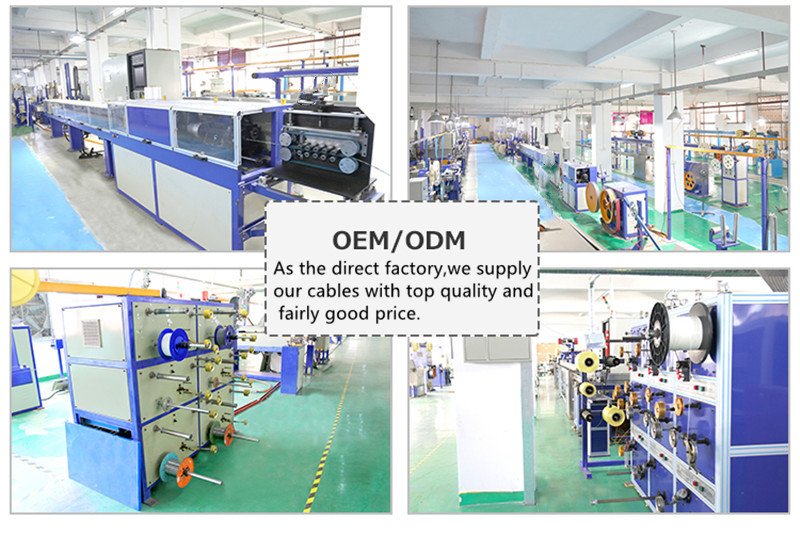

our factory for gyxtw cable

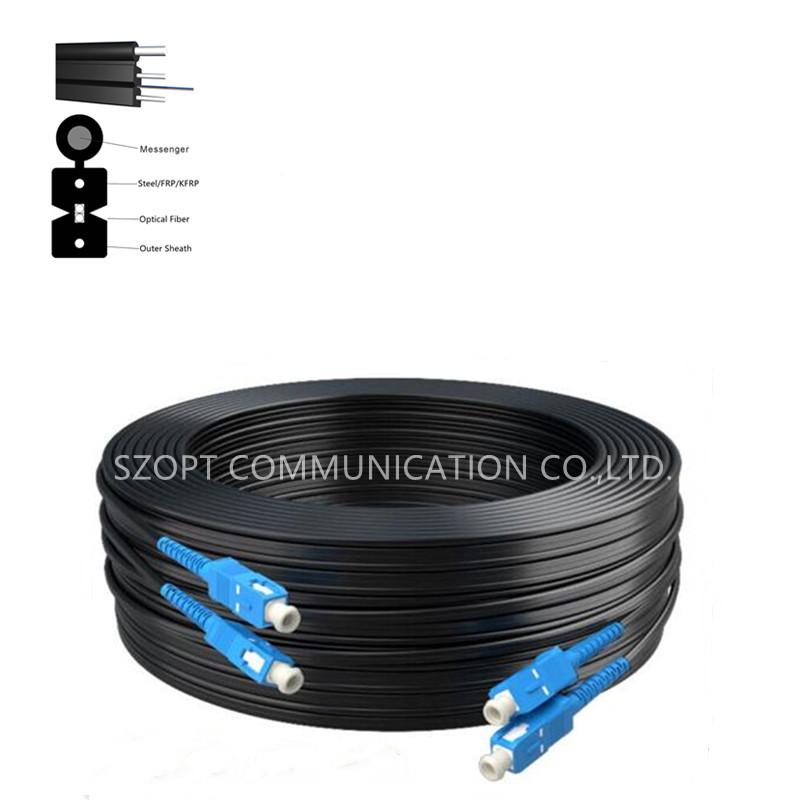

self-supporting drop cable patch cord

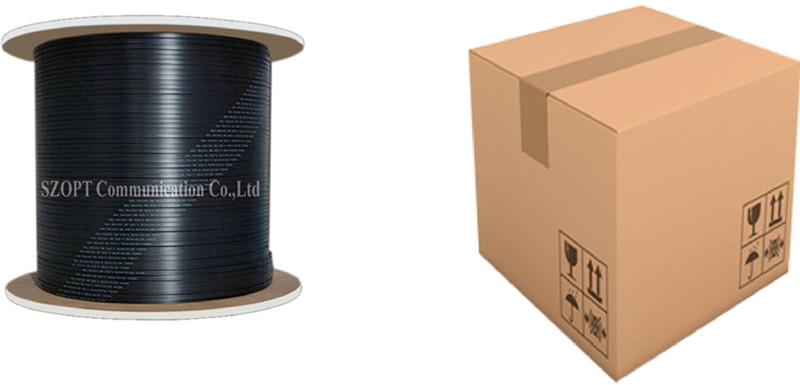

package of ftth drop cables


ready to ship the ftth drop cables

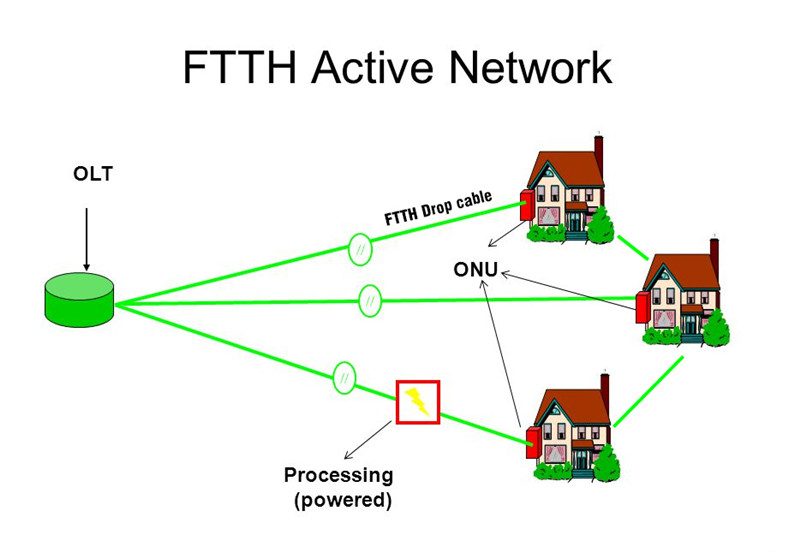

apliance of ftth drop cable

Application:

Indoor FTTH;

For patch cords and pigtails;

For communication equipment.



Feature:

Good mechanical and environmental characteristics;

Flame retardant characteristics;

Cable jacket options:PVC,LSZH

Strength Member options:Steel,FRP,KFRP.



Package:

1km/2km/3km per roll or custom,then put into a carton box.


Mechanical Characteristics:


Tensile Strength

Long Term

200N

Short Term

400N

Crush Resistance

Long Term

1000N/100mm

Short Term

2200N/100mm

Bending Radius

Dynamic

20D

Static

10D


Optical Characteristics:



G652D

G657A1

G657A2

G.655

62.5/125

50/125

Attenuation
(+20
)

@850nm

≤3.5dB/km

@1300nm

≤1.5dB/km

@1310nm

≤0.45dB/km

@1550nm

≤0.30dB/km

≤0.45dB/km

Bandwidth
Class A

@850

≥200MHZ·km

≥500MHZ·km

@1300

≥600MHZ·km

≥1000MHZ·km

Numerical Aperture

0.275±0.015NA

0.200±0.015NA

Cut-off Wavelength

≤1260nm

≤1480nm
