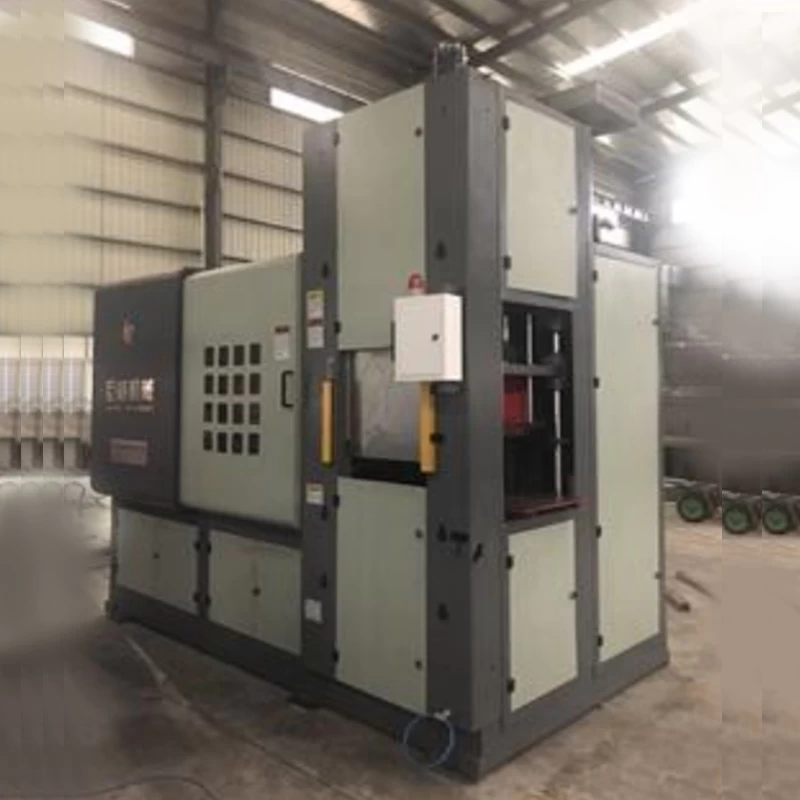

Full Automatic Moulding Machine

High efficiency: Fast molding speed,High survival rate,Long service life,Low malfunction,Low-energy,Low maintenance cost.




Full Automatic Moulding Machine


ADVANTAGES:


1.Full automatic molding machine can replace the traditional vibration-compression molding machine.

2.Can put sand core in it.Use Medium plate mold,aluminum mold,iron mold.

3.Can match the conveyor line,high effiency .

4.All kind of sand can use,no matter dry sand or wet sand.

5.Only can use double open mold.

6.Can change another mold,change time is shortly,only 1-2min.

7.At least save 10 worker compare with traditionnal vibration-compression molding machine.

8.OEM.


MAIN TECH.SPEC:

Model JN6171
Sand size(mm)long(L)×wdith(B) 610×710
Modeling method  Start blowing sand+squeeze
 Modeling speed (excluding core length)  30 seconds/floor

Compressed air consumptio

1.3m³
System air pressure 0.8Mpa
Using voltage AC220V orAC380V
Using motor power 18kw
Hydraulic system,maximum pressure 6Mpa
Sand type weight 250kg

APPLICATION:

Widely used in machinery parts, auto and motorcycle parts, valves, bearings, etc .

More competitive for those products require inner sand moulding machine.


SALE & AFTER-SALE SERVICE:

1)Warranty 1 year free.

2)Lifetime maintenance.

3)Afersale service: instant and fluenct English service, by all kind of methods.

4)E.g. person to person communication, or phone,   by local agent repair(such as India, Iyan, etc.), or other way by negotiation.
