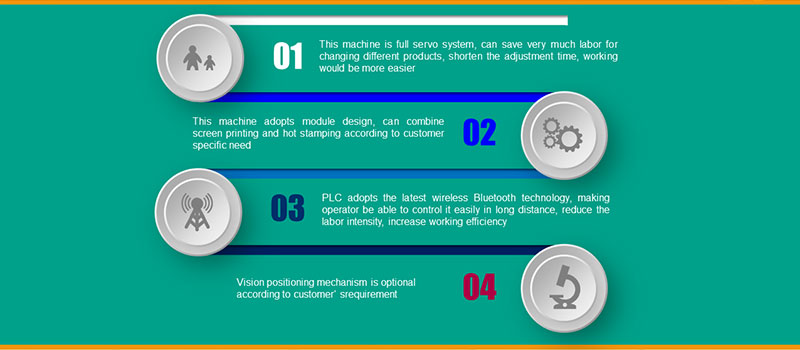

Features
This machine is full servo system, can save very much labor for changing different products, shorten the adjustment time, working would be more easier.
This machine adopts module design, can combine screen printing and hot stamping according to customer specific need.
PLC adopts the latest wireless Bluetooth technology, making operator be able to control it easily in long distance, reduce the labor intensity, increase working efficiency.
Vision positioning mechanism is optional according to customer's requirement.
Technical Data

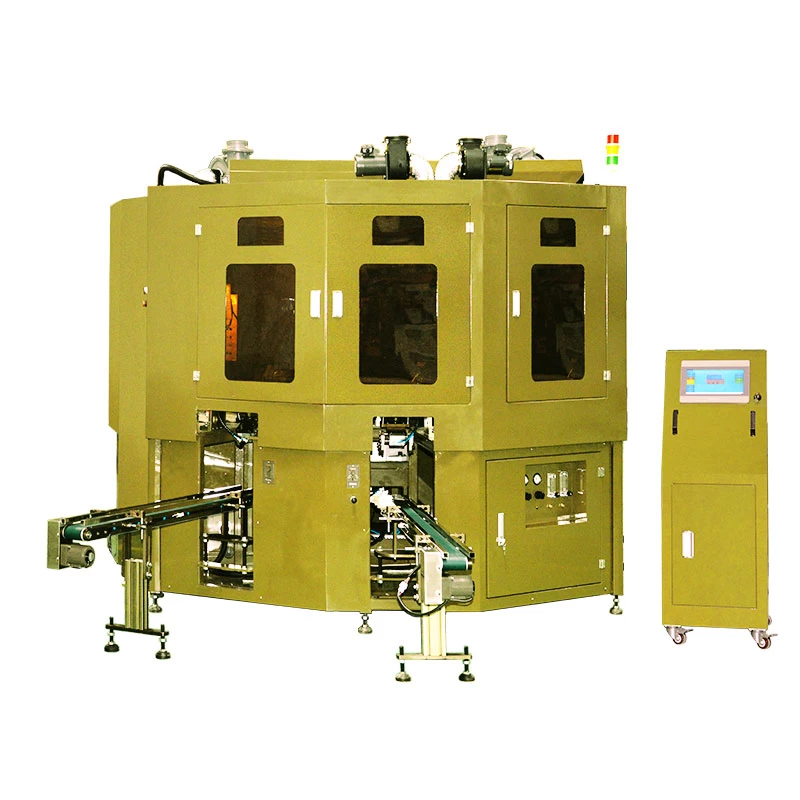

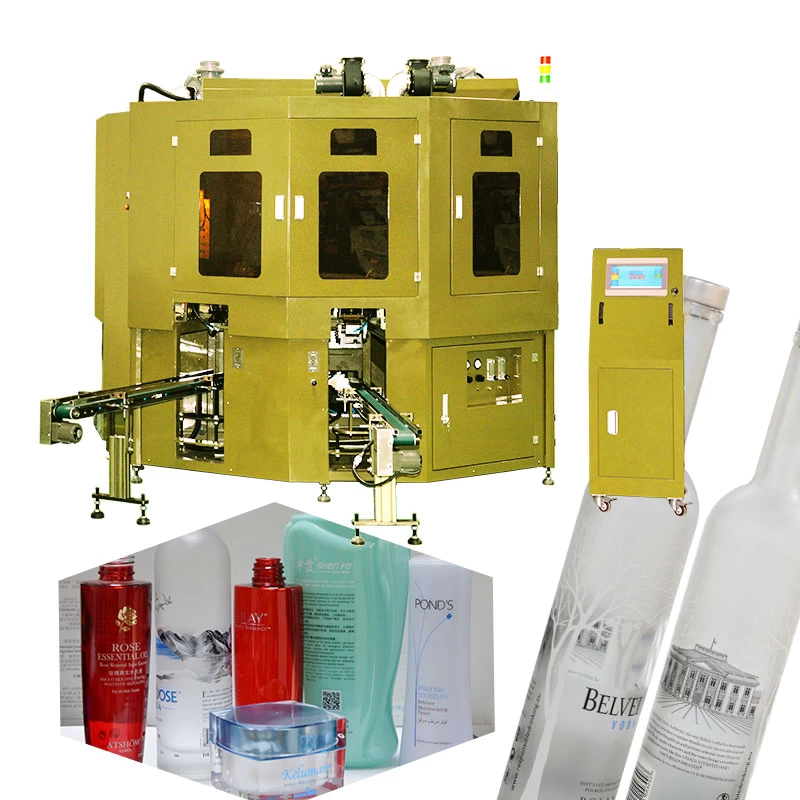

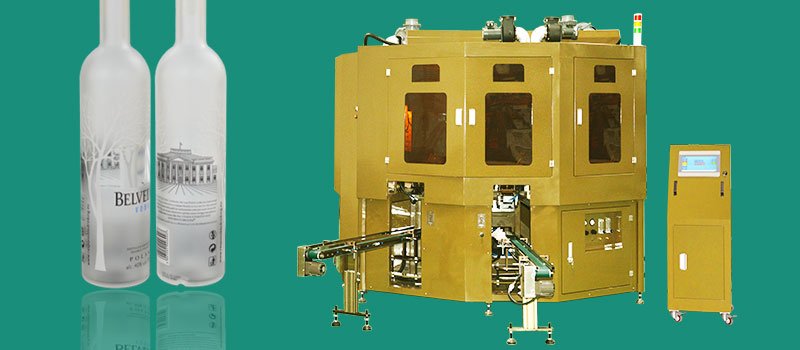

SF-MP310 Three color screen printer or two color screen printer plus hot stamping
Product size: (25-100)x(25-100)xH(40-300)mm
Max.speed:50pcs/min
Air pressure:5-7bar
Power:380V 50/60Hz 35Kw
Dimensions:2900x2600x2350mm

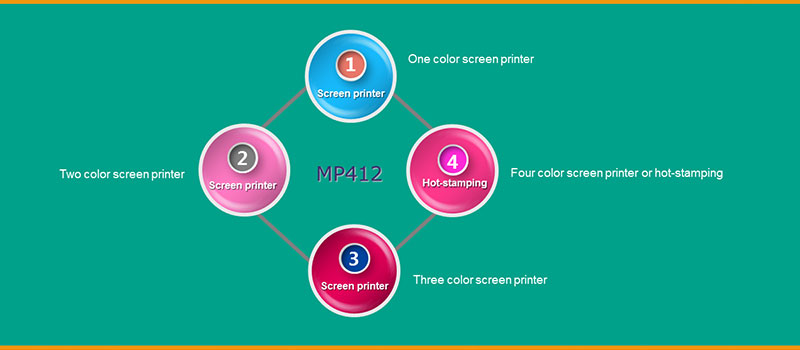

SF-MP412 Four color screen printer or three color screen printer plus hot stamping
Product size: (25-100)x(25-100)xH(40-300)mm
Max.speed:50pcs/min
Air pressure:5-7bar
Power:380V 50/60Hz 45Kw
Dimensions:3200x3000x2350mm
Screen printing sample
Details:

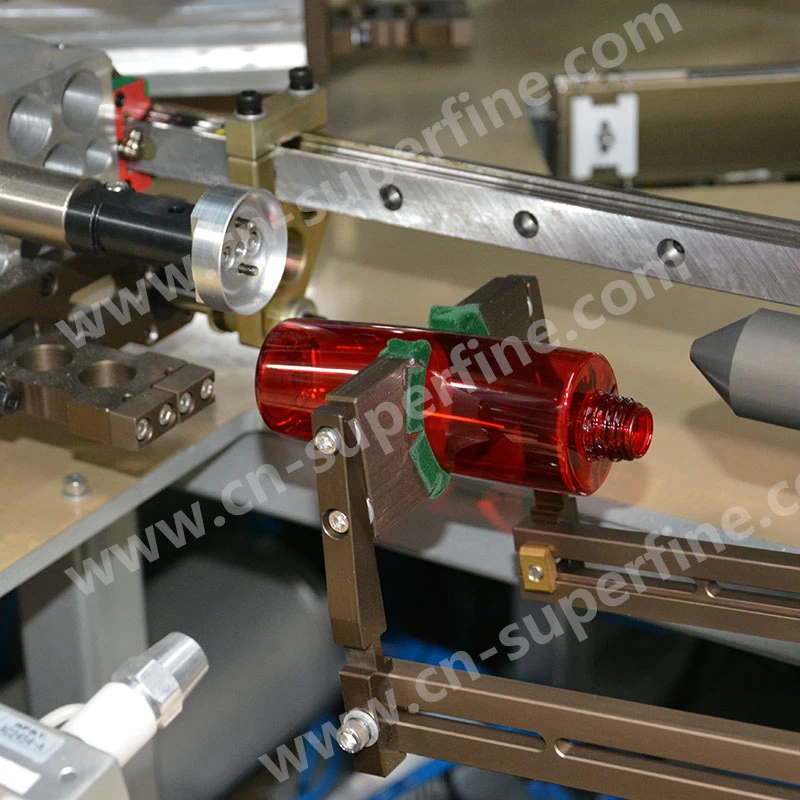

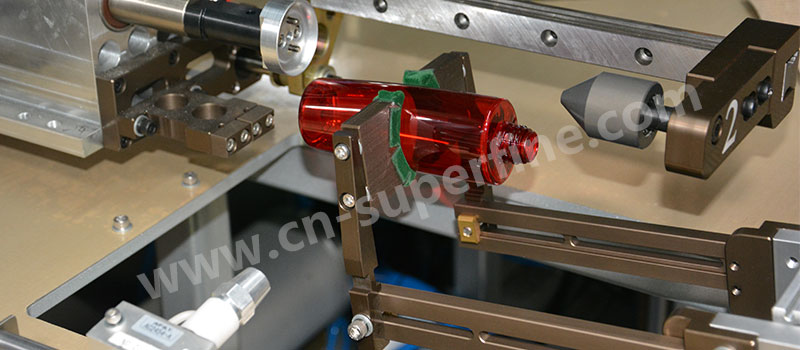

Loading Device
Anti-static/Flaming System

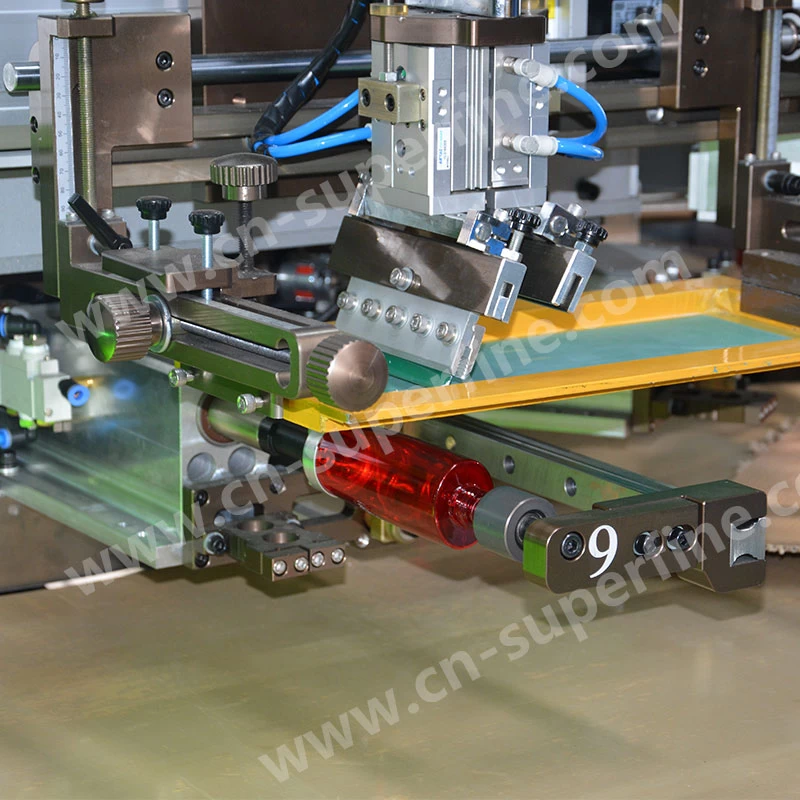

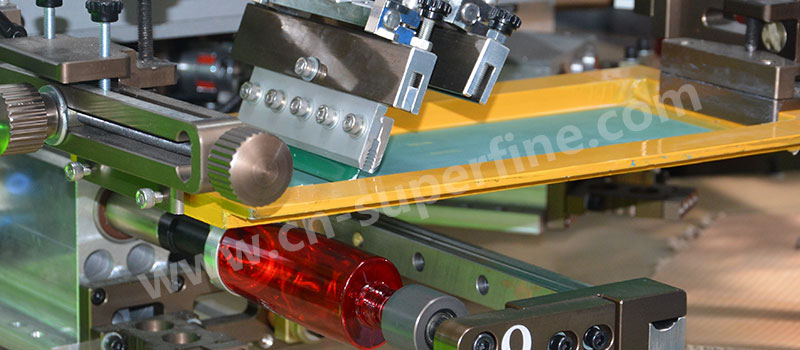

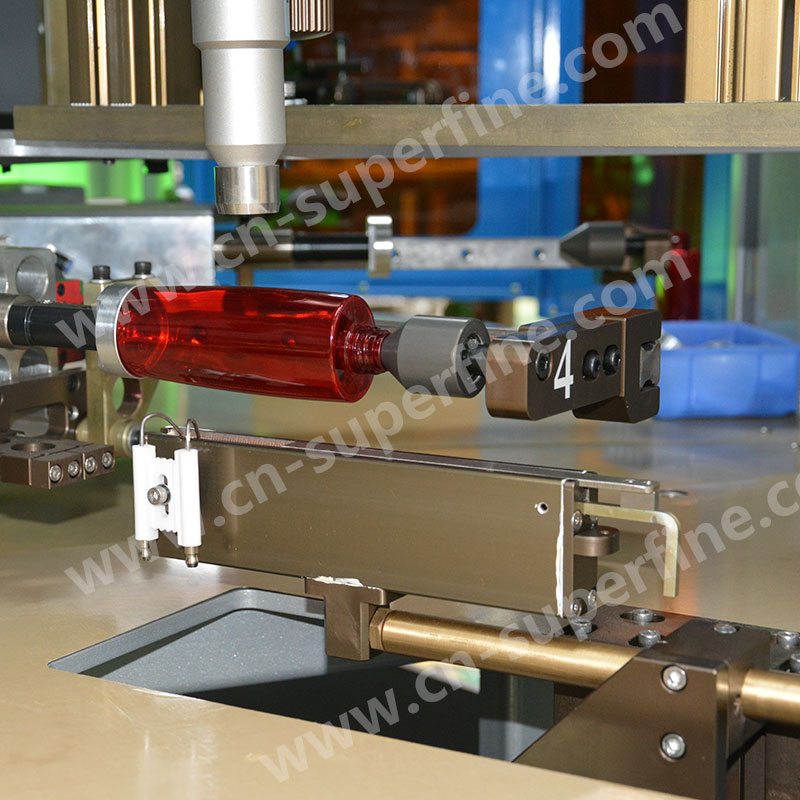

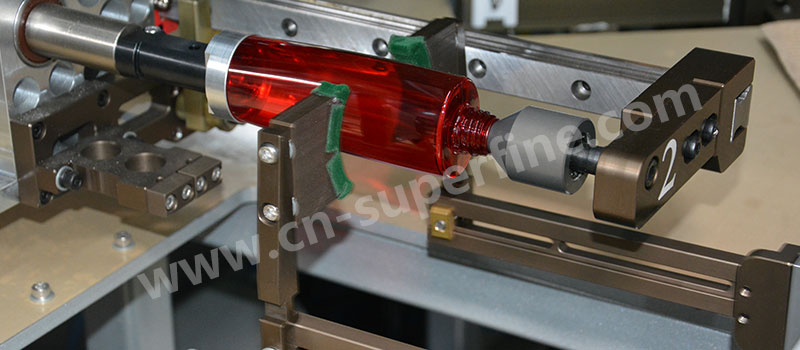

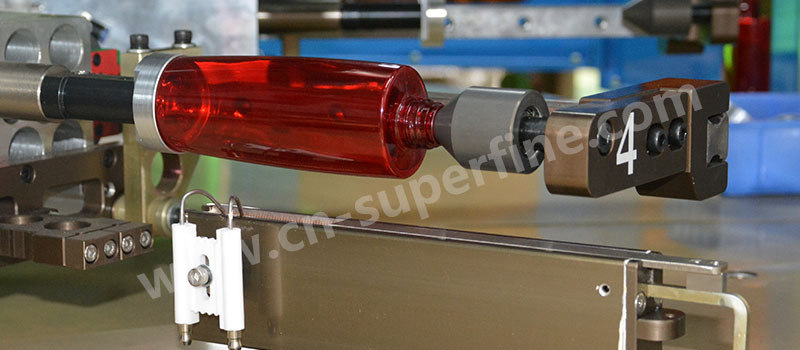

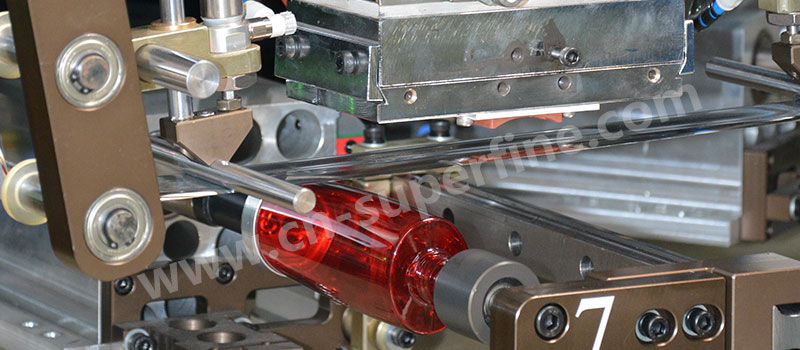

Screen Printing System
Hot-stamping System
Machine running video1:
Machine running video 2
