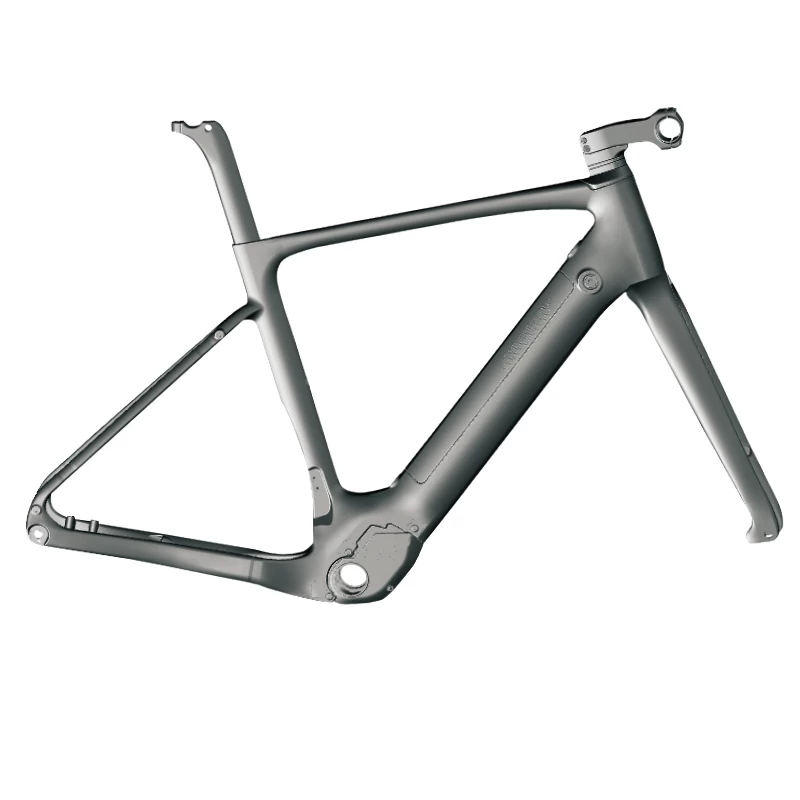

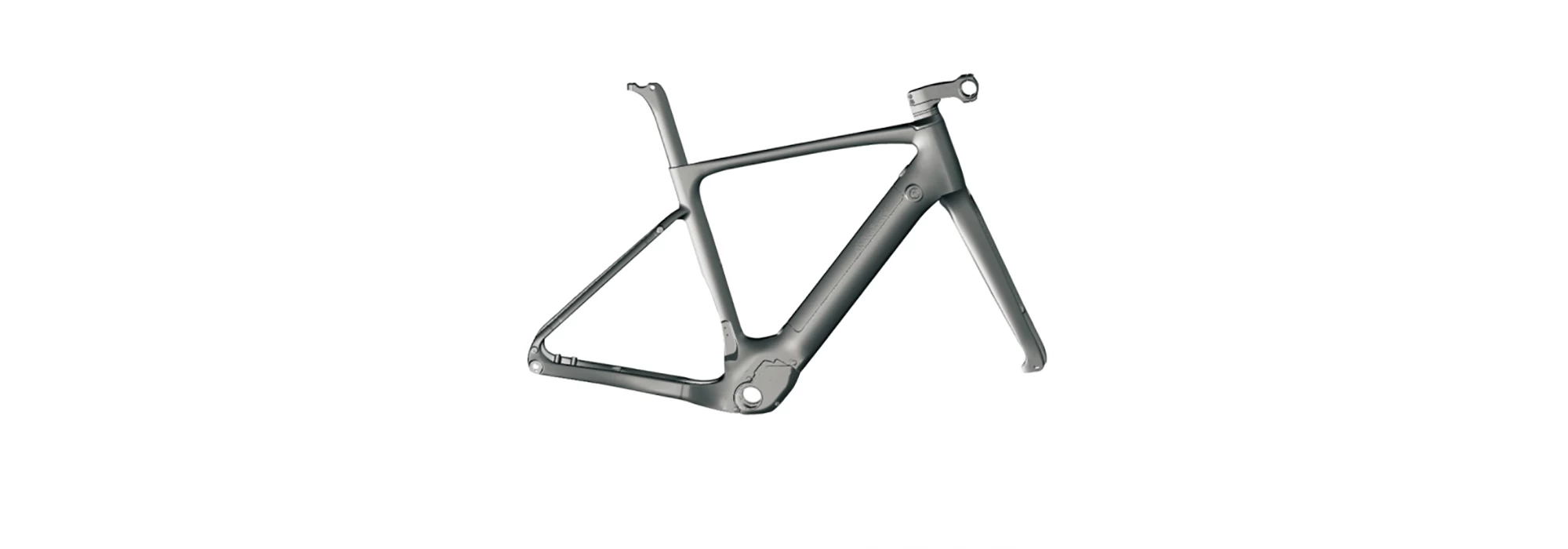

Full Carbon E-Gravel Frame FOR BAFANG M800 SYSTEM E029

Motor system: BAFANG M800

Size:  48/51/54/57 CM

Grade Available: 1750g(For size 540)

Facebook Twitter Pinterest LinkedIn 分享

























Frame Full Carbon E-gravel Frame
Size
 		48, 51, 54, 57 CM
Seat Post SP049 （Or ∅ 27.2 Round Seat post）
Headtube Integrated 52mm/52mm
Stem
 90mm/100mm/110mm/120mm
Weight 1750g(For size 540)
Seatpost special shape (special clamp)
Tire Max
 700*50C
O.L.D
 TA 142*12 mm
Motor system BAFANG M800
Cable Routing
 All internal cable routing
Max Chainring     50-34T
Brake mount type Shimano flat mount
Dropout Front 12*100mm
Warranty  2 years
