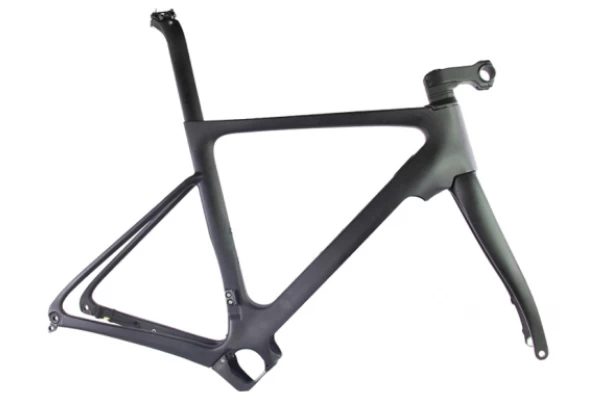

Full Carbon Road Disc Ebike Frameset FOR FAZUA SYSTEM E051

Finish: UD

Size: 47/50/53/55/58cm

Battery System:Fazua Evation drive

Facebook Twitter Pinterest LinkedIn 分享




Frame Aerodynamic carbon road disc brake ebike frame
Material High modulus Toray T700  carbon fiber
Size
 		47, 50, 53, 55, 58 CM
Fork
 YISHUNBIKE specify carbon fork
Headtube Straight 1 1/2'' head tube(upper 52mm lower 52mm)
Stem
 90mm/100mm/110mm/120mm
Weight 1200g/53cm
Seatpost Specify seat post
Motor system FAZUA Evation drive system
Max Tire Clearance             700*32c
Brake mount type Shimano flat mount disc brake
Dropout Front 12*100mm TA Rear 12*142mm TA
Groupset Machanical and Di2 compatible
Test Standard
 ISO4210
Warranty  2 years
