1.Price Advantage
We use full automatic equipment, so each month; we productivity can up to 1000sqm,
In this case, our raw material purchase price is lower than others.
2.Good quality raw material
LED: Adopting low current, high brightness LED, body antistatic >1000V, LED scope wavelength with in 5nm, so the screen with reliable performance, good consistency, fast response time and long life time.
Mask: All designed by ourselves, using good PC material, not easy to deform
3.Convenient installation
We prepare a full-set installation manual and free training, which will make you easy to install and operate the screen.
4.Good after-sale service
two years warranty, lifetime maintain, During the warranty ,all broken parts caused by the quality problem could be replaced by us free of charge
Competitive Advantage
We are advertising LED display screen manufacturer and global wholesaler of large outdoor and indoor full color electronic LED matrix display screens, LED signs and LED screens used for mayor advertising campaigns; placed next to highways, or LED message and video displays for football stadiums, electronic arrival and departure airport displays signs, LED screen displays for schools or shops and malls to highlight products and services.
· Our LED display signs have the ISO9001:2000 Quality System Certification;
· CE Certification of our led display signs;
· Rohs Certificates;
· Excellent, Technical Innovation;
· Price performance ratio;
· Contract Performance and Credibility;
· LED Displays with high brightness LED´s;
· Modular LED display screens;
· Our LED Display Screens have two years warranty ;
· High expertise and know-how about LED display products;
Personalized sale and less than 24 hours response on all inquiries.
Product Parameter
|
Module parameters
|
pixel pitch
|
10mm
|
|
LED configuration
|
1R1PG1B(LED-lamp)
|
|
LED packadge mode
|
DIP 346
|
|
size
|
160mm*160mm
|
|
pixel configuration
|
16(horizontal)*16(vertical)
|
|
Cabinet parameters
|
size
|
960mm*960mm*150mm
|
|
area
|
0.9216sqm/cabinet
|
|
metal housing
|
steal with zinc painting
|
|
pixel density by area
|
10000 pixels/sq meter
|
|
pixel density by per module
|
9216dots per cabinet
|
|
cabinet weight
|
60kg/cabinet
|
|
LOSE control rate/blind spot ratio
|
less than 0.03%,the discrete distribution
|
|
modules(horizontal)
|
6
|
|
modules(vertical)
|
6
|
|
Screen parameters
|
brightness
|
7000cd/sqm
|
|
viewing distance
|
>10m
|
|
viewing angle(50% brightness)
|
hor.120°ver,50°
|
|
life time
|
100,000hour (50% brightness)
|
|
operating temperature
|
-20°C~+60°C
|
|
operating humidity
|
10%~85%
|
|
operation voltage
|
AC220V±10%/AC380V±10% to DC5V,50hertz±10%
|
|
power consumption(typical)
|
MAX 1100W/sqm(450W/sqm)
|
|
front color
|
black, rubber
|
|
protection
|
IP65
|
|

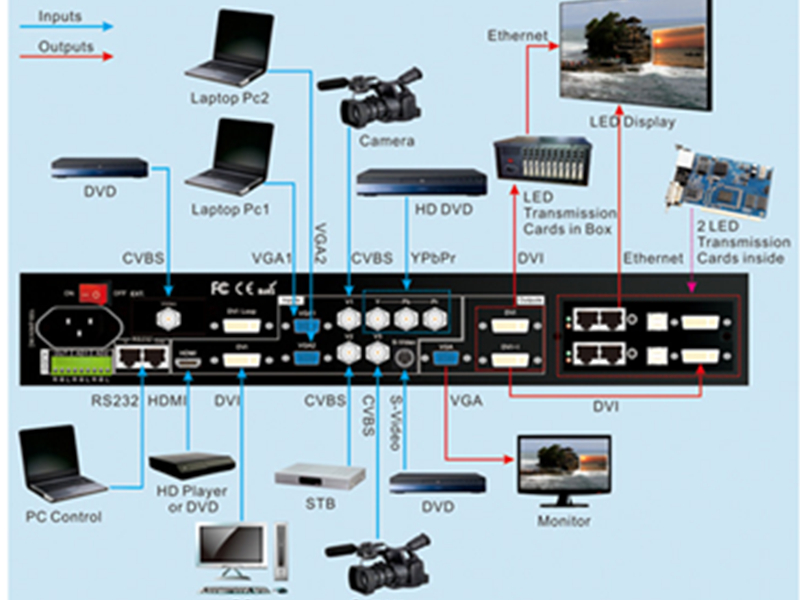

PC control system & software of led studio
|
communication distance
|
<100meters(by cat5 net cable),500meters of muti-mode optical fiber;1000meters of single-mode optical fiber
|
|
brightness adjustment
|
100 level
|
|
grey scale
|
16bit/color
|
|
color temperature
|
typical 6500k,5000--9000k be adjustable
|
|
color
|
256*256*256
|
|
LED driving method
|
1/4 scan; constant current drive
|
|
frame rate
|
60 hertz
|
|
image refresh rate
|
300 hertz
|
|
input signal
|
HDTV/PAL/S-VIDEO/VGA
|
Warranty
1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
Delivery Time
1.Delivery time: Accomplish manufacturing within 25 days after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer requires so.
2.We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
