Full Color Video LED Display P1.25 P2.604 P2.976 Large Rental Fixed Install

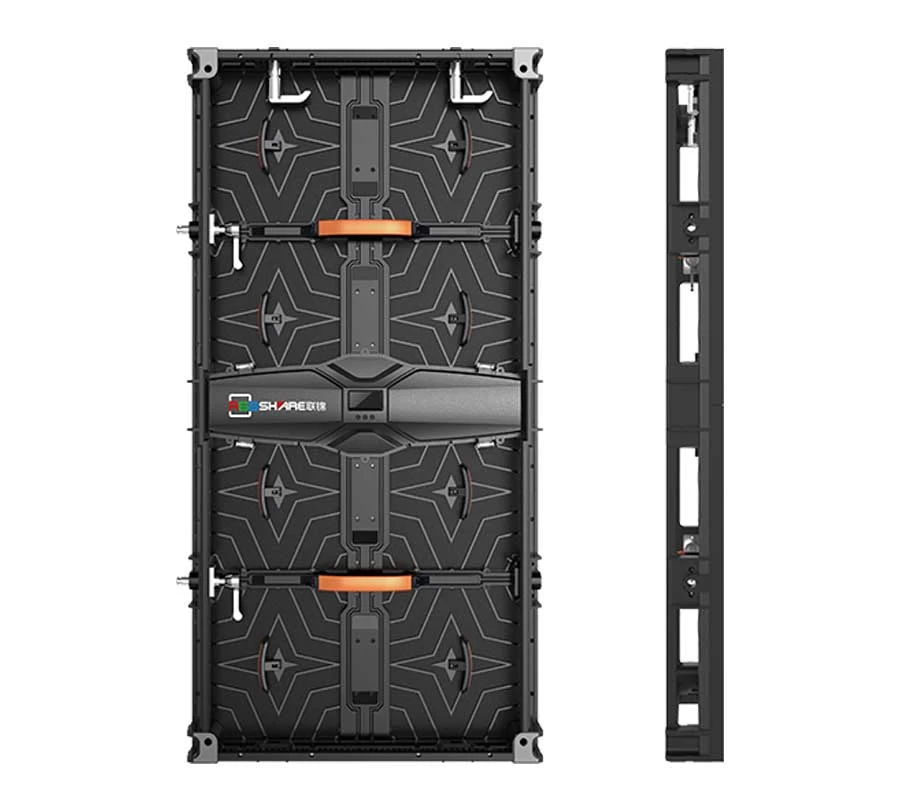

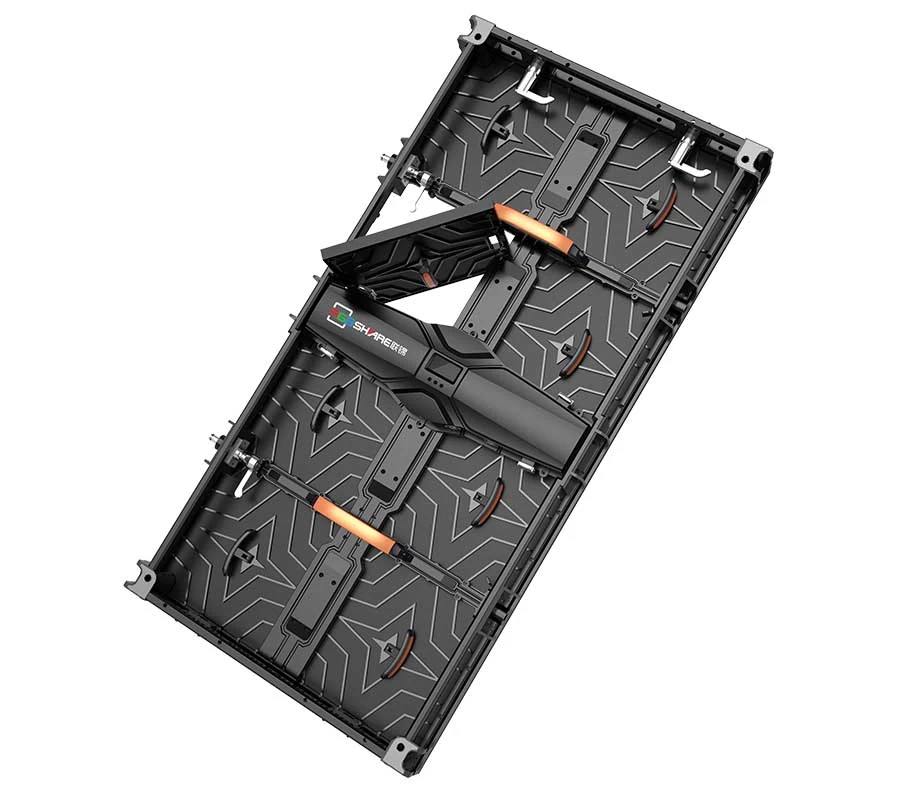

Front maintain cabinet/ Convenient to assemble and disassemble
Use of Special heat dissipation structure make excellent heat dissipation.
Ultra-wide viewing angle give you the largest screen viewing area

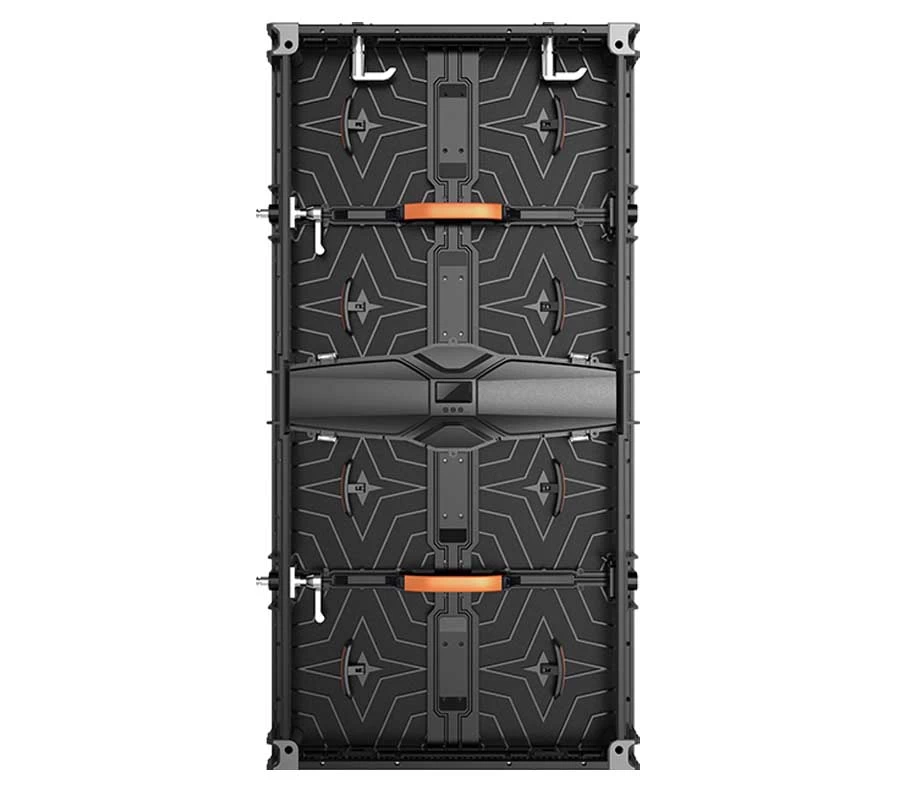

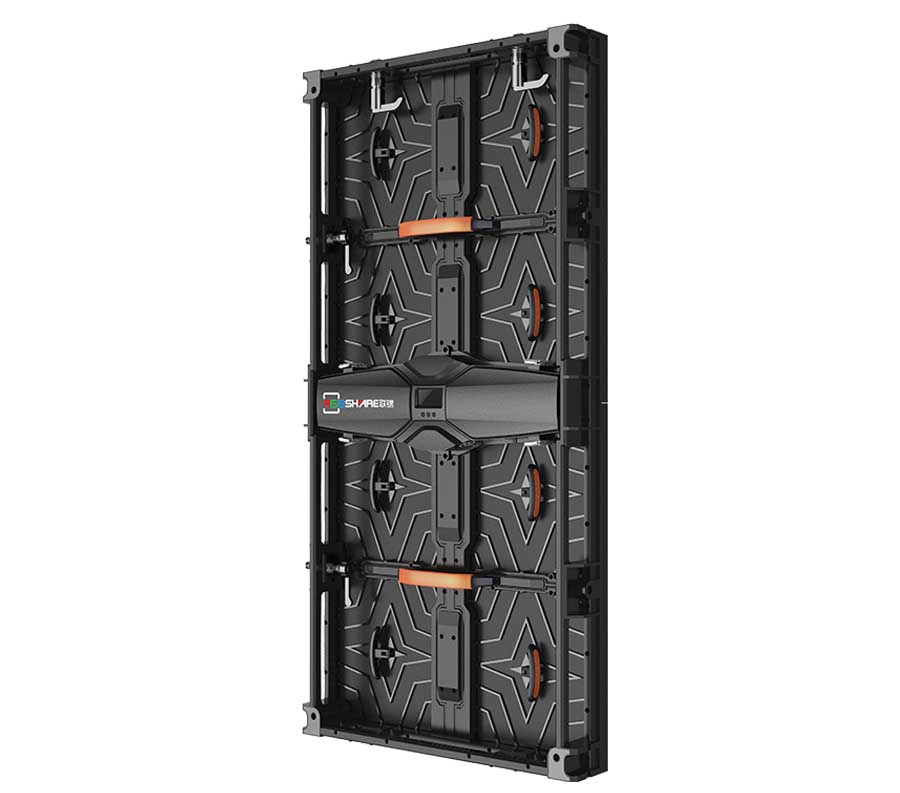

Die-cast aluminum cabinet design light and easy to transport.
Protection design
To protect both the module and user from accidental damage all cabinet corners are designed with protectable way.
Ultra thin and ultra light
|
Video Controller Card
|
Novastar Sending Card
Novastar Receiving Card
|
|
Control Card System
|
Linsn Sending Card
Linsn Receiving Card
|
|
Video Card Software
|
Colorlight Sending Card
Colorlight Receiving Card
|
|
VDWALL Video Processor
|
VIDEOWALL HDMI DVI VGA SDI S-Video DP USB LAN WIFI
|
|
UL CE ROHS EMC PSU
|
Meanwell Power Supply source
OMRON Siemens ABB Power Switch
|
|
Software System
|
BARCOLED NovaStudio NovaLCT LEDset LEDStudio LEDEditor LEDVISION HDPlayer LEDCenter MCLEDPlayer PowerLED
|
|
SMD LED Lamp
|
SMD5050 SMD3535 SMD3528 SMD2727 SMD2121 SMD2020 SMD1921 SMD1515 SMD1415 SMD1010 SMD0808
|
|
DIP LED Lamp
|
RGB546 RGB346 RGB570 3in1
|
|
Gold Wire LED Chips
|
BARCOLED Nationstar CREE EPISTAR OSRAM NICHIA KINGLIGHT
|
|
Driving IC
|
MBI5124 MBI5153 MBI5359 MBI5024 ICN2038S ICN2153
|
|
BarcoLED PCB
|
4 Layer PCB Board
|
|
BarcoLED PCB Board
|
1.6mm Thickness
|
|
Packaging Materials
|
Flight Case Wooden Box Carton Box
|
Specifications
|
Pixel Configuration
|
SMD2121
|
|
Pixel Pitch（mm）
|
2.98
|
|
Pixel Density（dot/m2）
|
112896
|
|
Module Pixel Matrix （W×H）
|
84×84
|
|
Module Size（mm）
|
250（W）×250（H）
|
|
Module Weight（kg）
|
0.55
|
|
Module Power Consumption Max.（W）
|
45
|
|
Module/Panel（W×H）
|
2×2/2x4
|
|
Panel Resolution（W×H）
|
168×168/168x336
|
|
Panel Size（mm）
|
500（W）×500（H）/500（W）×1000（H）
|
|
Panel Weight（kg）
|
7.5/15
|
|
Maitainence Mode
|
Front/Rear Maitainence
|
|
Panel type
|
Die-case Aluminum
|
|
Brightness（nits）
|
≥1000
|
|
Color Temperature（K）
|
3200—9300
|
|
Viewing Angle（Hor/Vert°）
|
160/160
|
|
Power Consumption Max（W/m2）
|
800
|
|
Power Consumption Avg（W/m2）
|
250
|
|
Operating Power Source
|
AC90~264V，Frequency 47-63（Hz）
|
|
Frame Frequency（Hz）
|
50&60
|
|
Drive Mode
|
Constant Driving，1/28S
|
|
Gray Scale
|
65536
|
|
Refresh Rate（Hz）
|
≥1920
|
|
Gray Scale per Color Level
|
14bit
|
|
Working Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
|
Storage Temperature/Humidity（℃/RH）
|
-20 – 60 / 10%-85%RH
|
