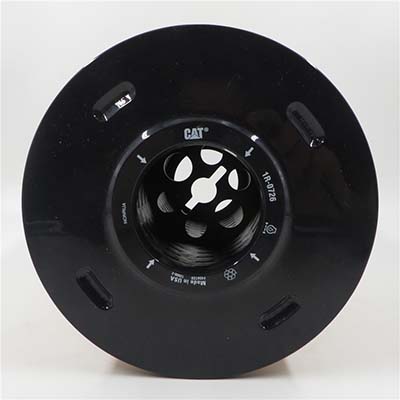

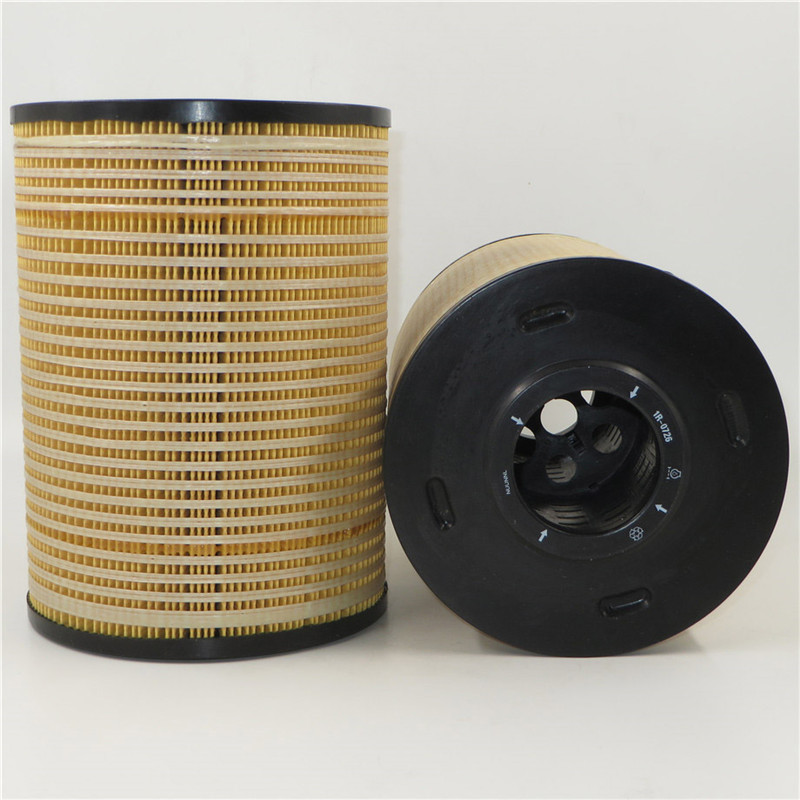

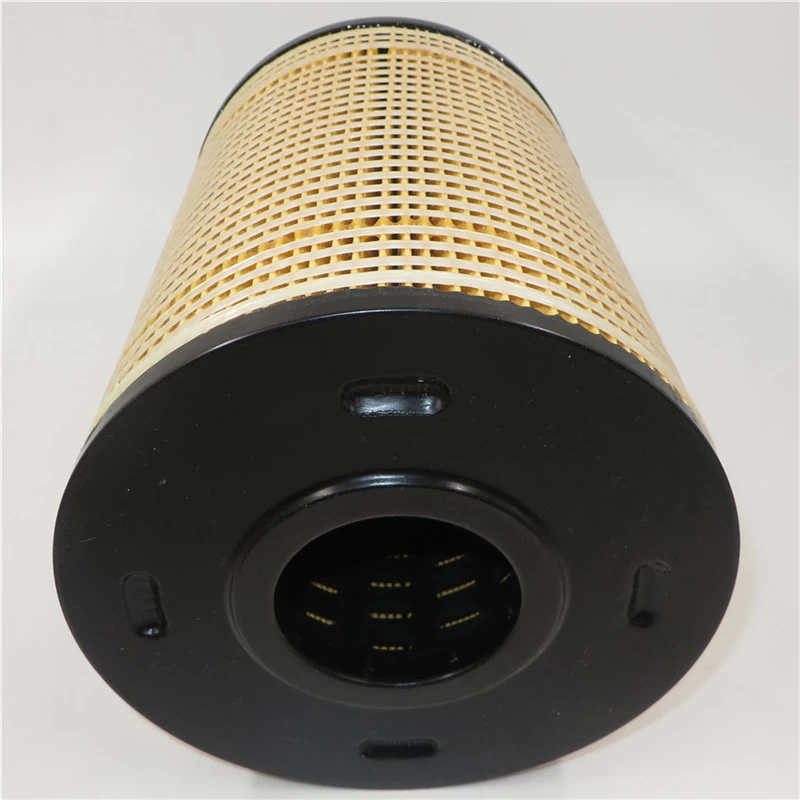

1R-0726, 1R0726 CAT Full-Flow Lube Spin-on Manufacturers
Cross Reference:
Fleetguard LF3485,7N7500, 4P2839, Donaldson P559128, Baldwin P7003, CAT 276-5403
The 1R-0726 Parameter：
|
Part Number
|
1R-0726, 1R0726
|
|
Parts Name
|
Oil Filter
|
|
Brand
|
CAT
|
|
Overall Height
|
254.00 mm
|
|
Outer Diameter
|
187.00 mm
|
|
Inner Diameter
|
67.00 mm
|
|
Efficiency Rating
|
Standard Efficiency
|
The 1R-0726 Advantage：
Standard Efficiency Filter are typically used on older machine models where tolerances are more forgiving.
CAT Engine Oil Filter are designed to meet the needs of Cat engines by providing superior protection against particles that can make their way into the lubrication system during service or component wear.
The 1R-0726 Feature：

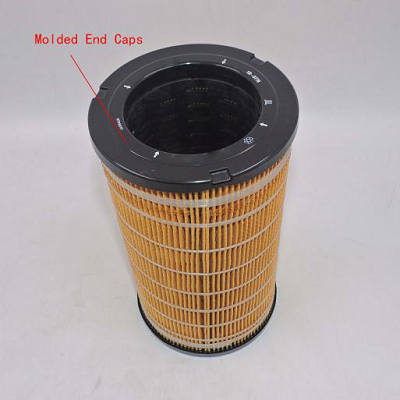

Molded End Caps
CAT filter have Molded end caps which can prevent leaks.
Non-Metallic Center Tube
CAT Filter are made with non-metallic center tubes to better protect the system. And prevents metal contamination
The 1R-0726 Application：
|
Compatible models
|
|
MENG
3512C, 3508, 3512, 3512B, 3516C, 3516B, 3516E, 3508B, 3516, 3508C, 3512E
|
|
3500
3512C, 3508C, 3516C, 3512, 3512B, 3516, 3508B, 3516B, G3516B, 3516BHD, 3516CHD
|
|
PETR
3512C, 3508C, 3516C, 3512, 3512B, 3516, 3508B, 3516B, G3516B, 3516BHD, 3516CHD
|
|
IENG
G3512, G3516, 3512B, 3508B, 3508, 3512, 3516, 3512C, G3508, G3512B, G3508B, 3512E, G3520B, 3516B, G3508J G3520J G3516J, 3516C, G3516B, 3508C, G3512H
|
|
EPG
3516C, PM3516, 3516B, G3516, 3508B, 3516, 3512, G3512H, 3512B, 3512C, G3516B, G3516H, PM3508 G3512, PM3512 3508, G3520H
|
