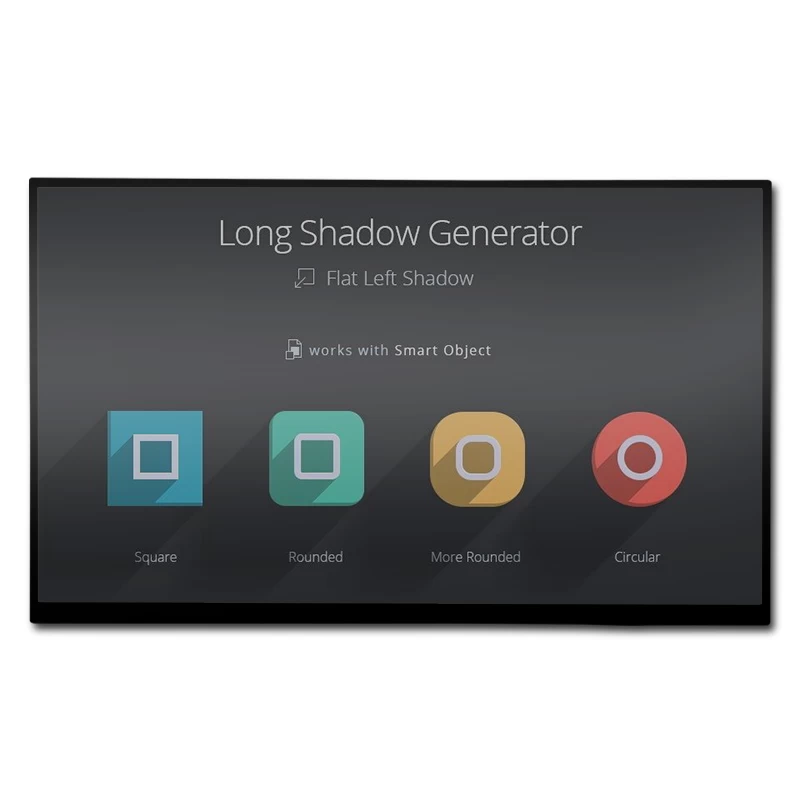

Full HD 1920x1080 resolution 12.8 inch lcd display with wide temperature
|
Specification
|
|
Part No.
|
TST128JUW1-01
|
|
Outline Dimension(mm)
|
294.4x175x6.9
|
|
Display Area(mm)
|
283.392x159.408
|
|
Resolution(dots)
|
WVGA, 1920*RGB*1080
|
|
Operating temperature(°C)
|
-30-85
|
|
Storage temperature(°C)
|
-40-90
|
|
Number of Pixel(pixels)
|
1920RGB(H)xRGBx1080(V)
|
|
Touch panel
|
without
|
|
Dot Pitch
|
0.1476(W)x0.1476(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Luminance
|
700 cd/m2
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
All
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
LVDS
|
|
Module lifetime(Hours)
|
20,000-50,000
|
