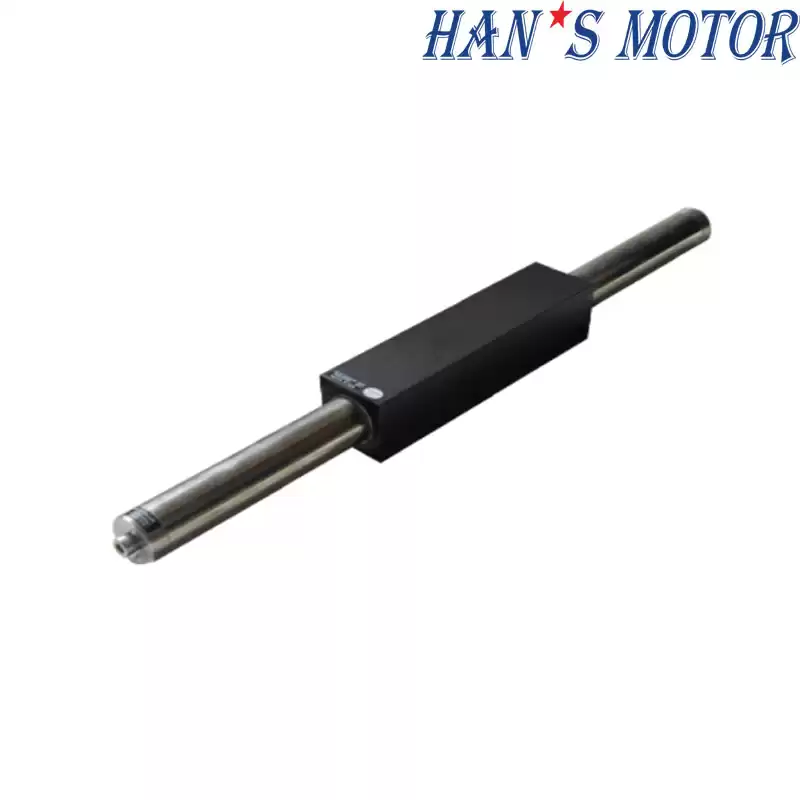

Product name: Full Magnetic Seal Compact Tubular Linear Motor LSMS38
Specifications
|
Mover Spec.：LSMSS01-38-xxx-xx
|
96-01
|
144-01
|
144-02
|
192-01
|
PERFORMANCE PARAMETERS
|
Symbol
|
Units
|
|
Continuous Force (Tmax）
|
Fc
|
N
|
28
|
42
|
42
|
56
|
Peak Force (1S）
|
Fp
|
N
|
112
|
167
|
167
|
223
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
4.8
|
5.8
|
5.7
|
6.8
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
48
|
72
|
75
|
93
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
1.7
|
1.7
|
3.9
|
1.7
|
Peak Current (1S)
|
Ip
|
Arms
|
6.8
|
6.8
|
15.6
|
6.8
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
16.4
|
24.6
|
10.8
|
32.8
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
5.5
|
8.2
|
3.6
|
10.9
|
Electrical Resistance(25℃，±5%）P-P
|
R
|
Ω
|
8.0
|
12.1
|
2.4
|
15.6
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
2.6
|
4.3
|
0.8
|
5.2
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
48
|
48
|
48
|
48
|
Magnetic Attraction
|
Fa
|
kN
|
0.0
|
0.0
|
0.0
|
0.0
|
Max.DC Bus Voltage
|
Ubus
|
V
|
330
|
330
|
330
|
330
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
21.2
|
13.5
|
33.0
|
9.7
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
15.7
|
8.1
|
27.0
|
4.6
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
22.9
|
15.3
|
34.8
|
11.4
|
Mover Mass
|
Mp
|
Kg
|
0.5
|
0.7
|
0.7
|
1.0
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
0.5
|
0.5
|
0.5
|
0.5
|

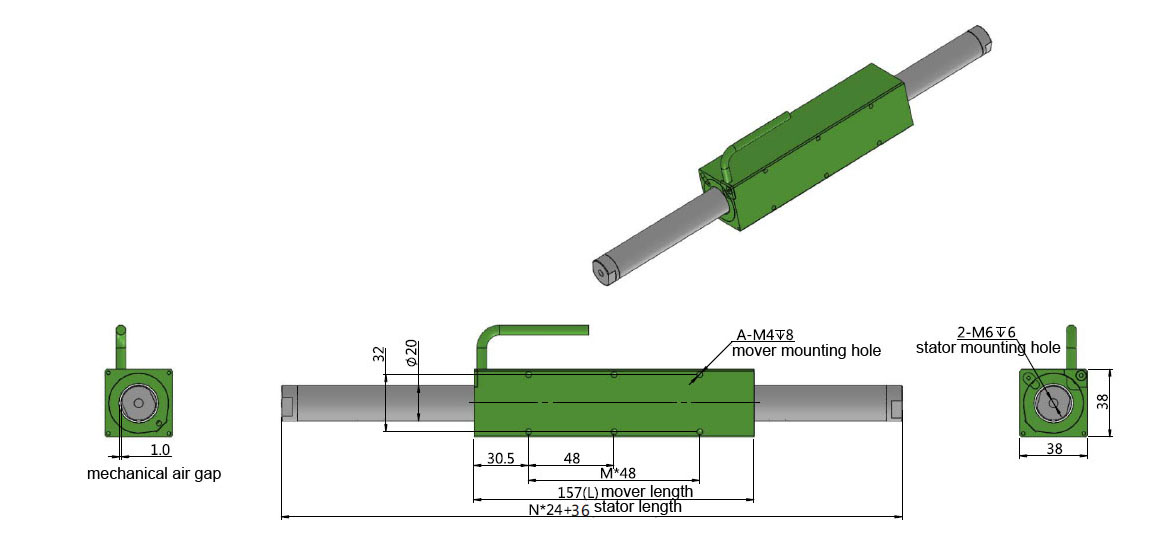

Dimension
What is tubular linear motor？
Tubular linear motor, the mover and stator
are use closed cylindrical structure, no lateral edge effect. Hall sensor and
the circuit integrated in the mover, do signal feedback to achieve positioning,
compact structure. External position sensors can also be connected to achieve
higher precision requirements.
Features: Compact structure, high protection grade, long
service life, low cost, convenient maintenance, easy to achieve mass
production.
Applications：It widely used in packaging, assembly, handling, semiconductor,
electronics, automation, printing and other industries.
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
